Machine Information

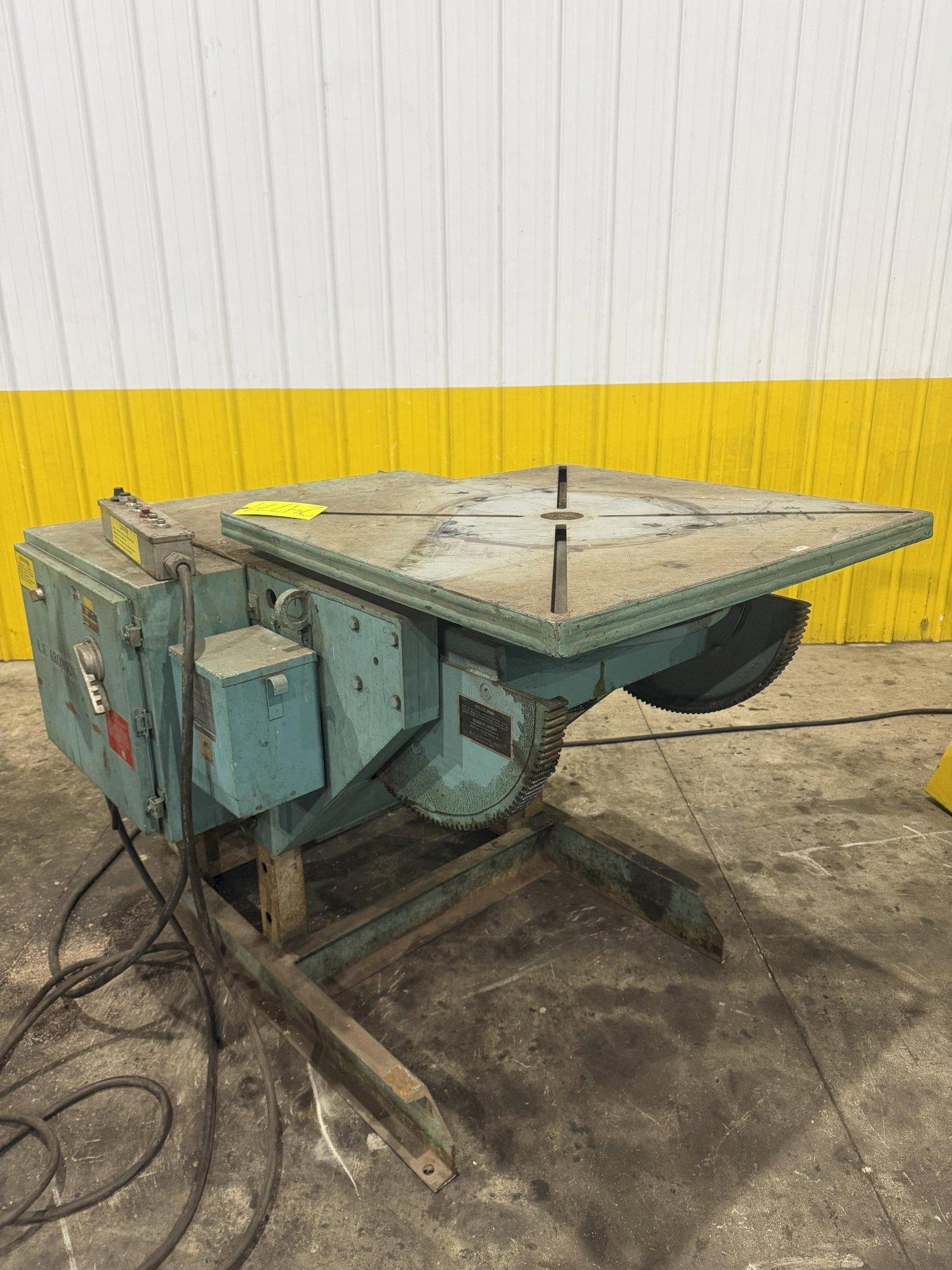

500 LB X 30" RANSOME MODEL #5P WELDING POSITIONER: STOCK #14229

Stock #: 14229

Equipped With

Serial #: 1320520
500 Lbs Capacity;

Equipped with: 10 Inch 3 Jaw Chuck
360 Degree Variable-Speed Power Rotation
135 Degree Power Tilt
30" Radially T-Slotted Rotary Table
Adjustable Table Elevation
Hand Held Variable-Speed Control

Table Diameter 30"
Table Weight at 6" Eccentricity 500 LBS.
Table Weight at 12" Eccentricity 312 LBS.
Table Weight at 18" Eccentricity 227 LBS.
Table Weight at 24" Eccentricity 178 LBS.
Rotation Torque, Inch Pounds 3000 LBS.
Tilt Torque, Inch Pounds 5000 LBS.
Table Rotation Speed, Variable .05 to 2.0 RPM
Table Rotation, Degrees 360 DEGREES
Table Tilt, Degrees 135 DEGREES
Vertical Table, Adjustment 18"
Vertical Table Height, Maximum 50-1/2"
Vertical Table Height, Minimum 32-1/2"
