Machine Information

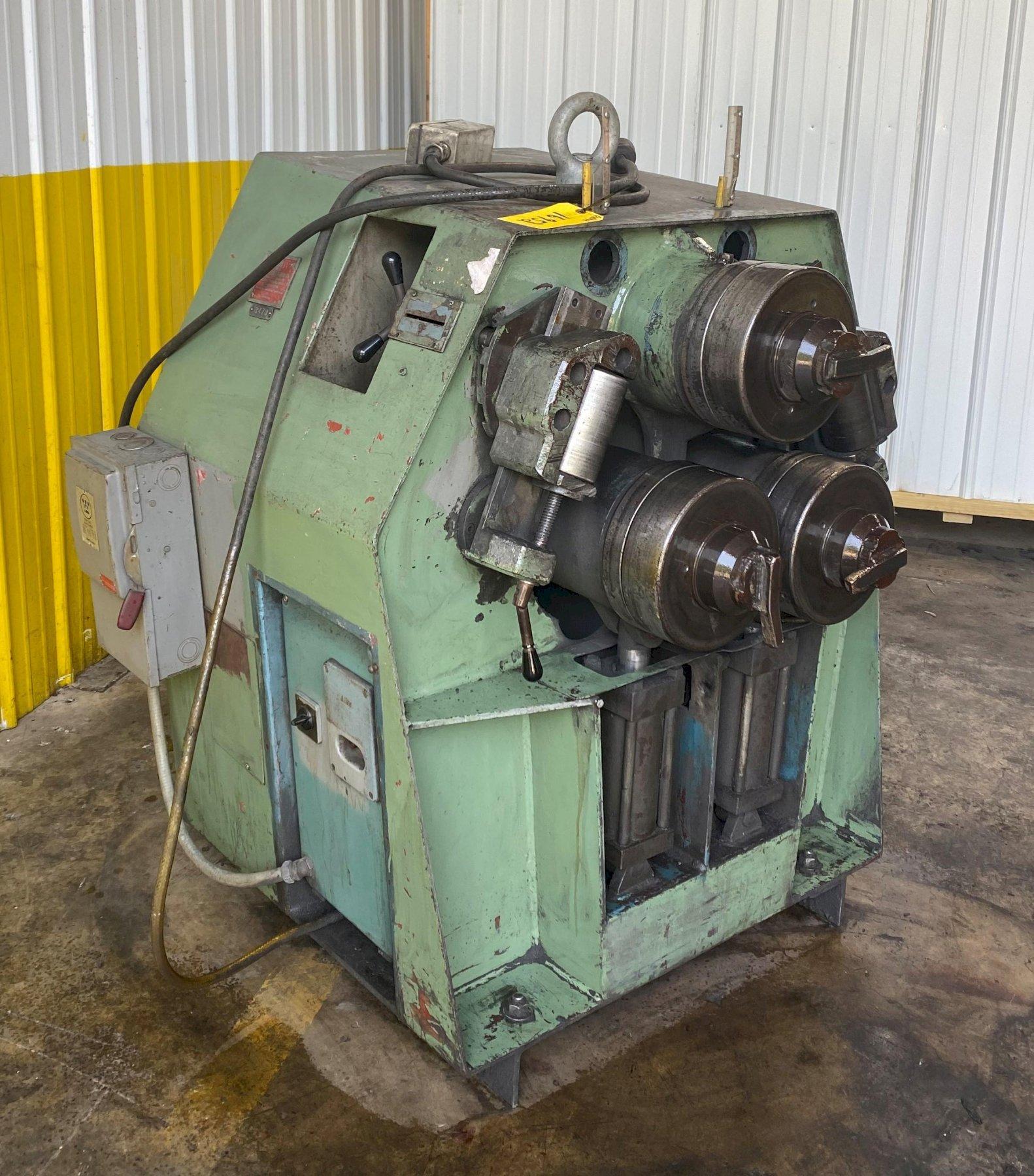

3" x 3" x 3/8" PULLMAX MODEL #Z31 VERTICAL OR HORIZONTAL HYDRAULIC ANGLE ROLL: STOCK 16952

Stock #: 16952

Equipped With

SERIAL ............................. 12354
MODEL .............................. Z31
CAPACITY ANGLES LEG-OUT ............ 3" X 3" X 3/8"
MINIMUM DIAMETER SINGLE PASS ....... 36"
CAPACITY ANGLES LEG-IN ............. 2-1/2" X 2-1/2" X 3/8"
MINIMUM DIAMETER SINGLE PASS ....... 48"
SMALLEST ANGLE LEG-IN OR LEG-OUT ... 1" X 1" X 1/4"
MINIMUM DIAMETER IN SINGLE PASS .... 18"
I BEAMS ON FLANGE .................. 5" TO 40" DIAMETER
CHANNELS FLANGE OUT ................ 5" X 1-3/4" TO 32" DIAMETER
FLATS ON EDGE ...................... 3" X 9/16" TO 20" DIAMETER
FLATS ON FLAT ...................... 5" X 1" TO 16" DIAMETER
ROUND BARS ......................... 1-3/4" TO 16" DIAMETER
SQUARE BARS ........................ 1-3/4" TO 16" DIAMETER
STANDARD PIPE ...................... 2" TO 28" DIAMETER
TEES LEG-OUT ....................... 4" X 3" X 3/8" TO 28" DIAMETER
BENDING SPEED ...................... 26 FPM
LEG-IN/LEG-OUT GUIDES .............. YES
LOWER ROLLS ADJUSTMENT ............. HYDRAULIC

Buy Machines

3" x 3" x 3/8" PULLMAX MODEL #Z31 VERTICAL OR HORIZONTAL HYDRAULIC ANGLE ROLL: STOCK 16952

Stock # 16952

Share Machine
Print Details

Machine Specifications

SERIAL ............................. 12354
MODEL .............................. Z31
CAPACITY ANGLES LEG-OUT ............ 3" X 3" X 3/8"
MINIMUM DIAMETER SINGLE PASS ....... 36"
CAPACITY ANGLES LEG-IN ............. 2-1/2" X 2-1/2" X 3/8"
MINIMUM DIAMETER SINGLE PASS ....... 48"
SMALLEST ANGLE LEG-IN OR LEG-OUT ... 1" X 1" X 1/4"
MINIMUM DIAMETER IN SINGLE PASS .... 18"
I BEAMS ON FLANGE .................. 5" TO 40" DIAMETER
CHANNELS FLANGE OUT ................ 5" X 1-3/4" TO 32" DIAMETER
FLATS ON EDGE ...................... 3" X 9/16" TO 20" DIAMETER
FLATS ON FLAT ...................... 5" X 1" TO 16" DIAMETER
ROUND BARS ......................... 1-3/4" TO 16" DIAMETER
SQUARE BARS ........................ 1-3/4" TO 16" DIAMETER
STANDARD PIPE ...................... 2" TO 28" DIAMETER
TEES LEG-OUT ....................... 4" X 3" X 3/8" TO 28" DIAMETER
BENDING SPEED ...................... 26 FPM
LEG-IN/LEG-OUT GUIDES .............. YES
LOWER ROLLS ADJUSTMENT ............. HYDRAULIC

Specifications
Weight 4500 pounds
