Machine Information

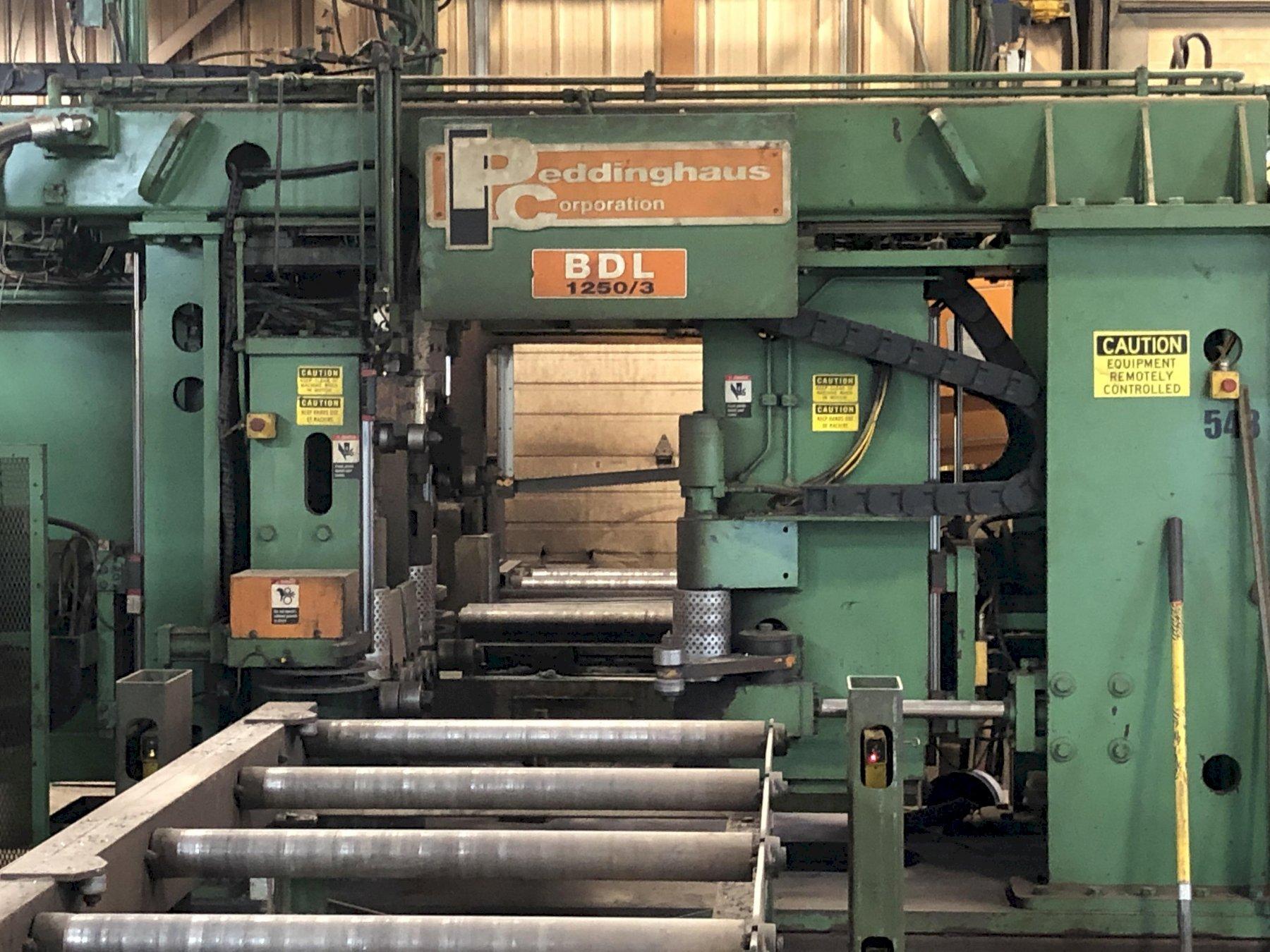

PEDDINGHAUS MODEL #BDL-1250 3 SPINDLE BEAM DRILL LINE WITH GERNETTI HORIZONTAL BEAM SAW: STOCK 14777

Stock #: 14777

Equipped With

DRILL MODEL BDL-1250/3a
MATERIAL WIDTH 3" TO 50"
MATERIAL HIEGHT 24" MAXIMUM
LENGTH 62" MINIMUM
WORK WEIGHT 43,800 LBS

DRILL SPINDLES 3
SPINDLE MOTOR 10 HP EACH
SPINDLE TRAVEL 11-13/16"
RAPID ADVANCE 240 FPM
SPINDLE FEEDS 1 TO 12 IPM, VARIABLE (PC CONTROL)
DRILL DIAMETER 5/16" TO 1-9/16"

WEB & FLANGE ASSEMBLY
HORIZONTAL TRAVEL SPEED 130 FPM MAXIMUM
WEB TRAVEL SPEED 66 FPM
FLANGE SPEED 66 FPM
CLAMPING FORCE 830 TO 26,500 LBS

HYDRAULIC MOTOR 25 HP

AIR CONSUMPTION 30 CU FPM
PC CONTROL

Buy Machines

PEDDINGHAUS MODEL #BDL-1250 3 SPINDLE BEAM DRILL LINE WITH GERNETTI HORIZONTAL BEAM SAW: STOCK 14777

Stock # 14777

Share Machine
Print Details

Machine Specifications

DRILL MODEL BDL-1250/3a
MATERIAL WIDTH 3" TO 50"
MATERIAL HIEGHT 24" MAXIMUM
LENGTH 62" MINIMUM
WORK WEIGHT 43,800 LBS

DRILL SPINDLES 3
SPINDLE MOTOR 10 HP EACH
SPINDLE TRAVEL 11-13/16"
RAPID ADVANCE 240 FPM
SPINDLE FEEDS 1 TO 12 IPM, VARIABLE (PC CONTROL)
DRILL DIAMETER 5/16" TO 1-9/16"

WEB & FLANGE ASSEMBLY
HORIZONTAL TRAVEL SPEED 130 FPM MAXIMUM
WEB TRAVEL SPEED 66 FPM
FLANGE SPEED 66 FPM
CLAMPING FORCE 830 TO 26,500 LBS

HYDRAULIC MOTOR 25 HP

AIR CONSUMPTION 30 CU FPM
PC CONTROL

Videos
Specifications
Dimensions 77" X 221" X 113.5" high
Weight 26000 pounds
