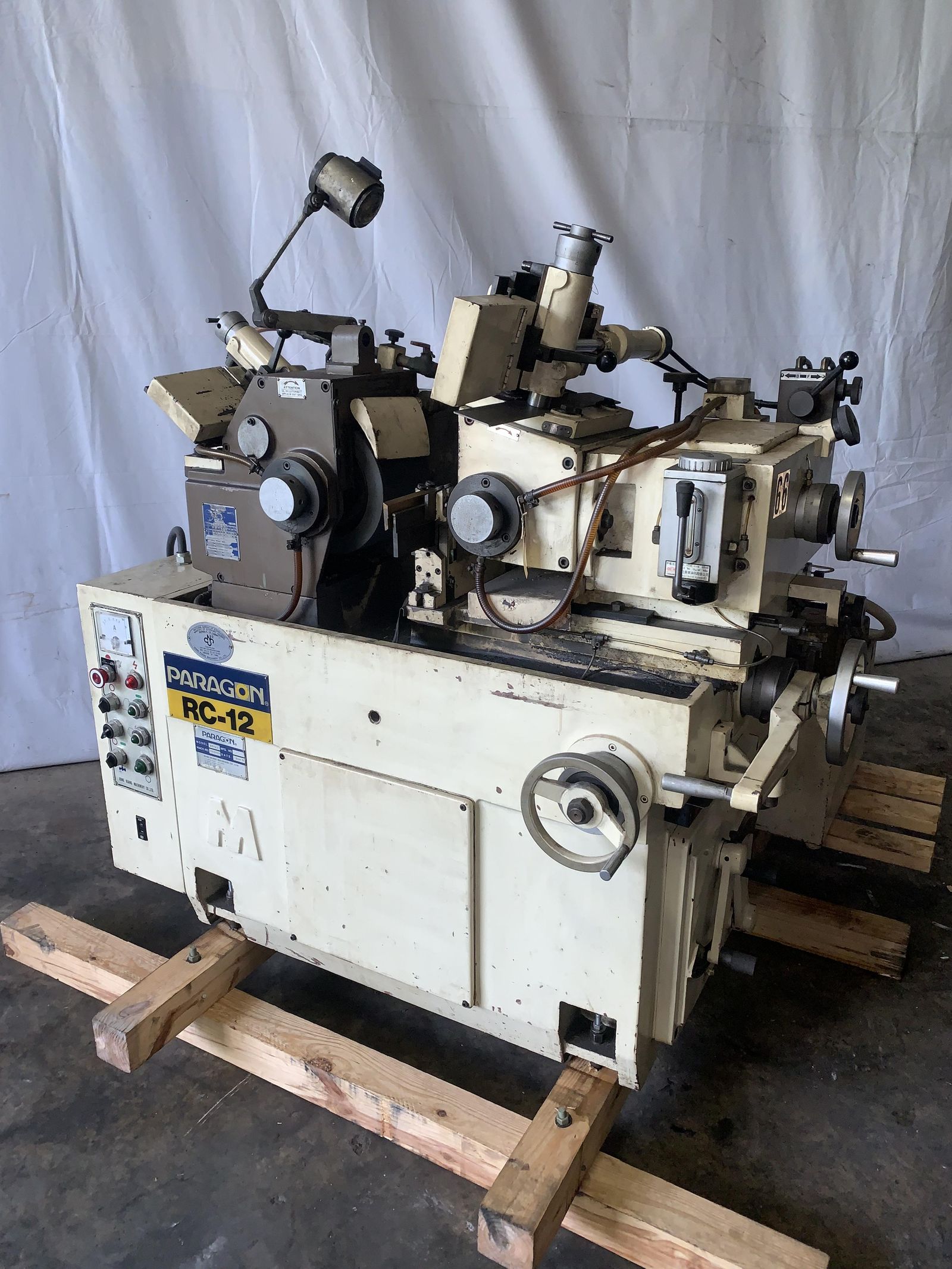

PARAGON #RC-12 CENTERLESS GRINDER: STOCK #11064

Stock #: 11064

Equipped With

SERIAL ...................... 121298
MODEL ....................... RC-12
YEAR ........................ 1991
GRINDING RANGE ----------- ( CATALOG ) ---- .00394 TO 3.1"
SET UP FOR GRINDING RANGE ----------------- .0394 TO 1.5"
GRINDING WHEEL SIZE ----------------------- 12" X 6" X 4.7"
REGULATING WHEEL SIZE --------------------- 8" X 6" X 3.5"
GRINDING WHEEL SPEED ---------------------- 1745 RPM
REGULATING WHEEL SPEED --- ( 7 ) ---------- 21 TO 333 RPM
REGULATING WHEEL SWIVEL ANGLE -------------  5 DEG.
GRINDING WHEEL MOTOR ---------------------- 7.5 HP 220/440/3/60
REGULATING WHEEL MOTOR -------------------- 1 HP
THRU-FEED FIXTURE
HYDRAULIC WHEEL DRESSERS
MANUAL INFEED OF HEAD
HYDRAULIC UNIT
COOLANT SYSTEM

Buy Machines

PARAGON #RC-12 CENTERLESS GRINDER: STOCK #11064

Stock # 11064

Share Machine
Print Details

Machine Specifications

SERIAL ...................... 121298
MODEL ....................... RC-12
YEAR ........................ 1991

GRINDING RANGE ----------- ( CATALOG ) ---- .00394 TO 3.1"
SET UP FOR GRINDING RANGE ----------------- .0394 TO 1.5"
GRINDING WHEEL SIZE ----------------------- 12" X 6" X 4.7"
REGULATING WHEEL SIZE --------------------- 8" X 6" X 3.5"
GRINDING WHEEL SPEED ---------------------- 1745 RPM
REGULATING WHEEL SPEED --- ( 7 ) ---------- 21 TO 333 RPM
REGULATING WHEEL SWIVEL ANGLE -------------  5 DEG.
GRINDING WHEEL MOTOR ---------------------- 7.5 HP 220/440/3/60
REGULATING WHEEL MOTOR -------------------- 1 HP
THRU-FEED FIXTURE
HYDRAULIC WHEEL DRESSERS
MANUAL INFEED OF HEAD
HYDRAULIC UNIT
COOLANT SYSTEM

Specifications
Dimensions 72 X 48 X 60
Weight 3000 pounds
