Overview


SYSTEM CONSISTS OF:
-  MATERIAL HANDLING LOADING WITH VACUUM LIFT
-  ENTRY ROLLER CONVEYOR
-  6 WHEEL ROTOBLAST COMPARTMENT
-  BRUSH OFF/BLOW OFF COMPARTMENT
-  EXIT ROLLER CONVEYOR

ROTOBLAST COMPARTMENT:
SERIAL ................... ES1923/S890714
NEW ...................... 1990
MODEL .................... ES-1923 ROTOBLAST
TOP & BOTTOM BLASTING .... YES
WIDTH OF OPENING ......... 162"
HEIGHT OF OPENING ........ 4" MAX
NUMBER OF SHOT WHEELS .... 6
WHEEL CONFIGURATION ...... 3 TOP / 3 BOTTOM
WHEEL MODEL .............. 240DD-4RI
WHEEL MOTORS ............. 25 HP EACH, 1800 RPM
WHEEL DRIVES ............. DIRECT
POWER ROLLERS ............ (6) X 6-5/8" DIAMETER

MEDIA SEPARATOR & RECLAIM SYSTEM:
AUTOMATIC REPLENISHER .... YES
ELEVATOR ................. BUCKET TYPE
ELEVATOR MOTOR ........... 7.5 HP
SEPARATOR ................ "AIRWASH"
POWER ROLLERS ............ (2) X 6-5/8" DIAMETER

BRUSH & BLOW OFF STATION:
BRUSH OFF ................ 5 HP BRUSH
BLOW OFF ................. 10 AIR NOZZLES

LOADING IN-FEED ROLLER CONVEYOR:
LENGTH ................... 40'
WIDTH .................... 15'
CONFIGURATION ............ (2) 80" LANES
ROLLER DIAMETER .......... 3-1/2"
ROLLER CENTERS ........... 18"
VARIABLE SPEED DRIVE ..... YES

UNLOAD OUT-FEED ROLLER CONVEYOR:
LENGTH ................... 40'
WIDTH .................... 15'
CONFIGURATION ............ (2) 80" LANES
ROLLER DIAMETER .......... 3-1/2"
ROLLER CENTERS ........... 18"
VARIABLE SPEED DRIVE ..... YES

DUST COLLECTOR:
CAPACITY ................. 6700 CFM
MODEL .................... 20CP5RP

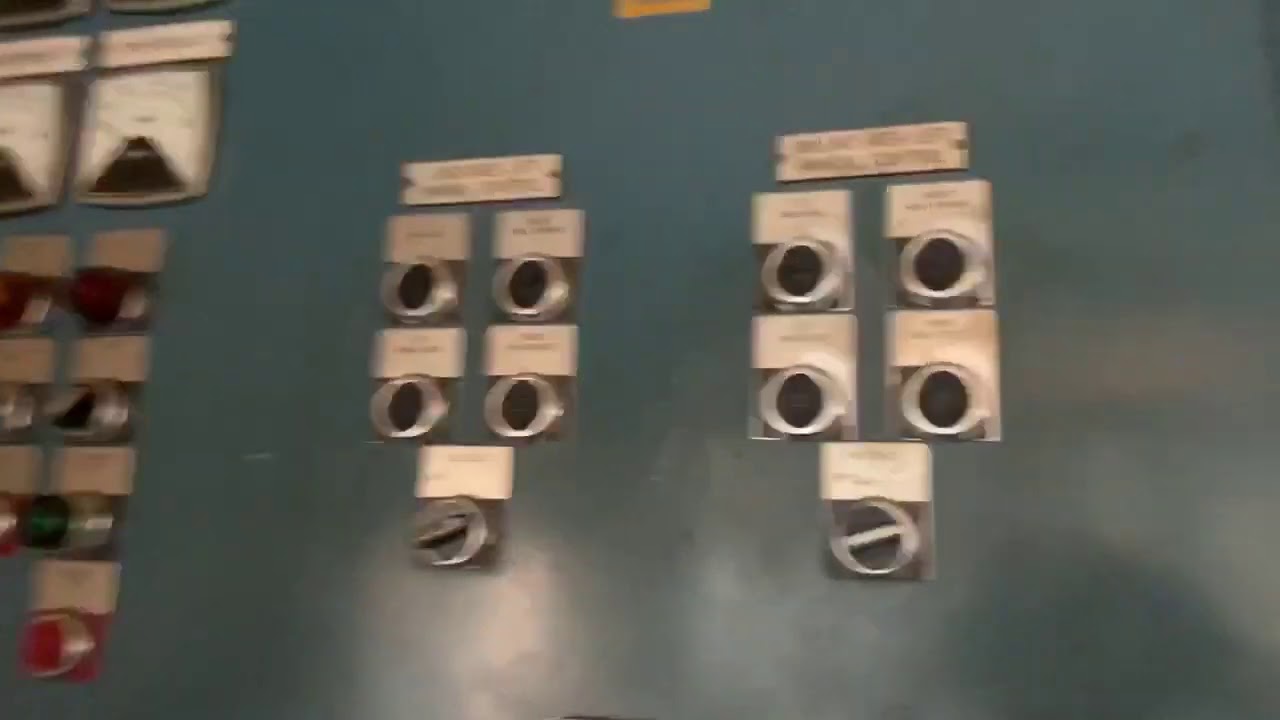

PANGBORN CONTROL PANEL:
WHEEL HOUR METERS ........ YES
WHEEL LOAD INDICATOR ..... YES
CONVEYOR CONTROLS ........ YES
EMERGENCY STOP BUTTON .... YES

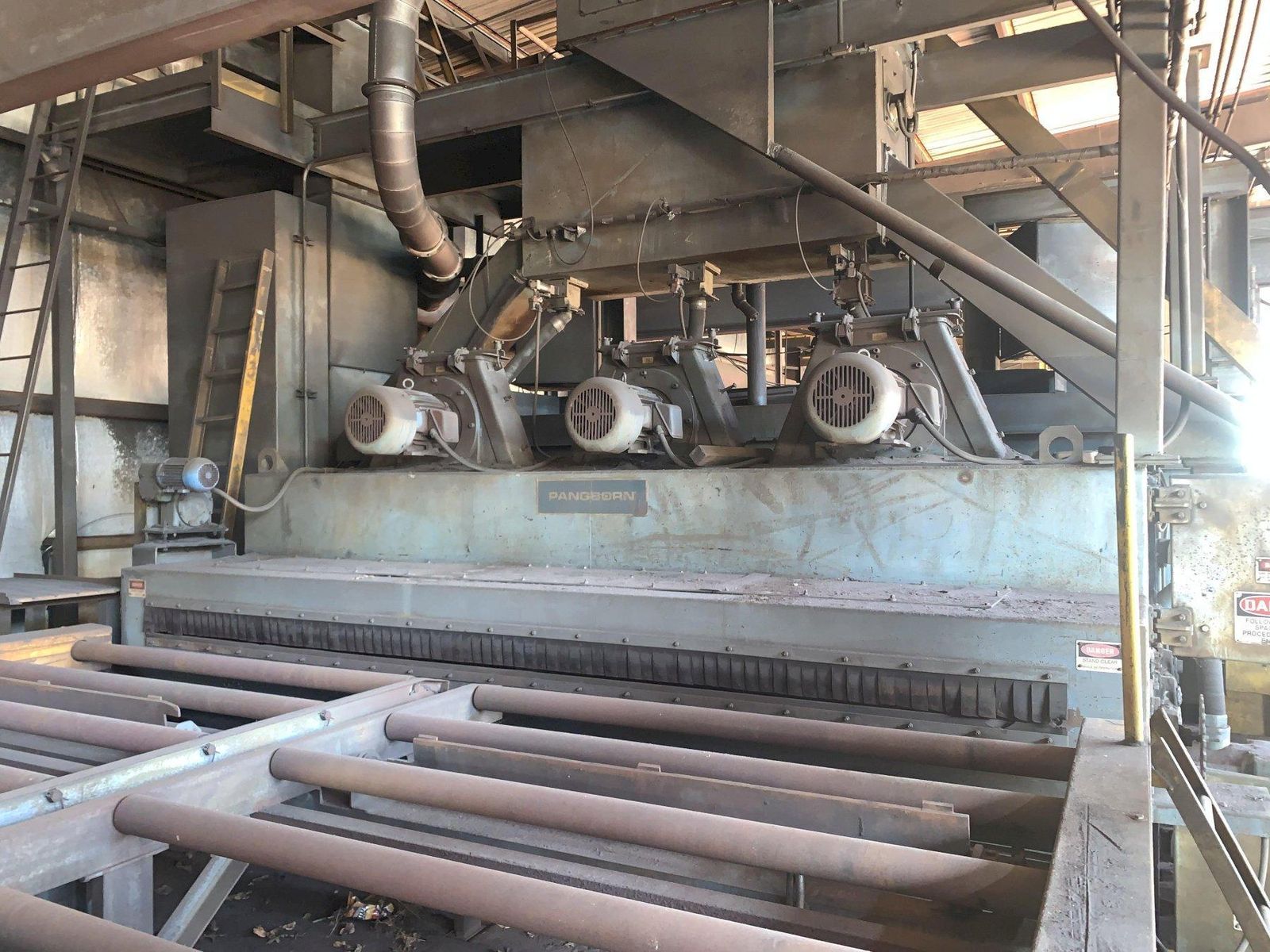

162" WIDE X 6 WHEEL PANGBORN SHOT ROTOBLAST MODEL #ES-1923 TOP & BOTTOM PLATE BLAST CLEANING SYSTEM: STOCK #13319
