Machine Information

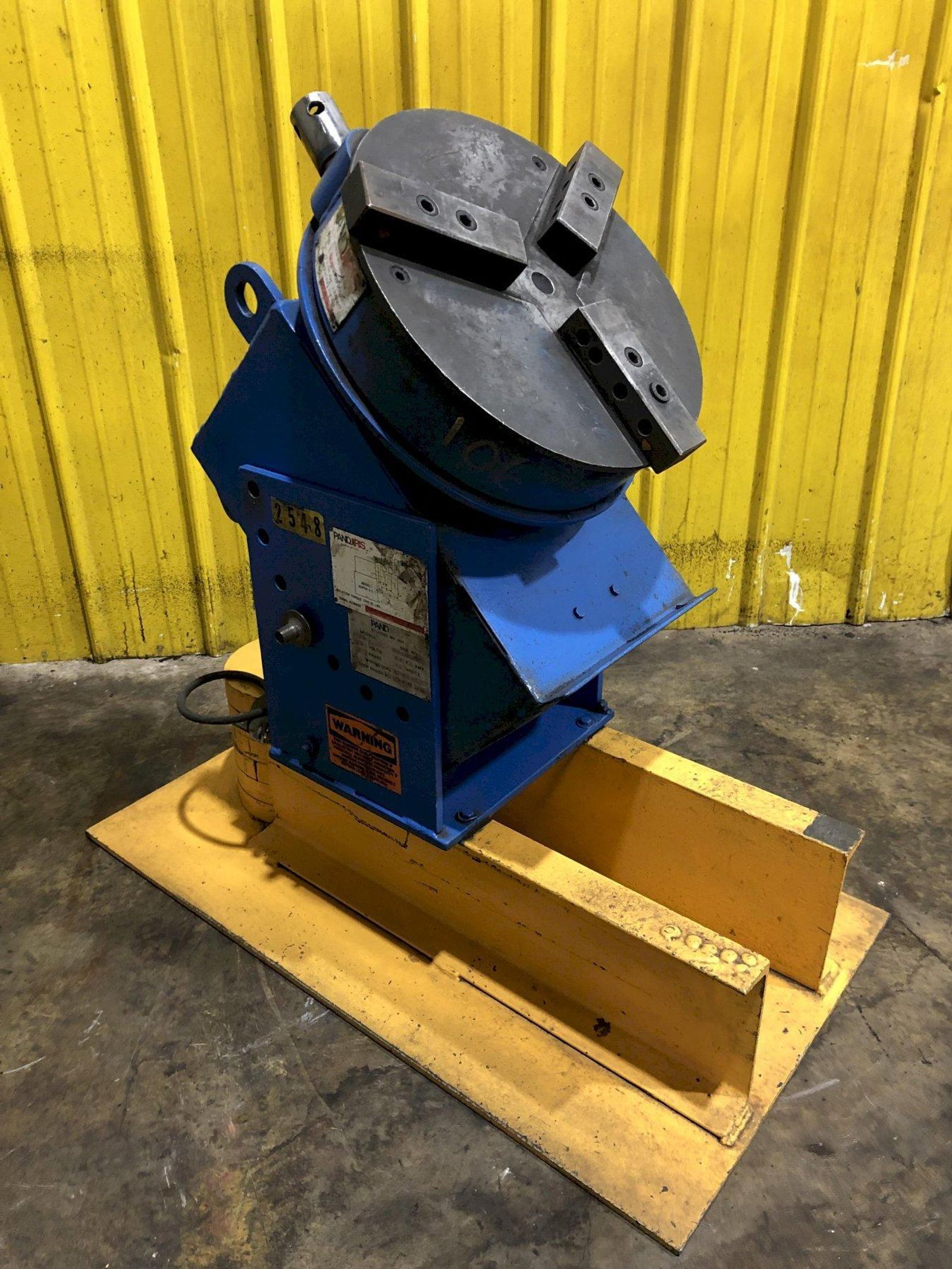

500 LB PANDJIRIS ALPHA 5-3 WELDING POSITIONER, SINGLE PHASE: STOCK #18380

Stock #: 18380

Equipped With

SERIAL .................. 81-2469-2
MODEL ................... ALPHA 5-3
LOAD CAPACITY ........... 500 LB.
TILT RANGE .............. 0 TO 90 DEGREES, PINNED
SWING RADIUS............. 20-1/2" @ 90° TILT
ROTATION TORQUE ......... 1,500-INCH LBS
ROTATION SPEED .......... VARIABLE 0.27 TO 6.70 RPM

PANDJIRIS TJ 20 GRIPPER CHUCK
SERIAL .................. 81-2460-5
MODEL ................... TJ-20
CLAMPING Capacity OD .... 1" to 16-1/2"
CLAMPING Capacity ID .... 6-1/4" to 20"
Gripper Jaws ............ (3) Self-Centering
Gripper Jaw Adjustment .. Single Point Screw / Ball Lock Pin
Gripper Adj. Force  ..... 1300 in-lb
Mounting Holes .......... (3) 1/2" Socket Head Cap Screws
