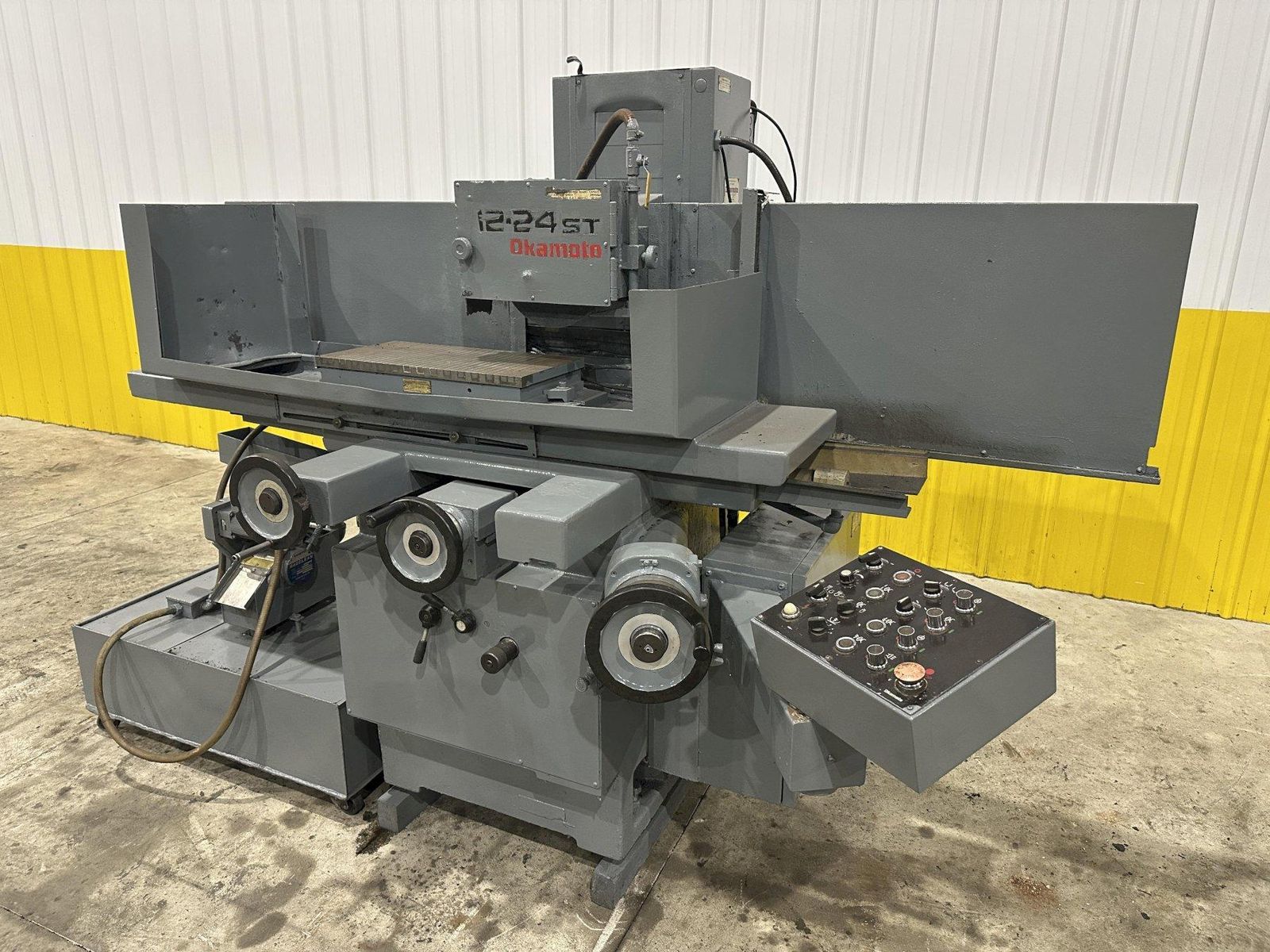

12" x 24" OKAMOTO MODEL #ACC-12.24ST 3 AXIS AUTOMATIC HORIZONTAL SURFACE GRINDER: STOCK #21943

Overview

SERIAL 3013
MODEL ACC-12.24ST
Electro-Magnetic Chuck 24" x 12" Kanetso

Table Working Surface: 12" x 24"

Table Movement (Manual): 29.5"

Distance Spindle / Wheel to Table: 13.7"

Table Load (Including Chuck): 925 Lbs.

Wheel Size : 12" x 1.5" x 5"

Wheel Speed: 1,800 RPM

Auto Longitudinal Feed Rate: 1 - 82 FPM

Rapid Wheelhead Feed Rate: 16 IPM

Auto Wheelhead Downfeed Increments: .0001" - .0015"

COOLANT TANK W/ MAGNETIC SEPARATOR
Hydraulic Motor: 4 - 40 IPM

Spindle Drive: 5 HP (3.7 KW)

12" x 24" OKAMOTO MODEL #ACC-12.24ST 3 AXIS AUTOMATIC HORIZONTAL SURFACE GRINDER: STOCK #21943

Brand
OKAMOTO

Type
Grinders, Surface

Stock No.
21943

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

12" x 24" OKAMOTO MODEL #ACC-12.24ST 3 AXIS AUTOMATIC HORIZONTAL SURFACE GRINDER: STOCK #21943

Stock #: 21943

Equipped With

SERIAL 3013
MODEL ACC-12.24ST
Electro-Magnetic Chuck  24" x 12" Kanetso

Table Working Surface: 12" x 24"
Table Movement (Manual): 29.5"
Distance Spindle / Wheel to Table: 13.7"
Table Load (Including Chuck): 925 Lbs.
Wheel Size : 12" x 1.5" x 5"
Wheel Speed: 1,800 RPM
Auto Longitudinal Feed Rate: 1 - 82 FPM
Rapid Wheelhead Feed Rate: 16 IPM
Auto Wheelhead Downfeed Increments: .0001" - .0015"
COOLANT TANK W/ MAGNETIC SEPARATOR
Hydraulic Motor: 4 - 40 IPM
Spindle Drive: 5 HP (3.7 KW)

Overview

12" x 24" OKAMOTO MODEL #ACC-12.24ST 3 AXIS AUTOMATIC HORIZONTAL SURFACE GRINDER: STOCK #21943
