Machine Information

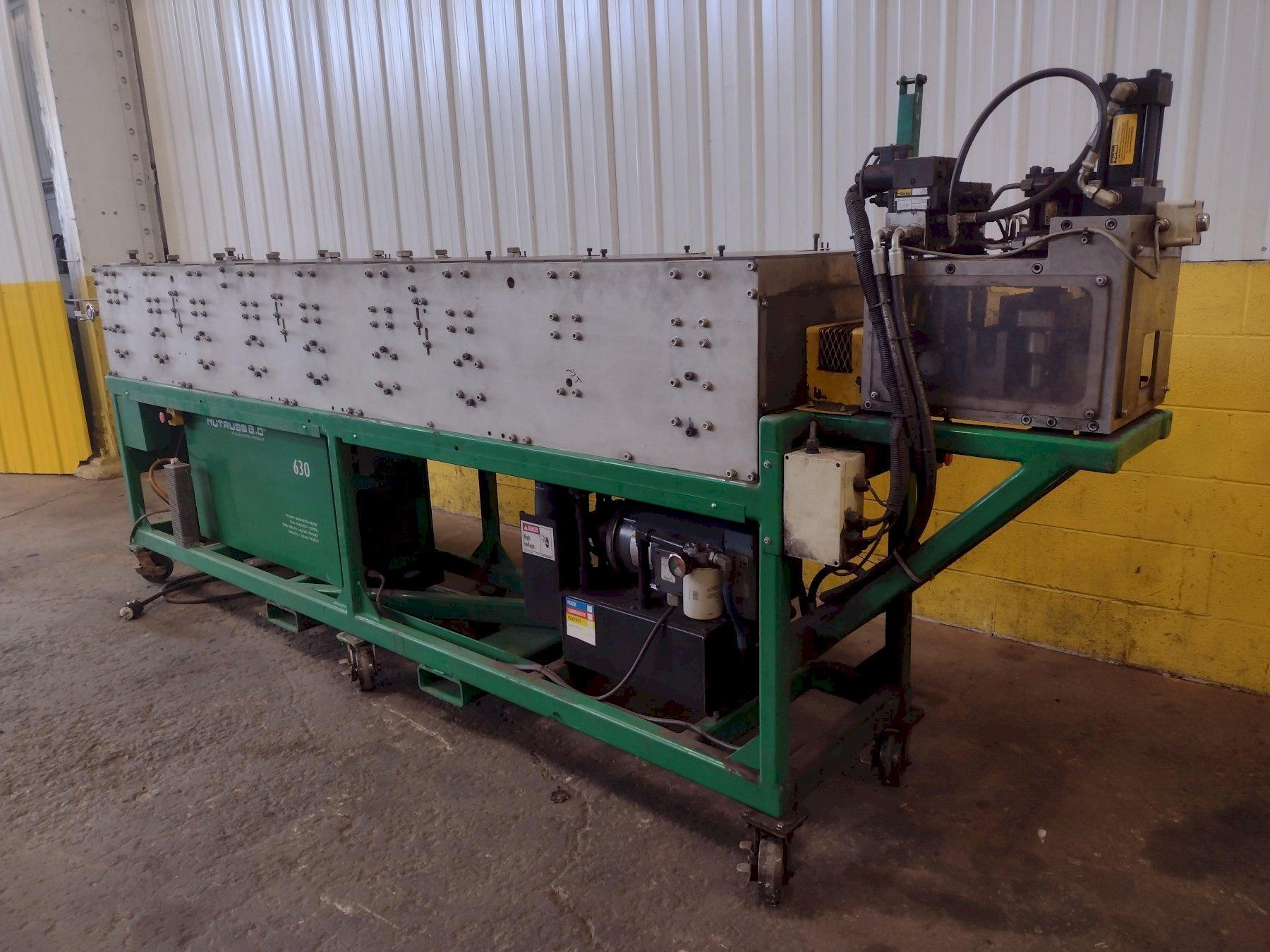

3" TRUSS NUCONSTEEL MODEL #NUTRUSS-3.0-630 PORTABLE ROLLFORMER / AUTOMATED FRAMING SYSTEM: STOCK #17173

Stock #: 17173

Equipped With

SERIAL ...................... S630-003-1209TX
MODEL ....................... 630
TOOLED FOR MAKING ........... 3" TRUSS (SEE PICTURE)
NUMBER OF STANDS ............ 9
POWERED FEED ROLLS .......... STAND #1
FORMING ROLLS ............... STAND #2-8
POWERED EXIT FEED ROLLS ..... STAND #9
PUNCH STATION ............... PUNCH LIP & FLANGE
CUTOFF STATION .............. NOTCHING, COPING & CUTTING
PUNCH & CUTOFF .............. HYDRAULIC


HYDRAULIC UNIT:
OPERATING PRESSURE .......... 2400 PSI
MOTOR ....................... 3 HP
RESERVOIR ................... 5 GALLONS
PRESSURE GAUGE .............. YES
HEAT EXCHANGER .............. YES
UNLOADER VALVE .............. YES

COIL REQUIRMENTS:
COIL WIDTH .................. 6.80"
COIL GAUGE .................. 18, 20 & 22 GAUGE
18 GAUGE DESIGN THICKNESS ... 0.0451"
18 GAUGE MINIMUM THICKNESS .. 0.0428"
20 GAUGE DESIGN THICKNESS ... 0.0346"
20 GAUGE MINIMUM THICKNESS .. 0.0329"
22 GAUGE DESIGN THICKNESS ... 0.0283"
22 GAUGE MINIMUM THICKNESS .. 0.0269"
COIL GRADE .................. 50 KSI
COIL COATING ................ G60

NUCON UNCOILER:
COIL WEIGHT CAPACITY ........ 1760 LBS MAX
COIL O.D. ................... 39" MAX
COIL I.D. ................... 20"
