Machine Information

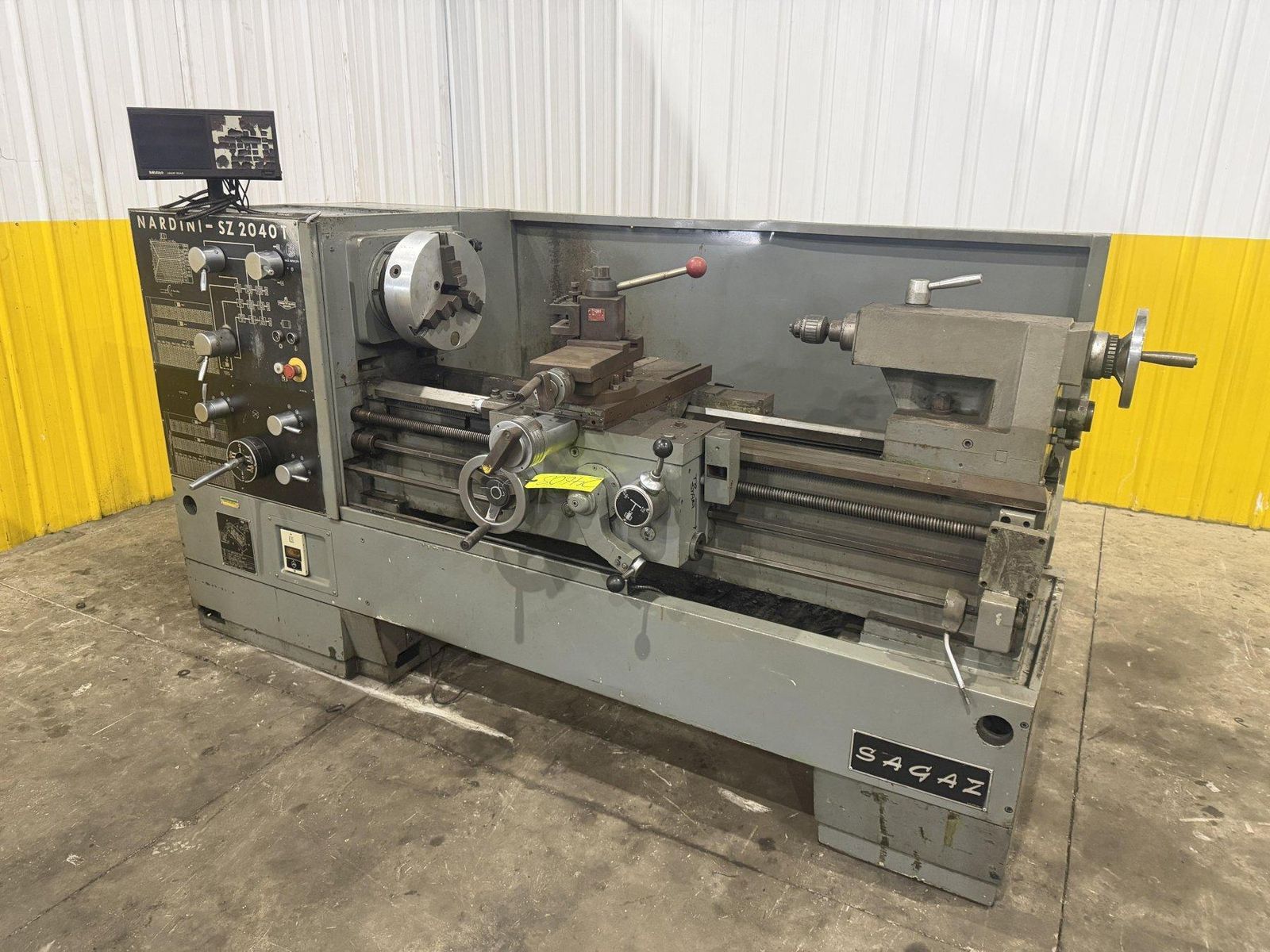

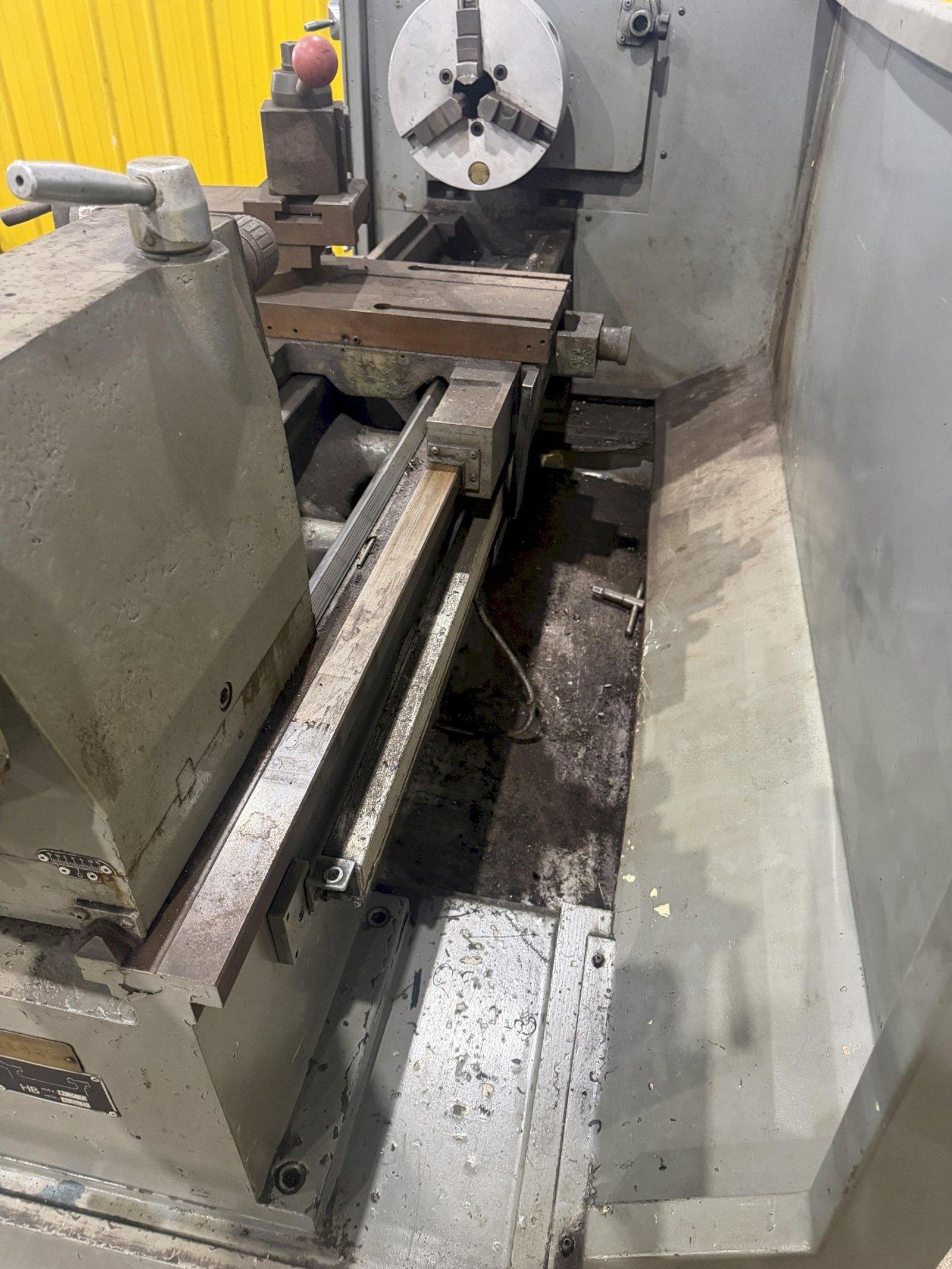

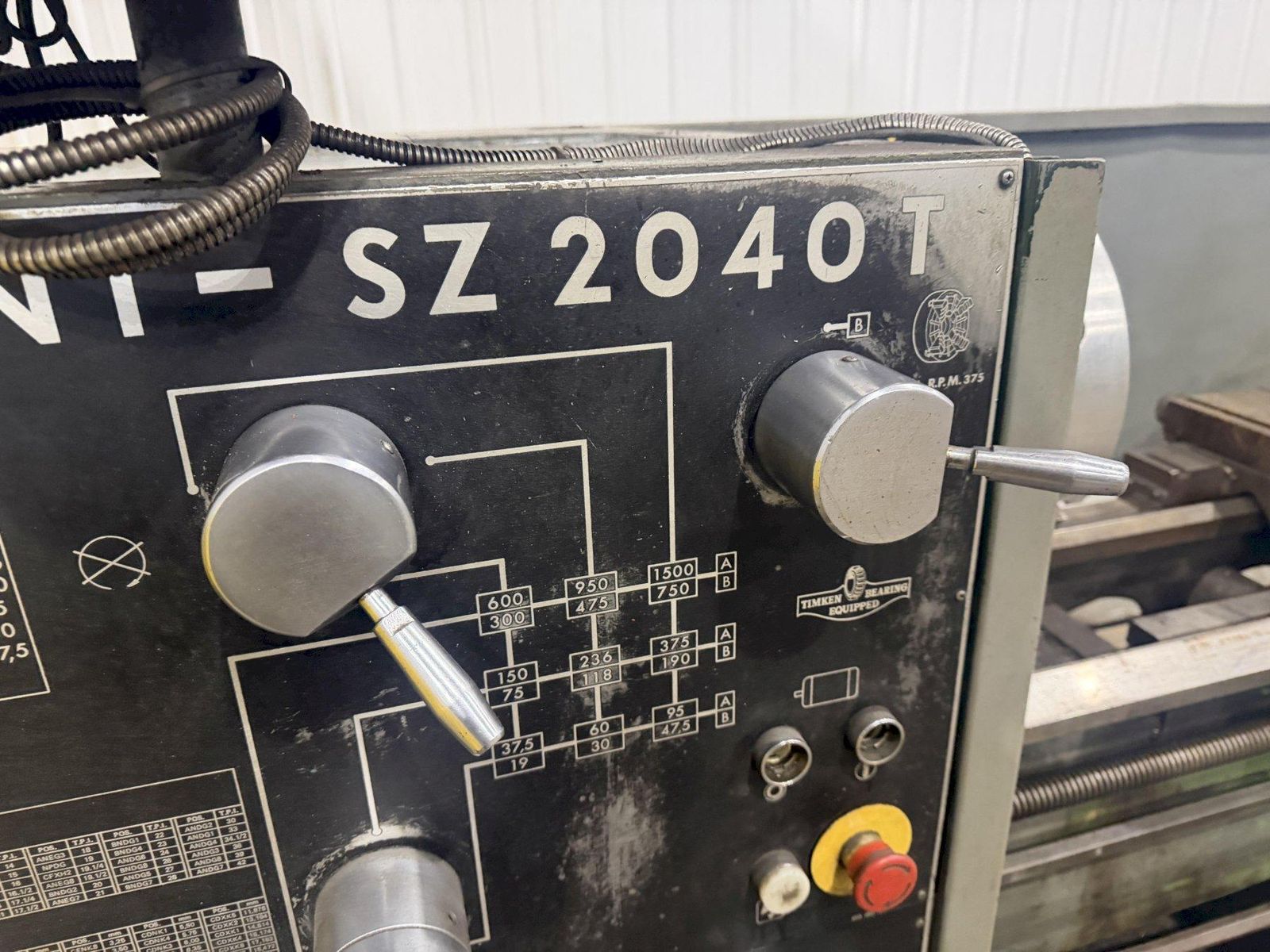

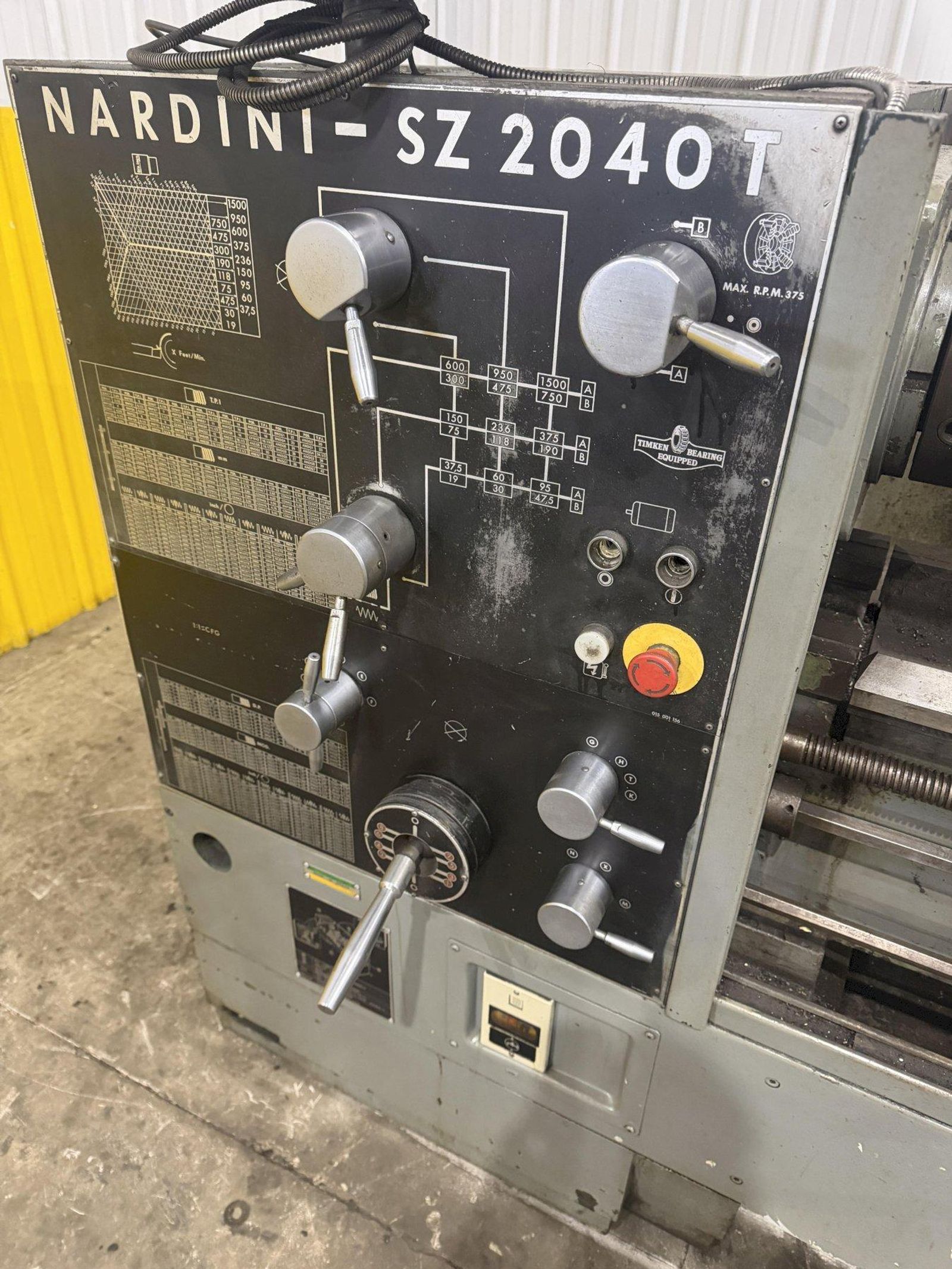

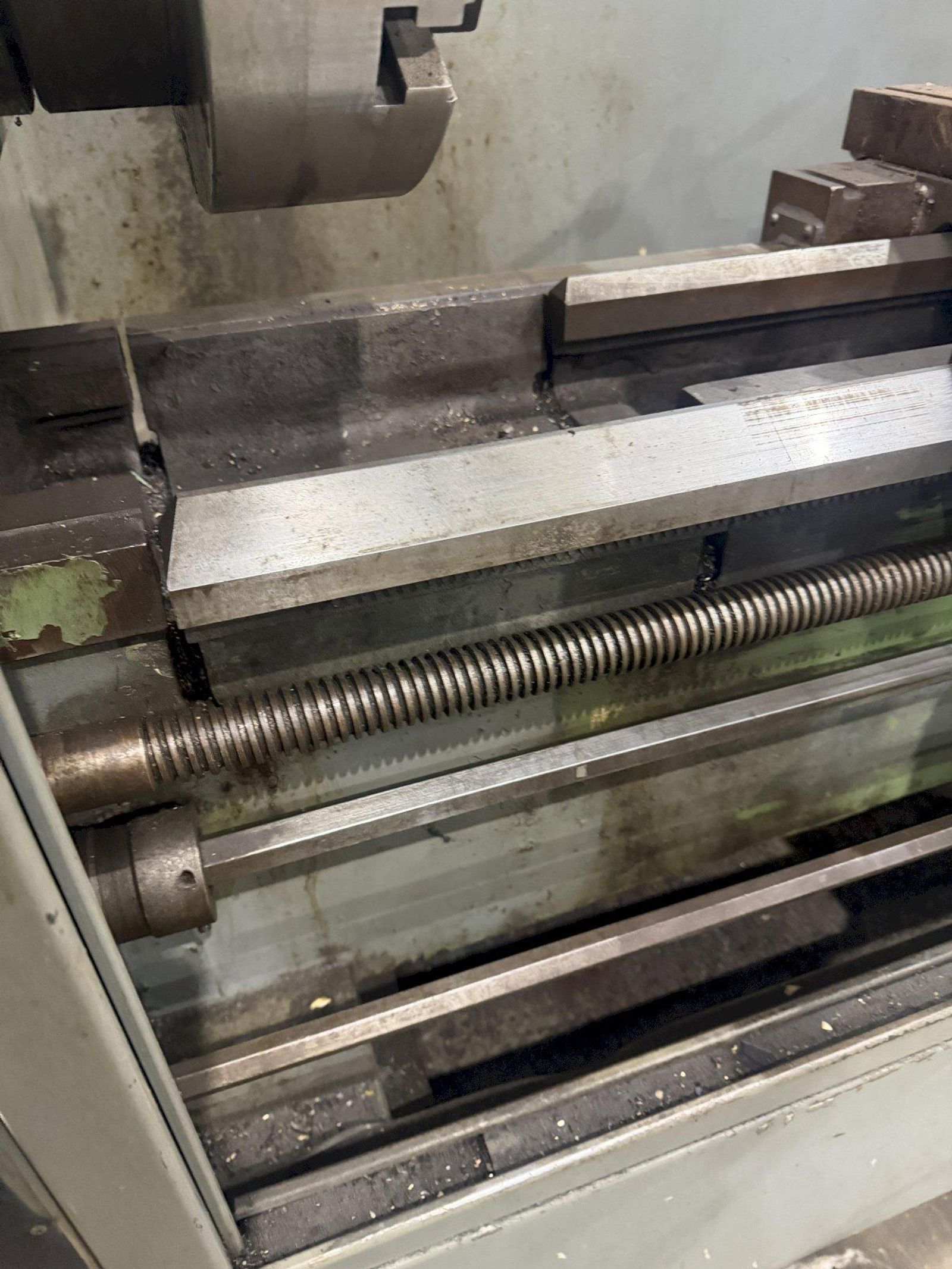

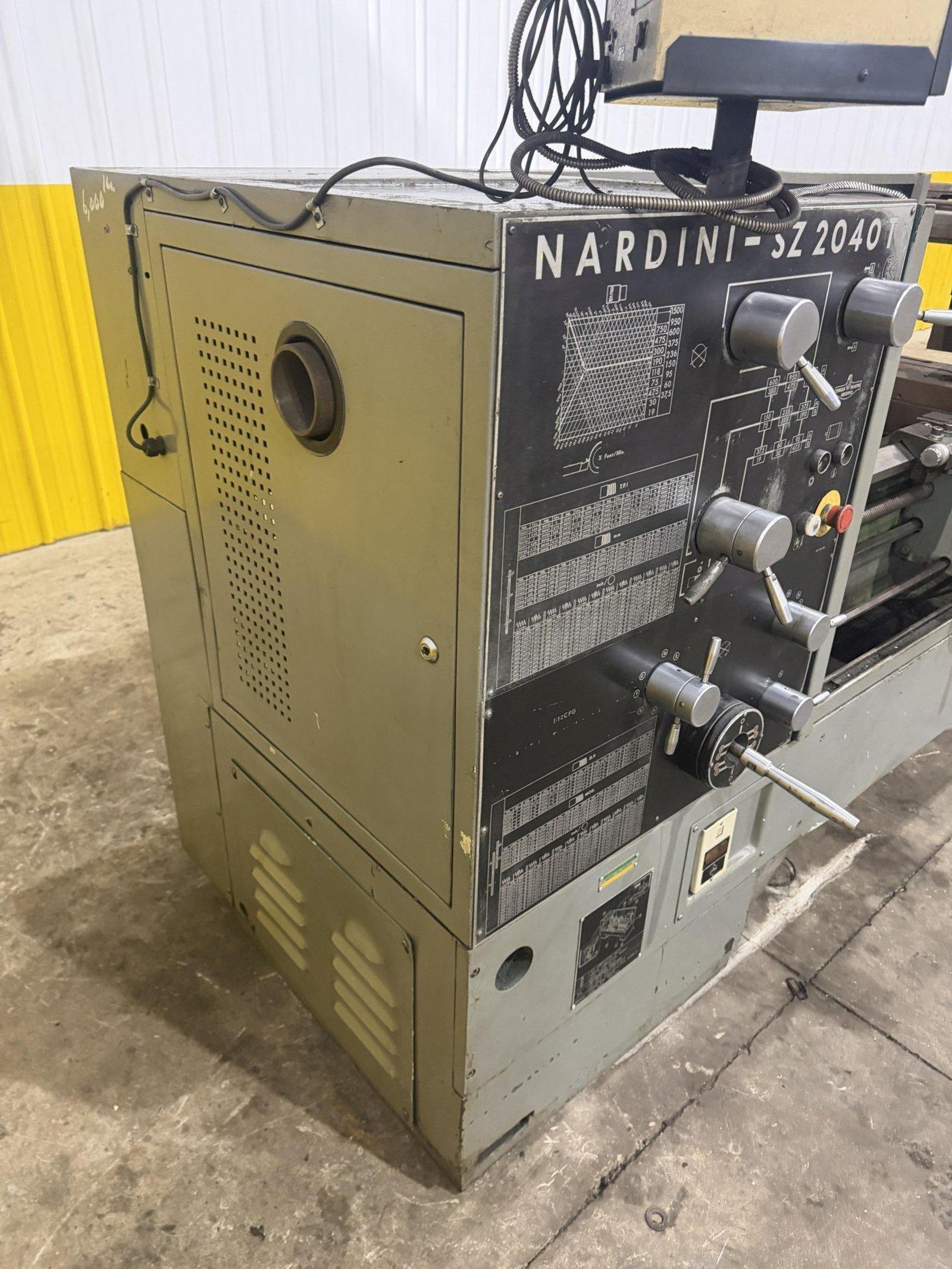

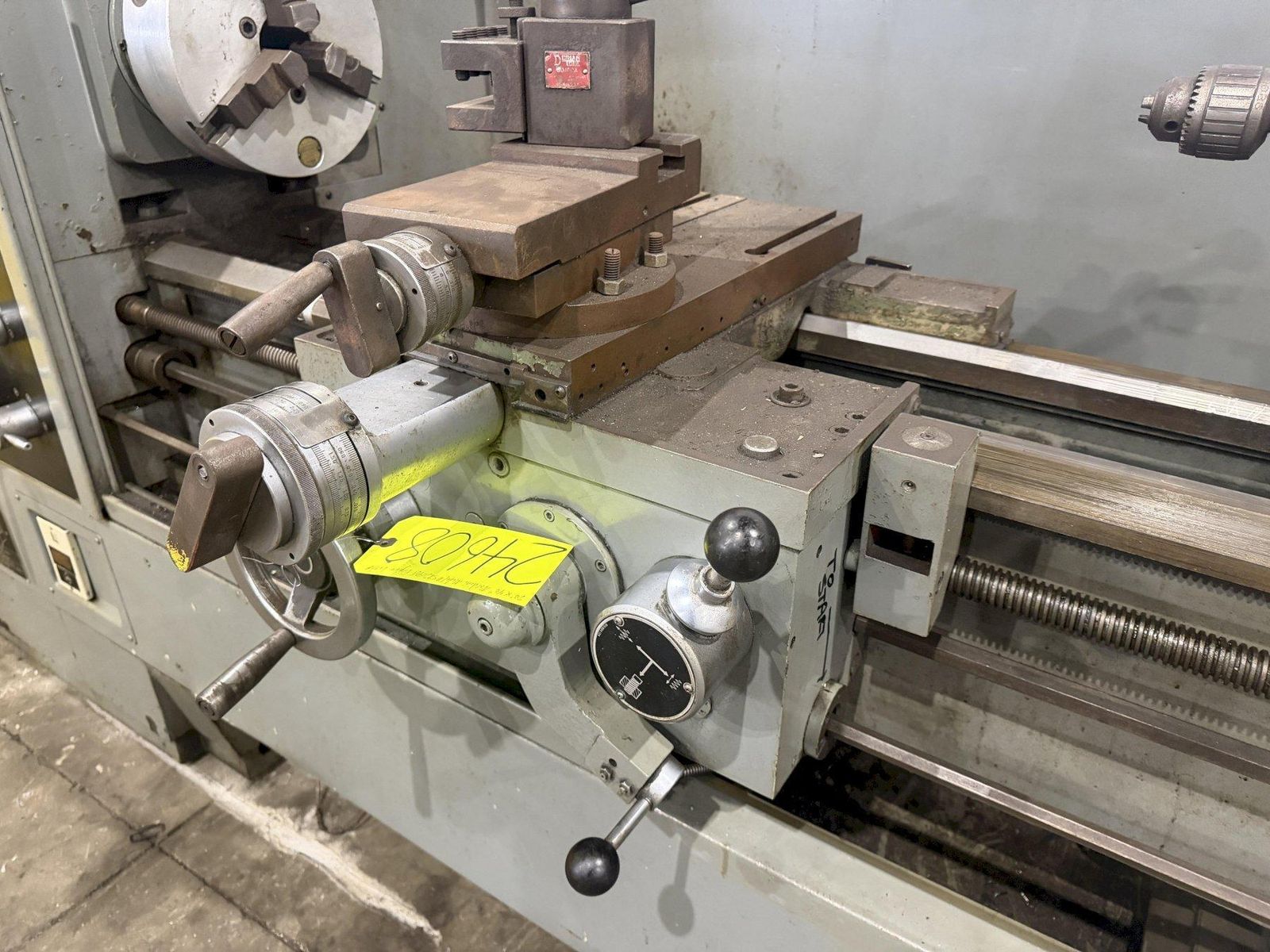

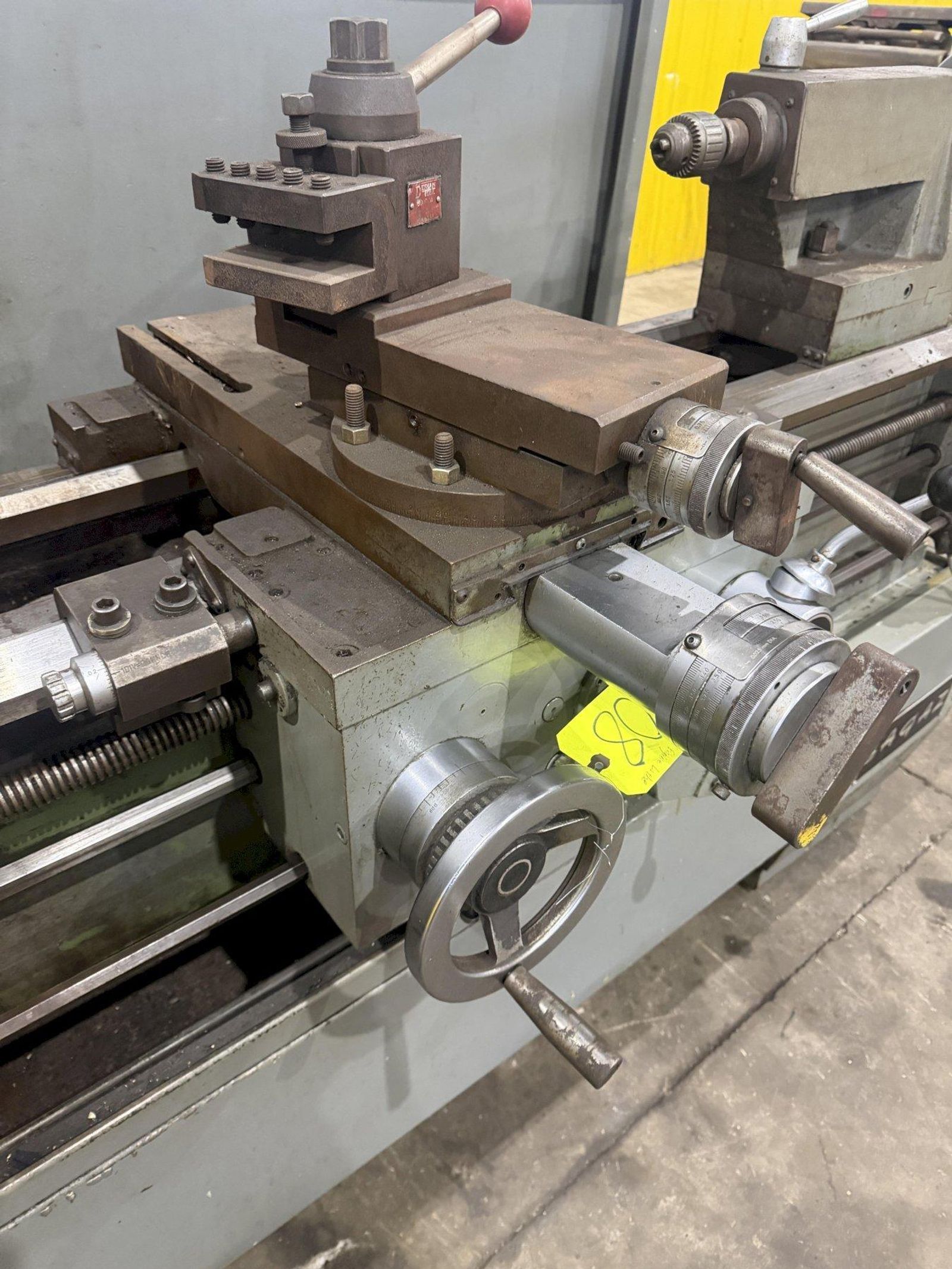

20" X 40" NARDINI MODEL #SZ2040T ENGINE LATHE 3-1/8" HOLE: YOBRO #24608

Stock #: 24608

Equipped With

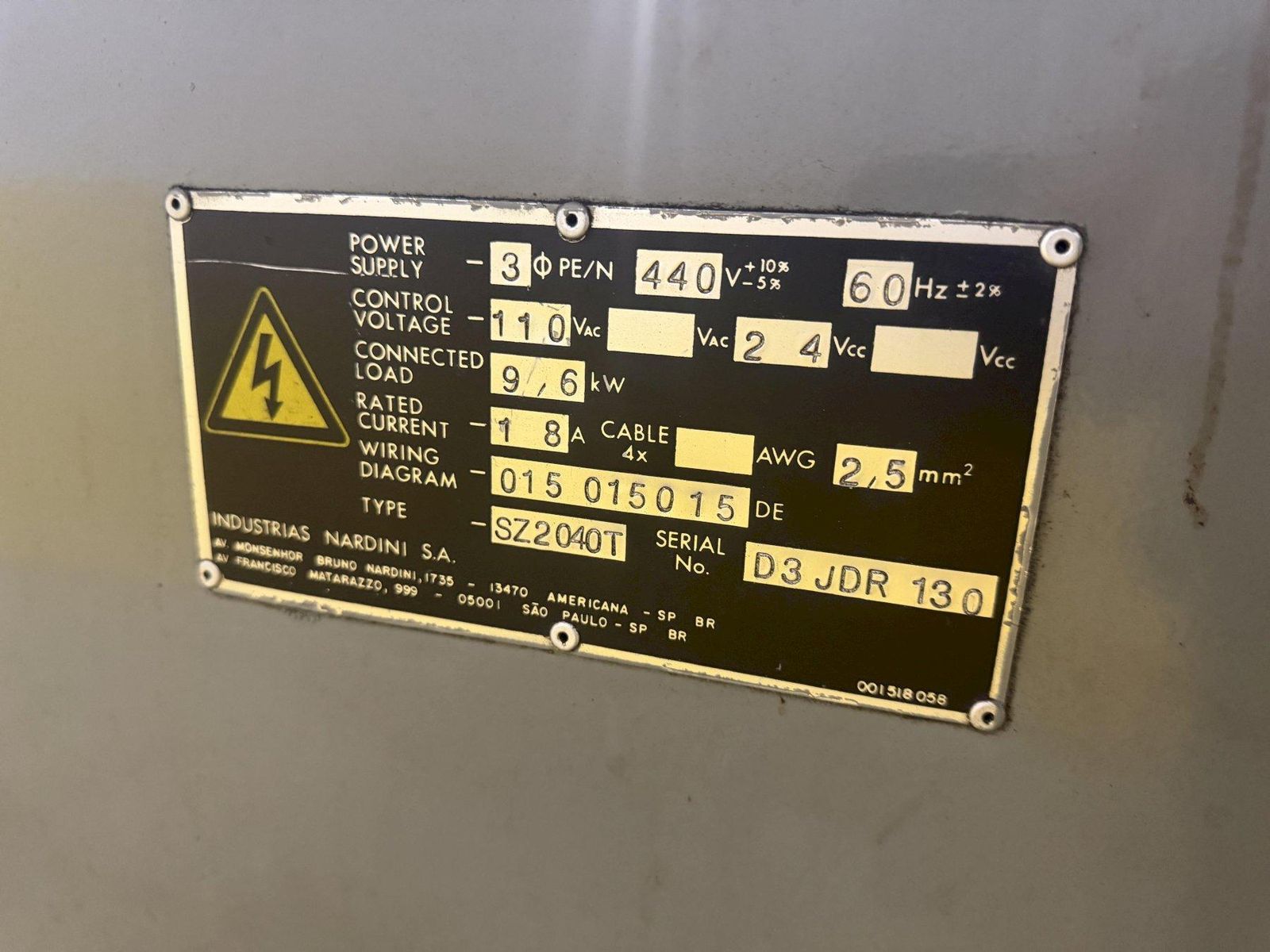

SERIAL .................... D3JDR130

MODEL ..................... SZ-2040T
SWING OVER BED ............ 20"
SWING IN THE GAP .......... 27-1/2"
SWING OVER CROSS SLIDE .... 12-1/2"
DISTANCE BETWEEN CENTERS .. 40"

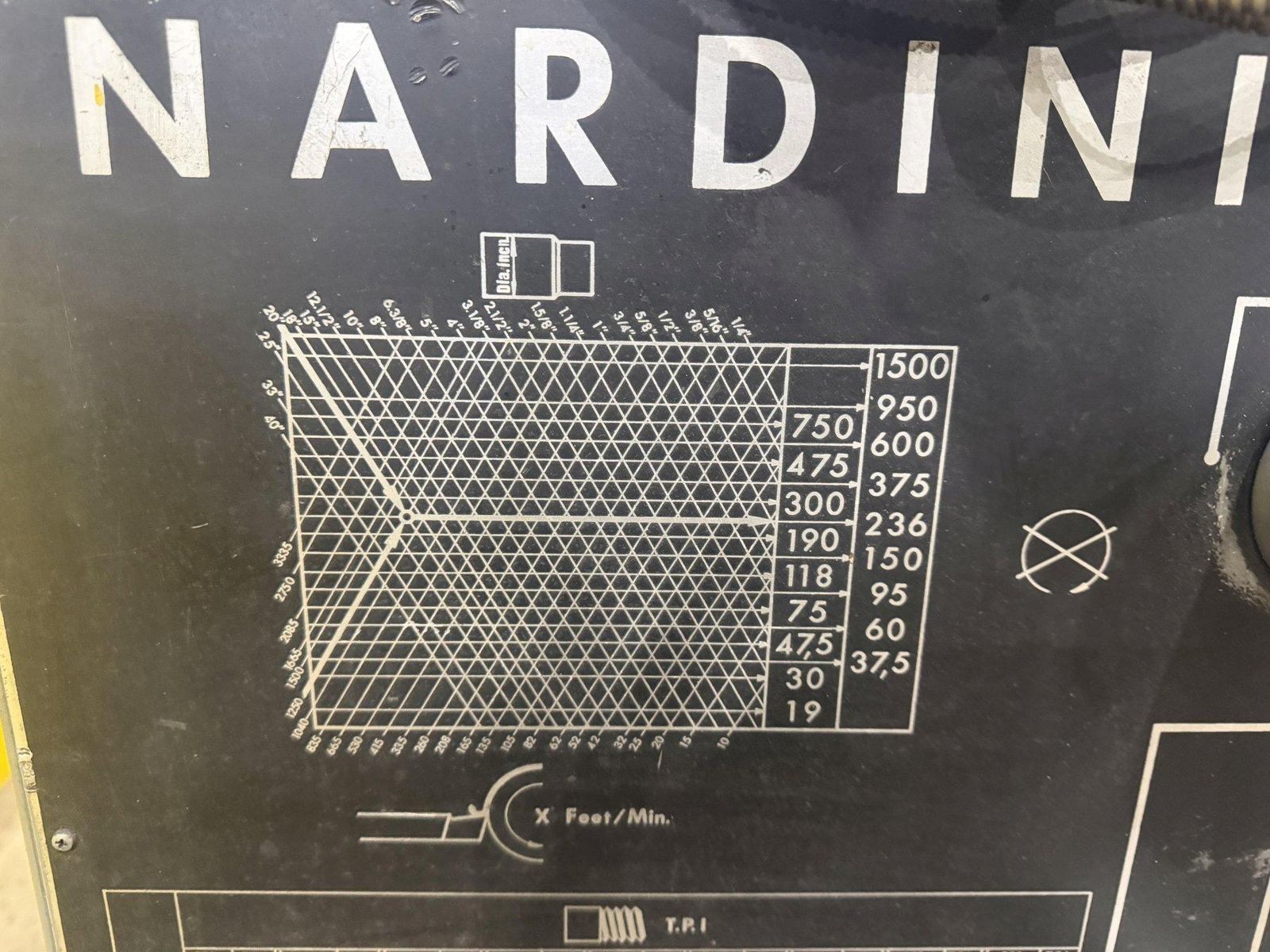

SPINDLE SPEEDS ............ (18) 19 TO 1500 RPM
HOLE THROUGH SPINDLE ...... 3-1/8"

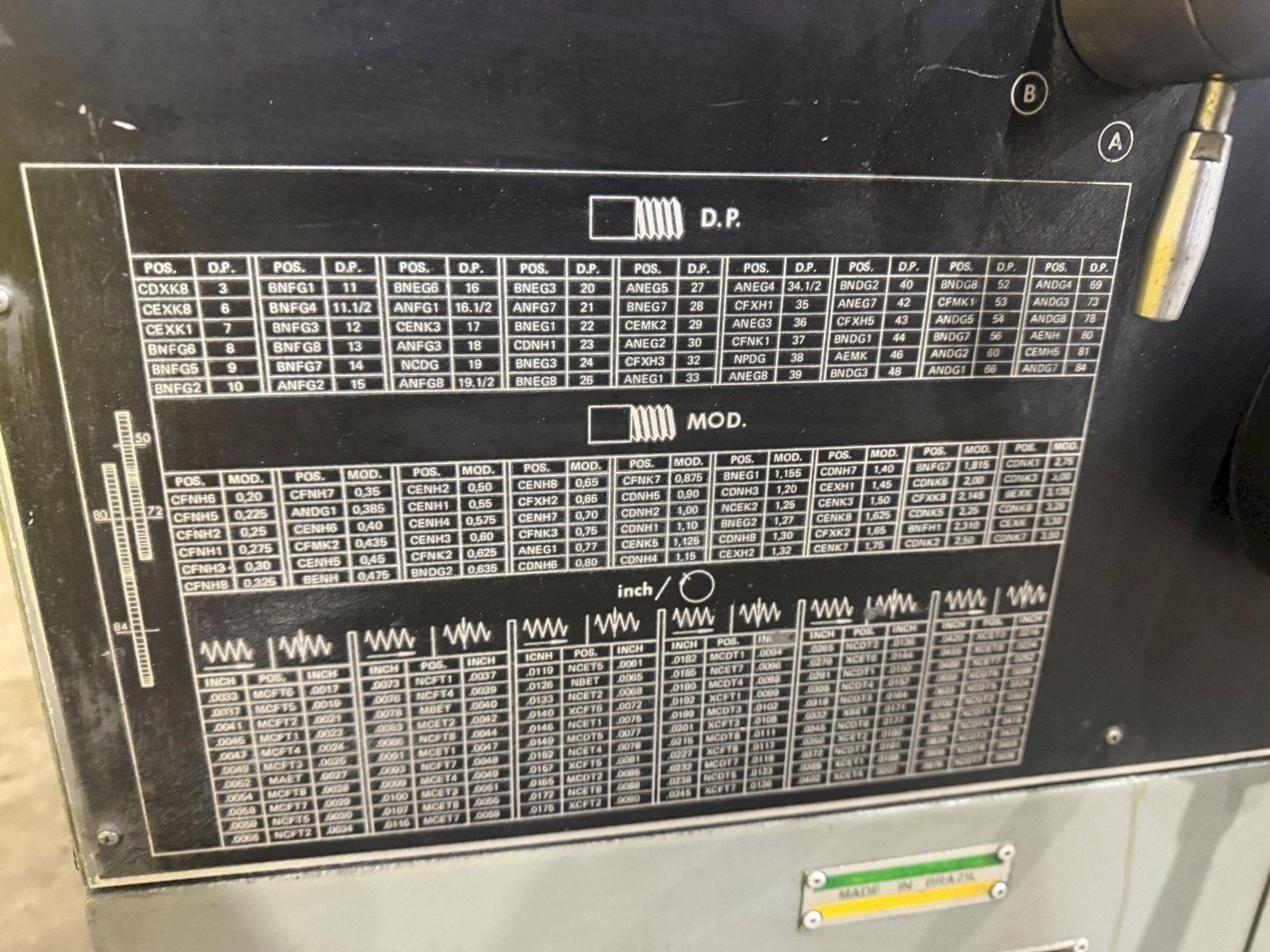

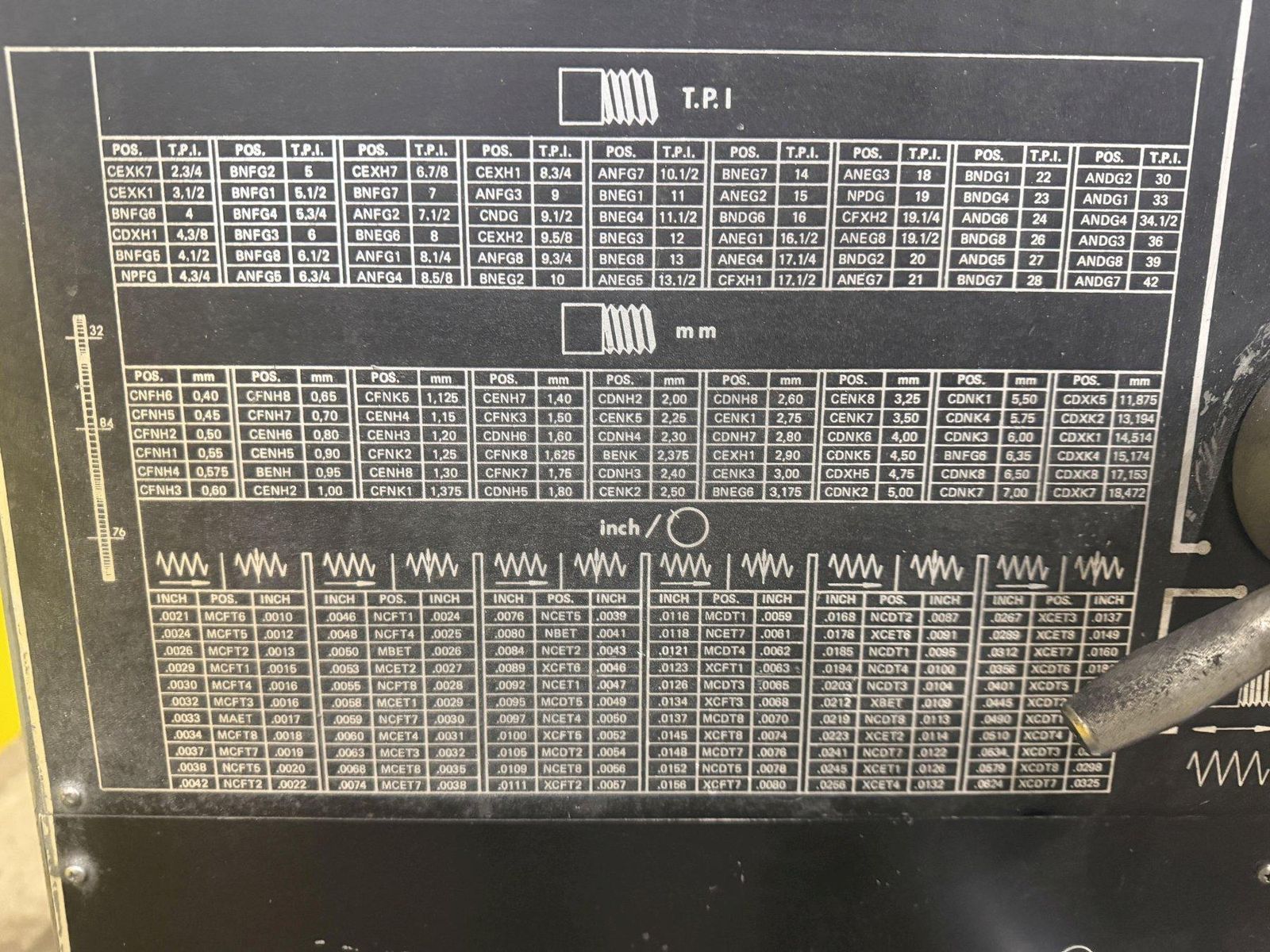

THREADS, INCH ............. (64) 2-3/4 TO 32 TPI
THREADS, METRIC ........... (64).40 TO 18.472 MM PITCH
CROSS FEEDS ............... (66) .0010 TO .0325 IPR
LONGITUDINAL FEEDS ........ (66) .0021 TO .0624 IPR
SPINDLE NOSE .............. D1-8 CAMLOCK

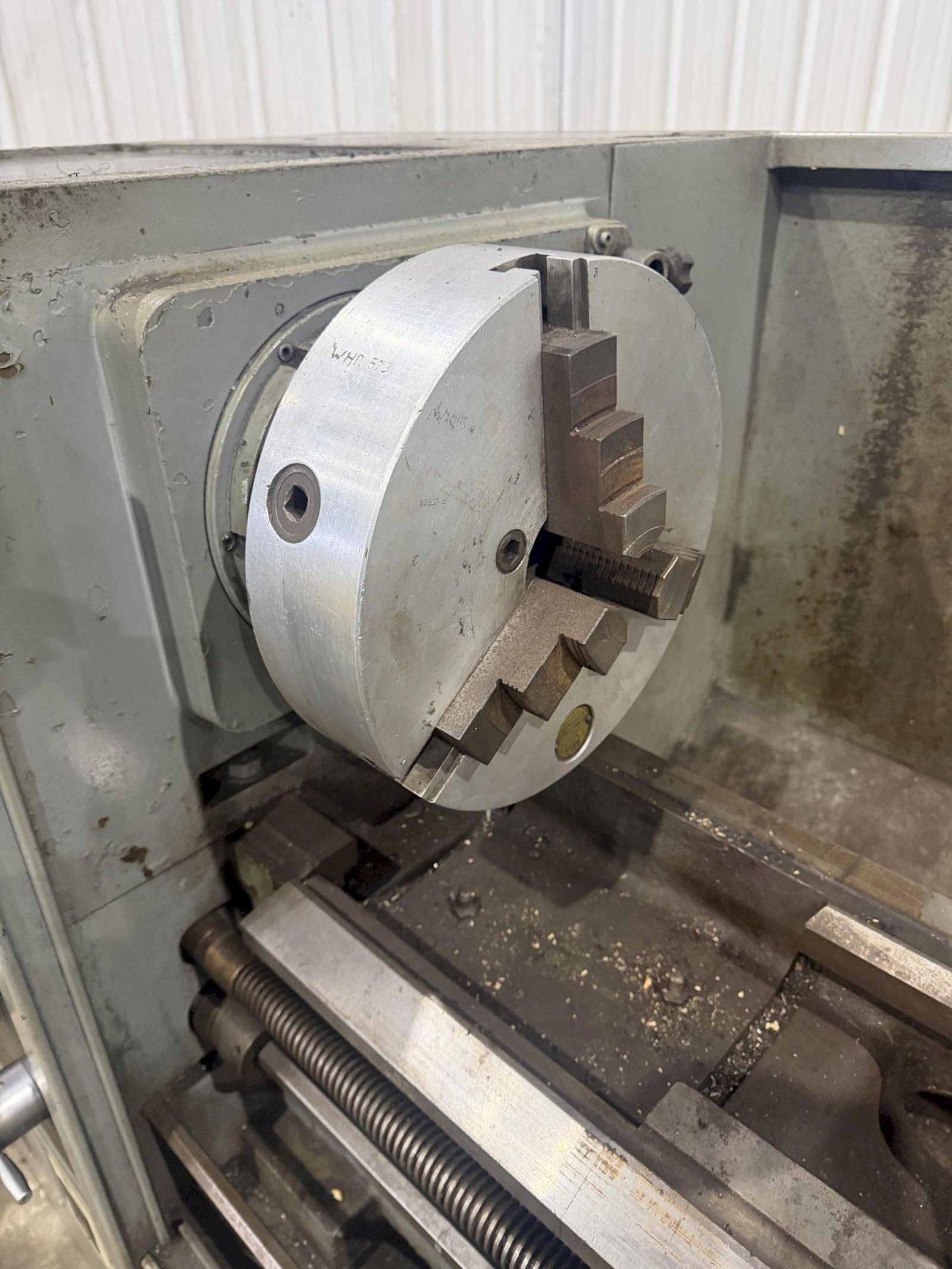

CHUCK ..................... 3 JAW

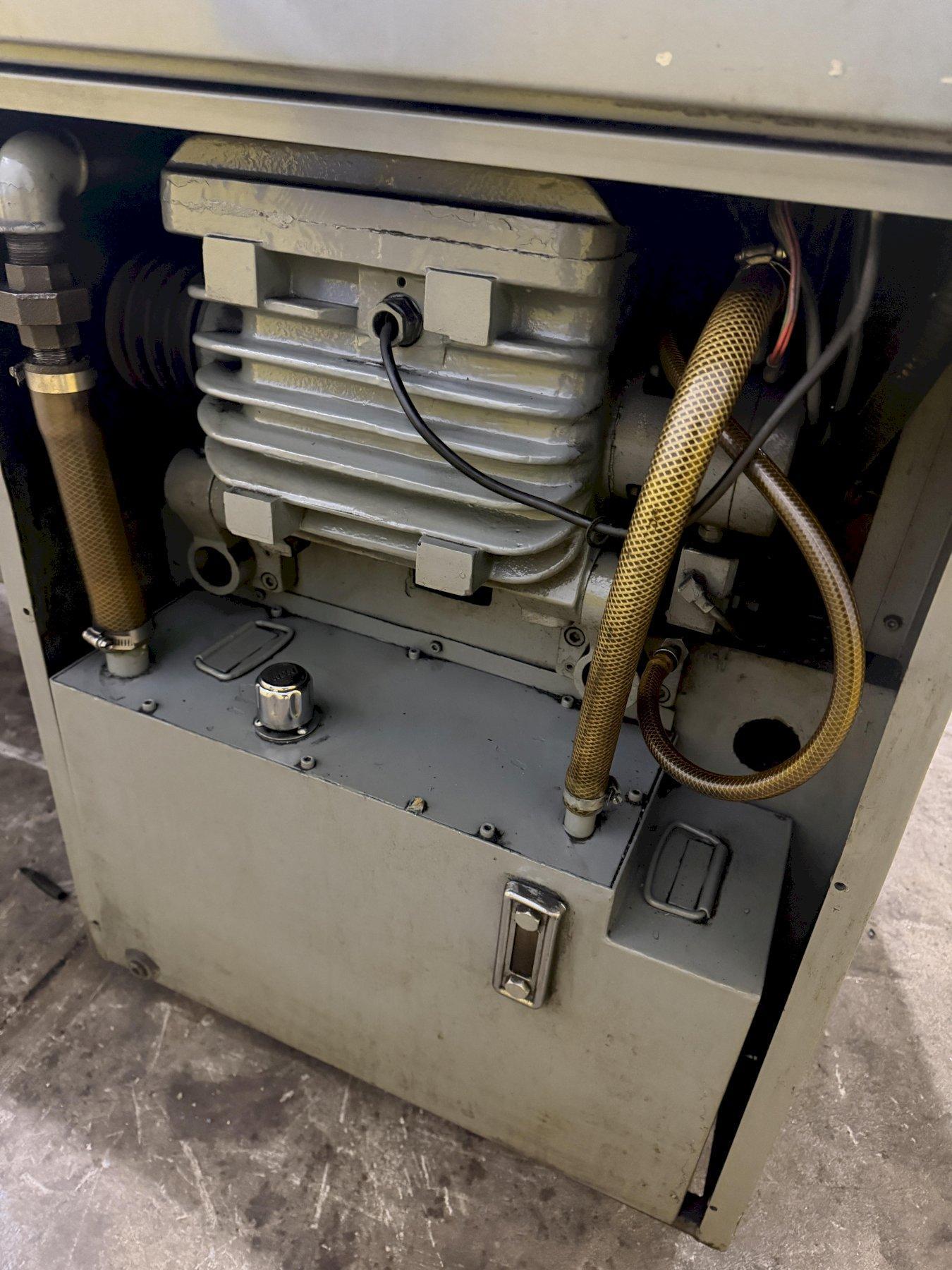

COOLANT W/ CHIP PANS ...... YES

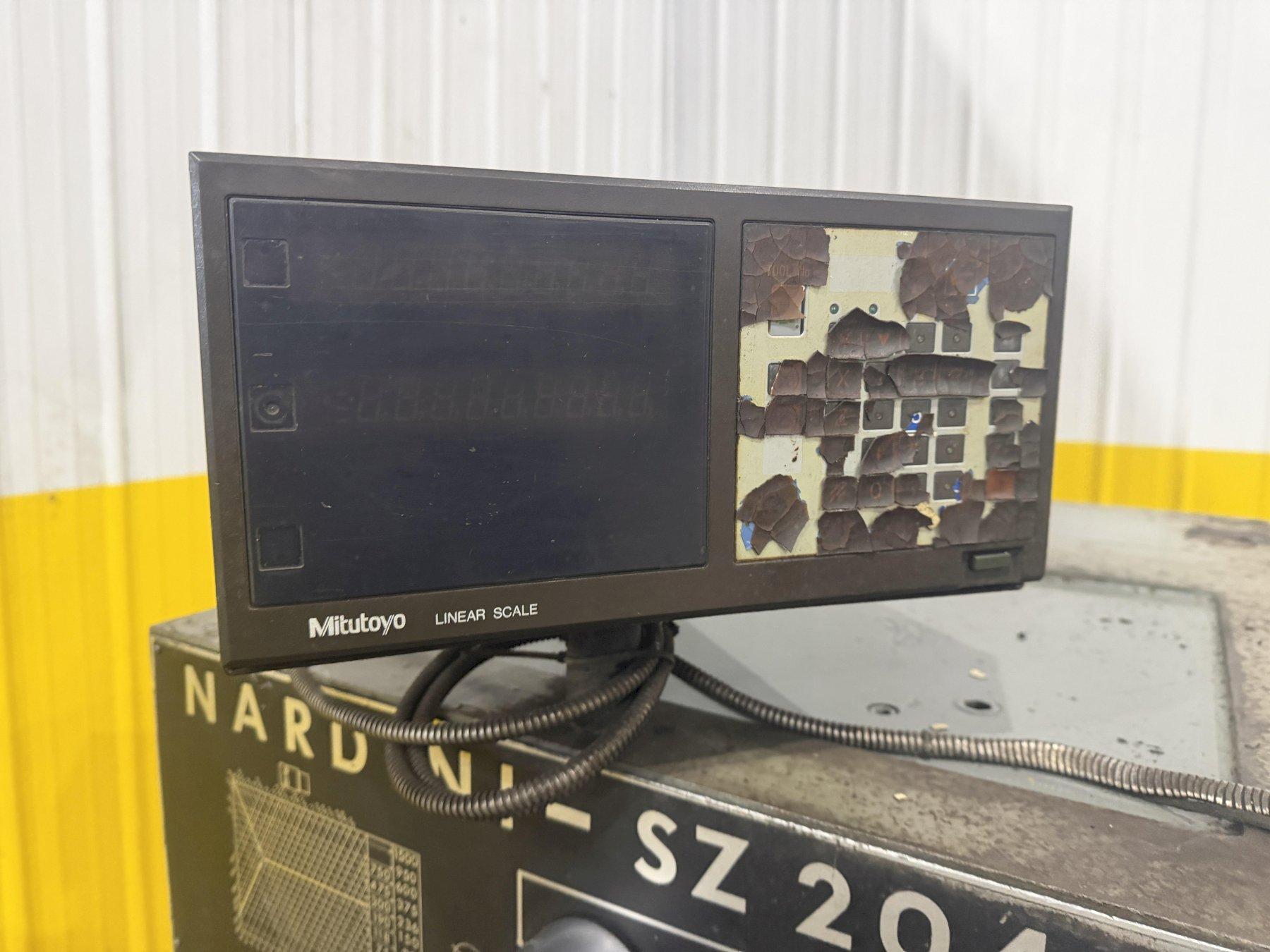

DIGITAL READ OUT .......... 2 AXIS
MOTOR ..................... 12.5 H
