Machine Information

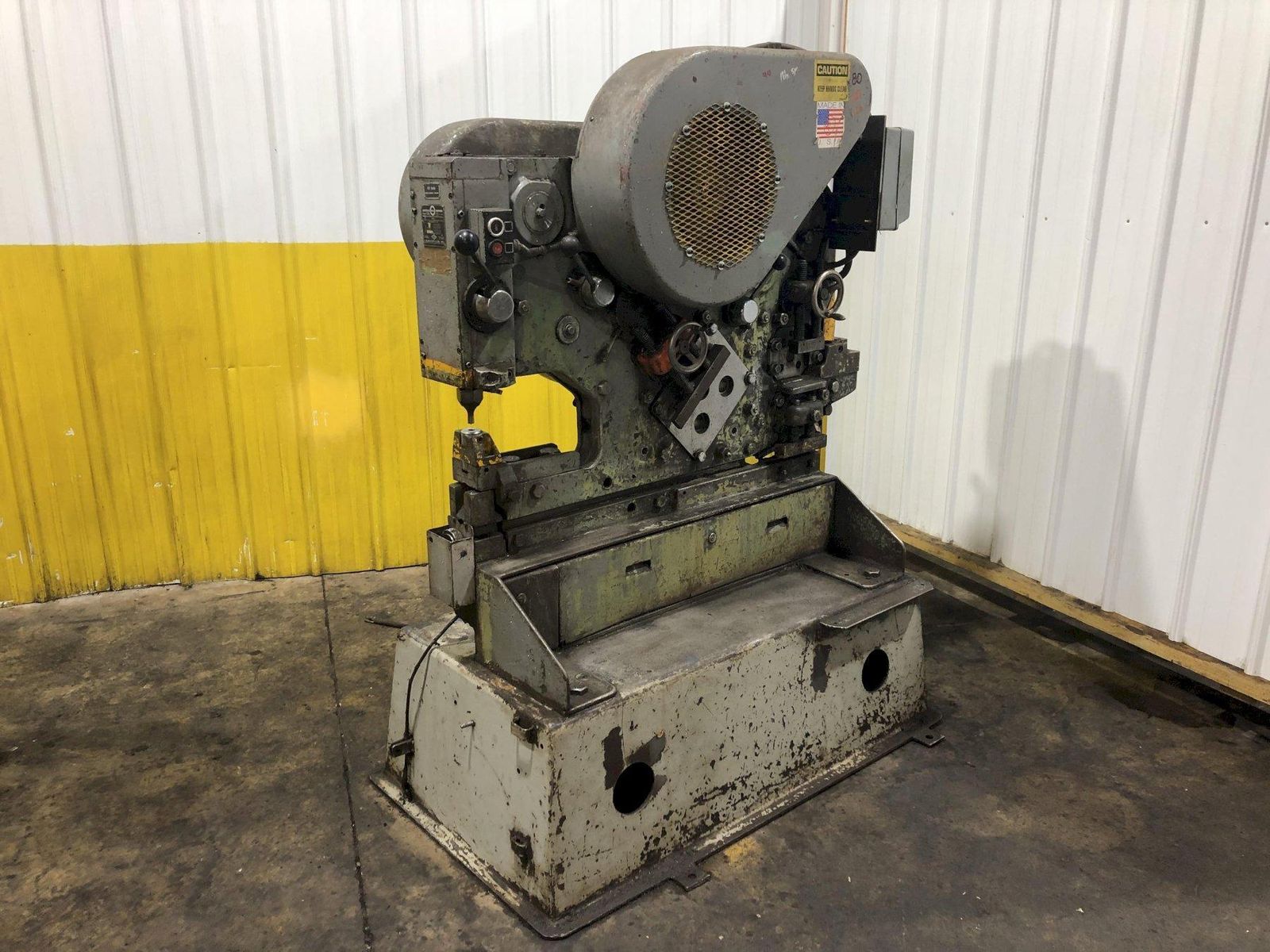

38 TON MUBEA MODEL #KBL 0 MECHANICAL IRONWORKER W/ DIES FOR BAR SHEAR: STOCK #19069

Stock #: 19069

Equipped With

SERIAL 131/10975/14
MODEL KBL 0


Punch
Throat: 12 .63″
Pressure: 38 Tons
Dia. Thru Thickness: 1″-7/16” thru 3/4″ – 1/2”

Angle Shear:
Angle Square: 3-1/2″ x 3/8″
Angles at 45 Deg: 2-1/2″ x 1/4″

Bar Shear:
Round Bars: 1-9/16″
Square Bars: 1-3/8″

Plate Shear:
Flat Bar: 5″ x 1/2″

Coper/Notcher:
Plate: 3/8″
Angle in Flange: 3″ x 5/16″
Notching Depth: 2-3/8″

Machine Dimensions:
Length of Machine: 53″
Width of Machine: 23.5″
Height of Machine: 51″
Weight of Machine:  2460 lbs.
