Overview

MODEL ................ M71H6 BUMP MACHINE
SERIAL ............... 100-03822
NEW .................. 2000

Cycle Time ........... 2.4 to 15 seconds*

Tube O.D. Capacity ... 1.5"

Jaw Opening .......... 1.75" Maximum

Ram Cylinder ......... 3-1/4" bore x 6" stroke

Ram Force ............ 15 tons

Clamp Cylinder ....... 2-1/2" bore x 2-1/2" stroke

Clamp Force .......... 17-1/2 tons

Hydraulic Unit ....... 15HP 21 GPM

Working Pressure ..... 1200 PSI

Maximum Pressure ..... 2500 PSI
Air Required ......... 60 to 80 PSI & 3 CFM

H.M.I. Interface

Part Present Sensor

Specifications
Weight	5200 pounds

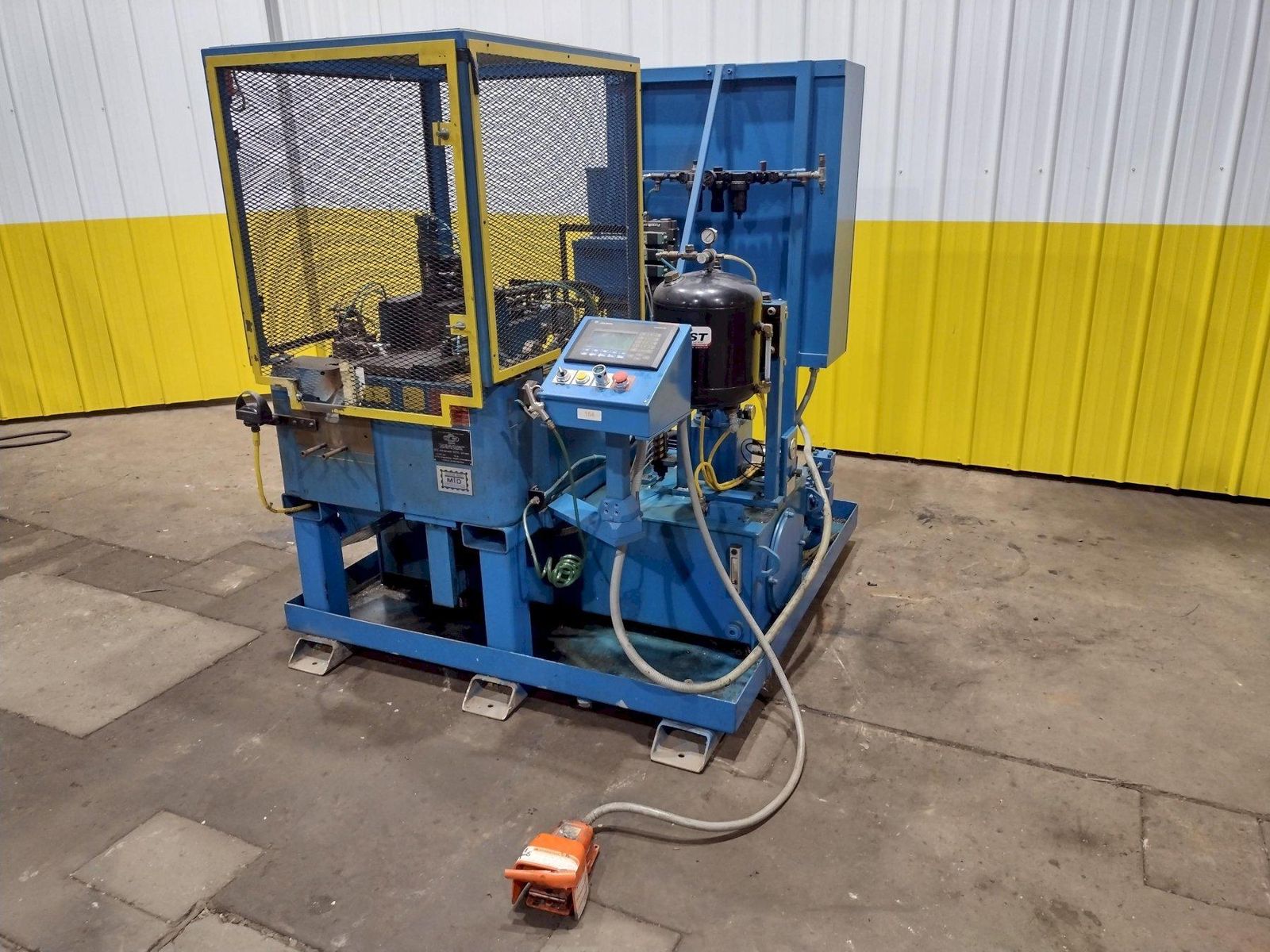

1.5" X 6 HIT MANCHESTER TOOL MTD MODEL #M71H6 TUBE END FORMER: STOCK #20110

Brand
Not Specified

Type
Tube End Forming Machinery

Stock No.
20110

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

1.5" X 6 HIT MANCHESTER TOOL MTD MODEL #M71H6 TUBE END FORMER: STOCK #20110

Stock #: 20110

Equipped With

MODEL ................ M71H6 BUMP MACHINE
SERIAL ............... 100-03822
NEW .................. 2000

Cycle Time ........... 2.4 to 15 seconds*
Tube O.D. Capacity ... 1.5"
Jaw Opening .......... 1.75" Maximum
Ram Cylinder ......... 3-1/4" bore x 6" stroke
Ram Force ............ 15 tons
Clamp Cylinder ....... 2-1/2" bore x 2-1/2" stroke
Clamp Force .......... 17-1/2 tons
Hydraulic Unit ....... 15HP 21 GPM
Working Pressure ..... 1200 PSI
Maximum Pressure ..... 2500 PSI
Air Required ......... 60 to 80 PSI & 3 CFM

H.M.I. Interface
Part Present Sensor

Overview

1.5" X 6 HIT MANCHESTER TOOL MTD MODEL #M71H6 TUBE END FORMER: STOCK #20110
