Specifications | ||
---|---|---|
Weight | 4750 pounds |
Brand
MORI SEIKI
Type
Lathes, Engine
Stock No.
21304
![]() |
419-269-2000 |
Stock #: 21304

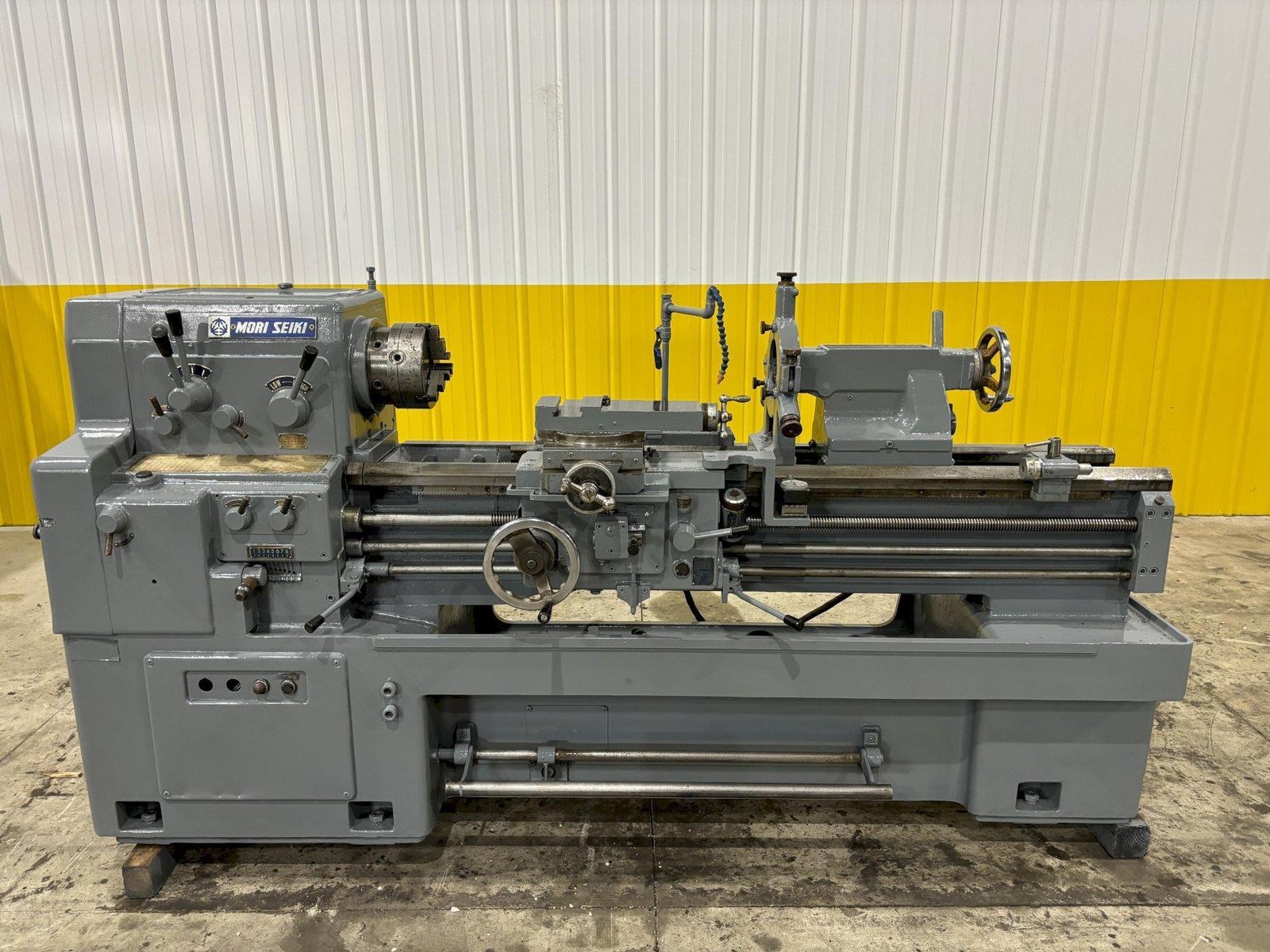

17" / 27" X 50" MORI SEIKI MODEL #MS-1250G GAP BED METAL ENGINE LATHE, 2" HOLE: STOCK #21304MODEL ...................... MS-1250Swing over bed ............. 17.25″Swing over ................. GAP 27″Lenght of GAP .............. 11"Swing over cross slide ..... 9.75″Distance between centers ... 49.0″Spindle speed range ........ (12) 32 TO 1800 rpmCHUCK ...................... 8" 3 JAWSpindle nose ............... A1-6Spindle Bore ............... 2.04″Cross slide travel ......... 10.0″Compound slide travel ...... 5.9″”Number of threads .......... 35Range of threads ........... 4 to 80 TPINumber of feeds ............ 64Range of feeds ............. 0.0010 to 0.250 inch / revolutionLeadscrew diameter ......... 1-1/4"Leadscrew pitch ............ 4 TPITailstock spindle taper .... MT # 4Tailstock spindle travel ... 6.0″STEADY REST ................ 5"
Main motor ................. 5 hpFOLLOW RESTCoolant System
