Machine Information

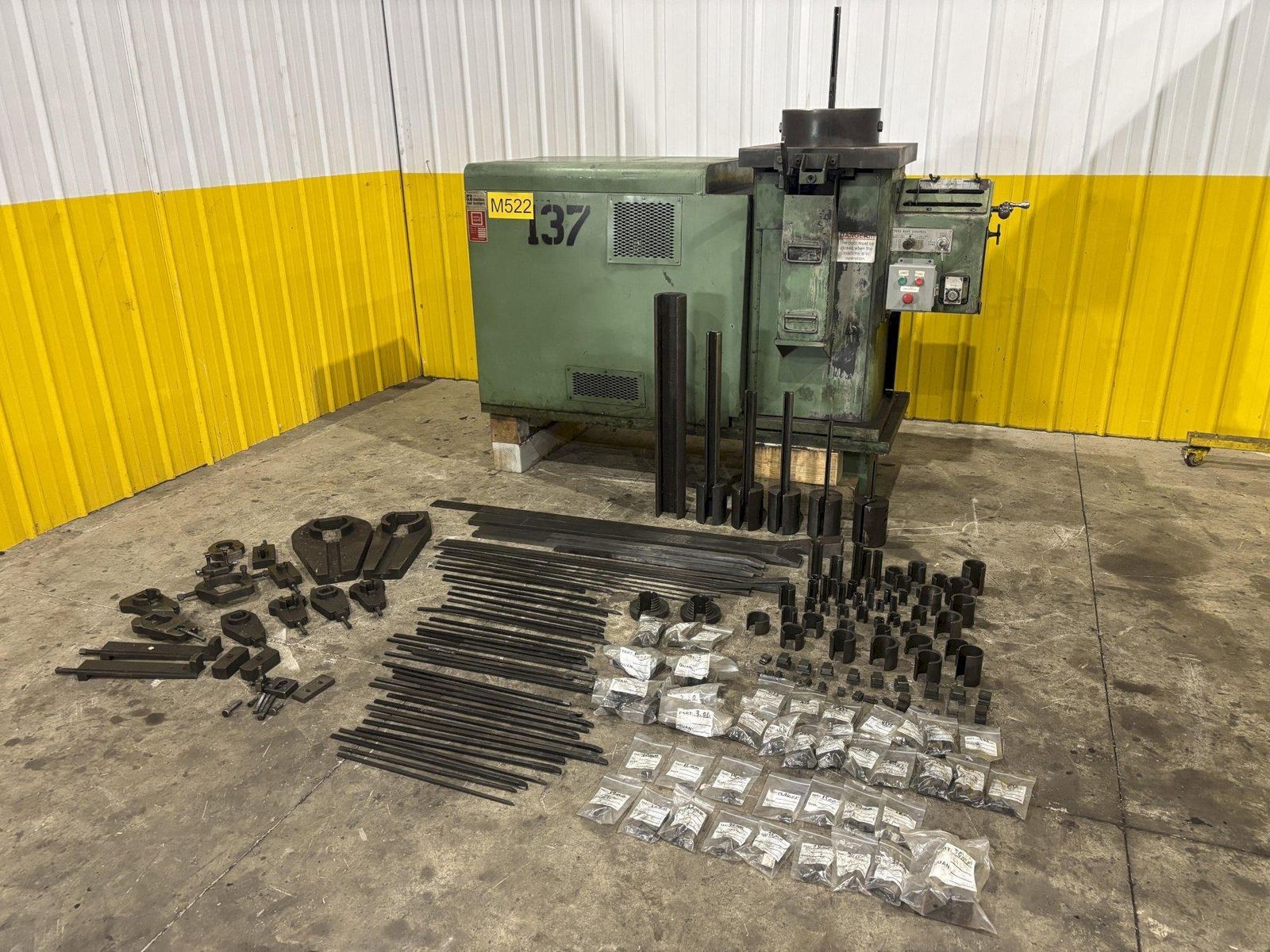

3" X 24" MITTS & MERRILL MODEL #5HFR-KS HYDRAULIC KEY CUTTER BROACH KEYSEATER: STOCK #23647

Stock #: 23647

Equipped With

SERIAL .................................... KM-80011
MODEL ..................................... 5HFR-KS
KEYWAY LENGTH ............................. 24"
KEYWAY WIDTH .............................. 3"
LARGEST STANDARD POST ..................... 4-7/8"
CUTTING SPEED (VARIABLE)................... 7 TO 23 FPM
RETURN SPEED (CONSTANT).................... 37 FPM
FLOOR TO TABLE ............................ 43.5"
HYDRAULIC VARIABLE FEED RATE PER STROKE ... .002 TO .010
MOTOR ..................................... 10 HP

ASSORTED TOOLING .......................... YES
POSTS ..................................... 3", 1.5", 1", .75" X2, .5", .25"
BAR TYPE .................................. 3" TO .25"
FEED EDGE ................................. 3" TO .25"

DOVETAIL CUTTERS .......................... .3125",.375", .437", .4375", .4385", .555", .5625", .625",
.686", .682", .713", .748",.750", .8125", .875", 1.00", 1.100", 1.250", 1.5", 1.750", 2.00", 2.50", 3.00"
10MM, 12MM, 14MM,14.96MM,15MM, 16MM, 18MM, 19MM, 20MM, 22MM, 24MM, 25MM, 28MM, 30MM, 32MM, 50MM.

STEP BUSHINGS ............................. 2
EXPANSION BUSHINGS ........................ 11
TOP CLAMP ................................. 3
EXTRA DOVETAILS, POST ADPATERS, TOOL BARS, AND TOP CLAMPS INCLUDED.
