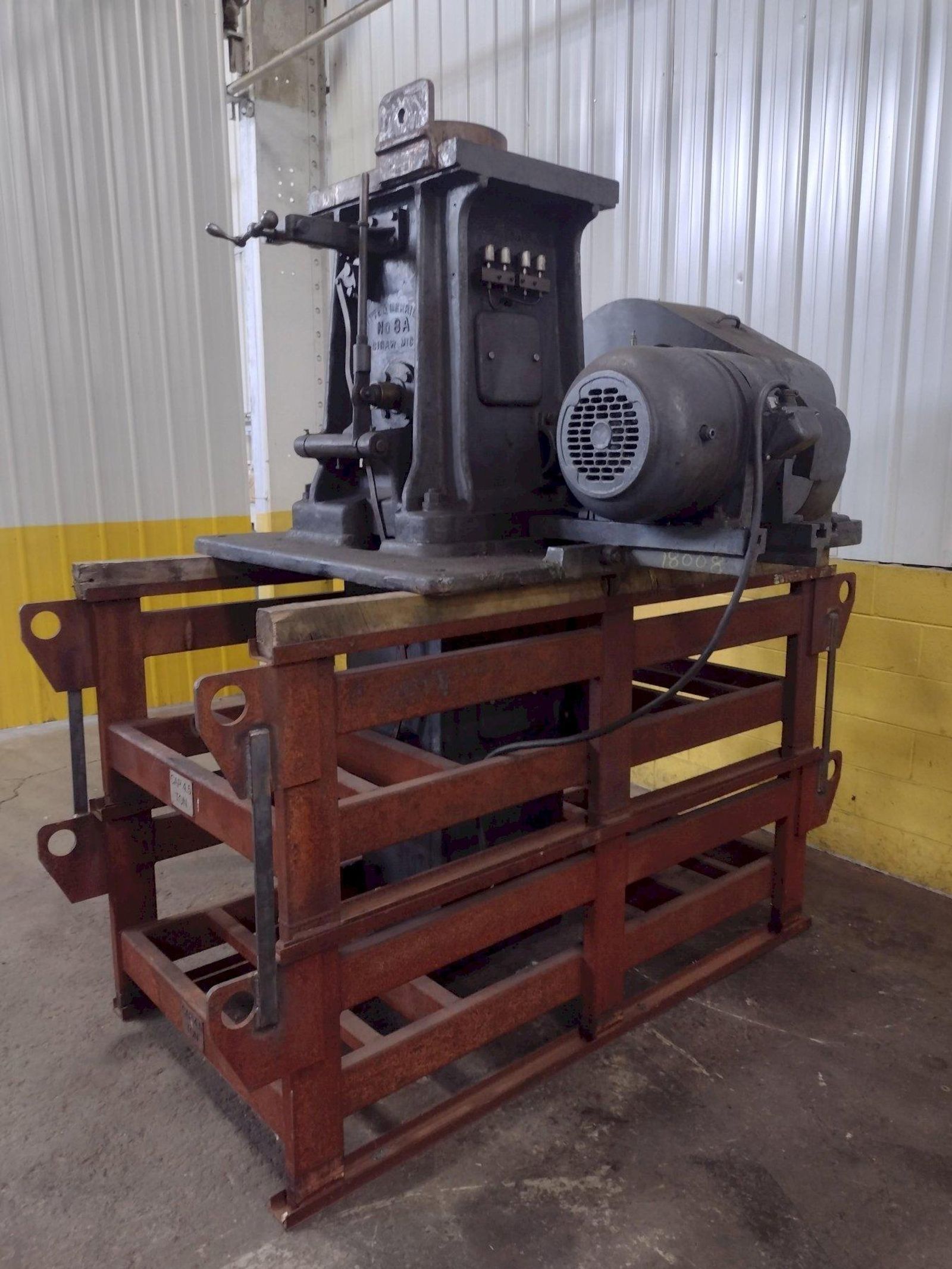

Model ...................................... 8A
Maximum Keyway Width ....................... 4"
Maximum Keyway Length ...................... 50"
Largest Standard Post ..................... 6"
Diameter Largest Bore Possible to Keyway ... 18"
Floor Line to Table Top .................... 40"
Depth of Pit Required ...................... 7'
Opening in Floor Required .................. 32" x 20" x 58"
Deep Table Top Size ........................ 22-1/2" x 26"
Automatic Mechanical Infeed of Cutter ...... .002" to .010" Per Stroke
Maximum Tool Infeed Depth .................. 7"
Hole in Mounting Post ...................... 6" Dia. with 4-1/2" Wide Slot
Overall Floor Area Required ................ 65" x 74"
Motor ...................................... 7.5 Hp 230/460 volt
Pushbutton Start/Stop Controls ............. YES
Mechanical Gear Driven System .............. YES
Ram has Central Lubrication System ......... YES
| Specifications | ||
|---|---|---|
| Dimensions | 72" L x 73" W x 65" H | |
| Weight | 8250 pounds | |
Brand
MITTS & MERRILL
Type
Keyseaters
Stock No.
17394
 |
419-269-2000 |
Stock #: 17394
Model ...................................... 8A
Maximum Keyway Width ....................... 4"
Maximum Keyway Length ...................... 50"
Largest Standard Post ..................... 6"
Diameter Largest Bore Possible to Keyway ... 18"
Floor Line to Table Top .................... 40"
Depth of Pit Required ...................... 7'
Opening in Floor Required .................. 32" x 20" x 58"
Deep Table Top Size ........................ 22-1/2" x 26"
Automatic Mechanical Infeed of Cutter ...... .002" to .010" Per Stroke
Maximum Tool Infeed Depth .................. 7"
Hole in Mounting Post ...................... 6" Dia. with 4-1/2" Wide Slot
Overall Floor Area Required ................ 65" x 74"
Motor ...................................... 7.5 Hp 230/460 volt
Pushbutton Start/Stop Controls ............. YES
Mechanical Gear Driven System .............. YES
Ram has Central Lubrication System ......... YES
