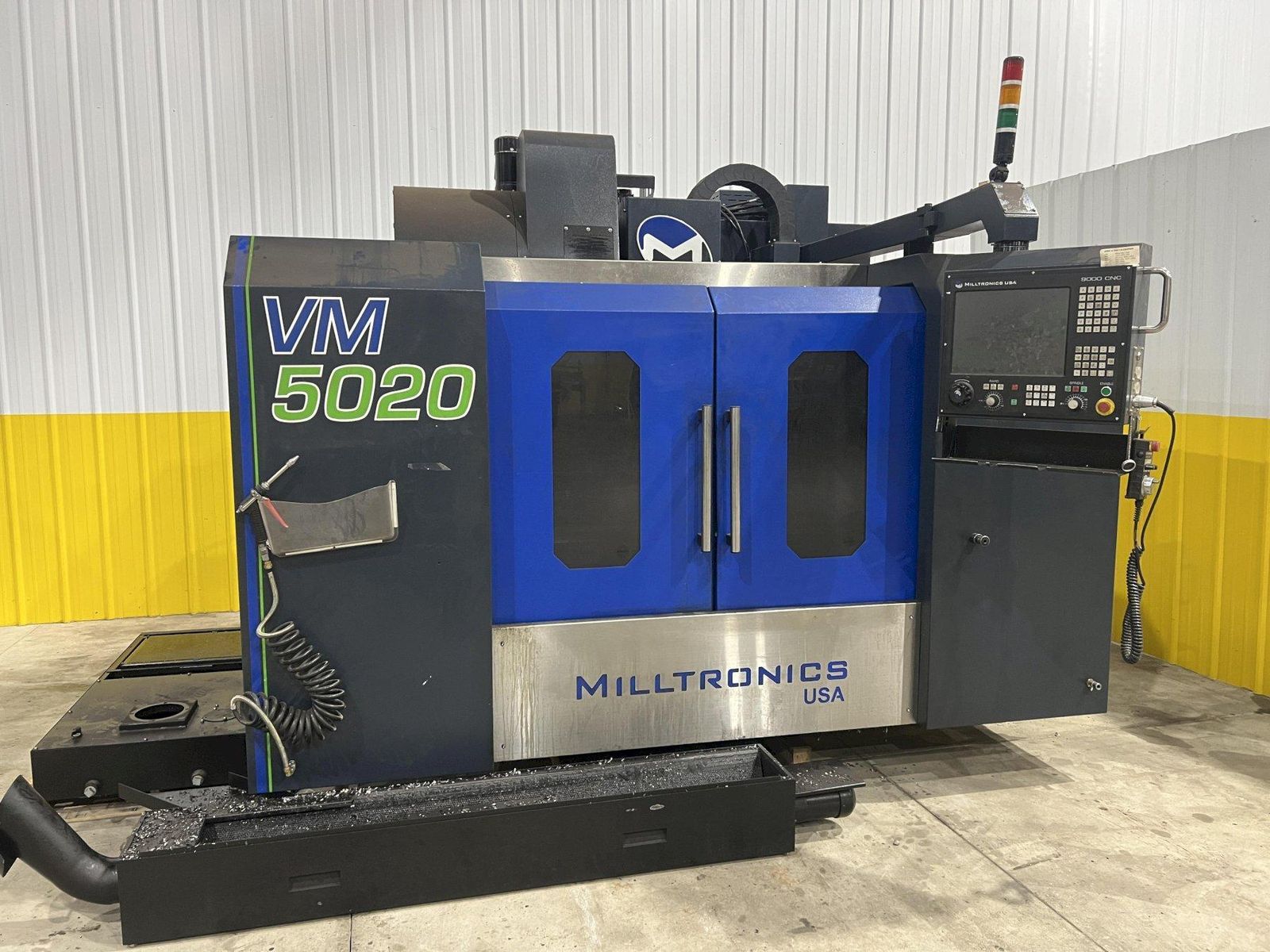

MODEL ................... VM5020
SERIAL .................. VM52200171AAAAH
MFG DATE ................ 2021
TABLE
TABLE WORKING SURFACE ... 52" X 20"
TABLE T-SLOTS ........... .71"
MAX. WEIGHT ON TABLE .... 3,770 LBS
TRAVEL
X-AXIS .................. 50"
Y-AXIS .................. 20"
Z-AXIS .................. 20"
SPINDLE MOTOR
SPINDLE POWER (MAX) ..... 20/15 HP
SPINDLE TORQUE (MAX) .... 75 FT-LBS
SPINDLE
SPINDLE TAPER ........... BIG PLUS ISO. NO. 40
SPINDLE NOSE TO TABLE ... 4" - 24"
SPINDLE SPEED (MAX) ..... 10,000 RPM
TOOL CHANGER
TOOL CAPACITY / TYPE .... 20 / DOUBLE ARM
TOOL SHANK .............. CT40
RETENTION KNOB .......... MAS 60
MAX. TOOL DIAMETER ...... 3.15"
MAX. TOOL LENGTH ........ 9.45"
MAX. TOOL WEIGHT ........ 15.4 LBS
Brand
MILLTRONICS
Type
Machining Centers, Horizontal
Stock No.
20633
 |
419-269-2000 |
Stock #: 20633
MODEL ................... VM5020
SERIAL .................. VM52200171AAAAH
MFG DATE ................ 2021
TABLE
TABLE WORKING SURFACE ... 52" X 20"
TABLE T-SLOTS ........... .71"
MAX. WEIGHT ON TABLE .... 3,770 LBS
TRAVEL
X-AXIS .................. 50"
Y-AXIS .................. 20"
Z-AXIS .................. 20"
SPINDLE MOTOR
SPINDLE POWER (MAX) ..... 20/15 HP
SPINDLE TORQUE (MAX) .... 75 FT-LBS
SPINDLE
SPINDLE TAPER ........... BIG PLUS ISO. NO. 40
SPINDLE NOSE TO TABLE ... 4" - 24"
SPINDLE SPEED (MAX) ..... 10,000 RPM
TOOL CHANGER
TOOL CAPACITY / TYPE .... 20 / DOUBLE ARM
TOOL SHANK .............. CT40
RETENTION KNOB .......... MAS 60
MAX. TOOL DIAMETER ...... 3.15"
MAX. TOOL LENGTH ........ 9.45"
MAX. TOOL WEIGHT ........ 15.4 LBS
