Machine Information

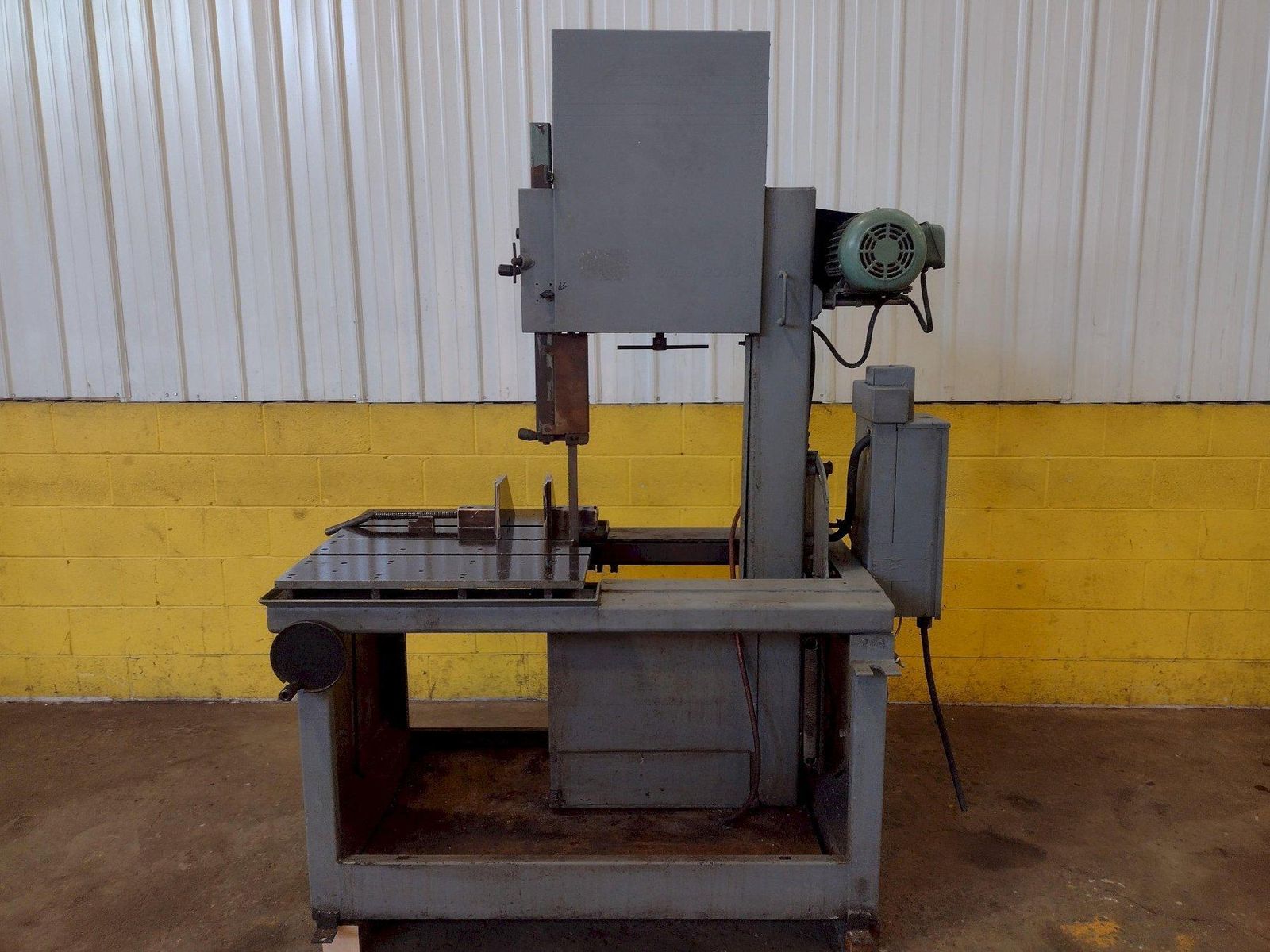

18" X 20" METAL MIZER MODEL #MS2018-1 VERTICAL TILT FRAME BAND SAW: STOCK #17916

Stock #: 17916

Equipped With

SERIAL ...................... MS0497483
MODEL ....................... MS2018-1
Capacity .................... 18" x 20"
Capacity @ 45 degrees ....... 13-1/4"
Maximum vise opening ........ 18"
Maximum head travel ......... 20"
Table size .................. 30" x 28"
Blade size .................. 14' 6" x 1" x .035"
Blade wheel size ............ 18" diameter
Blade speed range ........... 99 TO 275 surface feet / minute
Feed force range ............ 0 TO 175 lbs.
Degree of head tilt ......... 45 degrees right and left
Motor ....................... 2 HP

18" X 20" METAL MIZER MODEL #MS2018-1 VERTICAL TILT FRAME BAND SAW: STOCK #17916

Stock # 17916

Request a Quote

Share Machine

Print Details

Make an Offer























Download Images

View All Images

Machine Specifications

SERIAL ...................... MS0497483
MODEL ....................... MS2018-1
Capacity .................... 18" x 20"

Capacity @ 45 degrees ....... 13-1/4"

Maximum vise opening ........ 18"

Maximum head travel ......... 20"

Table size .................. 30" x 28"

Blade size .................. 14' 6" x 1" x .035"

Blade wheel size ............ 18" diameter

Blade speed range ........... 99 TO 275 surface feet / minute

Feed force range ............ 0 TO 175 lbs.

Degree of head tilt ......... 45 degrees right and left

Motor ....................... 2 HP

Specifications
Weight	1350 pounds
Type (Auto, Manual, Semi)	automatic
