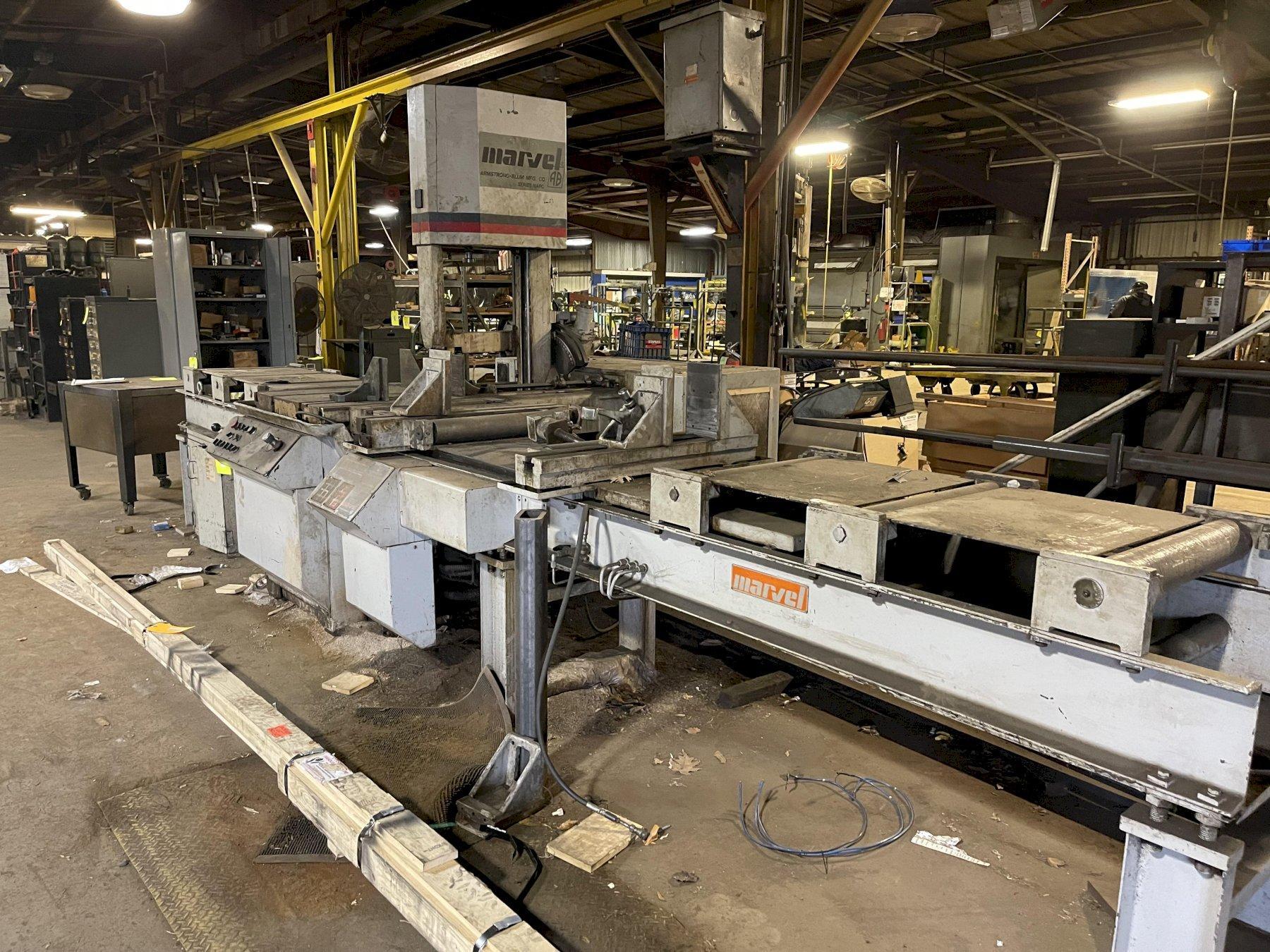

18" X 20" MARVEL MODEL #81A11-PC VERTICAL MITRE HEAD BAND SAW: STOCK #15981

Stock #: 15981

Equipped With

SERIAL ............................ E465011PC
MODEL ............................. 81A11PC
CAPACITY .......................... 18" X 20" (18" ROUNDS)
CAPACITY AT 45 DEGREES ............ 18" X 13" (13" ROUNDS)
PROGRAMMABLE STOCK FEED ........... YES
BLADE SPEEDS ...................... 60 TO 400 FPM (VARIABLE)
POWER FEED TO HEAD ................ 0# TO 300#
DUAL HYDRAULIC VISES .............. YES
HEAD TILTS 45 DEGREES ............. RIGHT AND LEFT POWERED
LENGTH OF BLADE ................... 14'6" X 1-1/4"
HYDRAULIC TILT .................... YES
HYDRAULIC BLADE GUIDE ............. YES
WORKING SURFACE OF TABLE .......... 30" X 33"
STOCK FEED TABLE .................. 24" MAX SINGLE FEED - 19 CYCLES
EXIT & ENTRY CONVEYOR ............. YES
CAPACITY ON SHUTTLE FEED TABLE .... 7,000 LBS
MANUAL TILTING DEAD STOP GAUGE .... YES
MAIN HYDRAULIC MOTOR .............. 7-1/2 HORSEPOWER
