Brand
LUCAS
Type

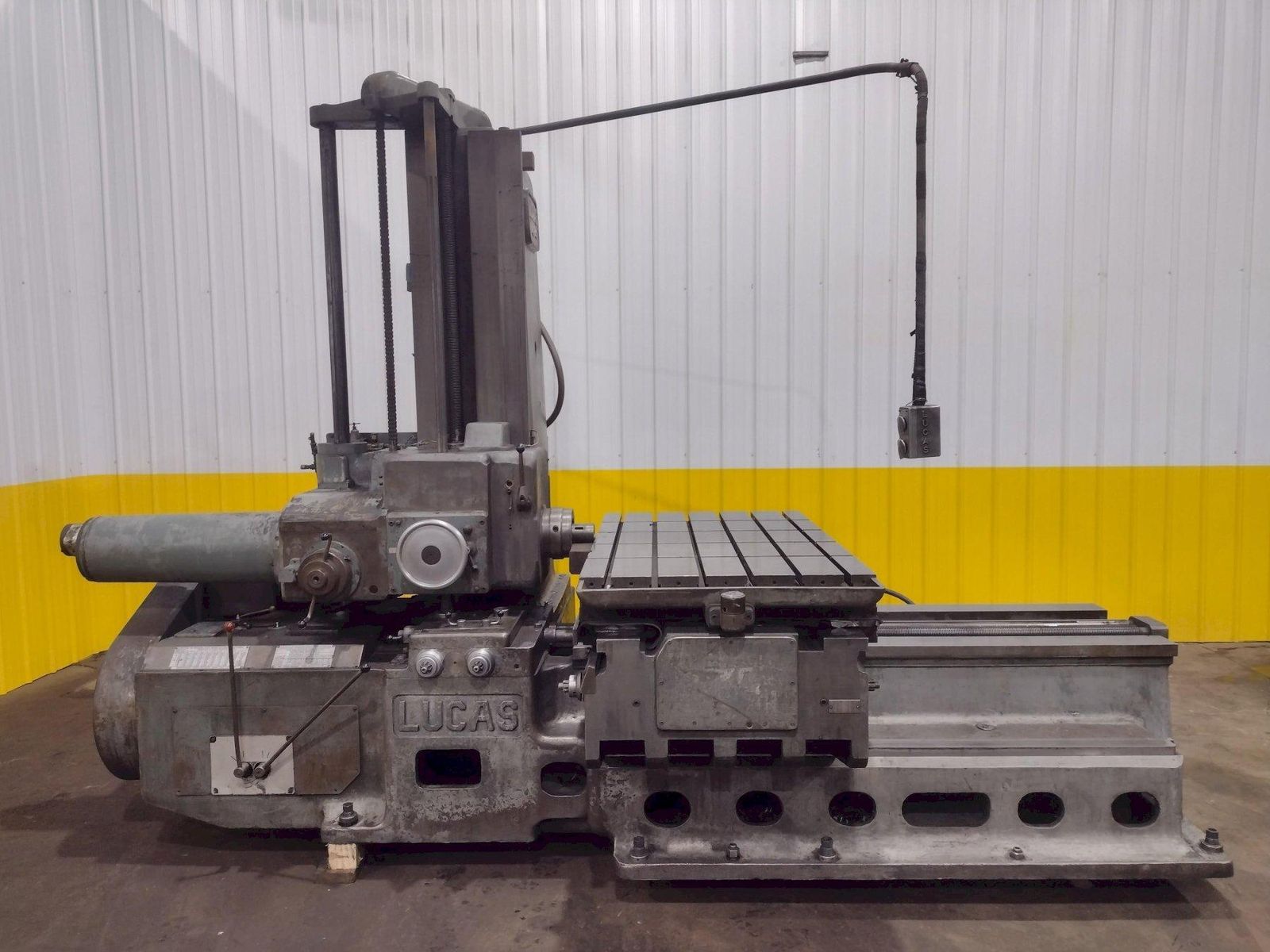

Boring Mills, Horizontal, Table Type
Stock No.
19915
 |
419-269-2000 |
Stock #: 19915
SERIAL ....................... 41B-1213
MODEL ........................ 41B-48
DIAMETER OF SPINDLE .......... 3"
AREA OF TABLE ................ 62" X 36"
STROKE OF SPINDLE ............ 24"
VERTICAL TRAVEL OF SPINDLE ... 36"
TABLE CROSS TRAVEL ........... 48"
SPINDLE SPEEDS ............... (25) 13 TO 1500 RPM
FEEDS ........................ (81) .0001 TO .698 IPR
TAPER IN SPINDLE ............. #5 MT
POWER SADDLE CLAMP ........... YES
MANUAL TABLE CLAMP ........... YES
4 WAY BED MACHINE ............ YES
HARDENED WAYS ................ YES
PENDANT CONTROL .............. YES
MAIN MOTOR ................... 15 HORSEPOWER
