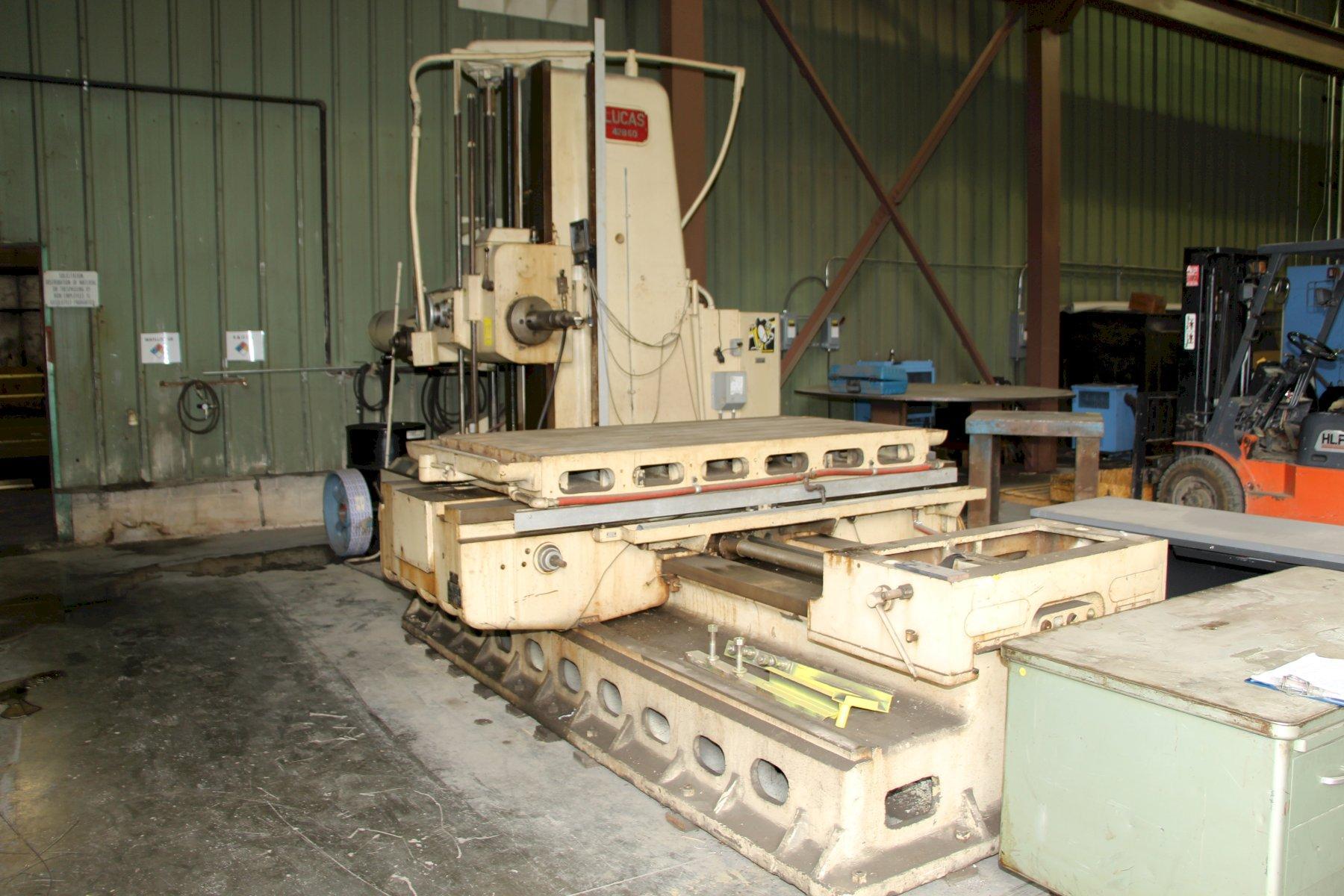

4" LUCAS MODEL #42B-60 HORIZONTAL BORING MILL: STOCK #11209

Stock #: 11209

Equipped With

SERIAL .................... 42B1507
MODEL ..................... 42B-60
TABLE SIZE ................ 74" X 40"
SADDLE TRAVEL ............. 78"
DIAMETER OF SPINDLE ....... 4"
SPINDLE SPEEDS ............ (26) 9 TO 1200 RPM
FEEDS ..................... (81) .0001 TO 1.038 IPR
SPINDLE TRAVEL ............ 36"
VERTICAL HEAD TRAVEL ...... 48"
TABLE CROSS TRAVEL ........ 60"
RAPID TRAVERSE ............ 75" IPM
SADDLE TRAVEL ............. 72"
4 WAY BED TYPE MACHINE .... YES
PENDANT CONTROL ........... YES
MOTOR ..................... 20 HORSEPOWER

NEWALL DP-700 CONTROL

Buy Machines

4" LUCAS MODEL #42B-60 HORIZONTAL BORING MILL: STOCK #11209

Stock # 11209

Share Machine
Print Details

Machine Specifications

SERIAL .................... 42B1507
MODEL ..................... 42B-60
TABLE SIZE ................ 74" X 40"
SADDLE TRAVEL ............. 78"
DIAMETER OF SPINDLE ....... 4"
SPINDLE SPEEDS ............ (26) 9 TO 1200 RPM
FEEDS ..................... (81) .0001 TO 1.038 IPR
SPINDLE TRAVEL ............ 36"
VERTICAL HEAD TRAVEL ...... 48"
TABLE CROSS TRAVEL ........ 60"
RAPID TRAVERSE ............ 75" IPM
SADDLE TRAVEL ............. 72"
4 WAY BED TYPE MACHINE .... YES
PENDANT CONTROL ........... YES
MOTOR ..................... 20 HORSEPOWER

NEWALL DP-700 CONTROL
