Machine Information

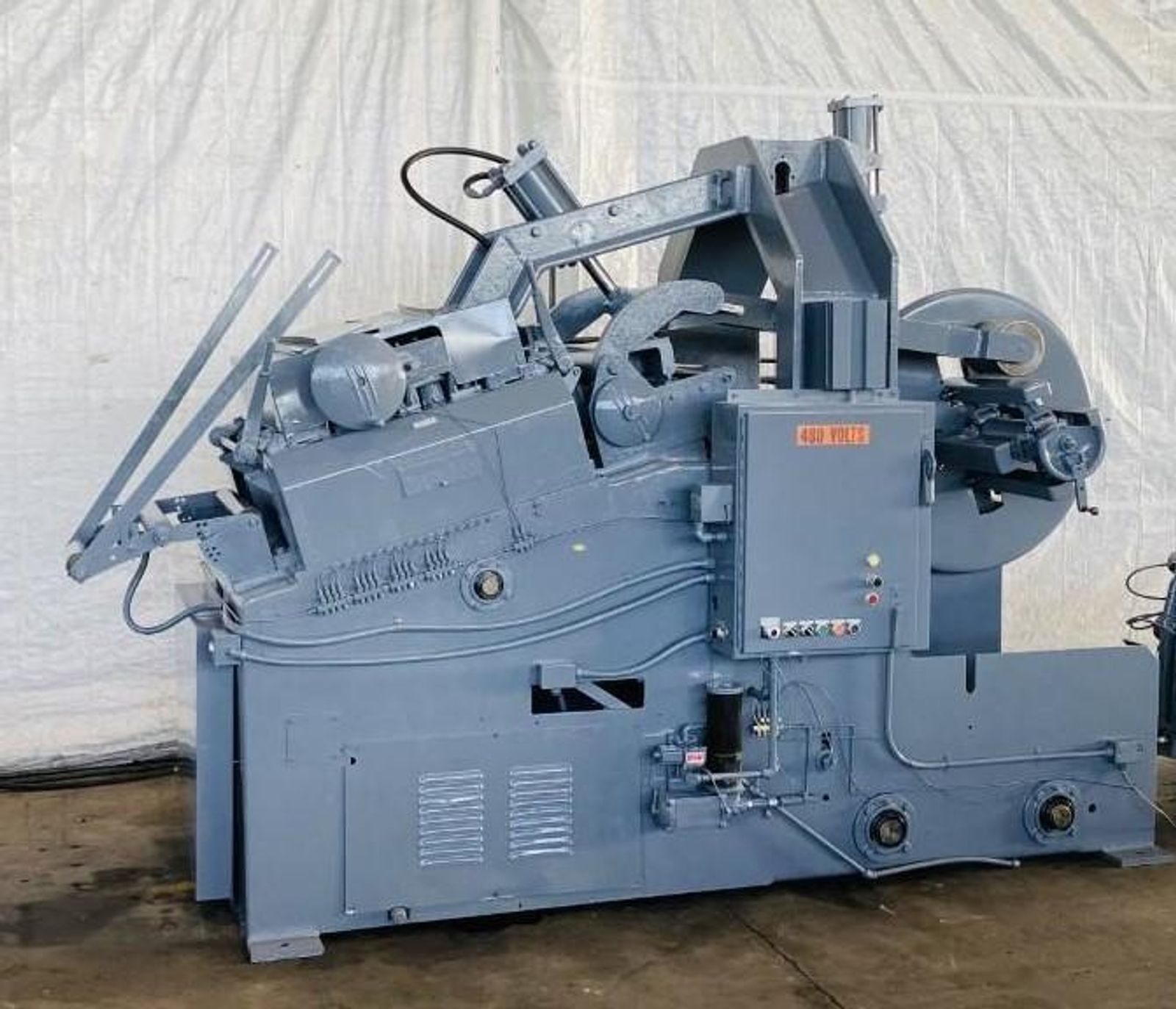

.250" X 12" X 2500 LBS LITTELL COIL REEL & STRAIGHTENER SYSTEM: STOCK #16835

Stock #: 16835

Equipped With

LITTELL UNCOILER/STRAIGHTENER COMBO

UNCOILER SPECS:
MODEL......................: NO.25
CAPACITY...................: 2,500 LB
MAX WIDTH..................: 18"
MAX COIL O.D...............: 42"
COIL I.D. RANGE............: 16" - 20"
MANUAL EXPANSION...........: YES

STRAIGHTENER SPECS:
MAX WIDTH..................: 24"
TOP OVER ARM SUPPORT.......: YES
BOTTOM OVER ARM SUPPORT....: YES
ENTRY PEELER TABLE.........: YES
ENTRY PINCH ROLLS..........: YES
PINCH ROLL DIAMETER........: 6.5"
# OF STRAIGHTENER ROLLS....: 5 (2 OVER 3)
STRAIGHTENER ROLL DIAMETER.: 4"
EXIT PINCH ROLLS...........: YES

Buy Machines

.250" X 12" X 2500 LBS LITTELL COIL REEL & STRAIGHTENER SYSTEM: STOCK #16835

Stock # 16835

Share Machine
Print Details

Machine Specifications

LITTELL UNCOILER/STRAIGHTENER COMBO

UNCOILER SPECS:
MODEL......................: NO.25
CAPACITY...................: 2,500 LB
MAX WIDTH..................: 18"
MAX COIL O.D...............: 42"
COIL I.D. RANGE............: 16" - 20"
MANUAL EXPANSION...........: YES

STRAIGHTENER SPECS:
MAX WIDTH..................: 24"
TOP OVER ARM SUPPORT.......: YES
BOTTOM OVER ARM SUPPORT....: YES
ENTRY PEELER TABLE.........: YES
ENTRY PINCH ROLLS..........: YES
PINCH ROLL DIAMETER........: 6.5"
# OF STRAIGHTENER ROLLS....: 5 (2 OVER 3)
STRAIGHTENER ROLL DIAMETER.: 4"
EXIT PINCH ROLLS...........: YES
