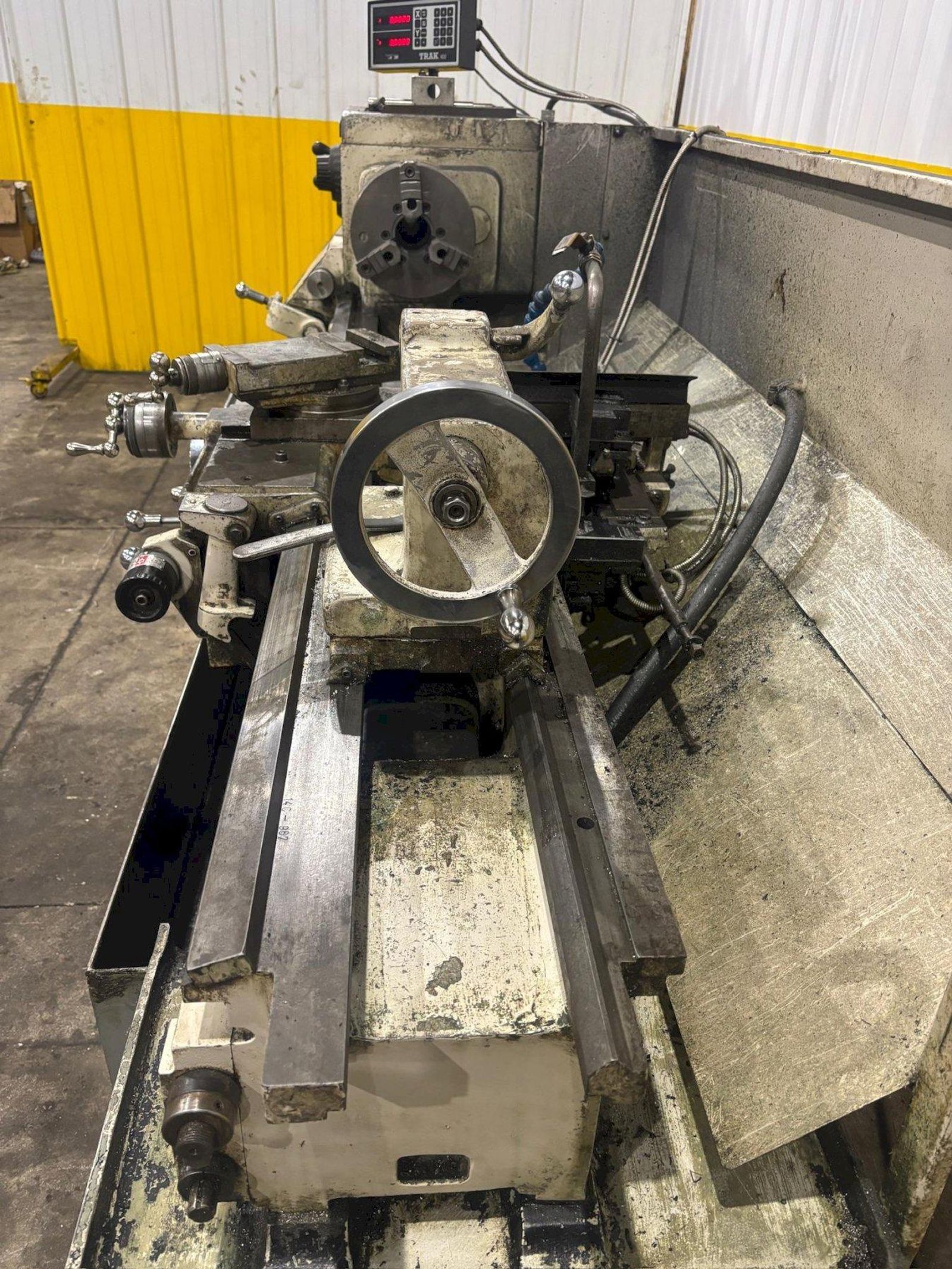

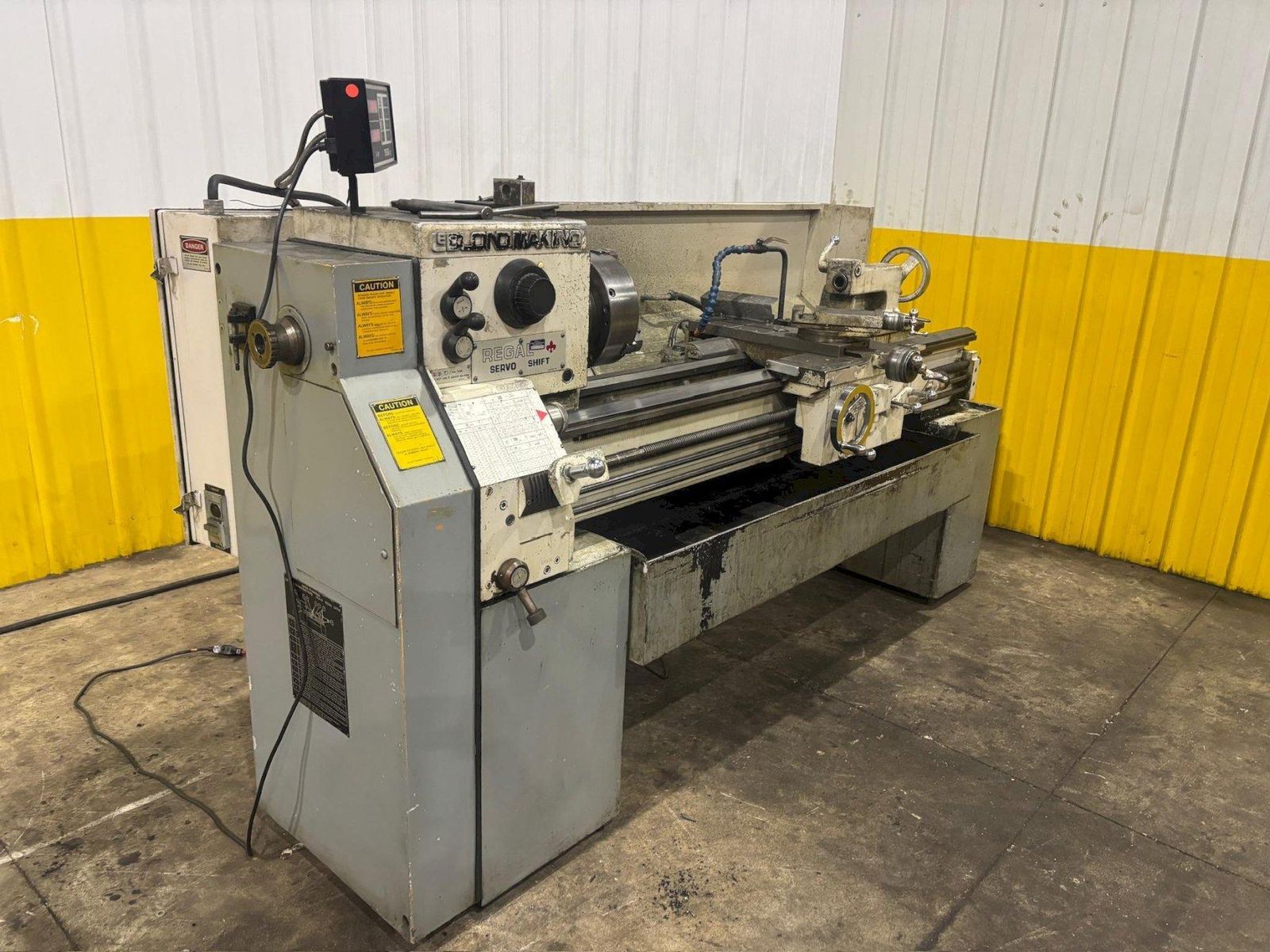

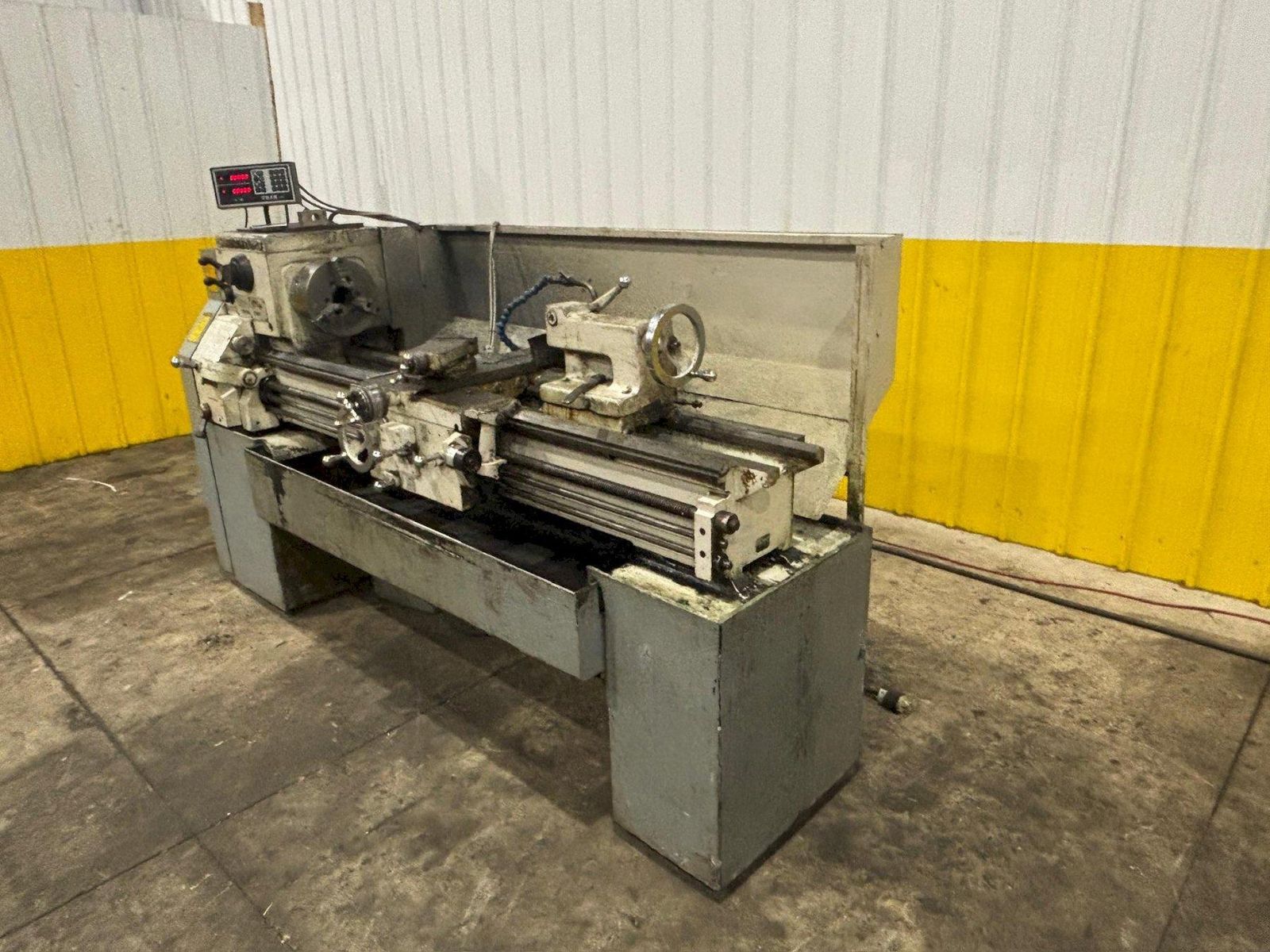

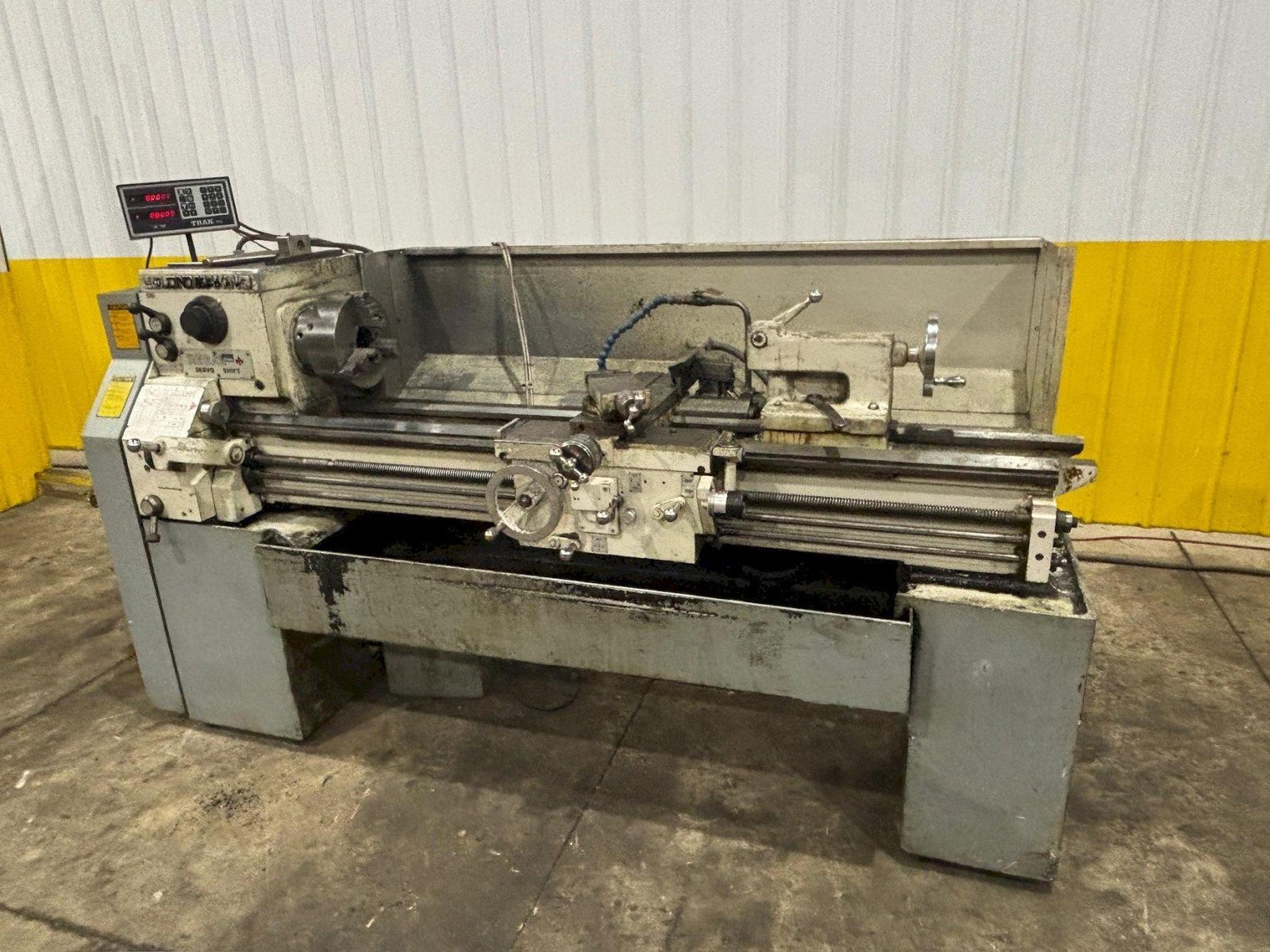

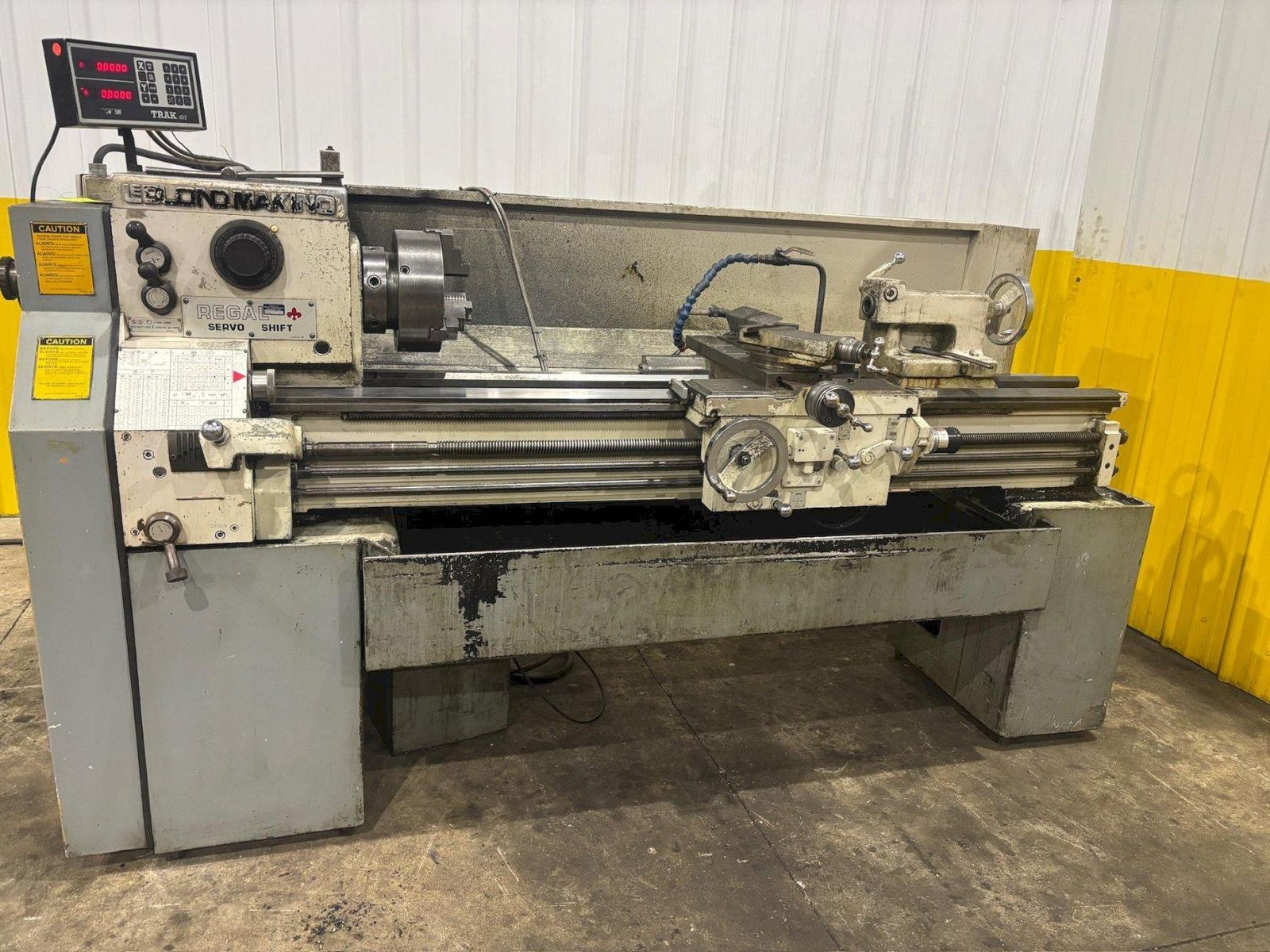

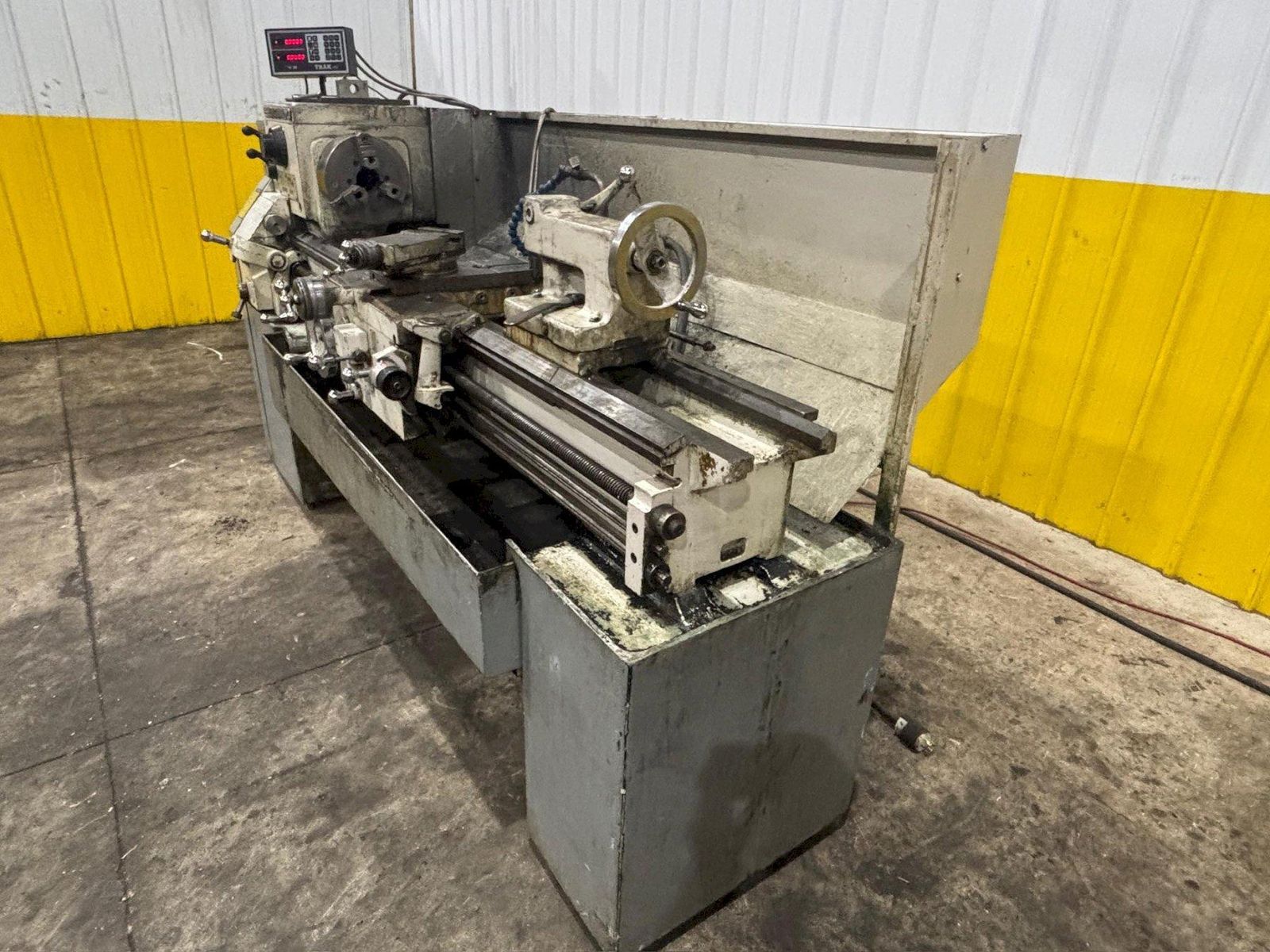

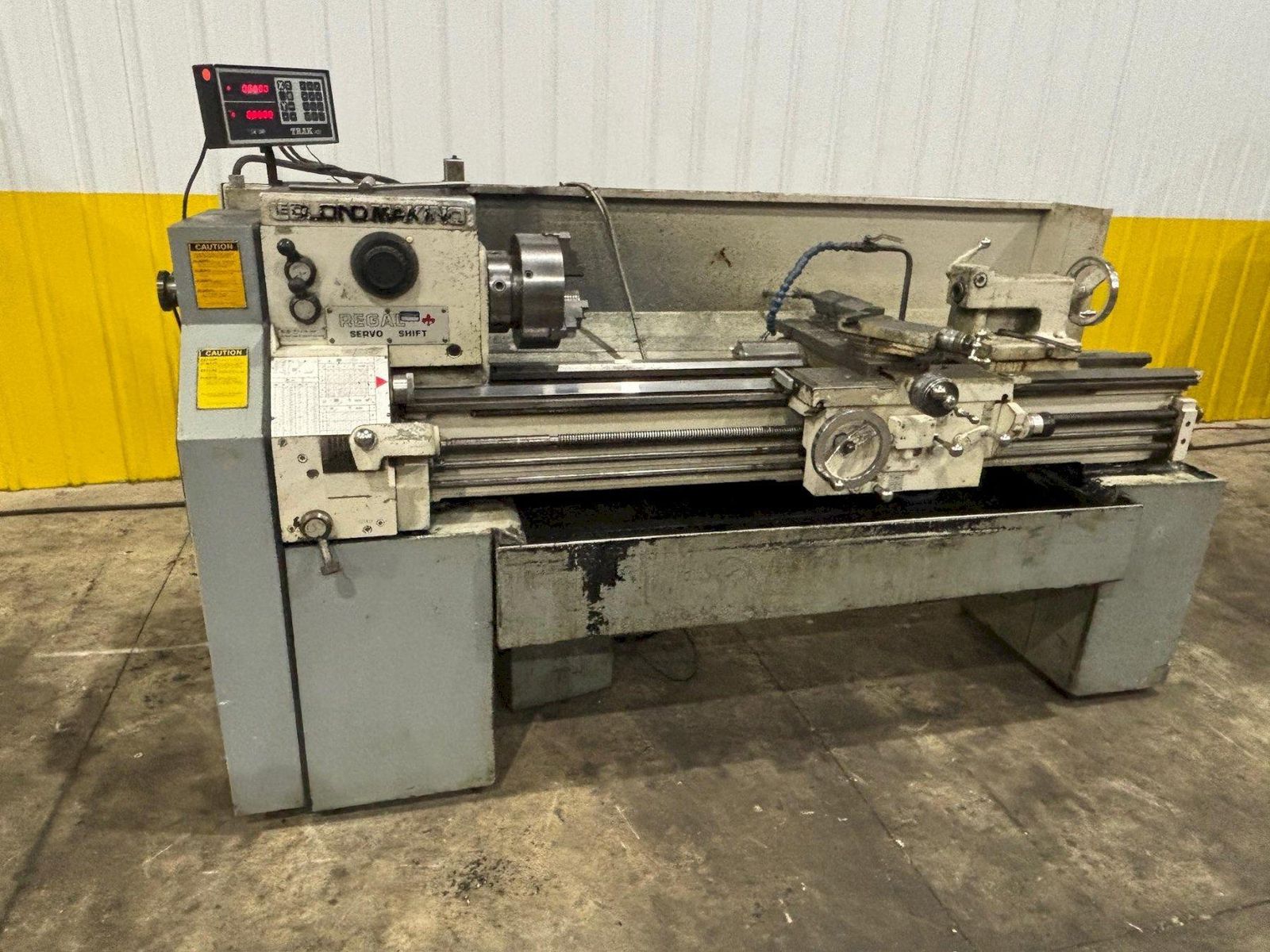

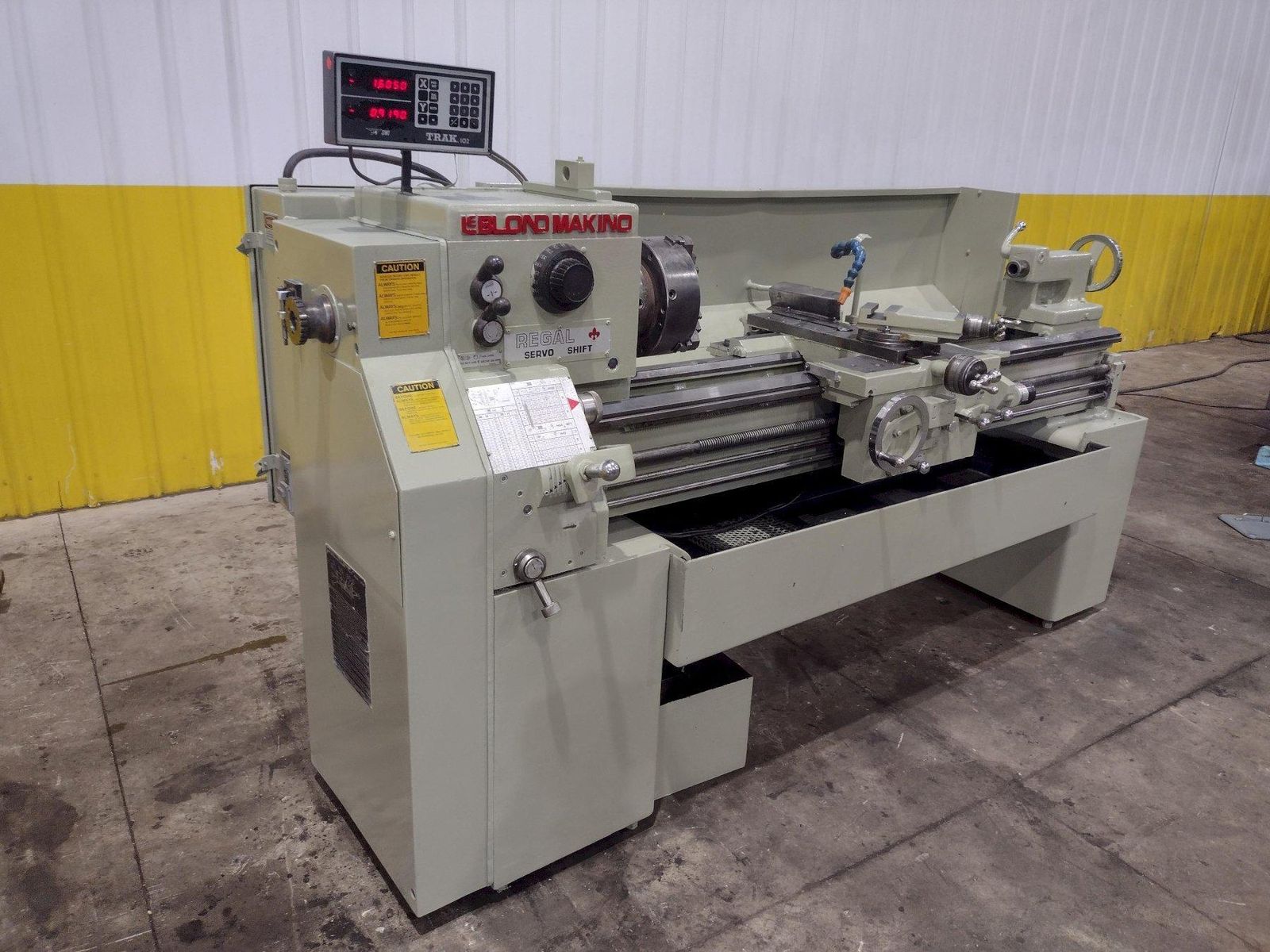

15" X 54" LEBLOND MAKINO MODEL #14C REGAL 15 SERVO SHIFT ENGINE LATHE W/ METRIC: YOBRO #24405

Overview

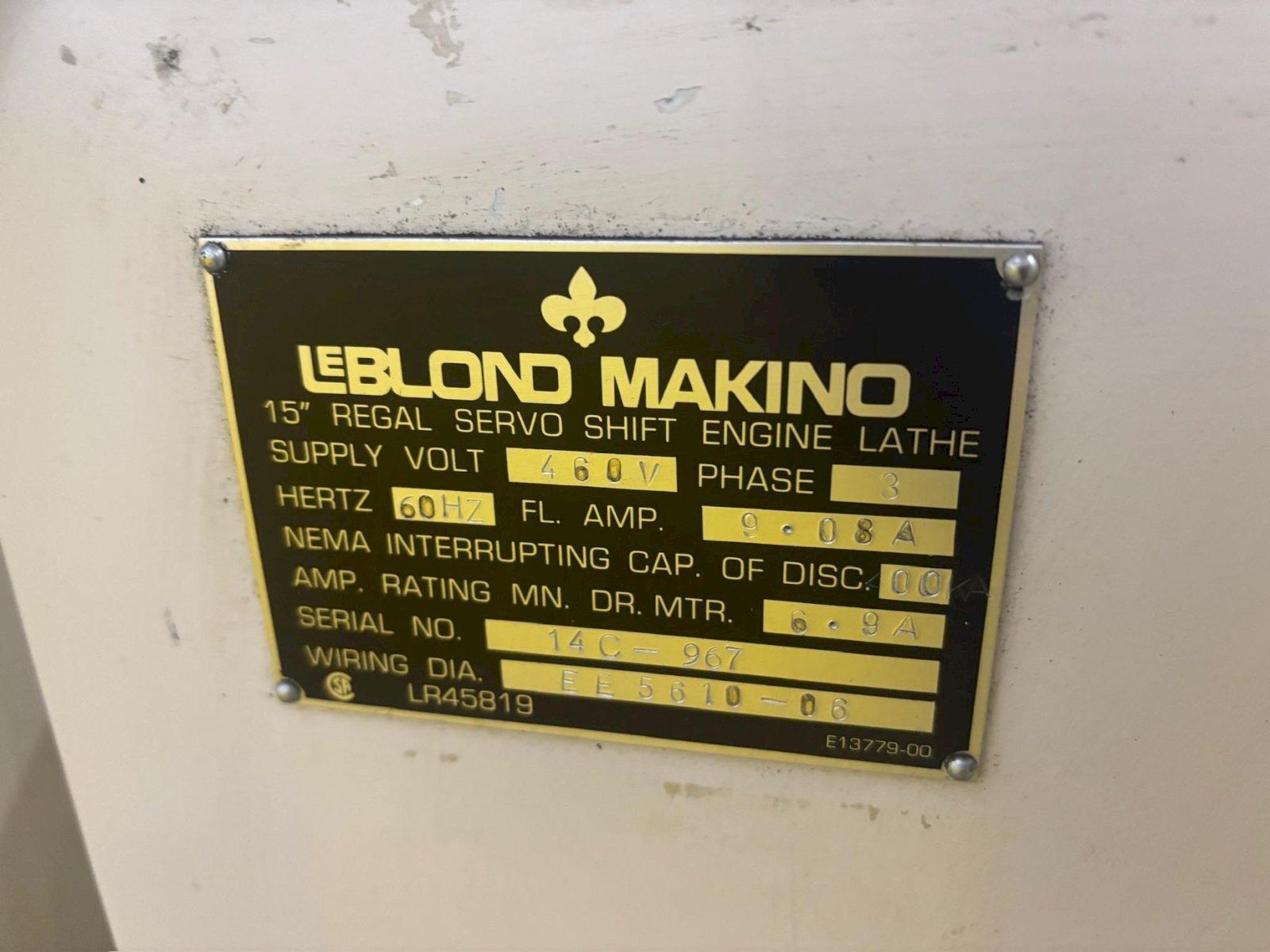

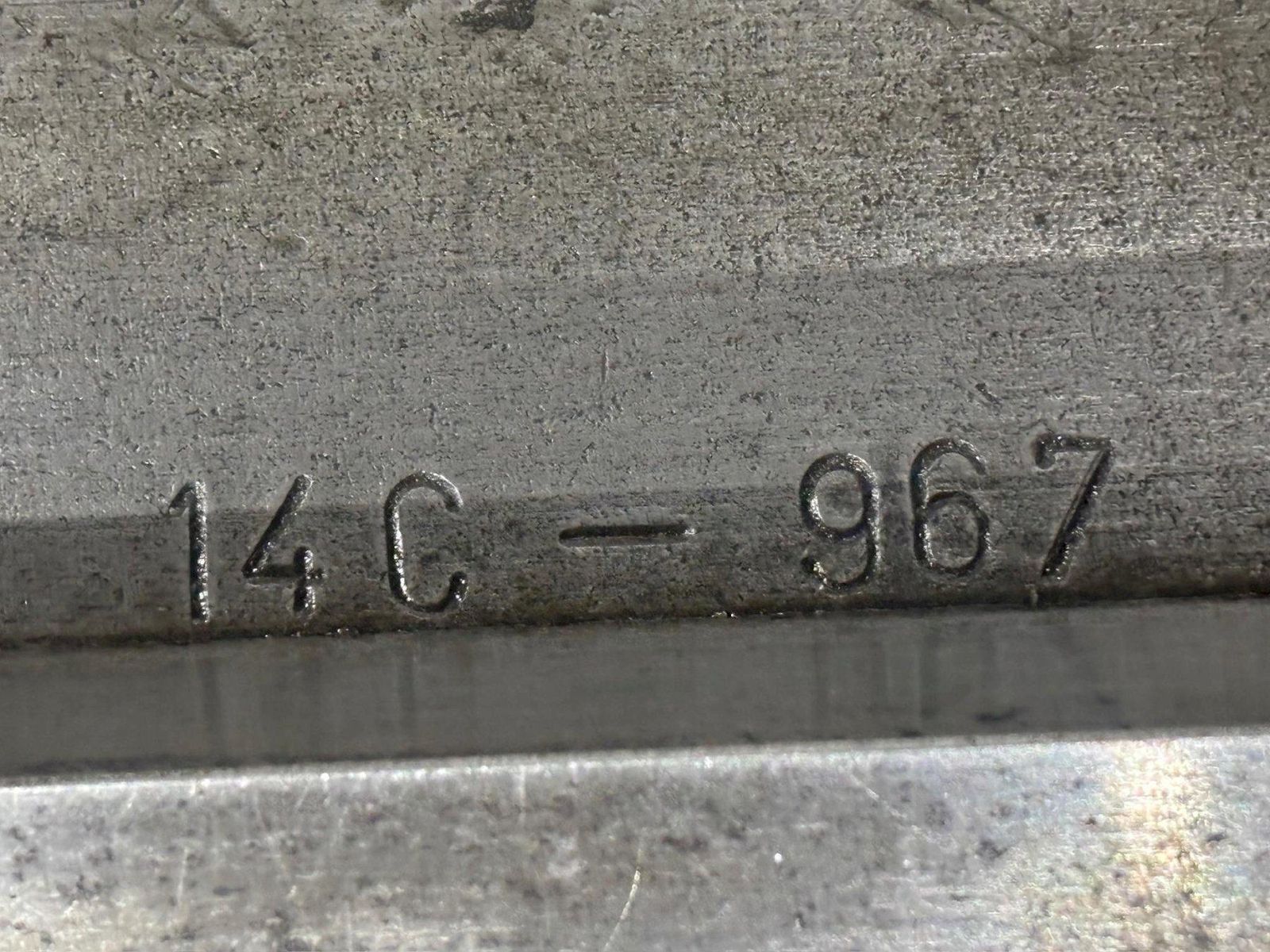

SERIAL ................... 14C-967

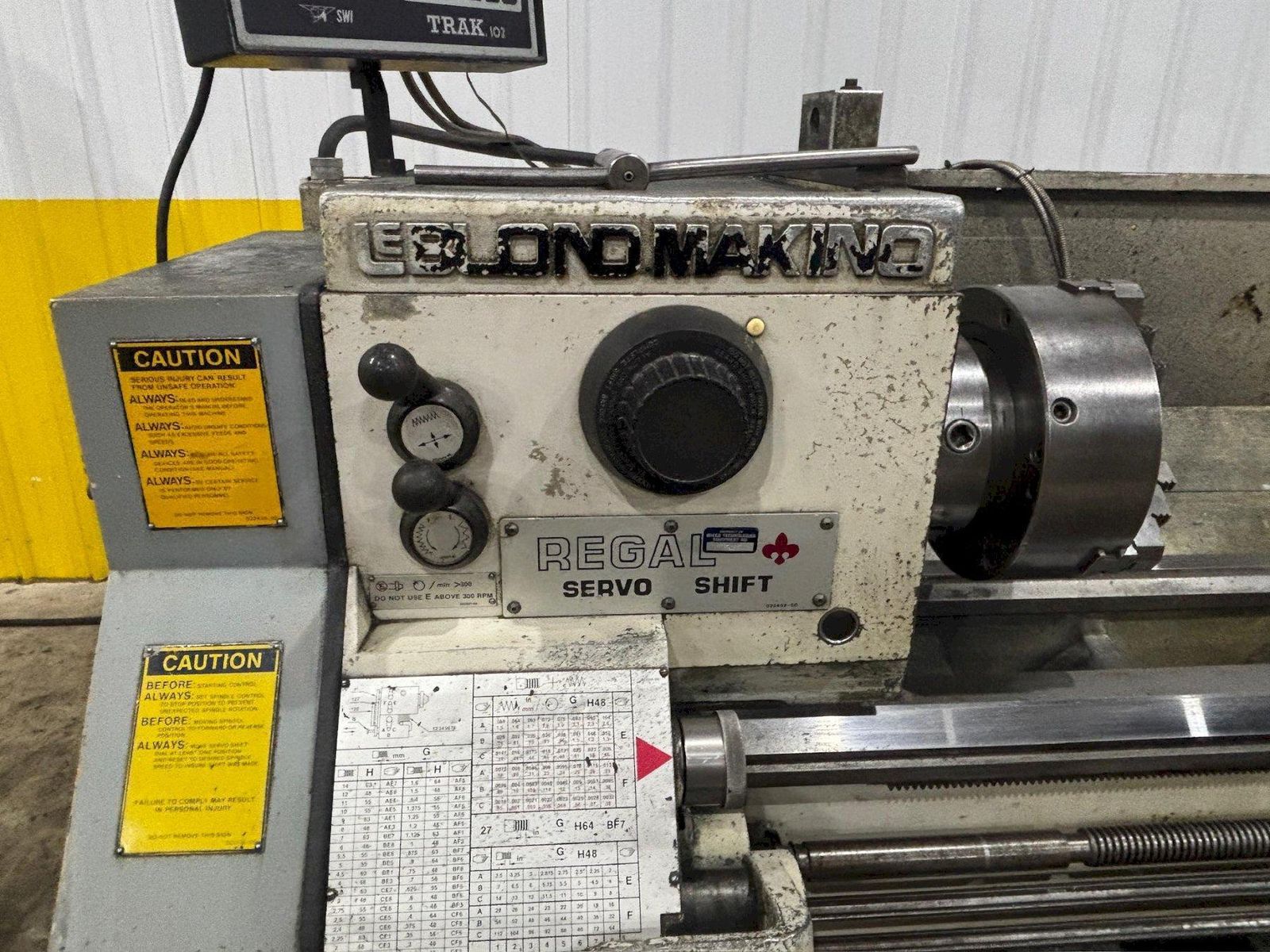

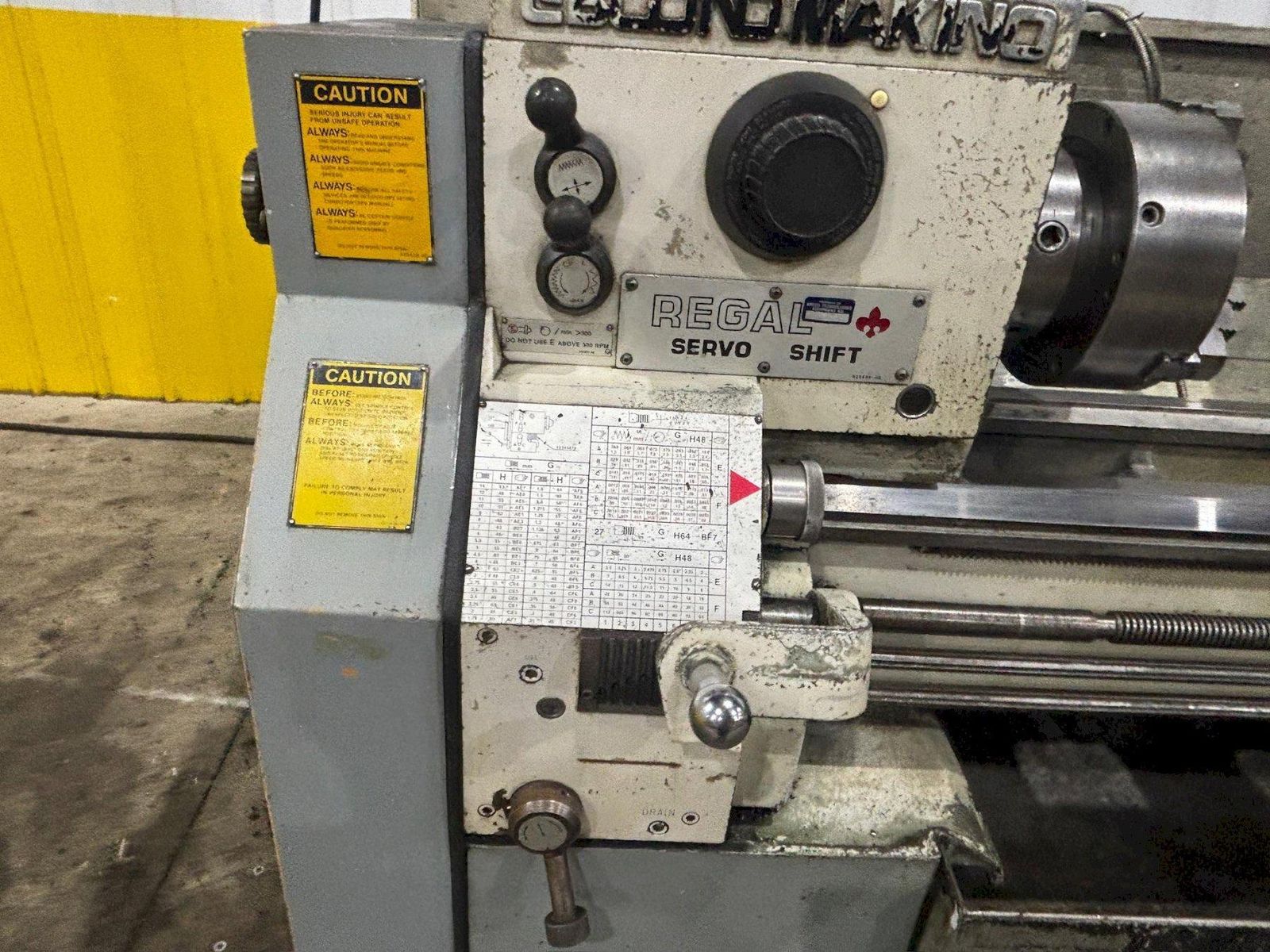

MODEL .................... 14C MAKINO REGAL SERVO SHIFT
SWING .................... 15"
SWING OVER CROSS ......... 10"
CENTERS .................. 54"

SPINDLE SPEEDS ........... (12) 45 TO 1,800 RPM
SPINDLE NOSE ............. D1-6
HOLE THROUGH SPINDLE ..... 2-1/4"
THREADS INCH ............. (48) 2 TO 112 TPI
THREADS METRIC ........... (40) 0.25 TO 14 MM
FEEDS .................... (48) 0.0018" TO 0.104"
THREAD DIAL............... YES
CROSS SLIDE TRAVEL ....... 8"
TAIL STOCK QUILL TRAVEL .. 5"
TAIL STOCK QUILL TAPER ... #4 MT

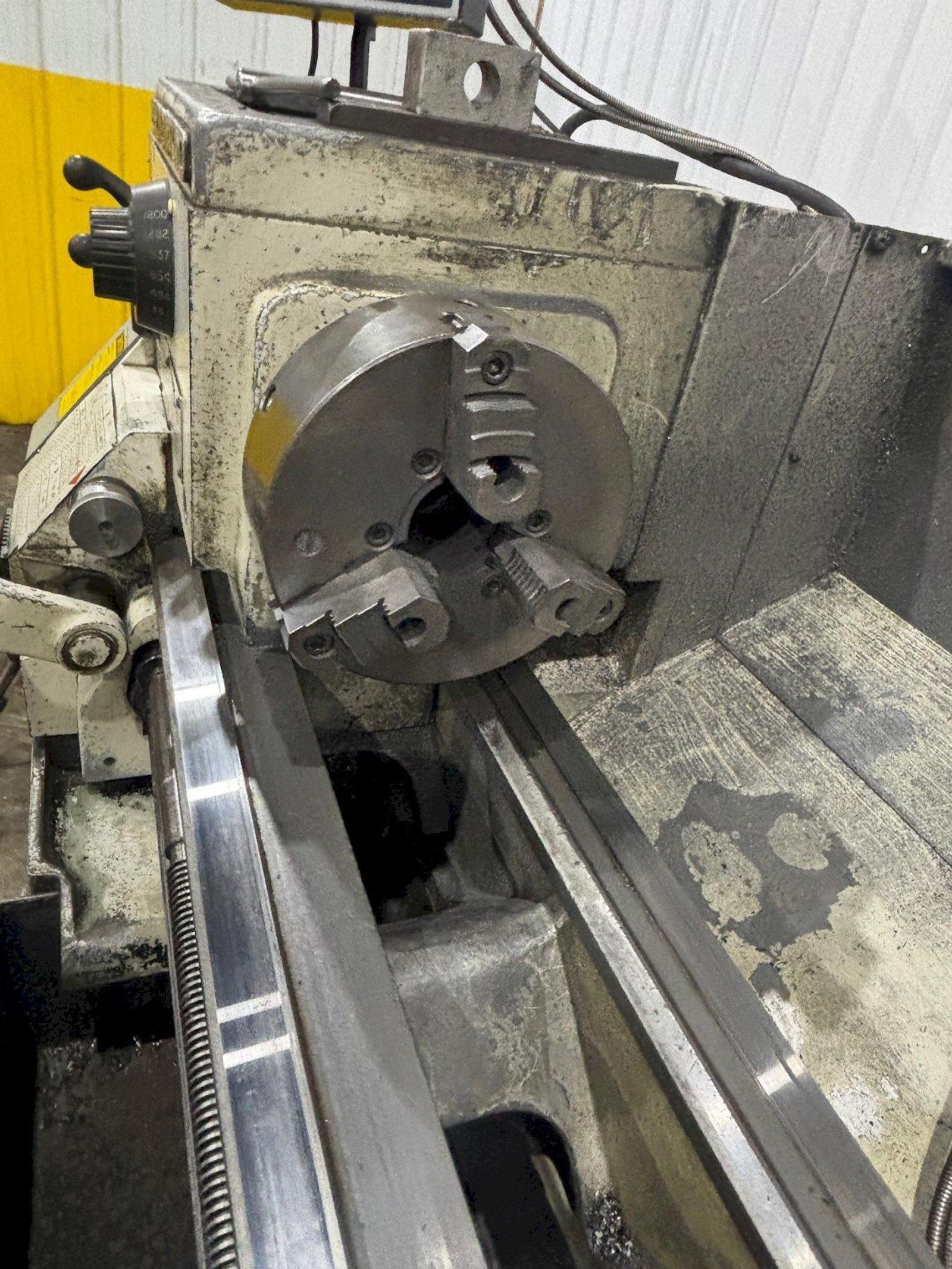

CHUCK .................... 10" 3 JAW
COOLANT .................. YES

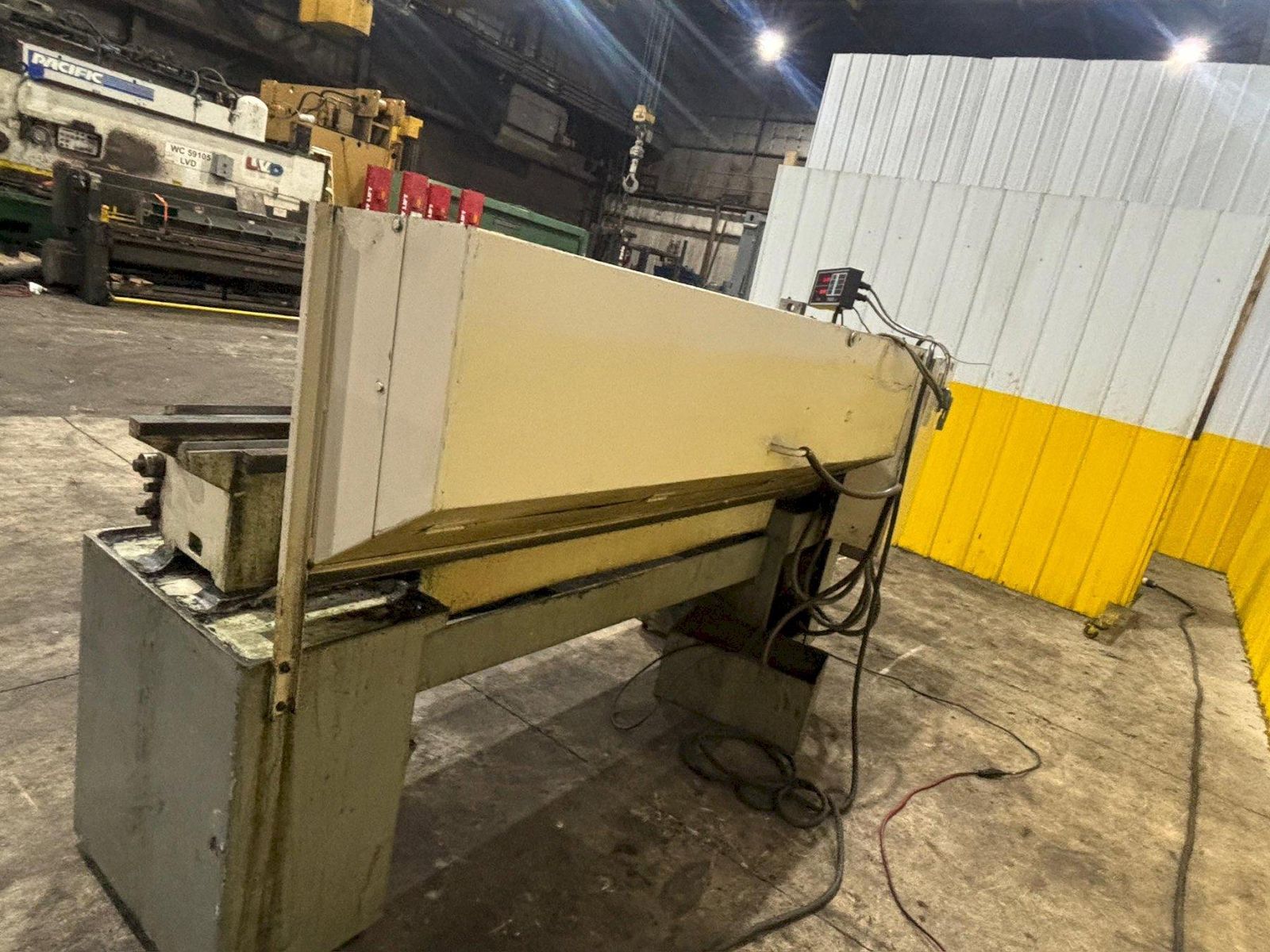

SPLASH GUARDS ............ YES

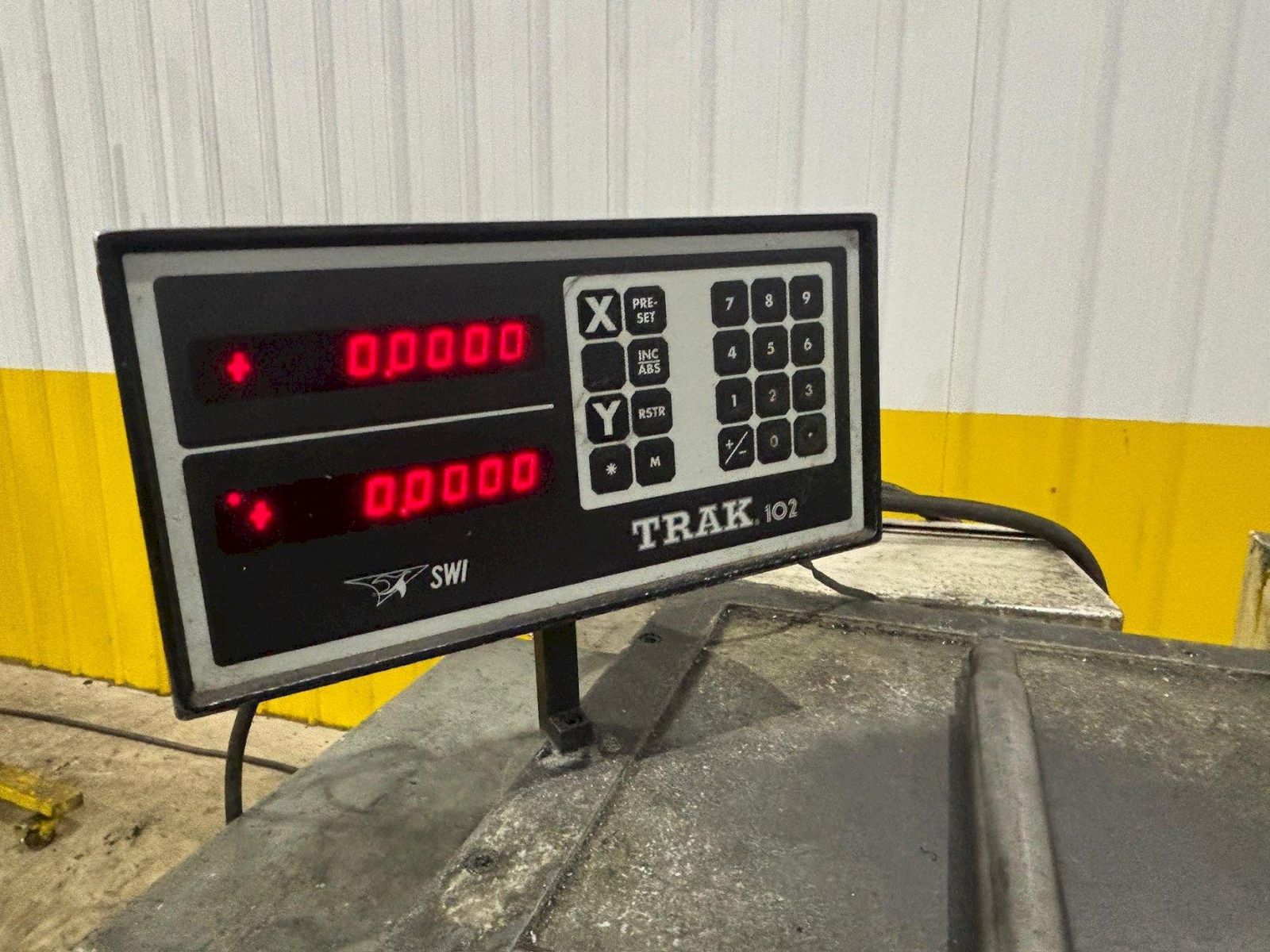

DIGITAL READ OUTS ........ 2 AXIS TRAK
MOTOR .................... 5 HP

15" X 54" LEBLOND MAKINO MODEL #14C REGAL 15 SERVO SHIFT ENGINE LATHE W/ METRIC: YOBRO #24405

Brand
LEBLOND

Type
Lathes, Engine

Stock No.
24405

Contact Us
Buy Now
Price: $8950.00
