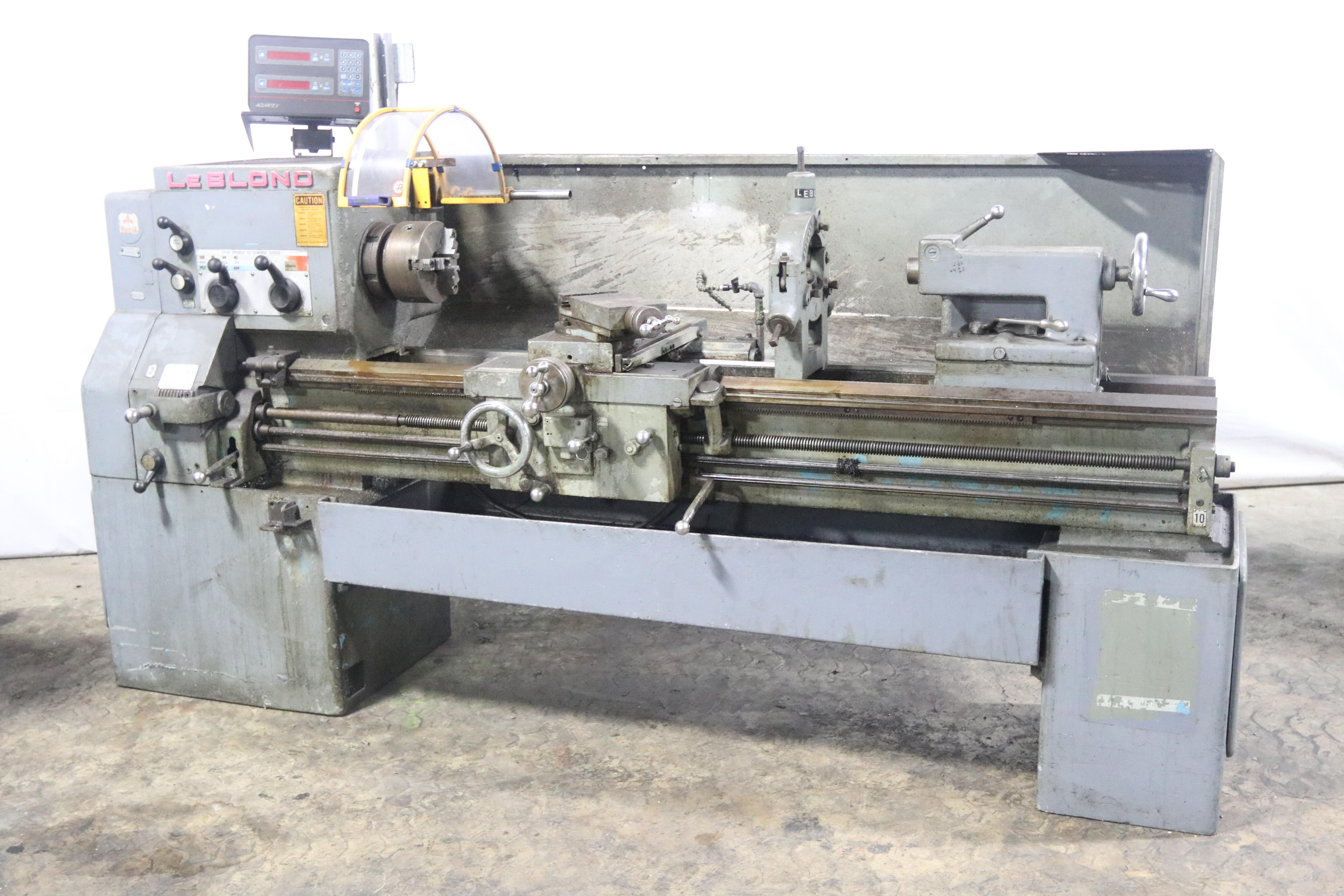

20" X 54" LEBLOND REGAL MODEL #8C ENGINE LATHE: STOCK #10594

Stock #: 10594

Equipped With

SERIAL ......................... 8E2664
MODEL .......................... REGAL
SWING OVER WAYS ................ 19-1/2"
SWING OVER CROSS SLIDE ......... 12-1/4"
DISTANCE BETWEEN CENTERS ....... 54"
SPINDLE SPEEDS ................. (12) 45 TO 1800 RPM
FEEDS .......................... (48) .0018 TO .104 IPR
THREADS ........................ (48) 2 TO 112 TPI
DIAMETER OF SPINDLE HOLE ....... 1-49/64"
DIGITAL READ OUTS .............. 2 AXIS
3-JAW CHUCK .................... 7.75"
STEADY REST .................... 6.25" 3 POINT
HARDEN REPLACEABLE WAYS ........ YES
CARRIAGE STOPS ................. YES
THREAD DIAL .................... YES
CHIP PANS ...................... YES
MOTOR .......................... 10 HORSEPOWER

Buy Machines

20" X 54" LEBLOND REGAL MODEL #8C ENGINE LATHE: STOCK #10594

Stock # 10594

Share Machine
Print Details

Machine Specifications

SERIAL ......................... 8E2664
MODEL .......................... REGAL
SWING OVER WAYS ................ 19-1/2"
SWING OVER CROSS SLIDE ......... 12-1/4"
DISTANCE BETWEEN CENTERS ....... 54"
SPINDLE SPEEDS ................. (12) 45 TO 1800 RPM
FEEDS .......................... (48) .0018 TO .104 IPR
THREADS ........................ (48) 2 TO 112 TPI
DIAMETER OF SPINDLE HOLE ....... 1-49/64"
DIGITAL READ OUTS .............. 2 AXIS
3-JAW CHUCK .................... 7.75"
STEADY REST .................... 6.25" 3 POINT
HARDEN REPLACEABLE WAYS ........ YES
CARRIAGE STOPS ................. YES
THREAD DIAL .................... YES
CHIP PANS ...................... YES
MOTOR .......................... 10 HORSEPOWER

Specifications
Chuck Size 7.75 inches
Spindle Speed RPM 1800
Swing in Gap 19.5 inches
Main Motor 10
Longitudinal Feeds .104
Threads Per Inch 112
Swing 19.5 inches
Centers 54 inches
Spindle Bore 1.875 inches
Power 10 horsepower
RPM 1800
Swing Over Cross Slide 12.5 inches
