Machine Information

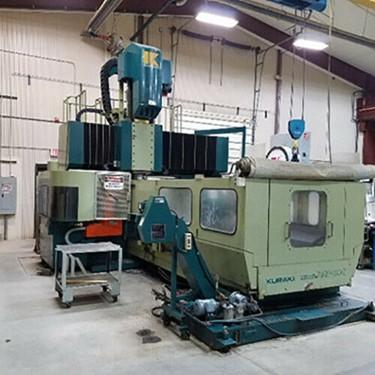

KURAKI MODEL KMV-130-Z 3-AXIS DOUBLE COLUMN MACHINING CENTER: STOCK #14161

Stock #: 14161

Equipped With

MODEL ..................... KMV-130-Z
YEAR ...................... 1996
DIMENSIONS ................ 175" X 306" X 177.32"
WEIGHT CAPACITY ........... 11,000 LBS
CNC ....................... LEMOINE 3-AXIS DIGITIZING SYSTEM
X-AXIS .................... 118"
Y-AXIS .................... 51.2"
Z-AXIS .................... 31.5"
MOTOR ..................... 24 HP
SPINDLE SPEED ............. 30 to 4000 RPM
FEED RATE (X,Y,Z) ......... .040-196 IMP
TRAVERSE RATE(X,Y) ........ 590 IPM
TRAVERSE RATE(Z) .......... 472 IPM
DIST BETWEEN COLUMN ....... 55"
DIST SPINDLE TO TABLE ..... 7.87" TO 39.37"
TABLE DIMENSIONS........... 43-1/4" X 118"
(7) T-SLOTS ............... 1"

Buy Machines

KURAKI MODEL KMV-130-Z 3-AXIS DOUBLE COLUMN MACHINING CENTER: STOCK #14161

Stock # 14161

Share Machine
Print Details

Machine Specifications

MODEL ..................... KMV-130-Z
YEAR ...................... 1996
DIMENSIONS ................ 175" X 306" X 177.32"
WEIGHT CAPACITY ........... 11,000 LBS
CNC ....................... LEMOINE 3-AXIS DIGITIZING SYSTEM
X-AXIS .................... 118"
Y-AXIS .................... 51.2"
Z-AXIS .................... 31.5"
MOTOR ..................... 24 HP
SPINDLE SPEED ............. 30 to 4000 RPM
FEED RATE (X,Y,Z) ......... .040-196 IMP
TRAVERSE RATE(X,Y) ........ 590 IPM
TRAVERSE RATE(Z) .......... 472 IPM
DIST BETWEEN COLUMN ....... 55"
DIST SPINDLE TO TABLE ..... 7.87" TO 39.37"
TABLE DIMENSIONS........... 43-1/4" X 118"
(7) T-SLOTS ............... 1"
