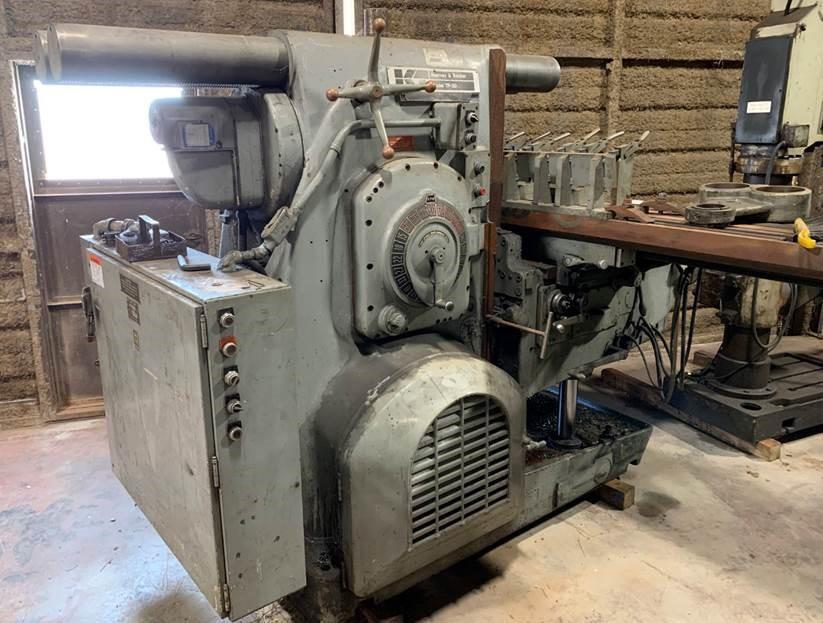

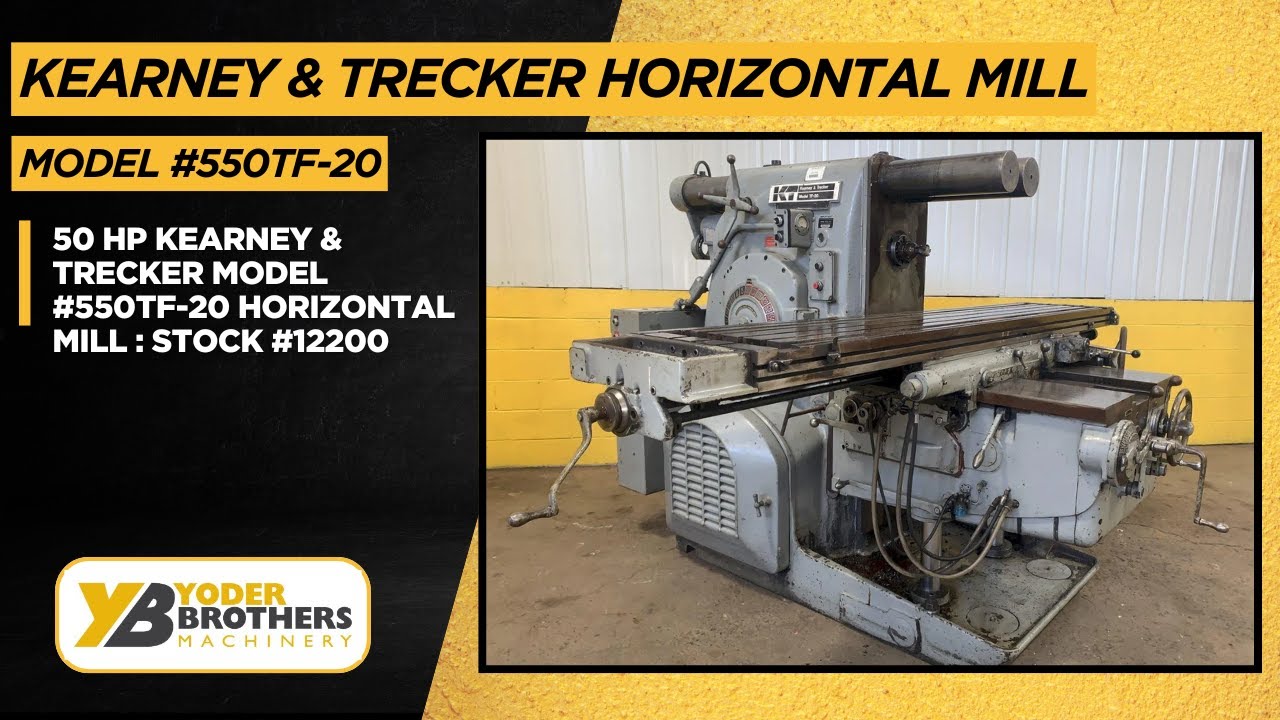

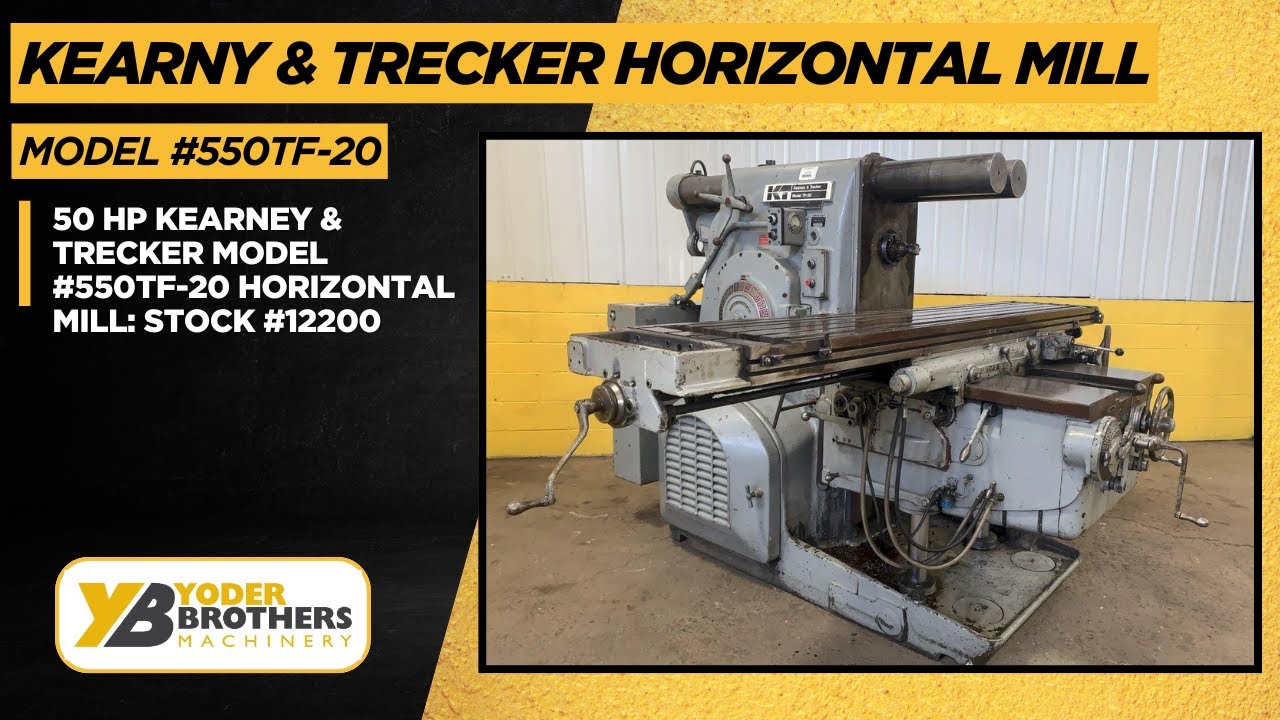

550TF-20 KEARNEY & TRECKER HORIZONTAL MILLING MACHINE: STOCK #12200

Stock #: 12200

Equipped With

SERIAL ........................ 577-6051
MODEL ......................... 550TF-20
AREA OF TABLE ................. 96" X 25"
SPINDLE SPEEDS ................ (24) 54 TO 1300 RPM
LONGITUDINAL & CROSS FEEDS .... (32) 3/8 TO 90 IPM
VERTICAL HEAD ................. (32) 3/16 TO 45 IPM
VERTICAL KNEE FEEDS ........... (32) 1/8" TO 30 IPM
LONGITUDINAL TABLE TRAVEL ..... 50"
CROSS TABLE TRAVEL ............ 16"
VERTICAL TRAVEL OF KNEE ....... 18"
VERTICAL TRAVEL OF HEAD ....... 8"
DISTANCE SPINDLE TO TABLE ..... 0" MINIMUM TO 23" MAXIMUM
SPINDLE TAPER ................. #50NS
THROAT ........................ 21"
RAPID TRAVERSE ................ 150 IPM
POWER DRAWBAR ................. YES
COOLANT ....................... YES
MOTOR ......................... 50 HORSEPOWER
FEED MOTOR .................... 5 HORSEPOWER

Buy Machines

550TF-20 KEARNEY & TRECKER HORIZONTAL MILLING MACHINE: STOCK #12200

Stock # 12200

Share Machine
Print Details

Machine Specifications

SERIAL ........................ 577-6051
MODEL ......................... 550TF-20
AREA OF TABLE ................. 96" X 25"
SPINDLE SPEEDS ................ (24) 54 TO 1300 RPM
LONGITUDINAL & CROSS FEEDS .... (32) 3/8 TO 90 IPM
VERTICAL HEAD ................. (32) 3/16 TO 45 IPM
VERTICAL KNEE FEEDS ........... (32) 1/8" TO 30 IPM
LONGITUDINAL TABLE TRAVEL ..... 50"
CROSS TABLE TRAVEL ............ 16"
VERTICAL TRAVEL OF KNEE ....... 18"
VERTICAL TRAVEL OF HEAD ....... 8"
DISTANCE SPINDLE TO TABLE ..... 0" MINIMUM TO 23" MAXIMUM
SPINDLE TAPER ................. #50NS
THROAT ........................ 21"
RAPID TRAVERSE ................ 150 IPM
POWER DRAWBAR ................. YES
COOLANT ....................... YES
MOTOR ......................... 50 HORSEPOWER
FEED MOTOR .................... 5 HORSEPOWER

Specifications
Weight 17000 pounds
