Machine Information

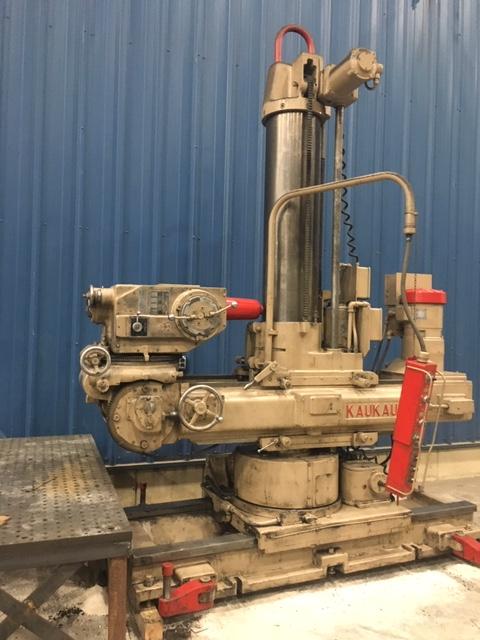

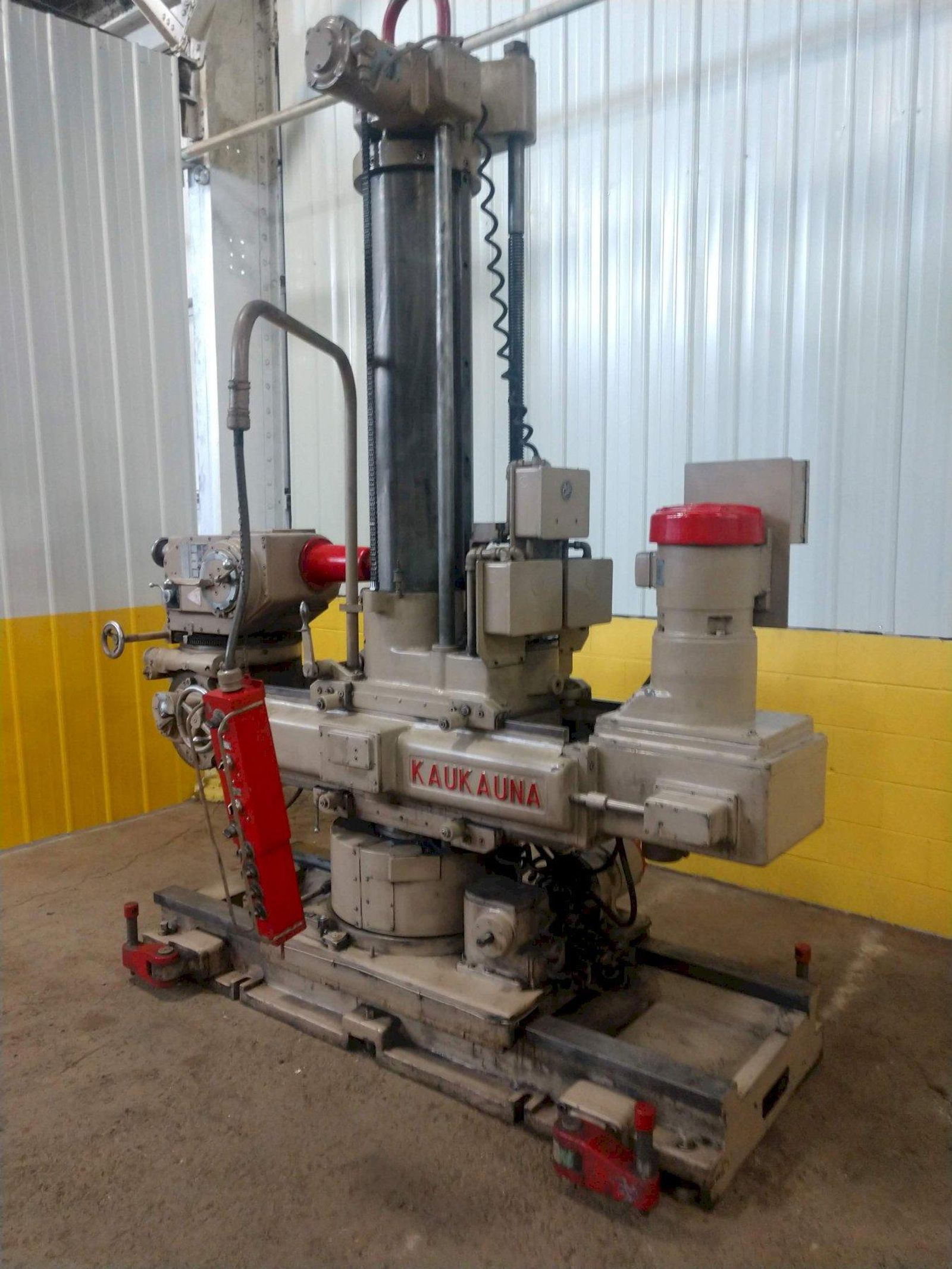

5' X 14" KAUKAUNA MODEL #A125U PORTABLE DRILLING & TAPPING MACHINE: STOCK #10814

Stock #: 10814

Equipped With

MODEL .............................. A125U
MAX DISTANCE COLUMN TO SPINDLE ..... 60"
MAX HEIGHT UNDER SPINDLE ........... 64"
COLUMN DIAMETER .................... 14"
SPINDLE DIAMETER ................... 12"
9 SPINDLE SPEEDS ........................ 45 TO 800
SPINDLE FEEDS ........................... (3) - .003; .007; .012
MAIN MOTOR DRIVE ........................ 7.5 HP

POWER ELEVATION
POWER CLAMP ON COLUMN
POWER RAPID TRAVERSE ON HEAD

UNIVERSAL HEAD (ANY ANGLE/ANY PLATE)
SWIVELS ............................... 360 DEGREES
TILTS ................................. 90 DEGREES

PENDANT CONTROL
LIFTING HOOK FOR PORTABILITY
TRAVEL COLUMNS RUNWAYS
