| Specifications | ||
|---|---|---|
| Dimensions | Length 115" X Width 44" X Height 66" | |
Brand
JET
Type
Lathes, Engine
Stock No.
20980
 |
419-269-2000 |
Stock #: 20980

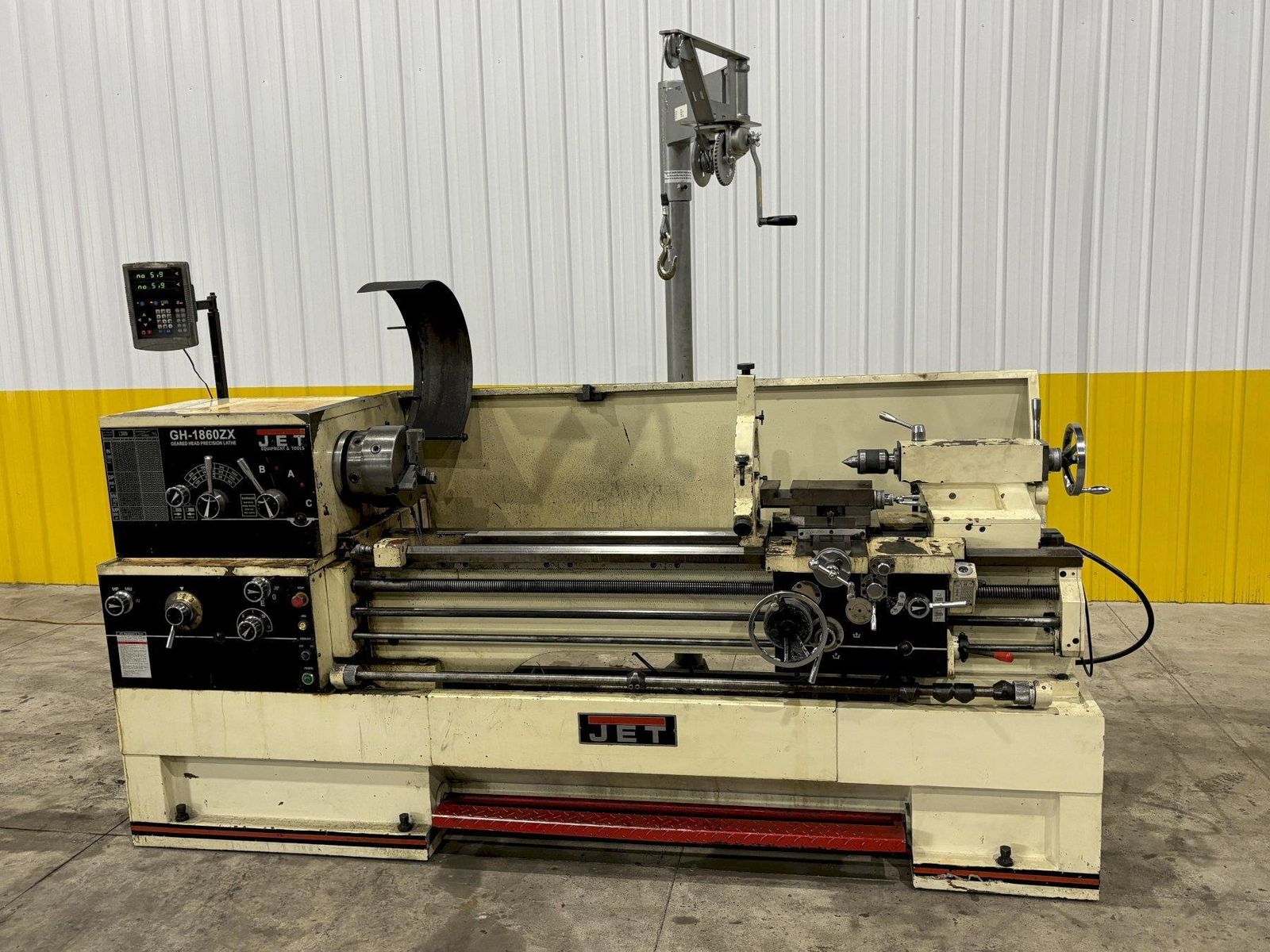

18" X 60" JET MODEL #GH1860ZX GAP BED ENGINE LATHE, 3-1/8" HOLE: STOCK #20980MODEL ......................................... GH1860ZXSize .......................................... 18" x 60"Swing Over Bed ................................ 18"Swing Over Cross Slide ........................ 11"Swing Through Gap ............................. 27-1/2"Length of Gap ................................. 12"Distance Between Centers ...................... 60"Spindle Bore .................................. 3-1/8"Spindle Mount ................................. D1-8Range of Spindle Speeds ....................... (12) @ 25 TO 1,800 RPMSpindle Taper with Sleeve ..................... MT-7 (MT-5)Number of Longitudinal and Cross Feed Rates ... 46/31Range of Longitudinal Feeds ................... 0.0015 TO 0.0900 IPRRange of Cross Feeds .......................... 0.0006 TO 0.0360 IPRNumber of Inch Threads ........................ 61Range of Inch Threads ......................... 1-5/8 TO 72 TPINumber of Metric Threads ...................... 24Range of Metric Threads ....................... 0.05 TO 20Compound Slide Travel ......................... 5-1/8"Cross Slide Travel ............................ 9"Carriage Travel ............................... 55-9/16"Tailstock Spindle Travel ...................... 5"Taper in Tailstock Spindle .................... MT-5Follow Rest Capacity .......................... 1/2" TO 3-1/2"Steady Rest Capacity ......................... 3/8" TO 7-3/4"Width of Bed .................................. 13-1/8"Horsepower .................................... 7.5 HP
