Brand
Not Specified
Type
Shears, Mechanical
Stock No.
18515
 |
419-269-2000 |
Stock #: 18515

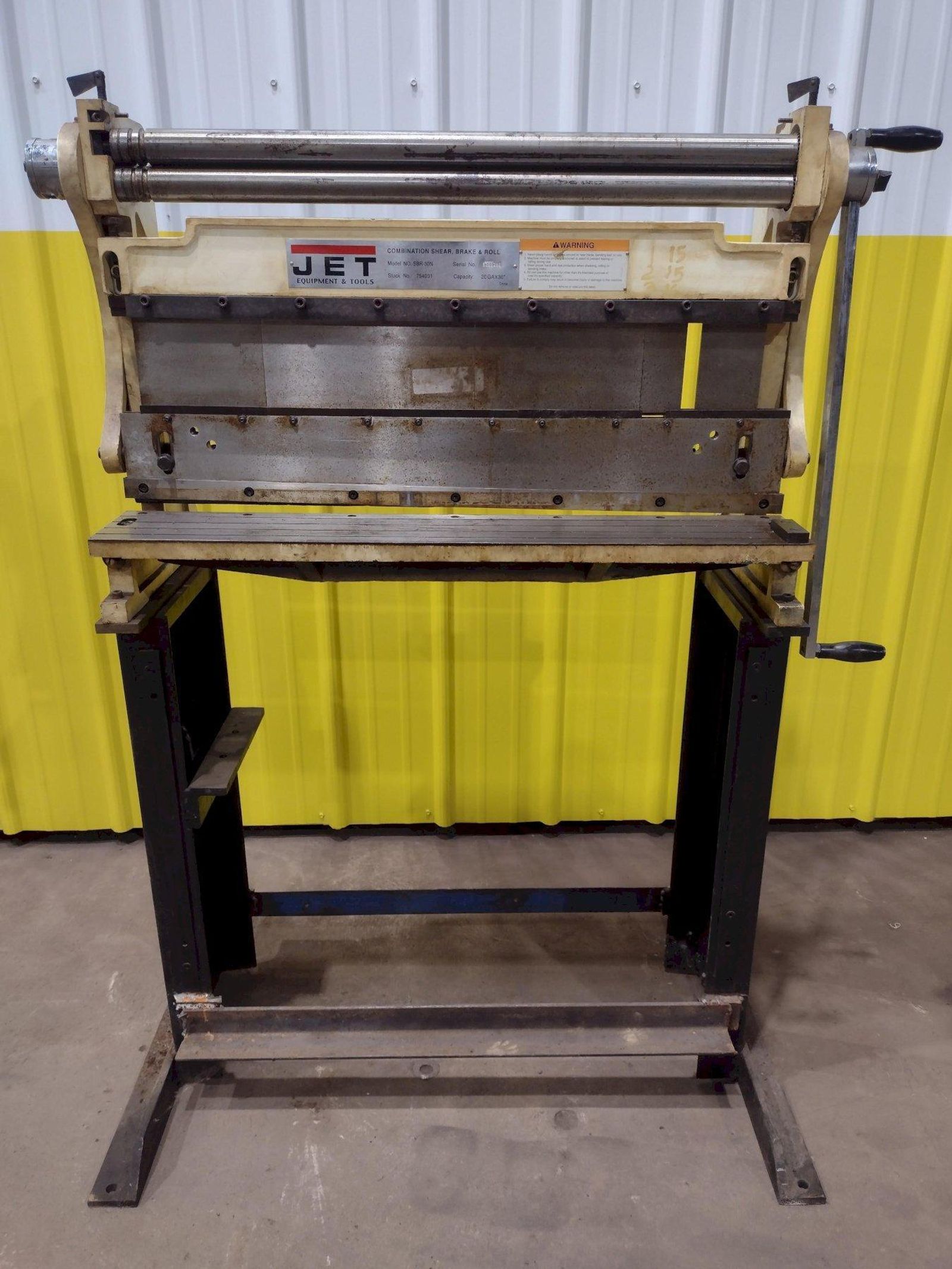

JET innovation allows machine shop professionals the ability to perform several vital tasks with a single compact machine. The Combination Shear, Brake and Roll handles the jobs of three separate machines, adding tremendous versatility to your metal forming operation, without crowding the shop floor.FeaturesBrake is equipped with easily removable fingers that permit angle, channel, box, and other complex bending operationsCombination shear, brake, and roll in one compact machineCombination shear, brake, and roll in one compact machine (shown with optional stand)Right or left hand operationShear can be used for mild steel, aluminum, brass, copper, lead, plastic and zincSlip rolls are precision turned and ground with wire groovesSpecificationsStyle (Type): CombinationShearing Capacity (Gauge): 20Bending Capacity (Gauge): 20Rolling Capacity (Gauge): 20Size of Slip Roll (L x Dia.) (In.): 30 x 1-1/2Mild Steel Capacity (Gauge): 20Upper Die Height (In.): 4-3/4Minimum Forming Radius (In.): 3/4Base Dimensions (L x W x H) (In.): 14-1/2 x 32-3/8Overall Dimensions (L x W x H) (In.): 40 x 16 x 24Weight (Lbs.): 290
