SERIAL .............. VB7285-01
NEW ................. 11/2010

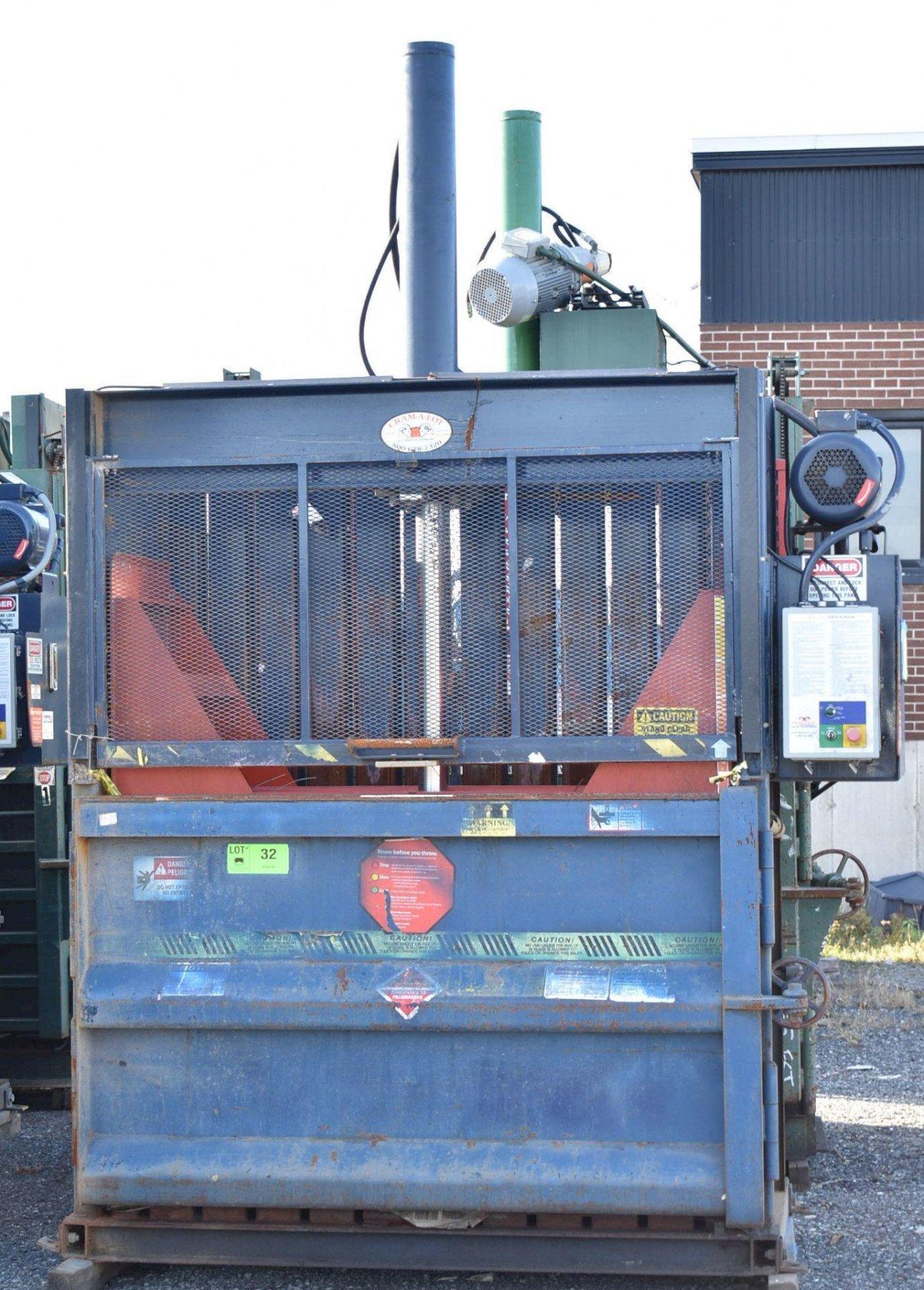

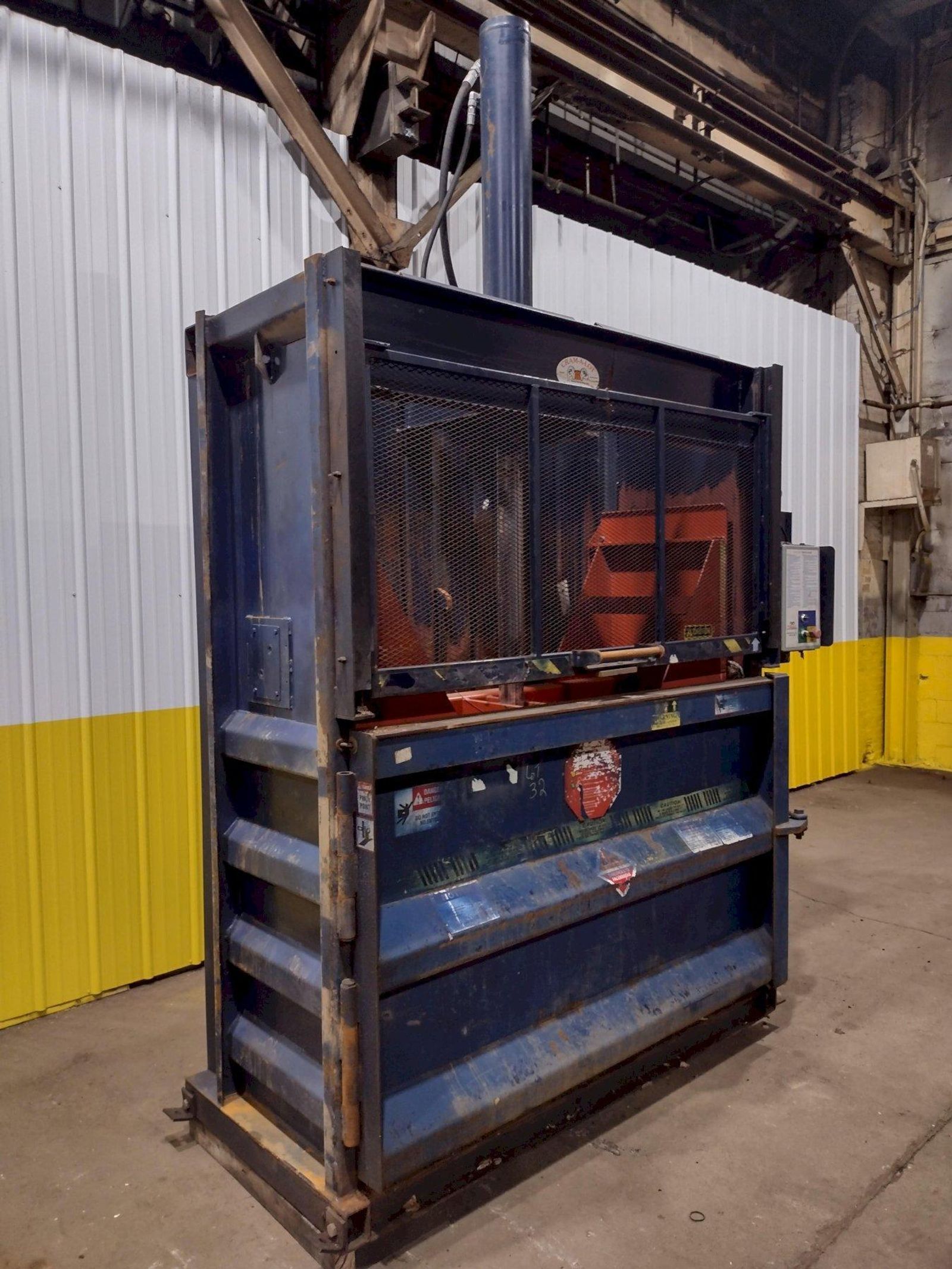

MODEL ............... VB-72-B
BALE SIZE ........... 72" W X 30" D X 48" H
BALE WEIGHT ......... 1,200 LBS
LOAD HEIGHT ......... 52"
FEED OPENING ........ 24" HIGH
CYCLE TIME .......... 57 SECONDS
COMPRESSION FORCE ... 59,370 LBS
HYDRAULIC PUMP ...... 9 GPM
HYDRAULIC TANK ...... 30 GALLON
OPERATING PRESSURE .. 2,100 PSI
CYLINDER DIAMETER ... 6"
STROKE .............. 44"
ROD DIAMETER ........ 3.5"
MOTOR ............... 10 HP
INSTALLED HEIGHT .... 11'8"
WIDTH ............... 7'11"
DEPTH ............... 3'11"
WEIGHT .............. 4,850 LBS
Brand
Not Specified
Type
Vertical Baler
Stock No.
18050
 |
419-269-2000 |
Stock #: 18050
SERIAL .............. VB7285-01
NEW ................. 11/2010
MODEL ............... VB-72-B
BALE SIZE ........... 72" W X 30" D X 48" H
BALE WEIGHT ......... 1,200 LBS
LOAD HEIGHT ......... 52"
FEED OPENING ........ 24" HIGH
CYCLE TIME .......... 57 SECONDS
COMPRESSION FORCE ... 59,370 LBS
HYDRAULIC PUMP ...... 9 GPM
HYDRAULIC TANK ...... 30 GALLON
OPERATING PRESSURE .. 2,100 PSI
CYLINDER DIAMETER ... 6"
STROKE .............. 44"
ROD DIAMETER ........ 3.5"
MOTOR ............... 10 HP
INSTALLED HEIGHT .... 11'8"
WIDTH ............... 7'11"
DEPTH ............... 3'11"
WEIGHT .............. 4,850 LBS
