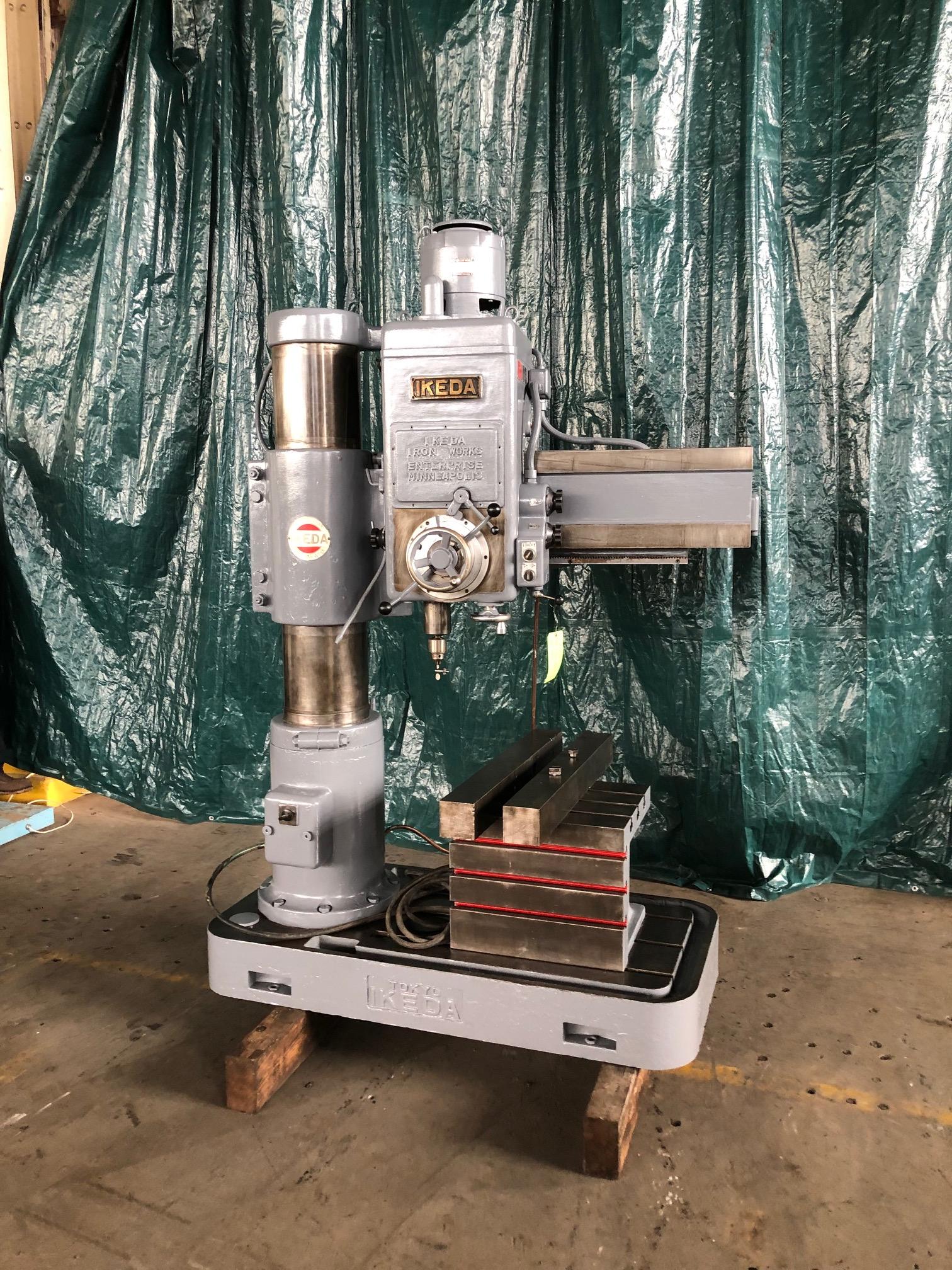

3'6" x 11" IKEDA RM1000 RADIAL ARM DRILL PRESS: STOCK #10468

Stock #: 10468

Equipped With

SERIAL ................................ 6720
MODEL ................................. RM1000
YEAR NEW .............................. 1967
COLUMN DIAMETER ....................... 11"
COLUMN TO SPINDLE CENTER .............. 10.75" TO 41.625"
SPINDLE TO BASE ....................... 13.625" TO 48.75"
SPINDLE TAPER ......................... #5 MT
STROKE OF SPINDLE ..................... 12″
SPINDLE SPEEDS ........................ (12) 30 TO 1440 RPM
SPINDLE FEEDS ......................... (4) 0.004 TO 0.021 IPR
WORKING SURFACE OF BASE ............... 30-1/2″ X 47-1/4″
HEIGHT OF BASE ........................ 7.625"
ELEVATION ............................. POWER
CLAMPING .............................. POWER
COOLANT ............................... YES
MOTOR ................................. 5 HP

Buy Machines

3'6" x 11" IKEDA RM1000 RADIAL ARM DRILL PRESS: STOCK #10468

Stock # 10468

Share Machine
Print Details

Machine Specifications

SERIAL ................................ 6720
MODEL ................................. RM1000
YEAR NEW .............................. 1967
COLUMN DIAMETER ....................... 11"
COLUMN TO SPINDLE CENTER .............. 10.75" TO 41.625"
SPINDLE TO BASE ....................... 13.625" TO 48.75"
SPINDLE TAPER ......................... #5 MT
STROKE OF SPINDLE ..................... 12″
SPINDLE SPEEDS ........................ (12) 30 TO 1440 RPM
SPINDLE FEEDS ......................... (4) 0.004 TO 0.021 IPR
WORKING SURFACE OF BASE ............... 30-1/2″ X 47-1/4″
HEIGHT OF BASE ........................ 7.625"
ELEVATION ............................. POWER
CLAMPING .............................. POWER
COOLANT ............................... YES
MOTOR ................................. 5 HP

Specifications
Dimensions LENGTH: 5' WIDTH: 3' HEIGHT: 8'
Arm Length 48 inches
Column Dia. 11 inches
Power 5 horsepower
RPM 1440
Weight 5600 pounds
