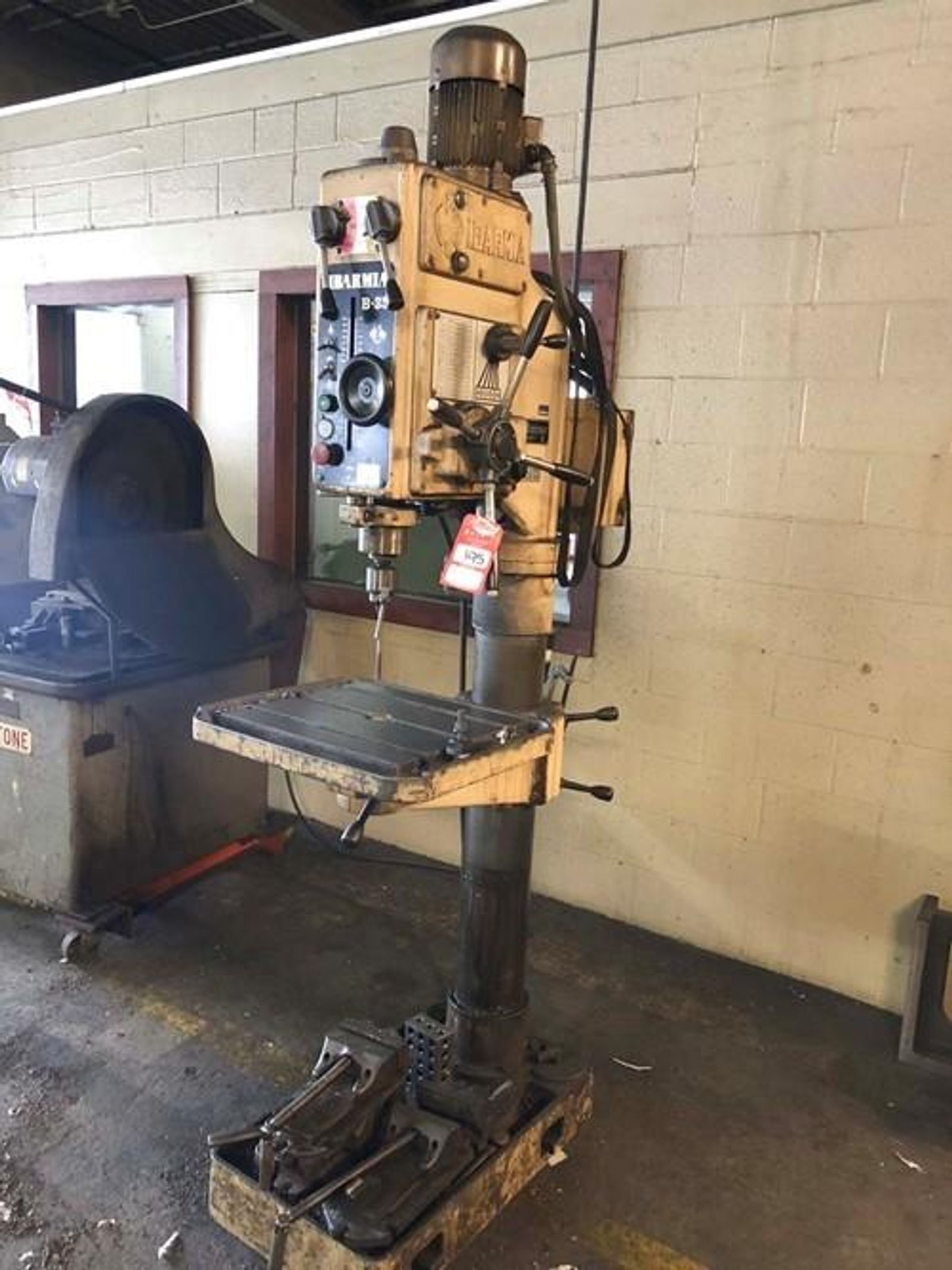

26" IBARMIA MODEL B-35 SINGLE SPINDLE DRILL PRESS: STOCK #10068

Stock #: 10068

Equipped With

SERIAL ....................... 1186-L
MODEL ........................ B-35
SPINDLE CENTER TO COLUMN ..... 13"
CAPACITY ..................... 26"
SPINDLE TAPER ................ #4 MT
QUILL DIAMETER ............... 2.95"
SPINDLE TRAVEL ............... 7.87"
COLUMN DIAMETER .............. 6.3"
TABLE SIZE ................... 20" x 24" T-SLOTTED
SPINDLE SPEEDS ............... 95 TO 1500 RPM
SPINDLE TO TABLE ............. 4.72" TO 47.27"
GEARED HEAD .................. YES
POWER FEEDS .................. .0009/ .0079/ .0118 IPR
MOTOR ........................ 2 HP

Buy Machines

26" IBARMIA MODEL B-35 SINGLE SPINDLE DRILL PRESS: STOCK #10068

Stock # 10068

Share Machine
Print Details

Machine Specifications

SERIAL ....................... 1186-L
MODEL ........................ B-35
SPINDLE CENTER TO COLUMN ..... 13"
CAPACITY ..................... 26"
SPINDLE TAPER ................ #4 MT
QUILL DIAMETER ............... 2.95"
SPINDLE TRAVEL ............... 7.87"
COLUMN DIAMETER .............. 6.3"
TABLE SIZE ................... 20" x 24" T-SLOTTED
SPINDLE SPEEDS ............... 95 TO 1500 RPM
SPINDLE TO TABLE ............. 4.72" TO 47.27"
GEARED HEAD .................. YES
POWER FEEDS .................. .0009/ .0079/ .0118 IPR
MOTOR ........................ 2 HP

Specifications
Swing 26 inches
Capacity (Mild Steel) 1.38 inches
Capacity (Cast Iron) 1.77 inches
Power 2 horsepower
RPM 1300
Dimensions 32 X 19 X 82" HIGH
Weight 1080 pounds
