Machine Information

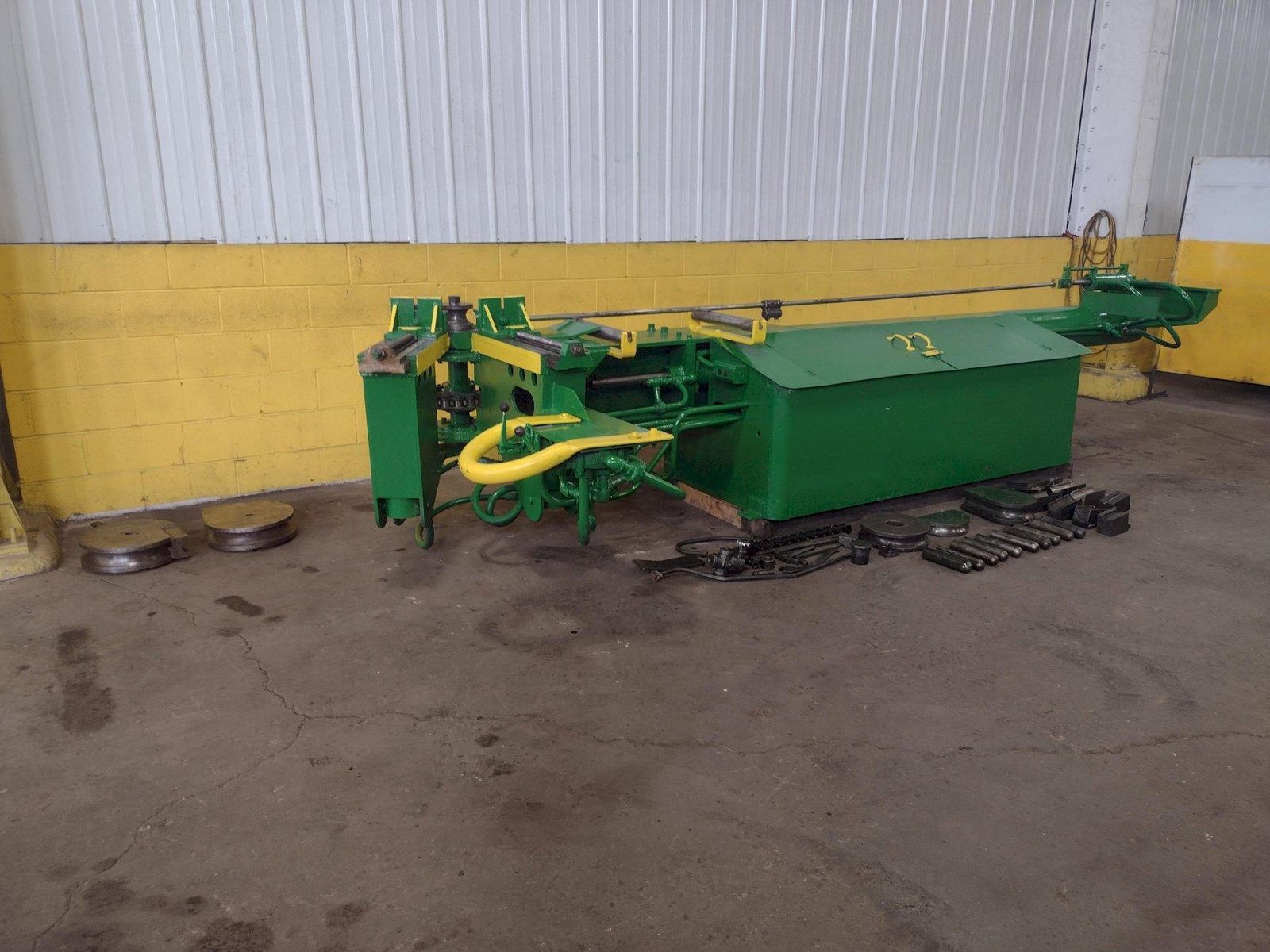

2-1/2" WALLACE MODEL # 500 HYDRAULIC TUBE & PIPE BENDER: STOCK #13335

Stock #: 13335

Equipped With

MODEL NO .............................. 500
CAPACITY .............................. 2-1/2"
IPS EXTRA HEAVY STEEL PIPE & TUBING ... 2.375" X .218"
STAINLESS STEEL ANNEALED INCONEL & SIMILAR ALLOYS 2-1/2" X .122"...
ALUMINUM & COPPER YIELD POINT ......... UP TO 25,000 LBS 4" X .083"
DUCTILE METALS YIELD POINT ............ 25,000 TO 40,000 LBS 3" X .072"
IPS EXTRA HEAVY STEEL PIPE OR TUBING .. 2" IPS X H
MAXIMUM RADIUS ADJ - STANDARD ......... 18"
MANDREL EXTRACTOR LENGTH - STANDARD ... 12'6"
TOOLING ON MACHINE .................... YES
CONTROLS .............................. YES
MOTOR - HYDRAULIC ..................... 10 HORSEPOWER

2-1/2" WALLACE MODEL # 500 HYDRAULIC TUBE & PIPE BENDER: STOCK #13335

Stock # 13335

Request a Quote

Share Machine

Print Details

Make an Offer






















Download Images

View All Images

Machine Specifications

MODEL NO .............................. 500

CAPACITY .............................. 2-1/2"

IPS EXTRA HEAVY STEEL PIPE & TUBING ... 2.375" X .218"

STAINLESS STEEL ANNEALED INCONEL & SIMILAR ALLOYS 2-1/2" X .122"...

ALUMINUM & COPPER YIELD POINT ......... UP TO 25,000 LBS 4" X .083"

DUCTILE METALS YIELD POINT ............ 25,000 TO 40,000 LBS 3" X .072"

IPS EXTRA HEAVY STEEL PIPE OR TUBING .. 2" IPS X H

MAXIMUM RADIUS ADJ - STANDARD ......... 18"

MANDREL EXTRACTOR LENGTH - STANDARD ... 12'6"

TOOLING ON MACHINE .................... YES

CONTROLS .............................. YES

MOTOR - HYDRAULIC ..................... 10 HORSEPOWER

Specifications
Weight	5250 pounds
