Machine Information

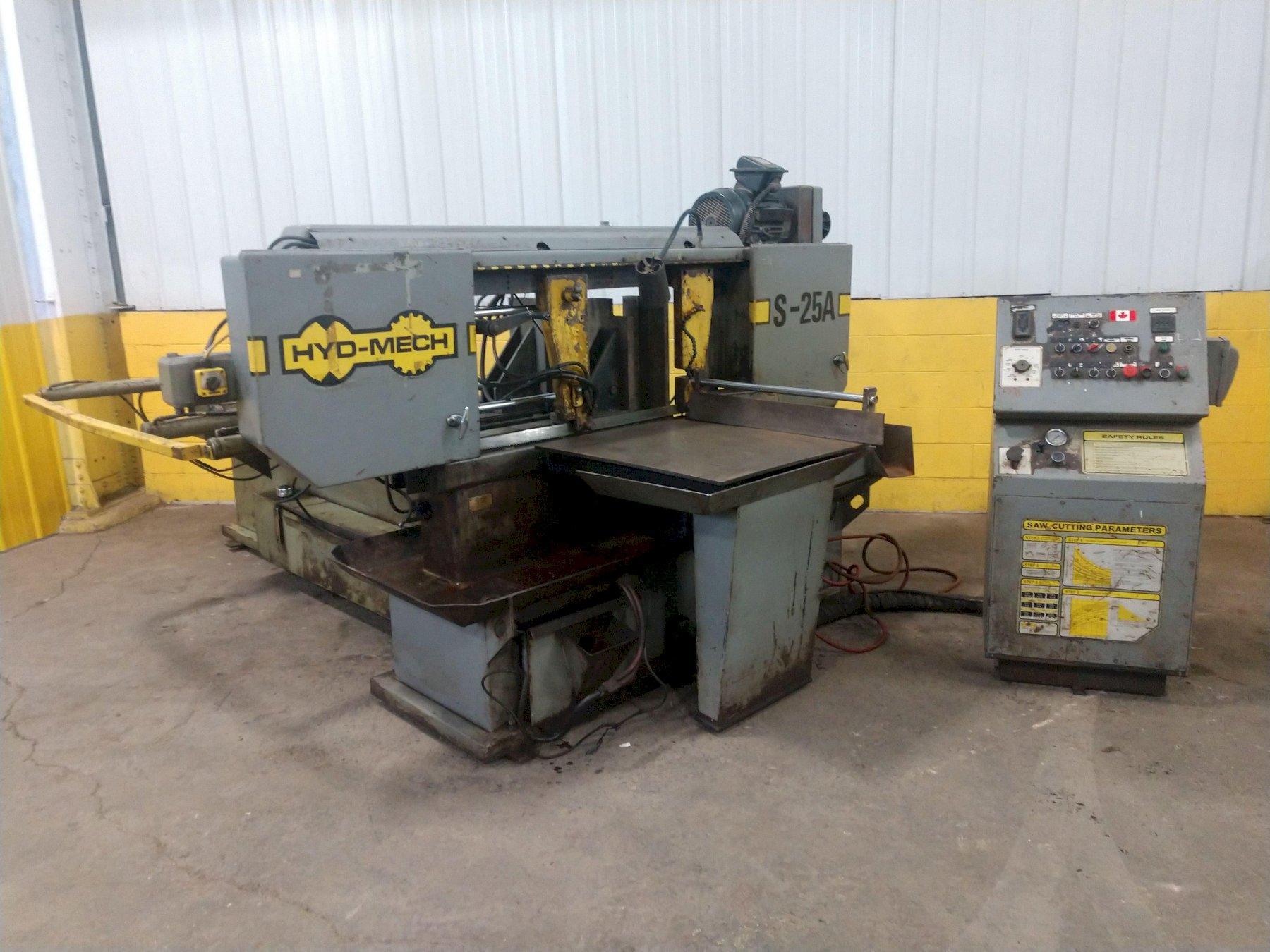

18" X 27" HYD-MECH MODEL S-25A AUTOMATIC HORIZONTAL MITRE SAW: STOCK #14155

Stock #: 14155

Equipped With

SERIAL ........................ 90194296
MODEL ......................... S-25A
YEAR .......................... 1990
ROUND CAPACITY ................ 18" DIAMETER
RECTANGULAR CAPACITY .......... 18" H X 27" W
CAPACITY @ 45 DEGREE ANGLE .... 18" DIAMETER
CAPACITY @ 30 DEGREE ANGLE .... 12" DIAMETER
BLADE WIDTH ................... 1.5"
BLADE LENGTH .................. 18'10"
BLADE SPEED ................... 75 TO 400 SFM
BLADE TENSION ................. HYDRAULIC
POWER MITERING ................ YES
AUTO CYLCE .................... YES
OPERATOR'S CONSOLE ............ YES
WORK LOAD ..................... 8000 LBS
COOLANT ....................... 3.5 GPM
AUTOMATIC FEED STROKE ......... 0" TO 40" SINGLE STROKE
NUMBER OF FEED STROKES ........ 1 TO 99
BLADE DRIVE MOTOR ............. 10 HP
HYDRAULIC DRIVE MOTOR ......... 3 HP

Buy Machines

18" X 27" HYD-MECH MODEL S-25A AUTOMATIC HORIZONTAL MITRE SAW: STOCK #14155

Stock # 14155

Share Machine
Print Details

Machine Specifications

SERIAL ........................ 90194296
MODEL ......................... S-25A
YEAR .......................... 1990
ROUND CAPACITY ................ 18" DIAMETER
RECTANGULAR CAPACITY .......... 18" H X 27" W
CAPACITY @ 45 DEGREE ANGLE .... 18" DIAMETER
CAPACITY @ 30 DEGREE ANGLE .... 12" DIAMETER
BLADE WIDTH ................... 1.5"
BLADE LENGTH .................. 18'10"
BLADE SPEED ................... 75 TO 400 SFM
BLADE TENSION ................. HYDRAULIC
POWER MITERING ................ YES
AUTO CYLCE .................... YES
OPERATOR'S CONSOLE ............ YES
WORK LOAD ..................... 8000 LBS
COOLANT ....................... 3.5 GPM
AUTOMATIC FEED STROKE ......... 0" TO 40" SINGLE STROKE
NUMBER OF FEED STROKES ........ 1 TO 99
BLADE DRIVE MOTOR ............. 10 HP
HYDRAULIC DRIVE MOTOR ......... 3 HP

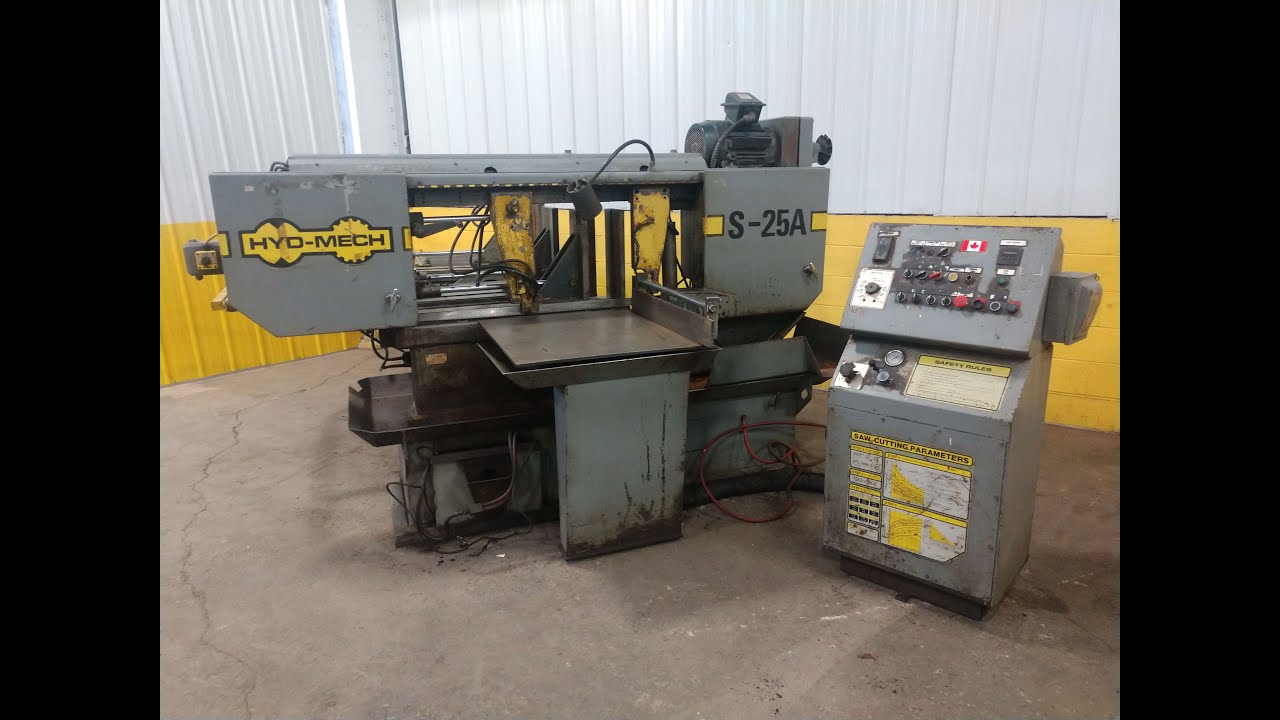

Videos
Specifications
Weight 7400 pounds
