SERIAL ......................... S1299125

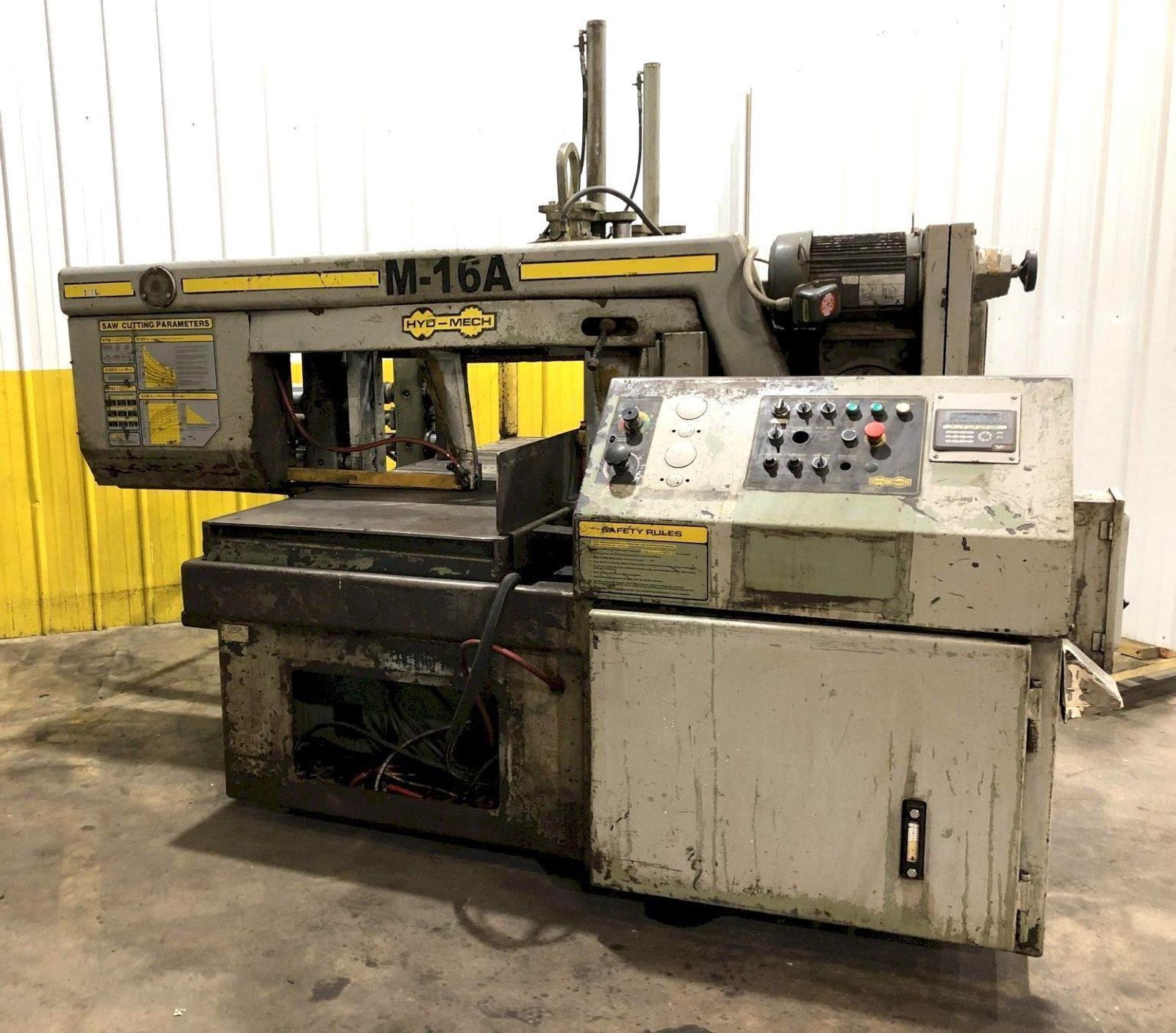

MODEL .......................... M16A
CAPACITY (ROUND)................ 16"
CAPACITY (RECTANGLE ............ 16" X 25"
CAPACITY AT 45 DEGREE (ROUND) .. 14" X 16"
BLADE .......................... 18'6" X 1.25" X .042"
BLADE SPEED .................... 75 TO 400 SFPM
BLADE TENSION .................. HYDRAULIC
BLADE GUIDES ................... CARBIDE
BLADE WHEEL DIAMETER ........... 19"
AUTOMATIC FEED ................. PROGRAMMABLE
SHUTTLE STROKE ................. 0" TO 33" PER STROKE
TABLE HEIGHT ................... 32"
WORKLOAD ....................... 8,000 LBS
HYDRAULIC TANK ................. 11 GALLONS
HYDRAULIC MOTOR ................ 3 HP
BLADE MOTOR .................... 5 HP /480V /60 HZ / 30 CY
| Specifications | ||
|---|---|---|
| Max Table Load | 8000 pounds | |
| Dimensions | 140" X 105" X 92" | |
| Weight | 7400 pounds | |
Brand
HYD-MECH
Type
Saws, Band, Horizontal
Stock No.
18271
 |
419-269-2000 |
Stock #: 18271
SERIAL ......................... S1299125
MODEL .......................... M16A
CAPACITY (ROUND)................ 16"
CAPACITY (RECTANGLE ............ 16" X 25"
CAPACITY AT 45 DEGREE (ROUND) .. 14" X 16"
BLADE .......................... 18'6" X 1.25" X .042"
BLADE SPEED .................... 75 TO 400 SFPM
BLADE TENSION .................. HYDRAULIC
BLADE GUIDES ................... CARBIDE
BLADE WHEEL DIAMETER ........... 19"
AUTOMATIC FEED ................. PROGRAMMABLE
SHUTTLE STROKE ................. 0" TO 33" PER STROKE
TABLE HEIGHT ................... 32"
WORKLOAD ....................... 8,000 LBS
HYDRAULIC TANK ................. 11 GALLONS
HYDRAULIC MOTOR ................ 3 HP
BLADE MOTOR .................... 5 HP /480V /60 HZ / 30 CY
