MODEL ............................................... MEGA 130T
MACHINE CENTER HEIGHT FROM BED ...................... 25.6"
MACHINE CENTER HEIGHT FROM FLOOR .................... 41.9"
MAX SWING OVER BED .................................. 52.0"
SWING OVER CARRIAGE ................................. 35.4"
MAX WORK PIECE WEIGHT ............................... 3,300 LBS
MAX DISTANCE BETWEEN FACE PLATE & 4 STATION TURRET .. 43.3"
SPINDLE:
SPINDLE NOSE ........................................ A2-15
SPINDLE SPEED ....................................... 4-400 RPM
SPINDLE HORSEPOWER (CONT./30MIN) .................... 30/25 (AC)
RAPID TRAVERSE RATE OF X-AXIS ....................... 157 IPM
RAPID TRAVERSE RATE OF Z-AXIS ....................... 157 IPM
FEED RATE ........................................... 0.04-157 IPM
MAX CUTTING FORCE ................................... 3,300 LBS
MAX SPINDLE TORQUE .................................. 13,019 FOOT POUNDS
AXIS TRAVELS:
X-AXIS CNC CONTROL .................................. 21.3"
Z-AXIS CNC CONTROL .................................. 47.2"
X2-AXIS MANUAL ...................................... 3.9"
Z2-AXIS MANUAL ...................................... 14.2"
BALL SCREWS & SERVO MOTORS:
X-AXIS BALL SCREW ................................... 1.5"
Z-AXIS BALL SCREW ................................... 2.0"
X-AXIS SERVO MOTOR .................................. 1.3 HP
Z-AXIS SERVO MOTOR .................................. 4.2 HP

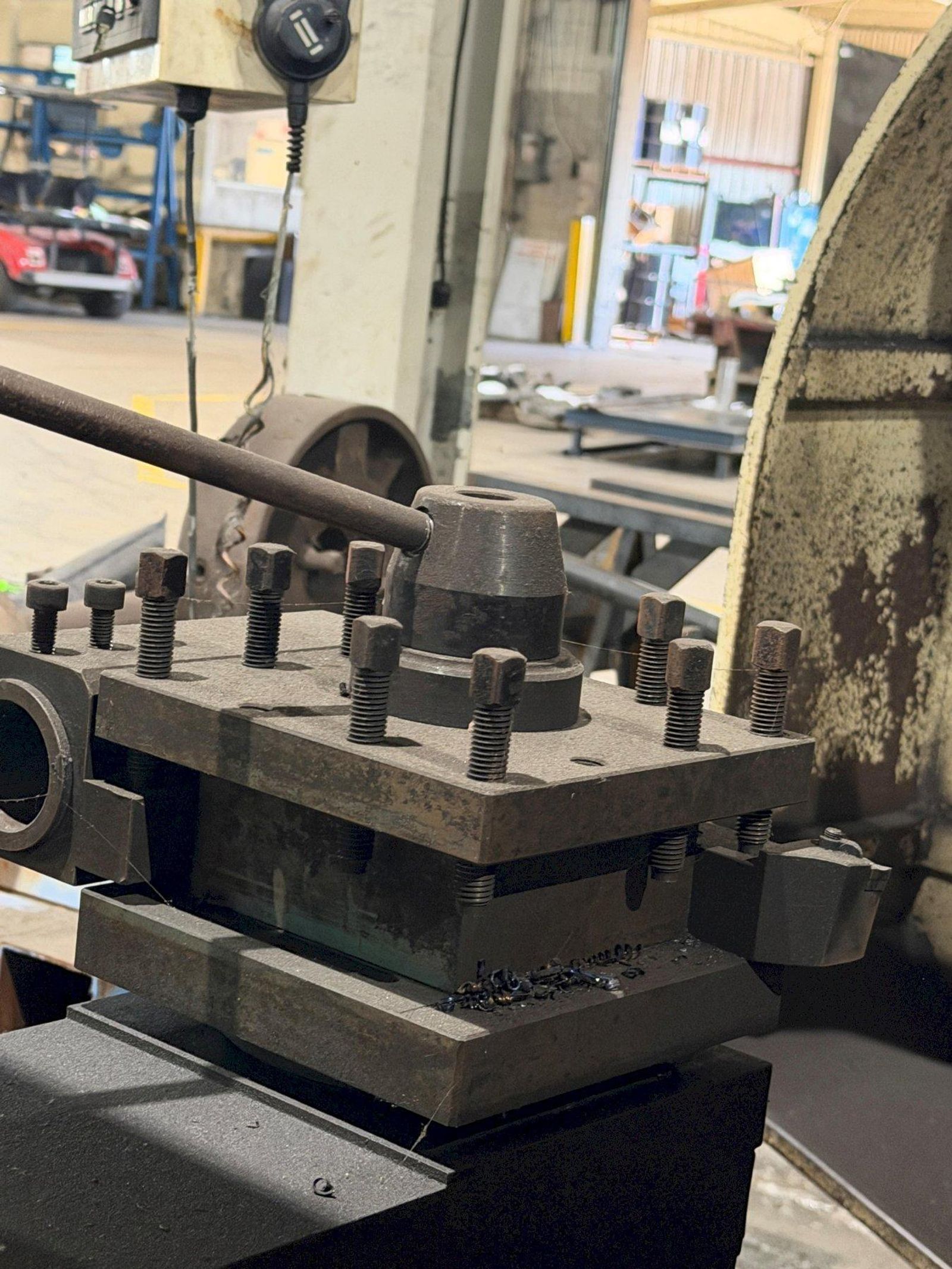

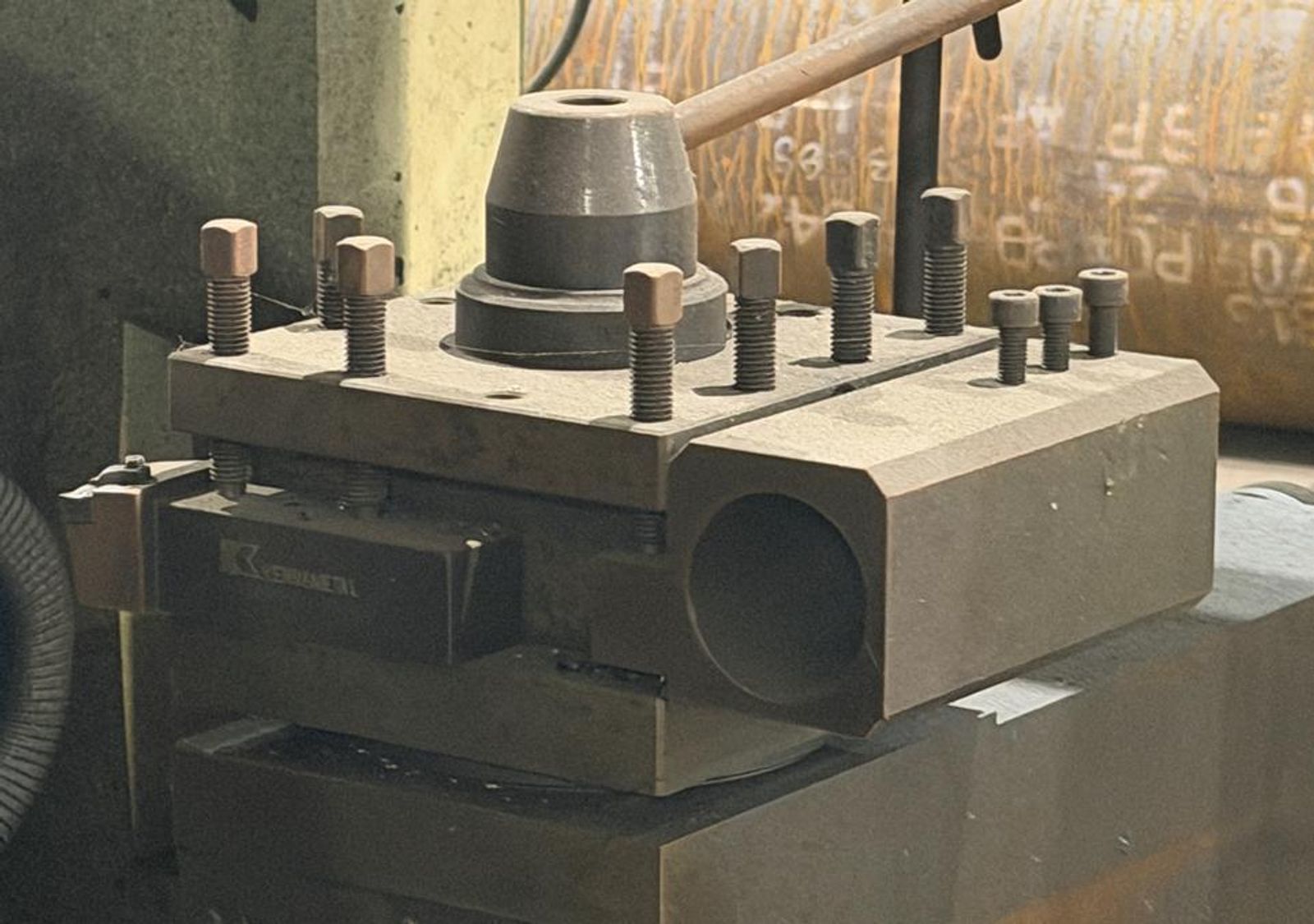

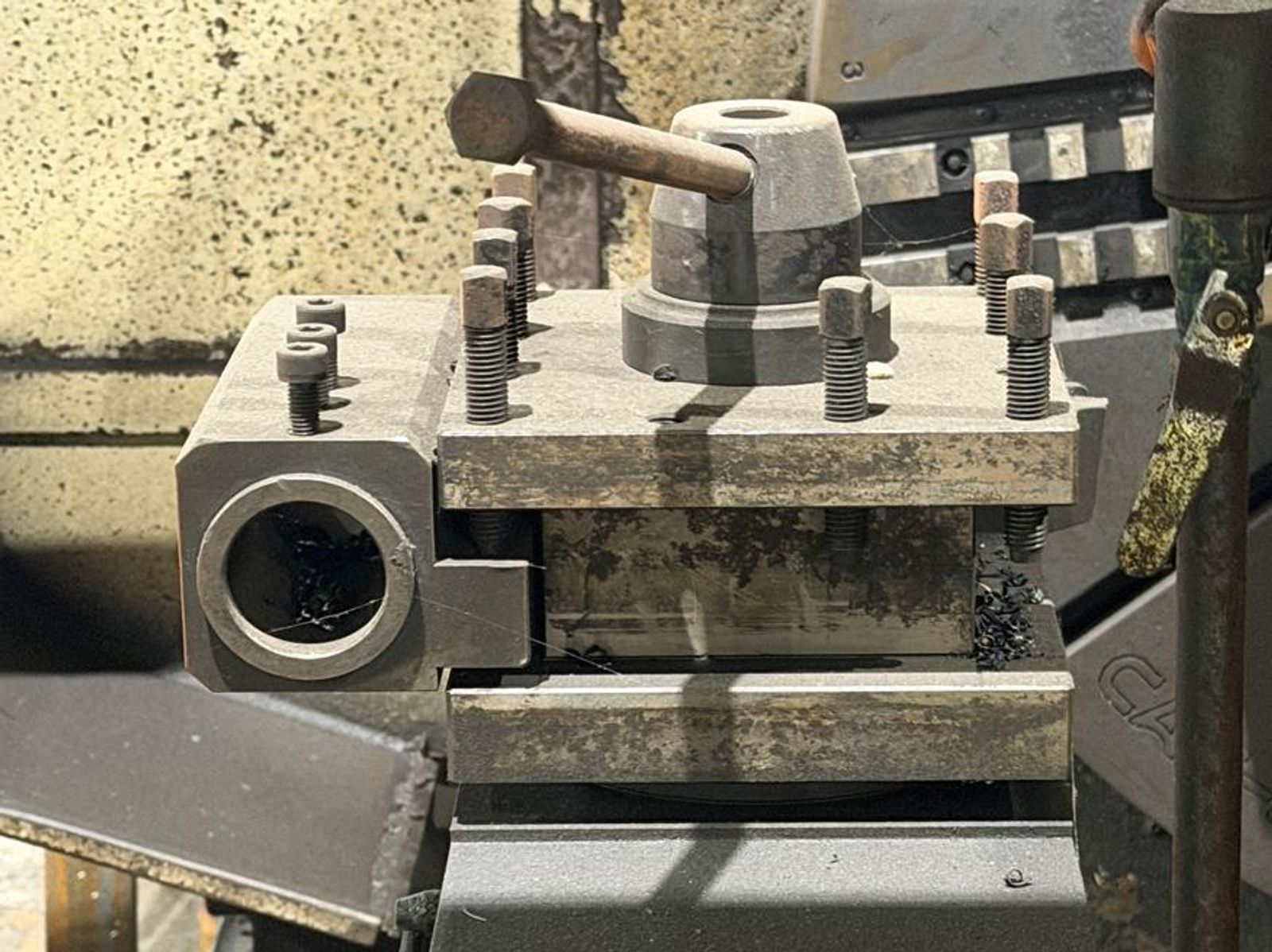

TURRET:
4 POISTION MANUAL WITH CURVIC COUPLING .............. 10.4" SQ
SIZE OF TOOL HOLDERS ................................ 1.25"
INDEXING POSITION ................................... 90 DEGGREES
TOTAL POWER REQUIRED ................................ 125 AMPS
| Specifications | ||
|---|---|---|
| Dimensions | 91" X 180" | |
| Weight | 19800 ounces | |
| Sub Spindle | yes | |
Brand
HWACHEON
Type
Lathes, CNC
Stock No.
14854
 |
419-269-2000 |
Stock #: 14854
