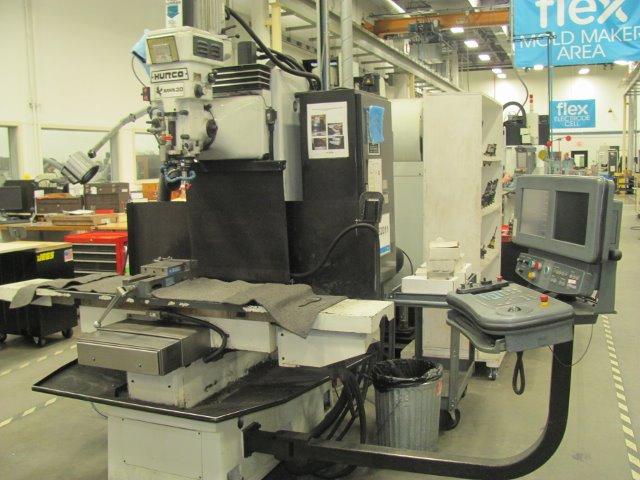

HURCO HAWK #30/DSM 3 AXIS VERTICAL CNC BED MILL: STOCK #11067

Stock #: 11067

Equipped With

SERIAL  ................... H30M-05005110BD
MODEL ..................... 30/DSM
YEAR ...................... 2000
MODEL FTV-1S
TABLE SIZE -------------------------------- 10" X 44"
TABLE TRAVEL ---- ( LONGITUDINAL ) -------- 30"
TABLE TRAVEL ---- ( CROSS ) --------------- 16"
TABLE TRAVEL ---- ( VERTICAL, KNEE ) ------ 16"
SPEEDS VARIABLE --------------------------- 55 TO 4250 RPM
POWER DOWN FEED RATES -- ( 3 ) ------------ .0015 TO .006 IPR
SPINDLE TAPER ----------------------------- R-8
QUILL DOWN TRAVEL ------------------------- 5"
MAIN DRIVE MOTOR -------------------------- 3 HP 220/440/3/60

MITUTOYO 2 AXIS DIGITAL READOUT
ONE SHOT LUBRICATION
COOLANT PUMP
6" KURT VISE
SERVO MODEL 150 POWER LONGITUDINAL FEED

Buy Machines

HURCO HAWK #30/DSM 3 AXIS VERTICAL CNC BED MILL: STOCK #11067

Stock # 11067

Share Machine
Print Details

Machine Specifications

SERIAL  ................... H30M-05005110BD
MODEL ..................... 30/DSM
YEAR ...................... 2000

MODEL FTV-1S
TABLE SIZE -------------------------------- 10" X 44"
TABLE TRAVEL ---- ( LONGITUDINAL ) -------- 30"
TABLE TRAVEL ---- ( CROSS ) --------------- 16"
TABLE TRAVEL ---- ( VERTICAL, KNEE ) ------ 16"
SPEEDS VARIABLE --------------------------- 55 TO 4250 RPM
POWER DOWN FEED RATES -- ( 3 ) ------------ .0015 TO .006 IPR
SPINDLE TAPER ----------------------------- R-8
QUILL DOWN TRAVEL ------------------------- 5"
MAIN DRIVE MOTOR -------------------------- 3 HP 220/440/3/60

MITUTOYO 2 AXIS DIGITAL READOUT
ONE SHOT LUBRICATION
COOLANT PUMP
6" KURT VISE
SERVO MODEL 150 POWER LONGITUDINAL FEED

Specifications
Table-W 11 inches
Table-L 51 inches
# Axes 3
Travel-Long 35 inches
Travel-Cross 18 inches
Power 5 horsepower
Taper 40
CNC Control yes
Dimensions 113 X 81 X 98
Weight 4900 pounds
