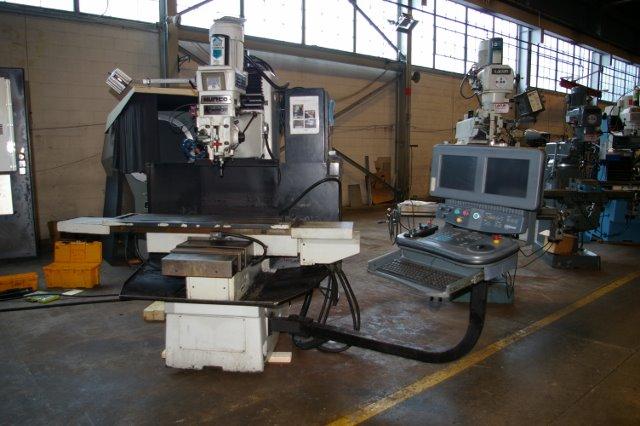

5 HP HURCO MODEL #HAWK30/DSM 3 AXIS VERTICAL CNC BED MILL: STOCK #11066

Stock #: 11066

Equipped With

SERIAL ............................... H30M-05005110BD
MFG NUMBER ........................... B30-0271

MODEL ................................ HAWK 30/DSM
YEAR NEW  ............................ 2000
QUILL DIAMETER ....................... 3.94"
QUILL TRAVEL ......................... 5"
SPINDLE TAPER ........................ #40
SPINDLE SPEEDS ....................... 80 TO 3800 RPM
TABLE SIZE ........................... 11" X 51"
TABLE WEIGHT CAPACITY ................ 770 LBS MAX
TABLE TRAVEL (X AXIS) ................ 35"
TABLE TRAVEL (Y AXIS) ................ 18"
TABLE TRAVEL (Z AXIS) ................ 20"
FEED RATES (X & Y AXIS) .............. 400 IPM
FEED RATES (Z AXIS) .................. 250 IPM
DISTANCE SPINDLE NOSE TO TABLE TOP ... 2.4" TO 22.4"
DISTANCE COLUMN TO SPINDLE CENTER .... 18"
CONTROLS ............................. HURCO ULTIMAX 4DSM
CONVERSATIONAL PROGRAMMING ........... YES
PENDANT CONTROL ...................... YES
DUAL MONITORS ........................ YES
COM 1 & COM 3 INPUTS ................. YES
AUTOMATIC LUBRICATION ................ YES
COOLANT SYSTEM ....................... YES
POWER DRAW BAR ....................... YES
WORK LIGHT ........................... YES
MAIN DRIVE MOTOR ..................... 5 HP 230/3/60

Buy Machines

5 HP HURCO MODEL #HAWK30/DSM 3 AXIS VERTICAL CNC BED MILL: STOCK #11066

Stock # 11066

Share Machine
Print Details

Machine Specifications

SERIAL ............................... H30M-05005110BD
MFG NUMBER ........................... B30-0271

MODEL ................................ HAWK 30/DSM
YEAR NEW  ............................ 2000

QUILL DIAMETER ....................... 3.94"
QUILL TRAVEL ......................... 5"
SPINDLE TAPER ........................ #40
SPINDLE SPEEDS ....................... 80 TO 3800 RPM
TABLE SIZE ........................... 11" X 51"
TABLE WEIGHT CAPACITY ................ 770 LBS MAX
TABLE TRAVEL (X AXIS) ................ 35"
TABLE TRAVEL (Y AXIS) ................ 18"
TABLE TRAVEL (Z AXIS) ................ 20"
FEED RATES (X & Y AXIS) .............. 400 IPM
FEED RATES (Z AXIS) .................. 250 IPM
DISTANCE SPINDLE NOSE TO TABLE TOP ... 2.4" TO 22.4"
DISTANCE COLUMN TO SPINDLE CENTER .... 18"
CONTROLS ............................. HURCO ULTIMAX 4DSM
CONVERSATIONAL PROGRAMMING ........... YES
PENDANT CONTROL ...................... YES
DUAL MONITORS ........................ YES
COM 1 & COM 3 INPUTS ................. YES
AUTOMATIC LUBRICATION ................ YES
COOLANT SYSTEM ....................... YES
POWER DRAW BAR ....................... YES
WORK LIGHT ........................... YES
MAIN DRIVE MOTOR ..................... 5 HP 230/3/60

Specifications
Table-W 11 inches
Table-L 51 inches
# Axes 3
Travel-Long 35 inches
Travel-Cross 18 inches
Power 5 horsepower
RPM 3800
Taper 40
CNC Control yes
Dimensions 113 X 81 X 98
Weight 4900 pounds
