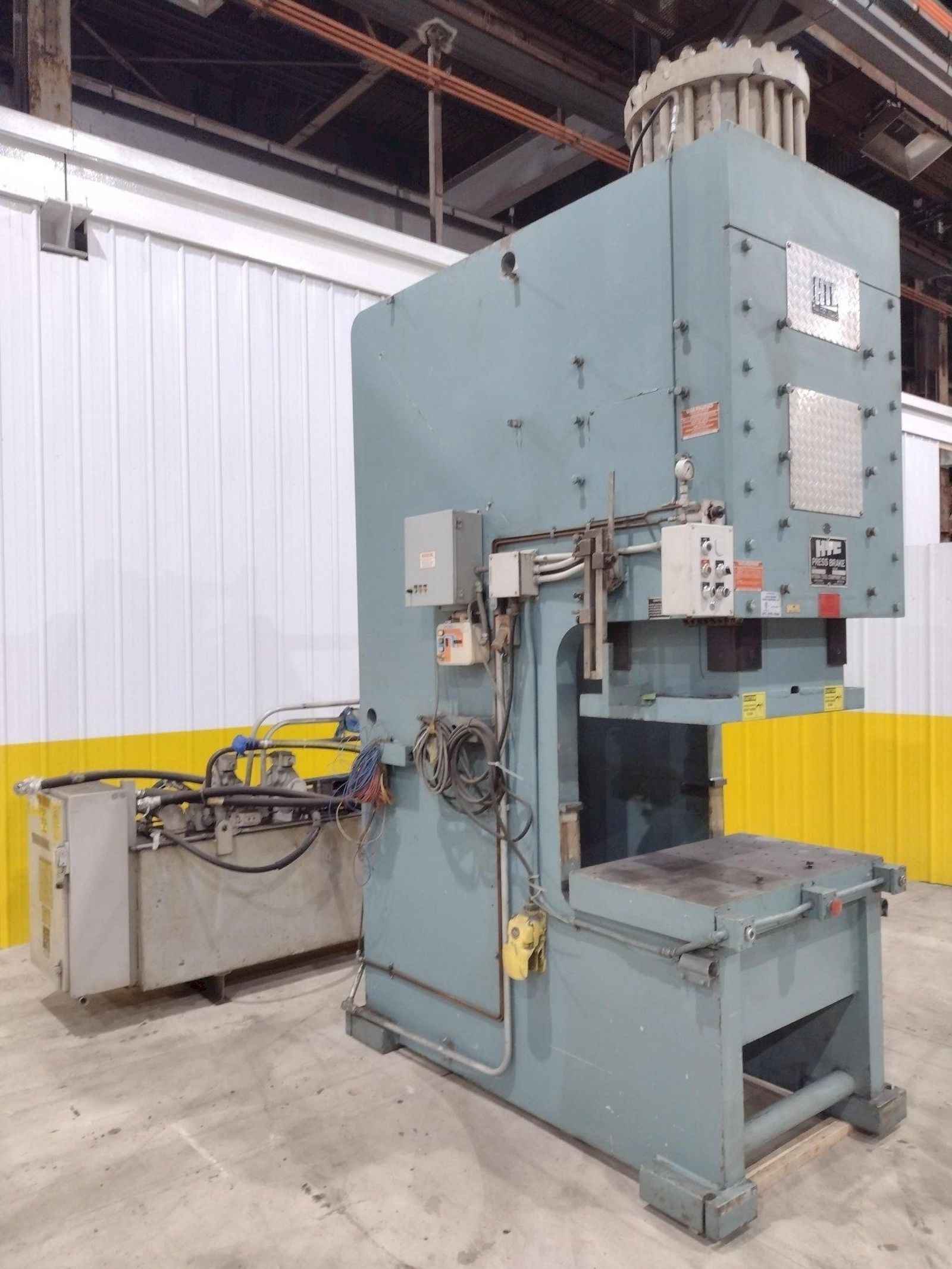

SERIAL ............ 280T1282
NEW ............... 1982
MODEL ............. CFP250G
CAPACITY .......... 250 TON
STROKE ............ 12"
OPEN HEIGHT ....... 28" TO BOLSTER
BED ............... 40" X 25"
BOLSTER ........... 5" THICK
RAM ............... 22" X 36"
THROAT ............ 14"
BETWEEN HOUSINGS .. 31.25"
PRESS SPEED ....... LOW / HIGH
ADVANCE SPEED ..... LOW / HIGH
RETURN / HOLD ..... YES
CONTROLS .......... YES
FOOT PEDAL ........ YES
MAIN MOTOR ........ 2 @ 25 HP EACH
Brand
HTC
Type
Presses, Hydraulic
Stock No.
19626
 |
419-269-2000 |
Stock #: 19626
SERIAL ............ 280T1282
NEW ............... 1982
MODEL ............. CFP250G
CAPACITY .......... 250 TON
STROKE ............ 12"
OPEN HEIGHT ....... 28" TO BOLSTER
BED ............... 40" X 25"
BOLSTER ........... 5" THICK
RAM ............... 22" X 36"
THROAT ............ 14"
BETWEEN HOUSINGS .. 31.25"
PRESS SPEED ....... LOW / HIGH
ADVANCE SPEED ..... LOW / HIGH
RETURN / HOLD ..... YES
CONTROLS .......... YES
FOOT PEDAL ........ YES
MAIN MOTOR ........ 2 @ 25 HP EACH
