Overview

SERIAL 01052000-2
MODEL 300NC

300 NC Tube Bender Applications
The 300 NC tube bender is used worldwide in the power generation industry (boiler and heat exchange), fabrication, automotive (mufflers, headers, exhaust), marine exhaust, offshore oil and gas industry (deep water applications), bicycle racks and fitness equipment.



FEATURES OF THE 300 NC TUBE BENDER

Hydraulic Manifolds Interchangeable (Parker, Vickers, etc.)
Solid Machined Steel Bend Arms
Easy Touch Screen Operation
Includes All Die Holders
Operator Safety Features
Manifold Style Hydraulic and High Pressure Filter
STANDARD

Pressure Die Holder
Wiper Die Holder
Overhead Tie Bar (Eliminates Die Deflection)
Pressure Die Assist
Pressure Die Assist Rear Support Roller
Mandrel Rod SAE Thread Supplied (1)
Mandrel Lubricator
Mandrel Extractor
Mandrel Early Out Programmable
PLC Controller – Mitsubishi FX3U
Memory Capacity: 100 job storage, 6 bends per part
Touch Screen (Proface America)
Tube Piece Counter
Clockwise Rotation
Dual Stage Pump Hydraulic System
ADDITIONAL SPECIFICATIONS FOR THE 300 NC

Capacity: 4″ OD x .226 Wall
Standard Maximum Radius: 18 inch
Maximum Bend Angle: 190 degrees
Bend Angle Accuracy (+ / -): 0.1 degree
Bend Arm Speed: 3.5 RPM
Maximum Tube Length Over Mandrel: 10 feet
Motor: 20 HP
Operating Pressure: 2000 psi
Reservoir Capacity: 150 U.S. Gallons
Approximate Weight: 13800 lbs
Approximate Dimensions: 15′ L x 6′ W x 5.5′ H
Voltage: 220/440/3 Phase/60Hz

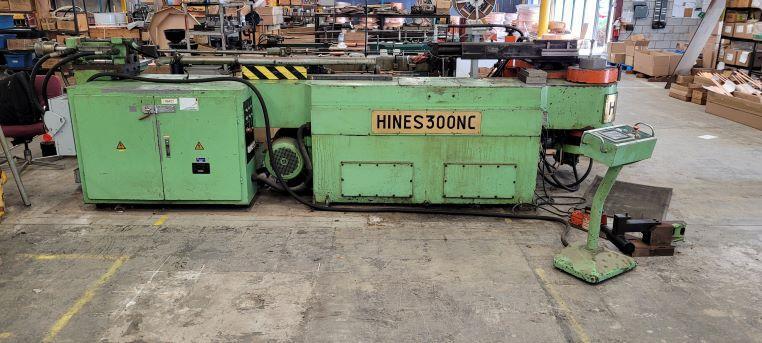

4" X .226" HINES MODEL #300NC TUBE BENDER: STOCK 17087

Brand
HINES

Type
Benders, Pipe, Tube & Bar

Stock No.
17087
