Machine Information

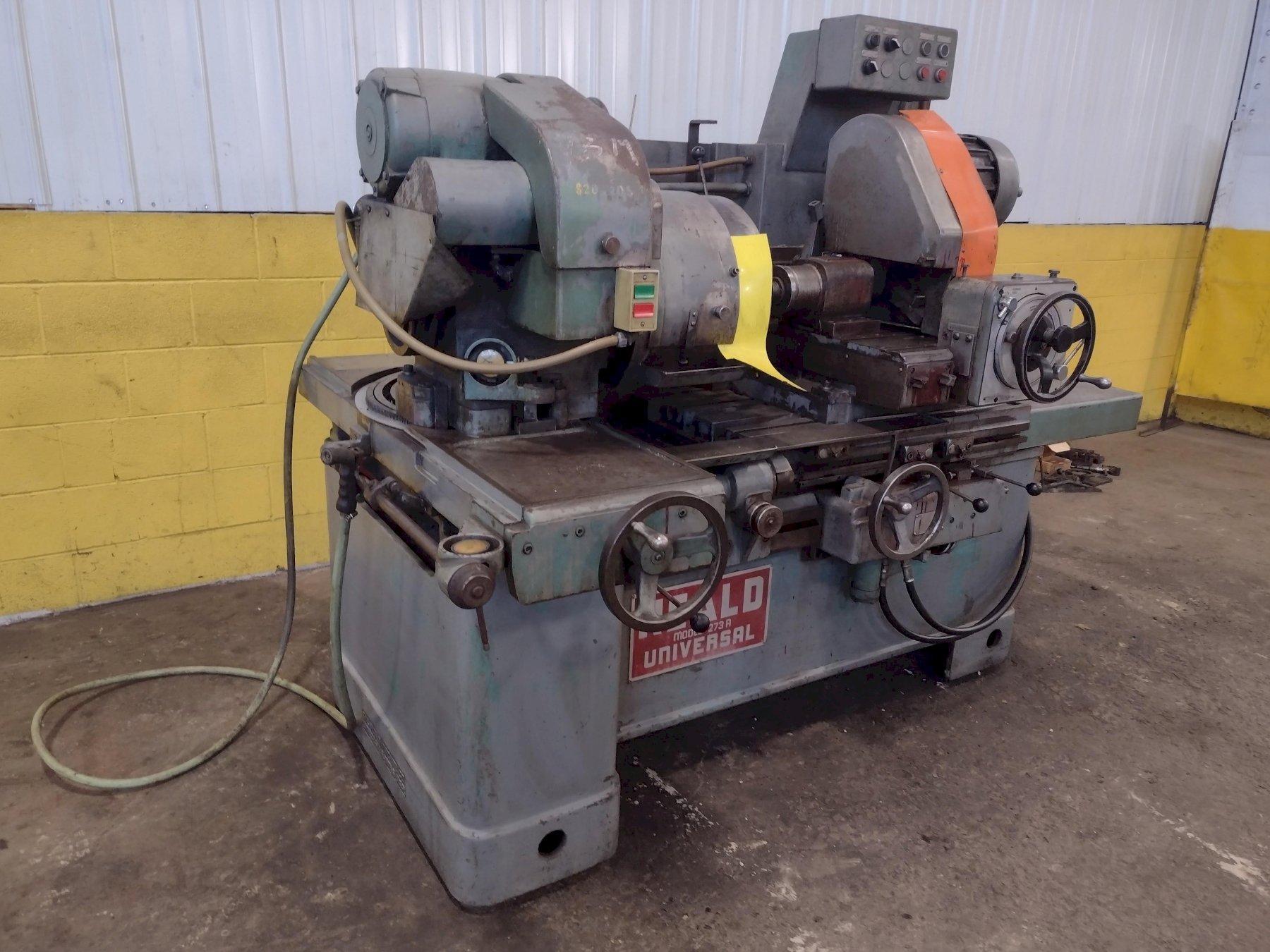

HEALD MODEL #273A INTERNAL ID GRINDER: STOCK 15711

Stock #: 15711

Equipped With

MODEL .............................. 273A UNIVERSAL
SWING INSIDE WATER GUARD ........... 24"
SWING WITH WORK HEAD AT 90 DEGREE .. 16"
WORK HEAD SPEEDS, VARIABLE ......... 90 DEGREE
ANGULAR ADJUSTMENT OF WORK HEAD .... 90 DEGREE
WORK HEAD CROSS SLIDE TRAVEL ....... 17"
MAXIMUM TABLE TRAVEL ............... 20"
GRINDING STROKE .................... 16"
WHEEL HEAD CROSS SLIDE TRAVEL ...... 1-1/2"
TABLE SPEEDS, HYDRAULIC ............ 0 TO 18 FPM
CROSS FEEDS, INCREMENTS ............ .0001 TO .0005 ON DIAMETER
SWING DOWN DRESSER ................. YES
COOLANT ............................ YES
WORK HEAD MOTOR, HORSEPOWER ........ 1-1/2
WHEEL HEAD MOTOR, HORSEPOWER ....... 5

Buy Machines

HEALD MODEL #273A INTERNAL ID GRINDER: STOCK 15711

Stock # 15711

Share Machine
Print Details

Machine Specifications

MODEL .............................. 273A UNIVERSAL
SWING INSIDE WATER GUARD ........... 24"
SWING WITH WORK HEAD AT 90 DEGREE .. 16"
WORK HEAD SPEEDS, VARIABLE ......... 90 DEGREE
ANGULAR ADJUSTMENT OF WORK HEAD .... 90 DEGREE
WORK HEAD CROSS SLIDE TRAVEL ....... 17"
MAXIMUM TABLE TRAVEL ............... 20"
GRINDING STROKE .................... 16"
WHEEL HEAD CROSS SLIDE TRAVEL ...... 1-1/2"
TABLE SPEEDS, HYDRAULIC ............ 0 TO 18 FPM
CROSS FEEDS, INCREMENTS ............ .0001 TO .0005 ON DIAMETER
SWING DOWN DRESSER ................. YES
COOLANT ............................ YES
WORK HEAD MOTOR, HORSEPOWER ........ 1-1/2
WHEEL HEAD MOTOR, HORSEPOWER ....... 5
