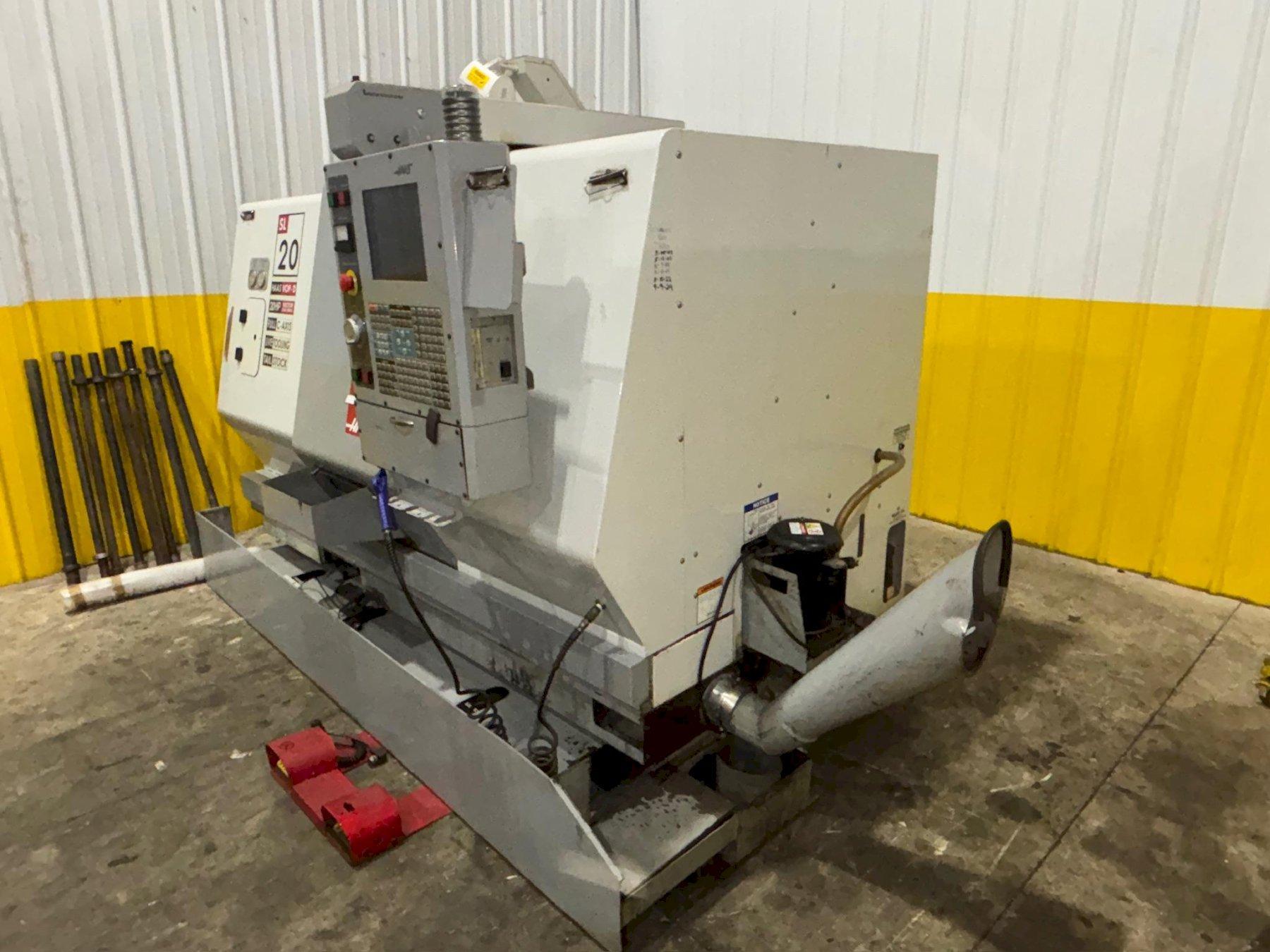

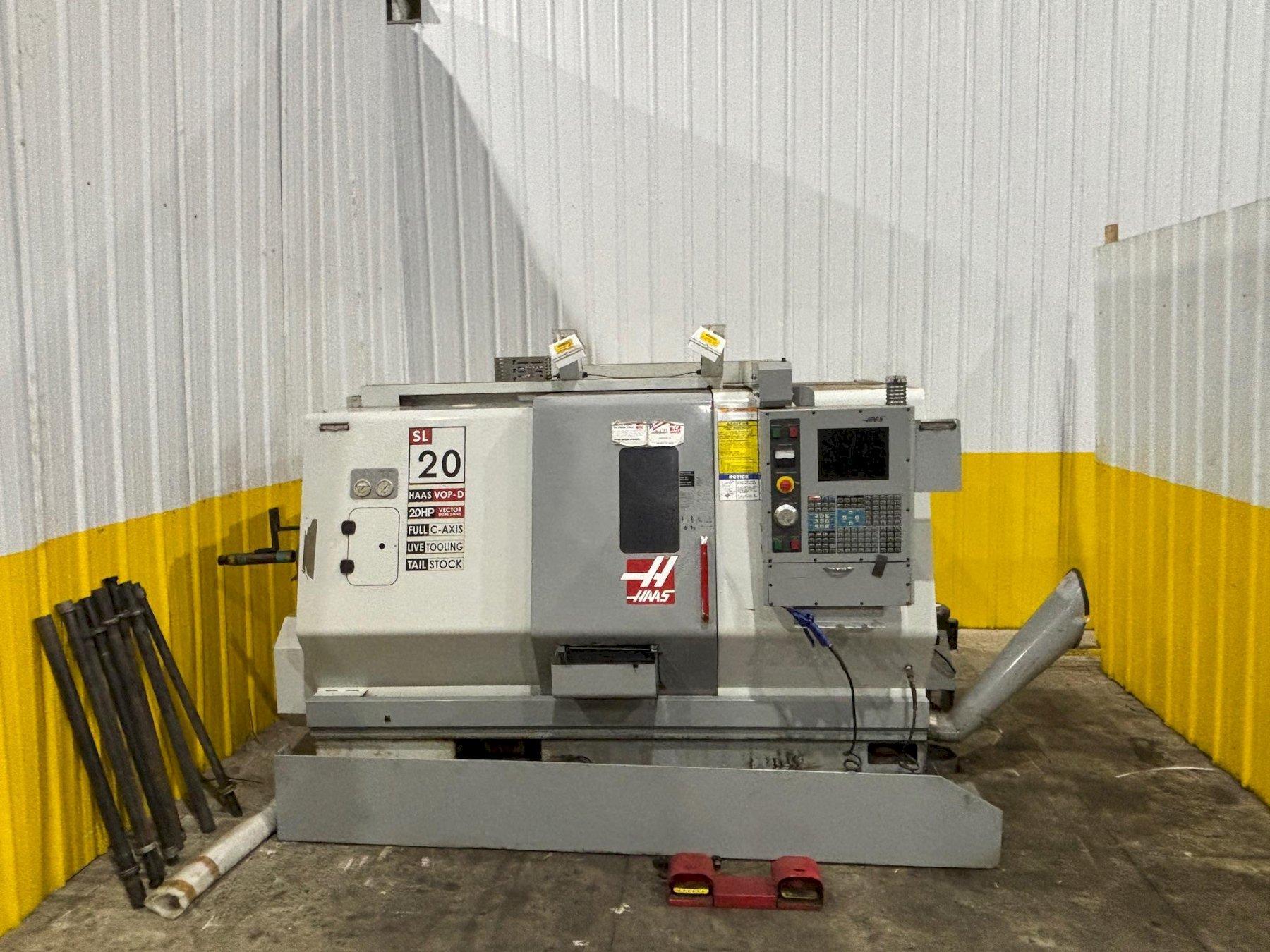

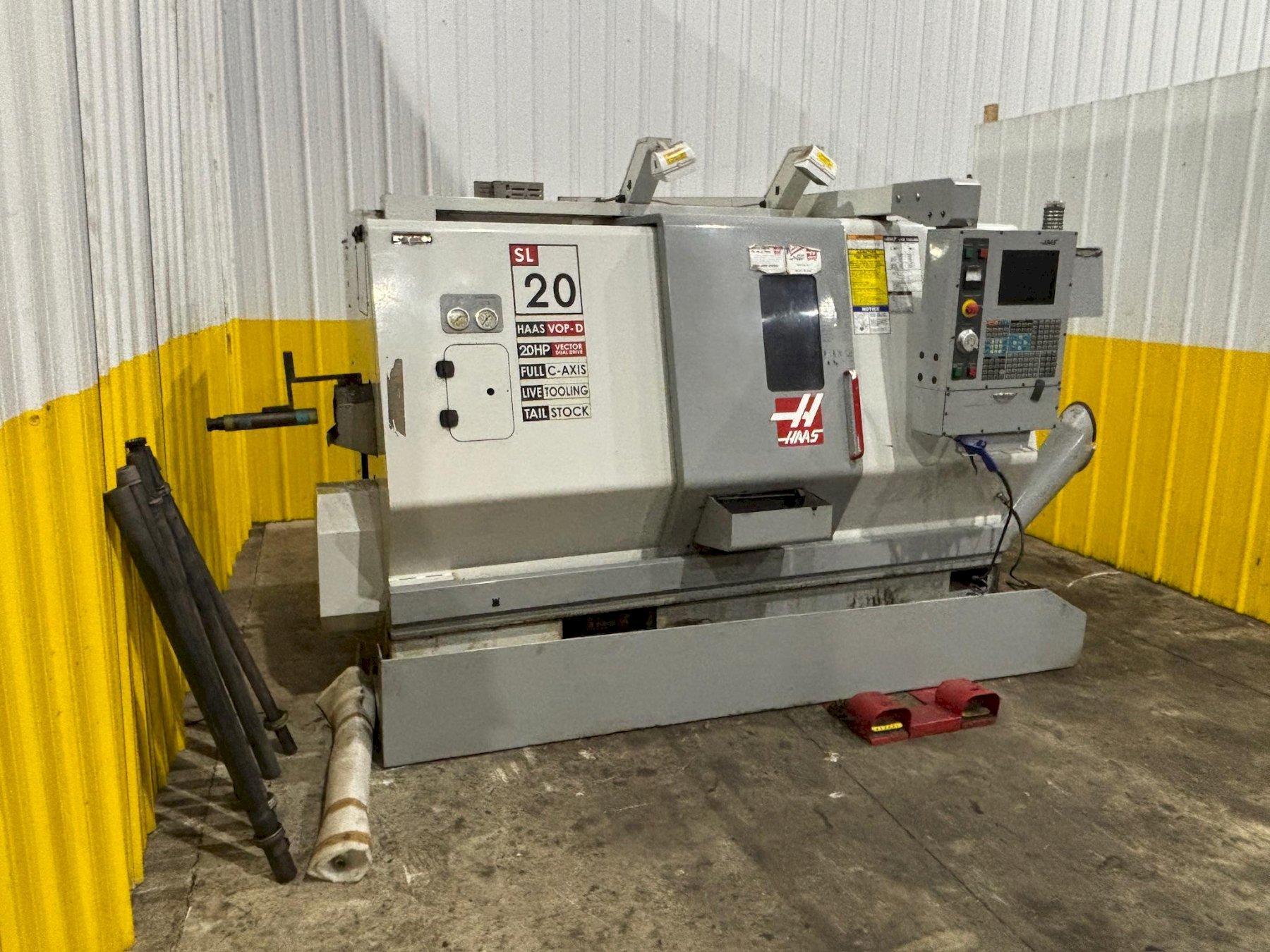

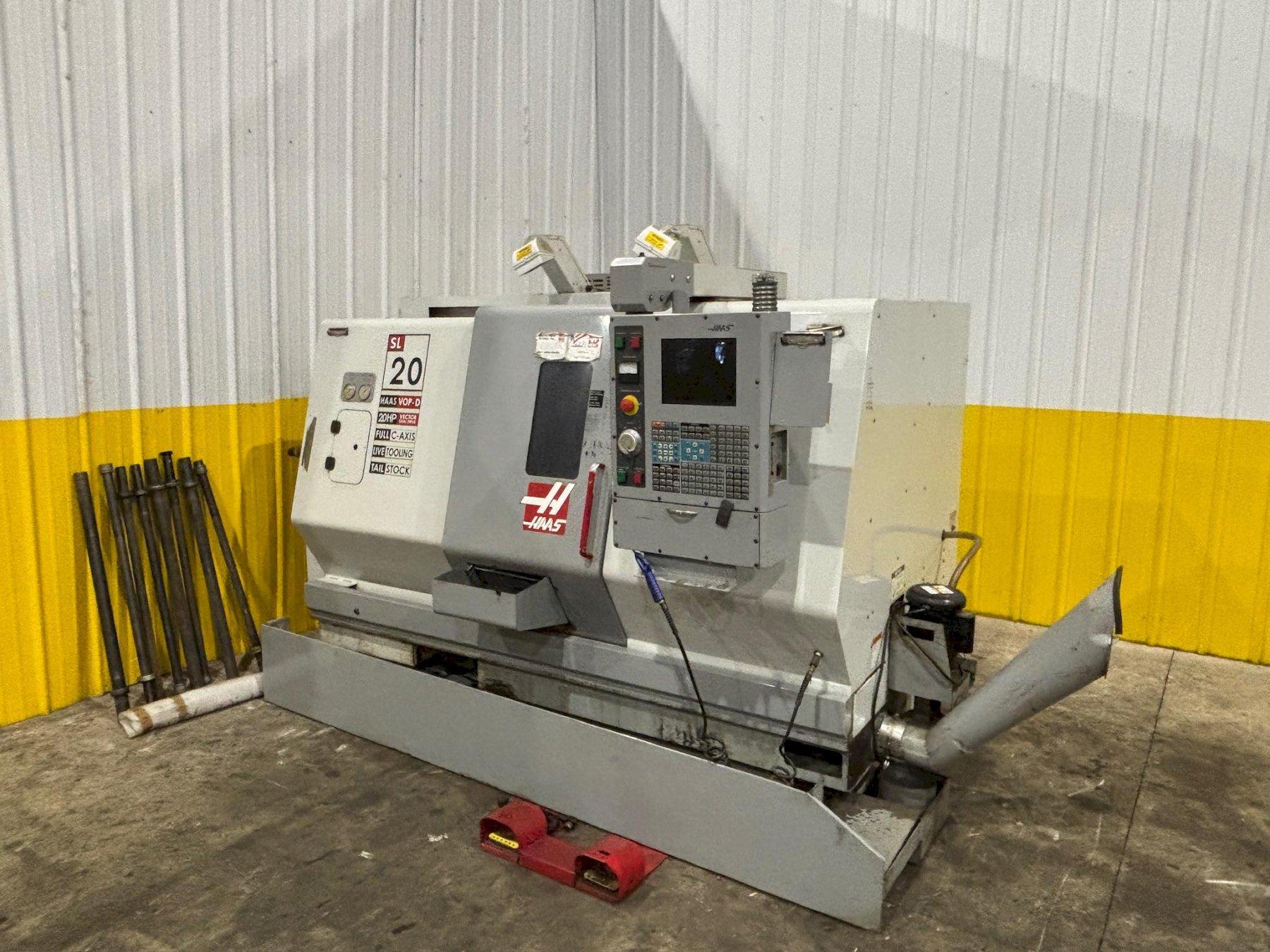

2004 HAAS MODEL #SL-20T CNC LATHE TURNING CENTER C AXIS & LIVE TOOLING: YOBRO #24480

Overview

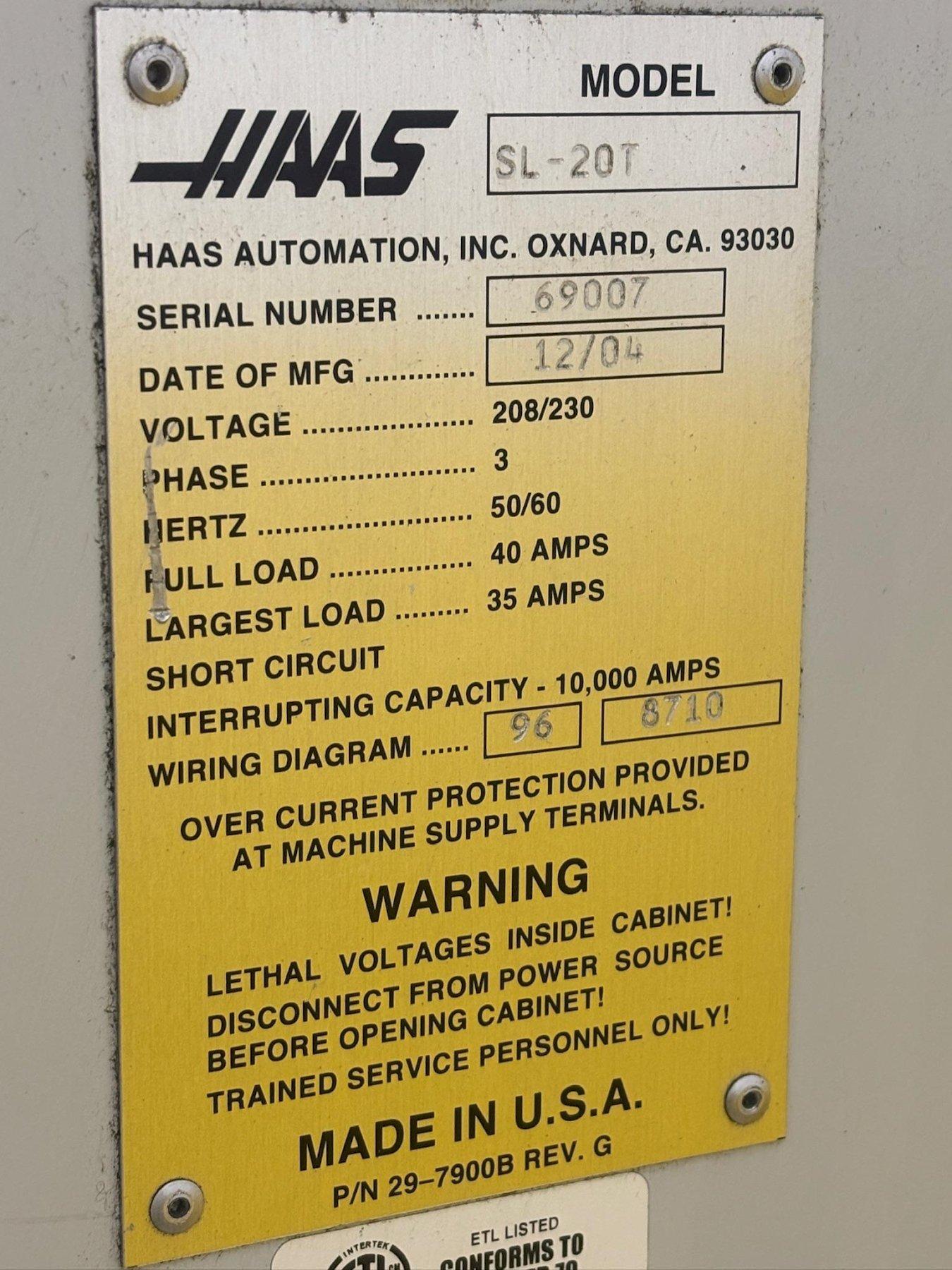

SERIAL ............................ 69007

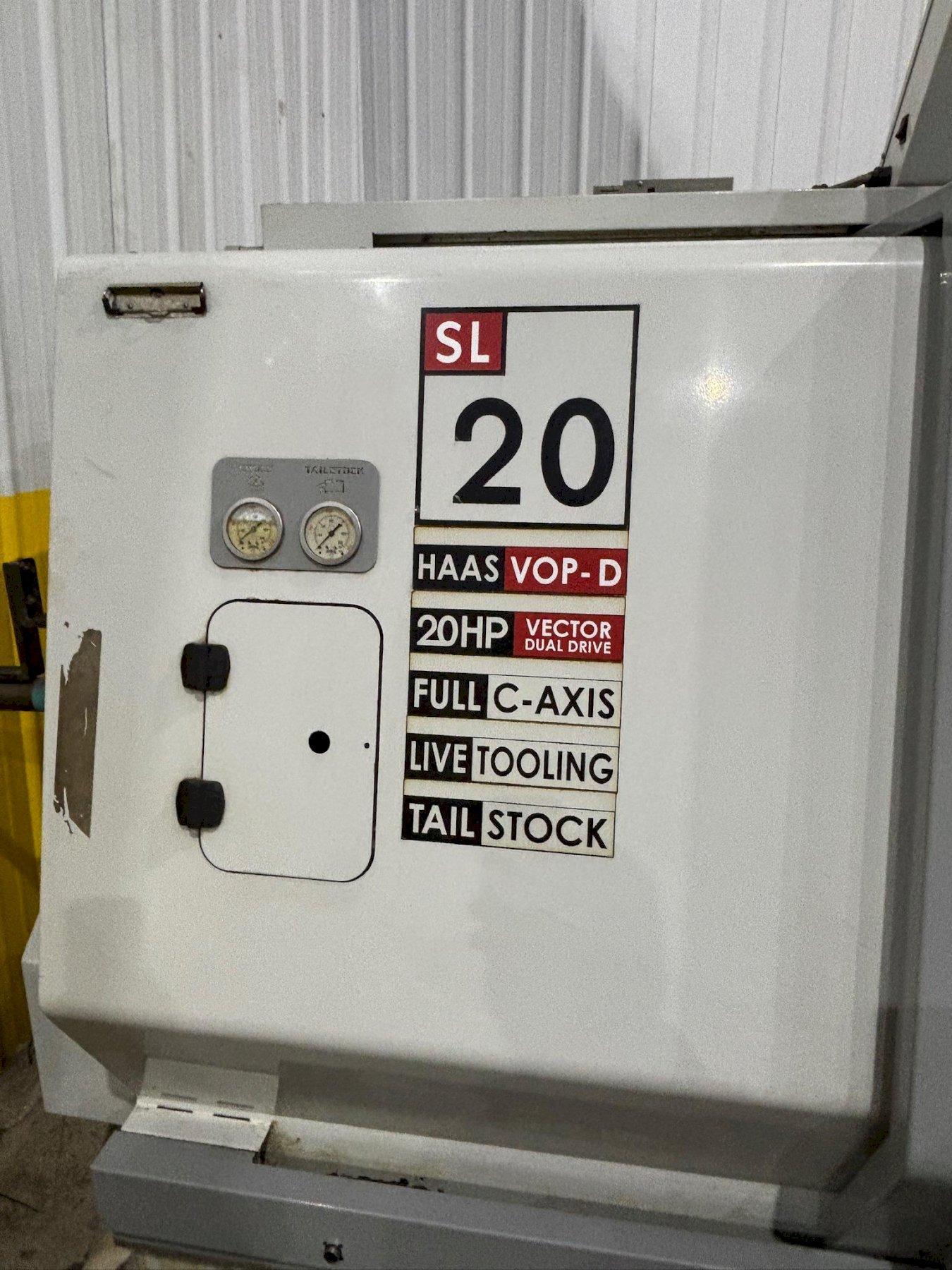

MODEL ............................. SL-20T VOP-D
YEAR .............................. 2004

SWING OVER FRONT APRON ............ 23.0″
SWING OVER CROSS SLIDE ............ 9.5″

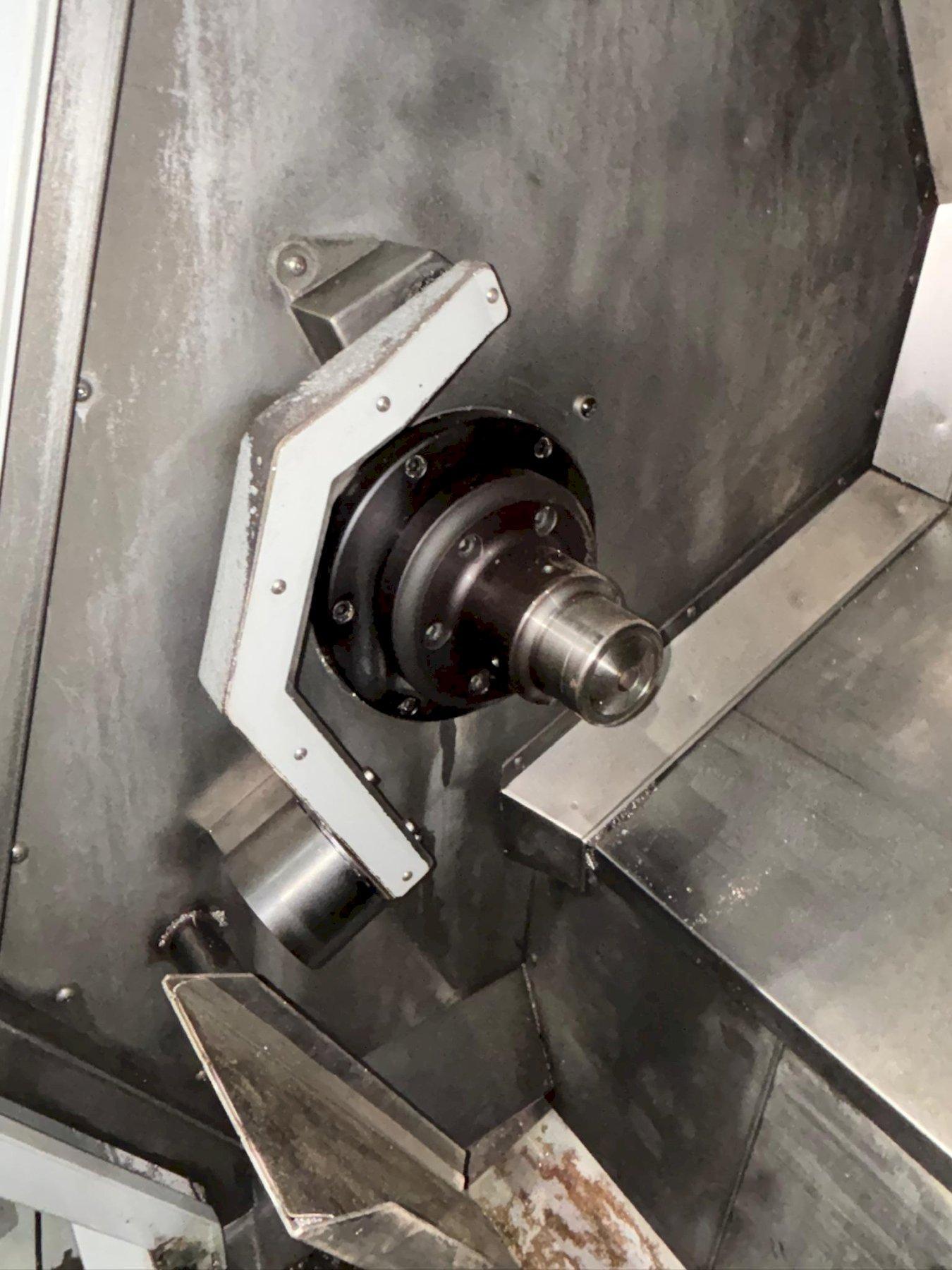

CHUCK SIZE ........................ 5C COLLET CHUCK
TURNIGN DIAMETER .................. 10.3″
TURNING LENGTH .................... 20″
RAPID FEED RATES .................. 710 IPM
SPINDLE SPEEDS .................... 4,000 Max RPM
SPINDLE NOSE ...................... A2-6
HOLE THRU SPINDLE ................. 3.0″
HOLE THRU DRAW TUBE ............... 2.06″

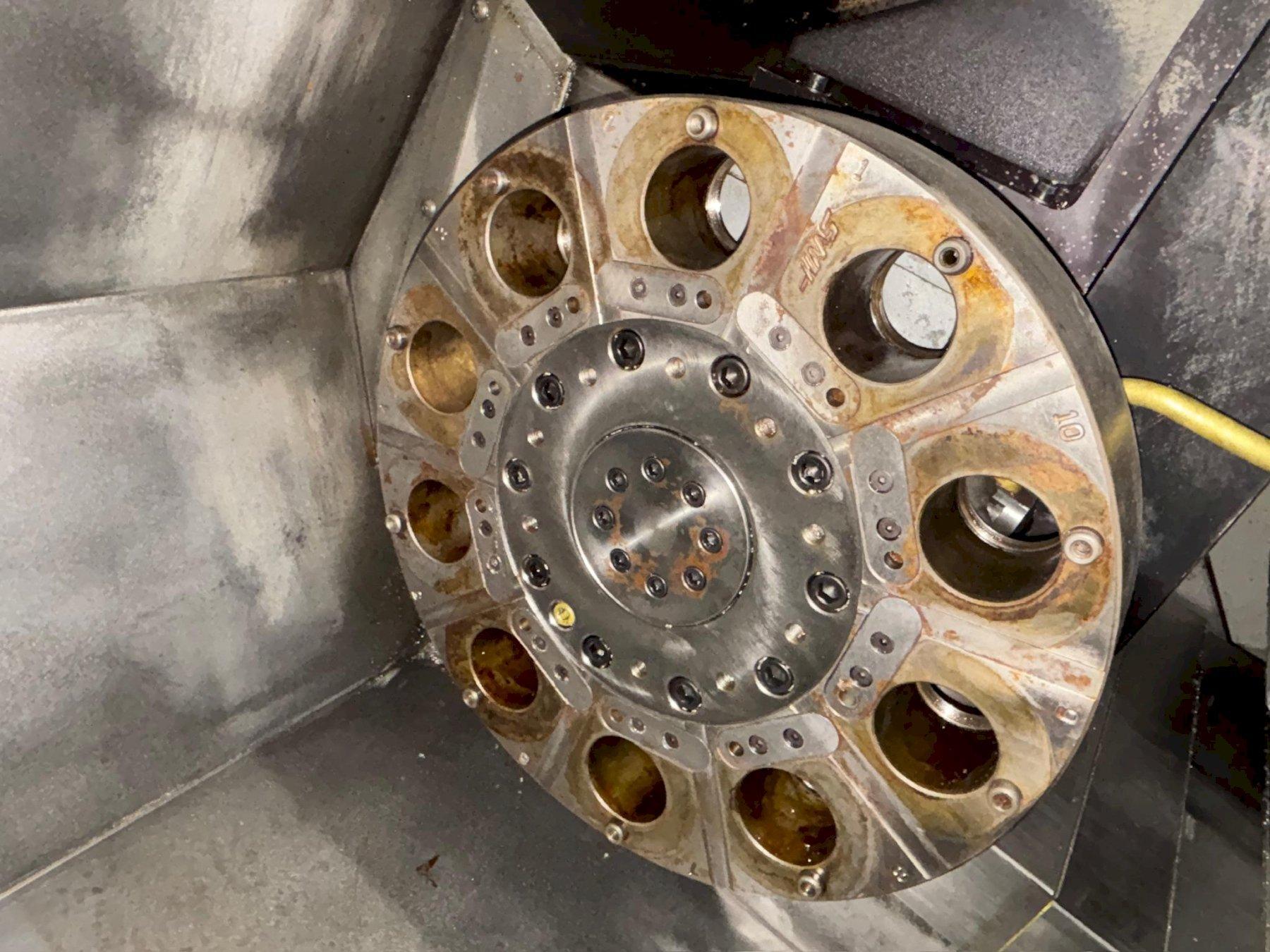

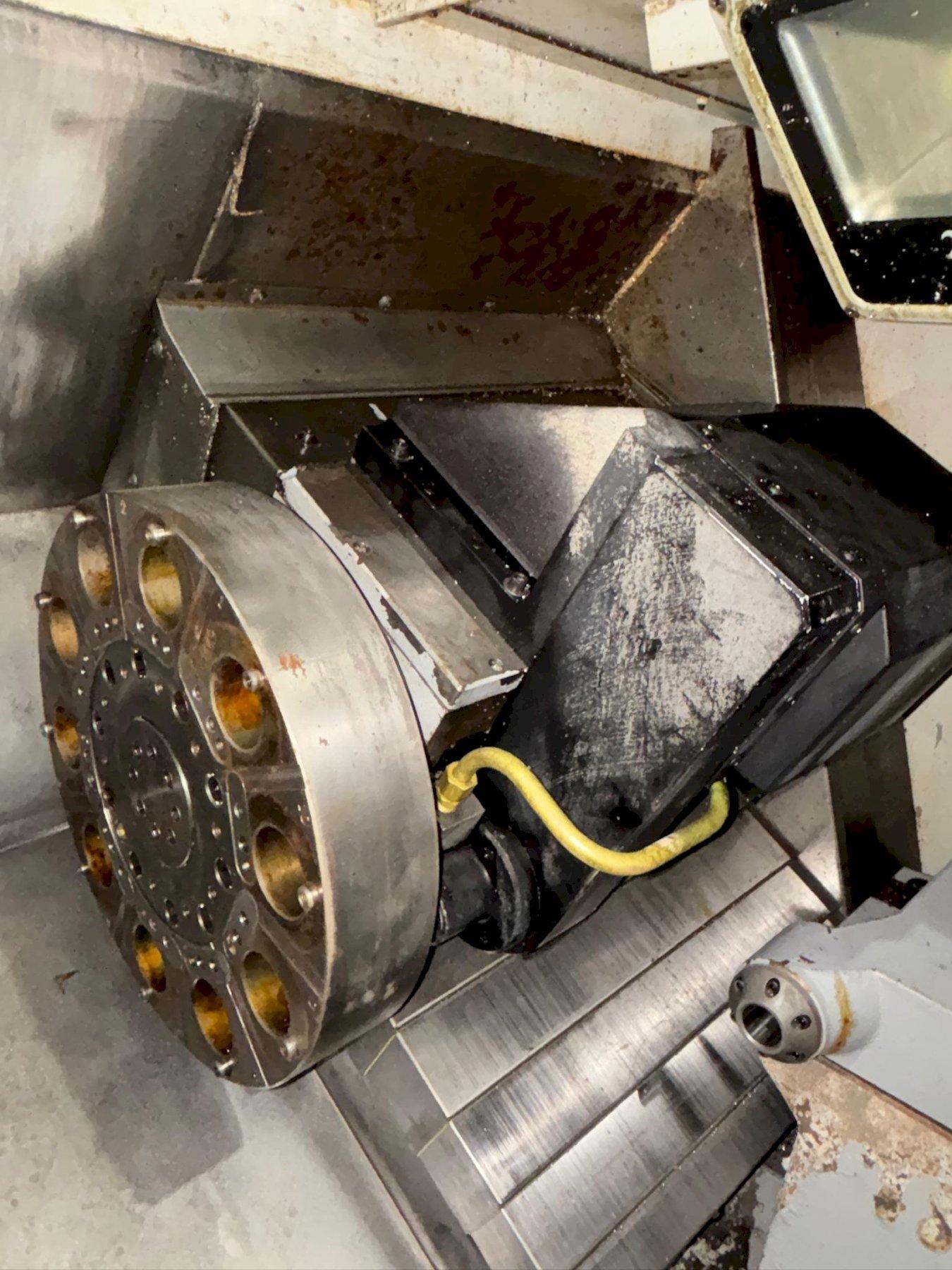

TURRET CAPACITY ................... 10 Station
TURRET INDEX TIME (ONE TOOL) ...... 1 Second
TURRET TRAVELS (X,Z) .............. 8.45″ / 20″
TURRET INDEX TIME ................. 1 SECOND PER STATION
TAILSTOCK TRAVEL .................. 20″
TAILSTOCK QUILL DIAMETER/TAPER .... #4 Morse Taper
RAPID FEED RATES .................. 1,000 IPM

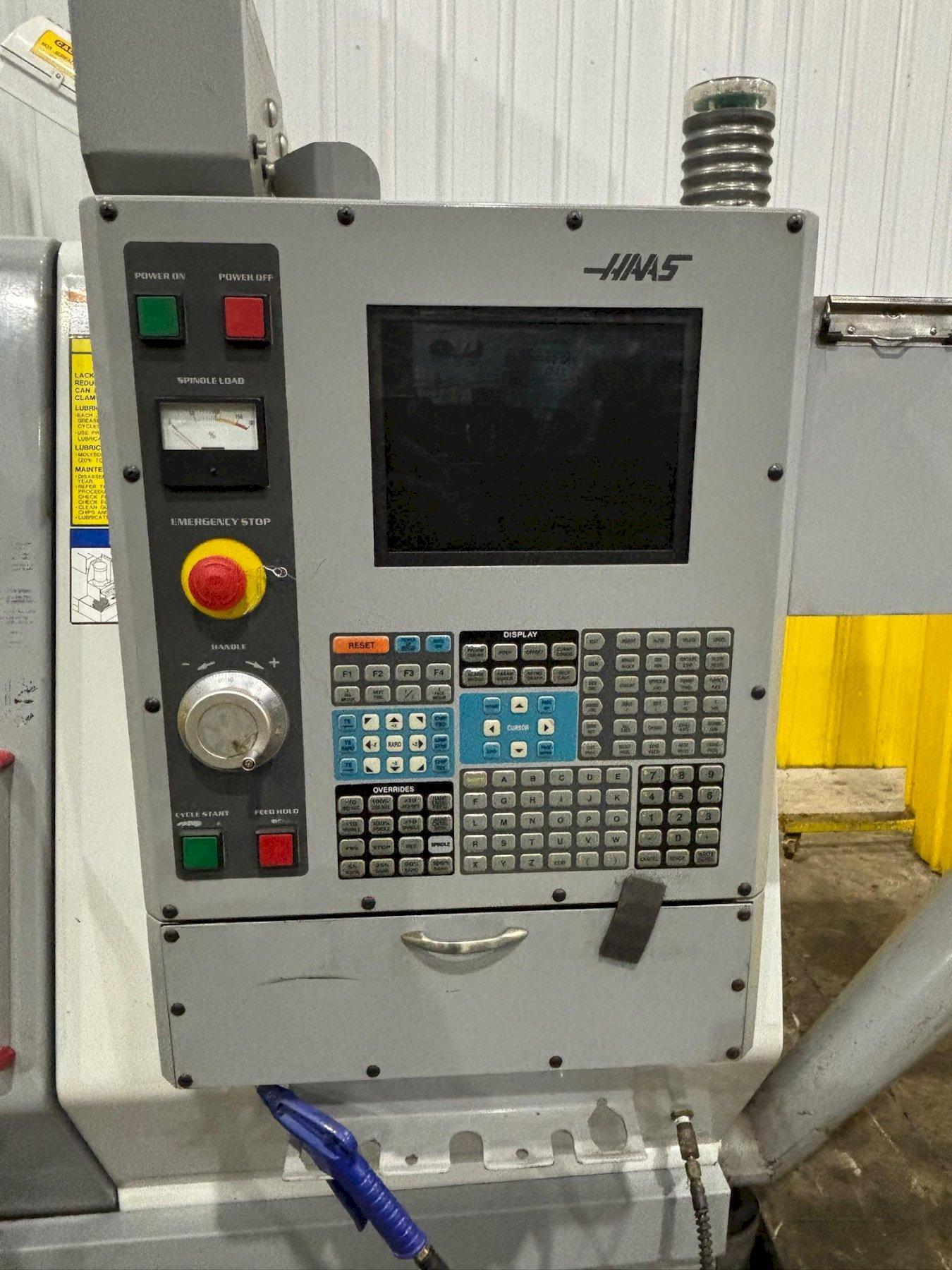

HAAS 32-BIT CNC CONTROL ........... YES
LIVE MILLING ON TURRET............. YES
FULL C-AXIS SPINDLE ............... .001 DEGREE

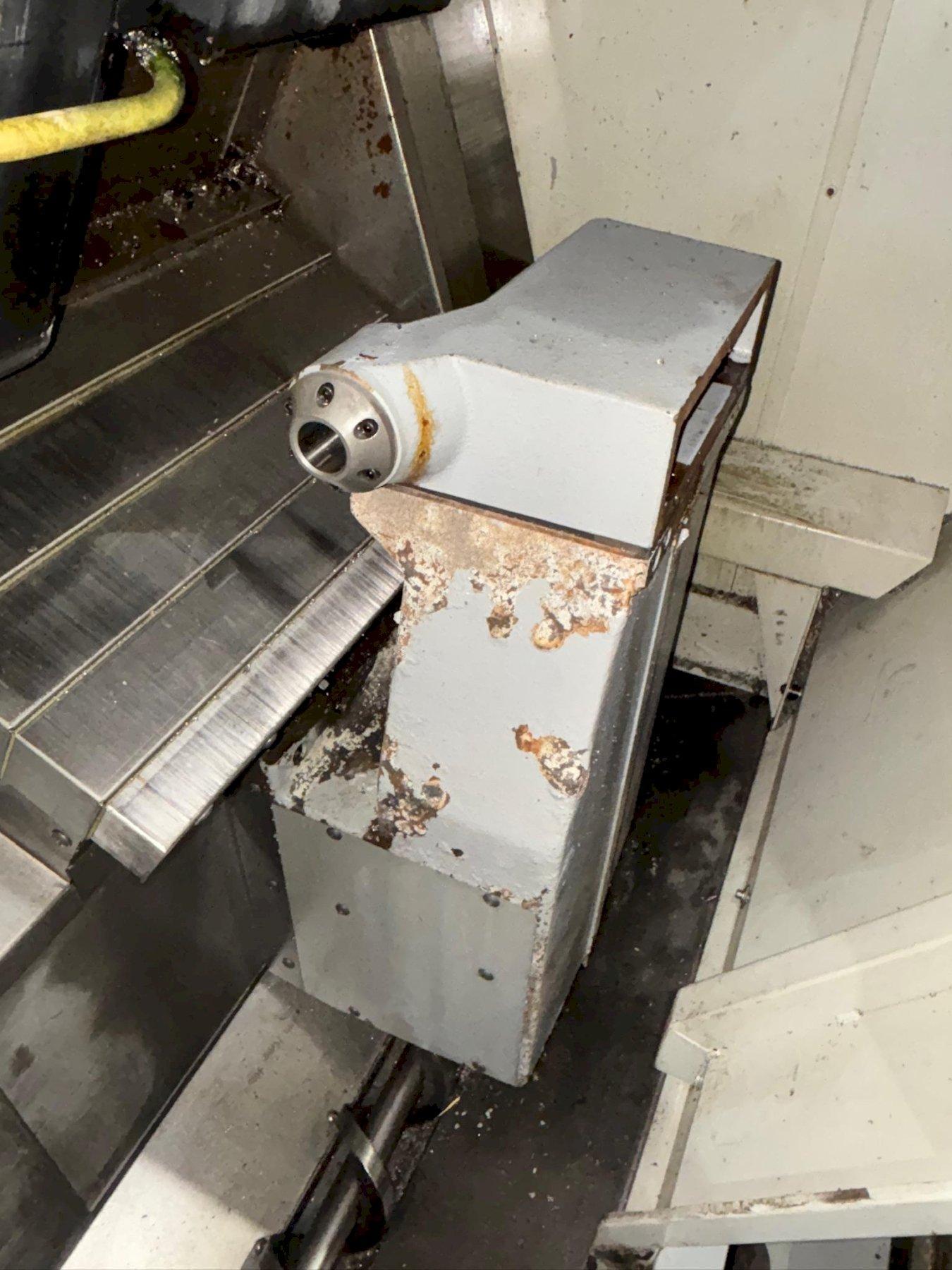

PROGRAMMABLE TAILSTOCK ............ YES

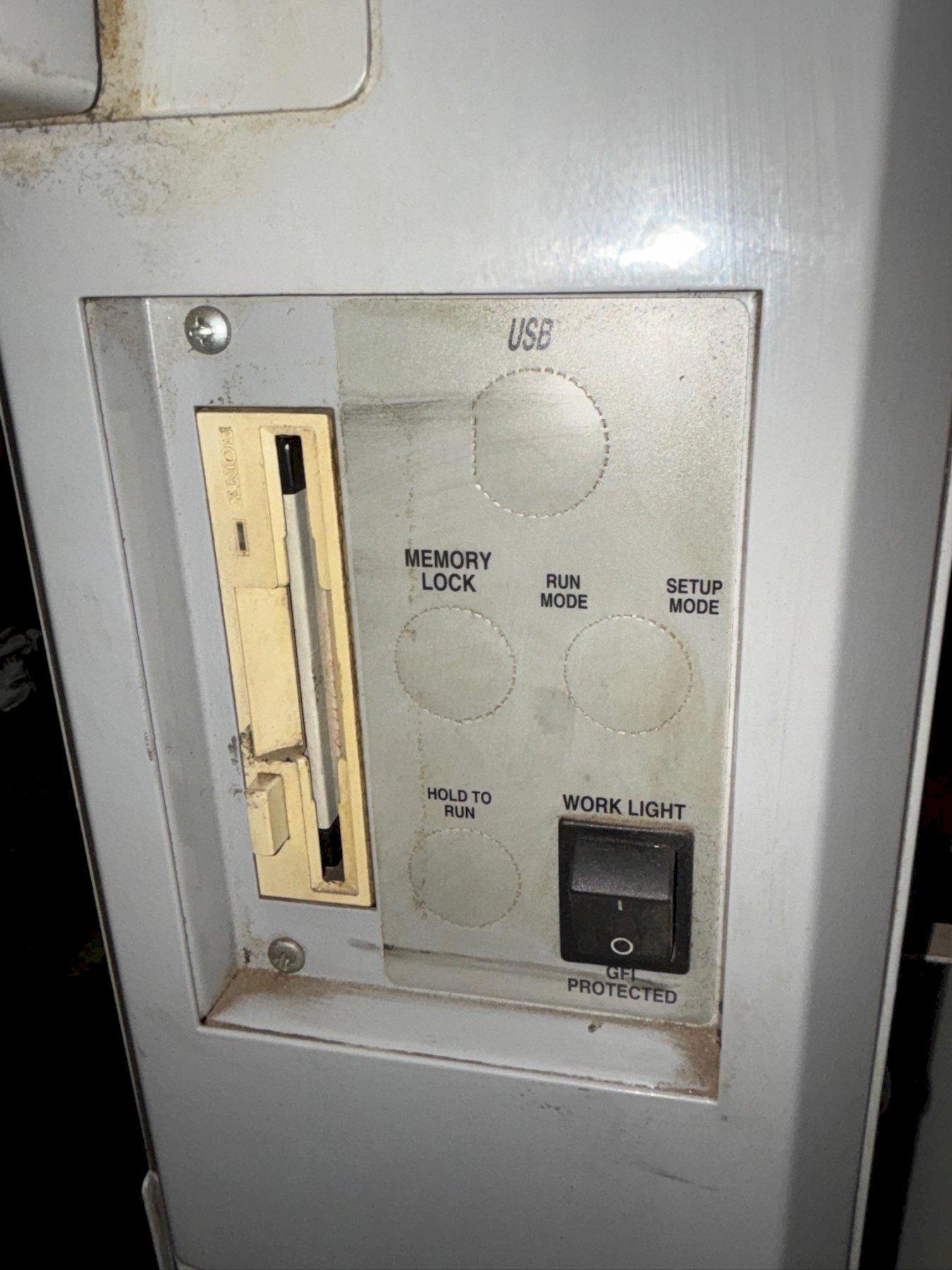

FLOPPY DRIVE ...................... YES

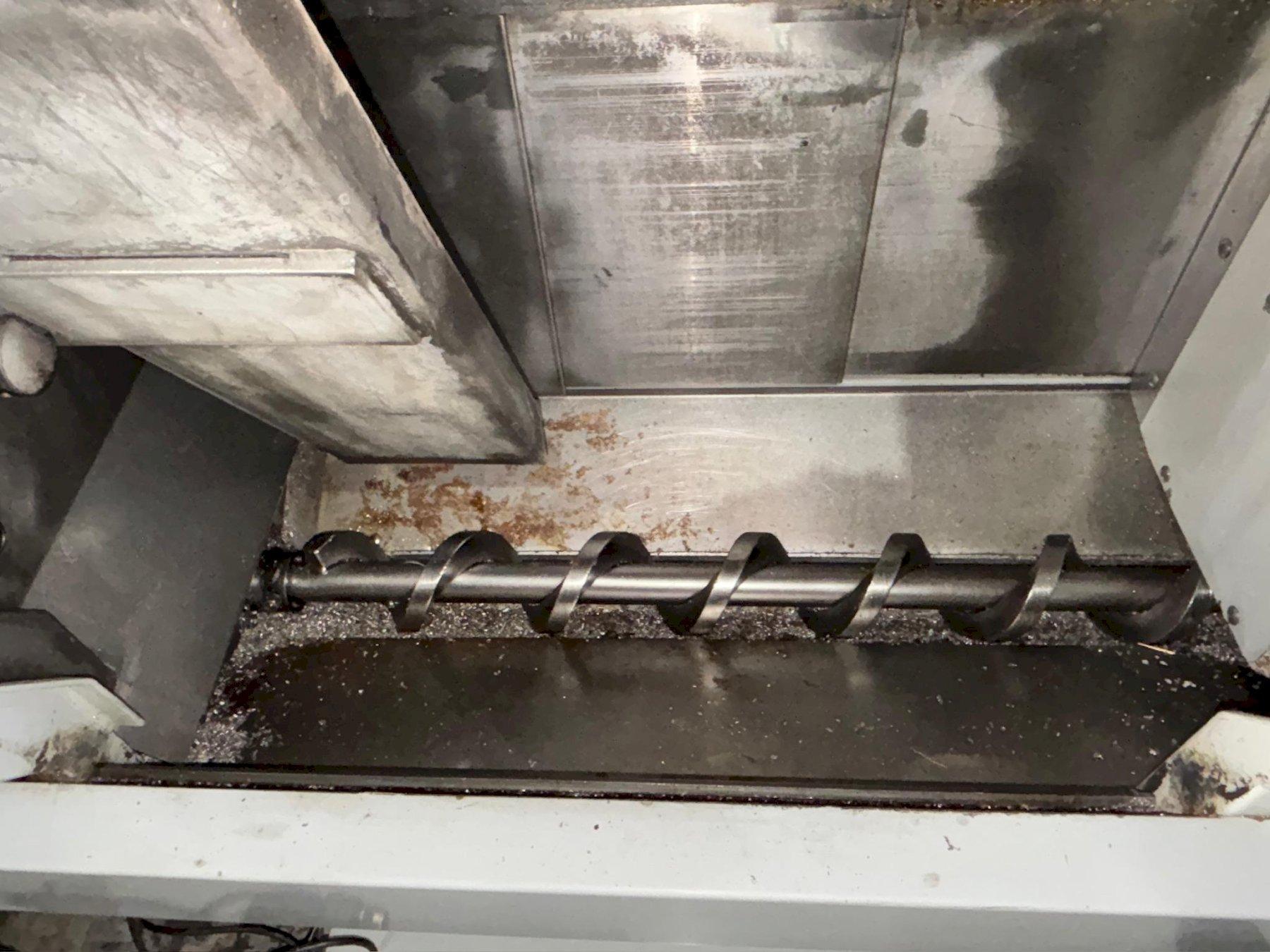

CHIP AUGER ........................ YES
TOOL PRESETTER .................... YES

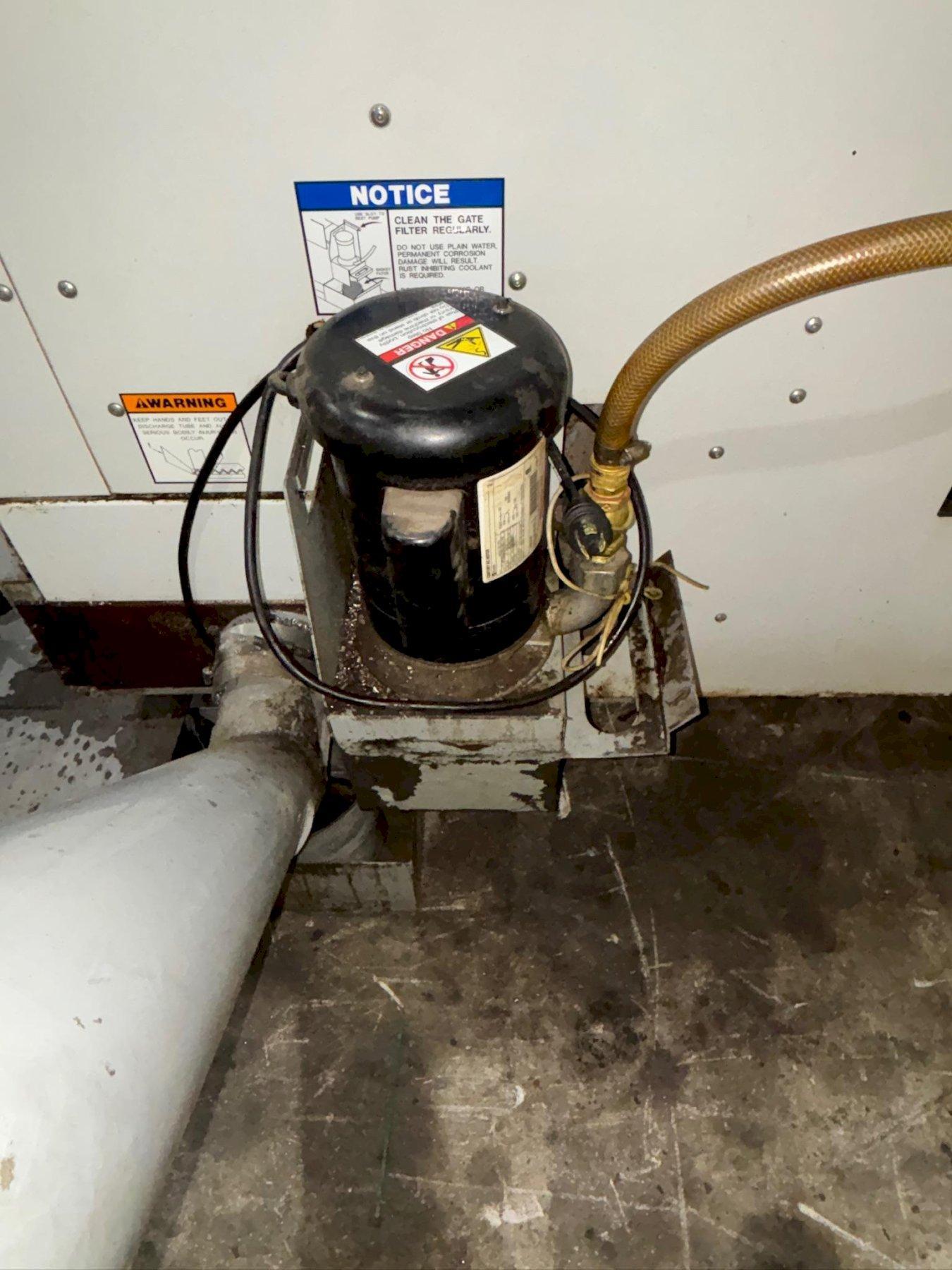

COOLANT SYSTEM WITH PUMP & TANK ... YES
SPINDLE VECTOR MOTOR DRIVE ........ 20HP



HAAS SERVO BAR 300 AUTOMATIC BAR FEEDER AVAILABLE:

https://yoderbrothersmachinery.com/listing/haas-servo-bar-300-automatic-bar-feeder-yobro-24481/
