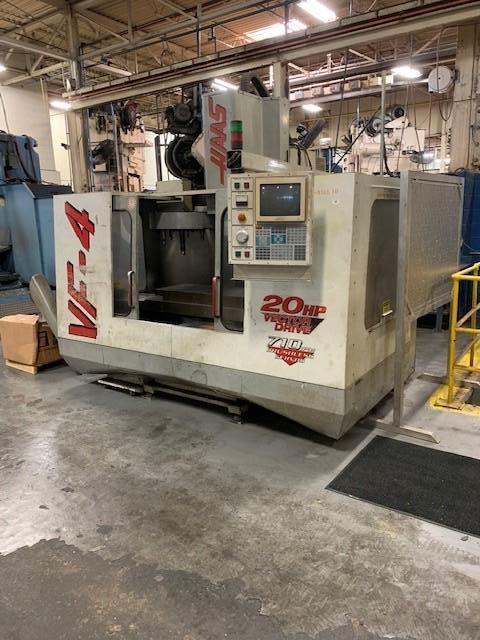

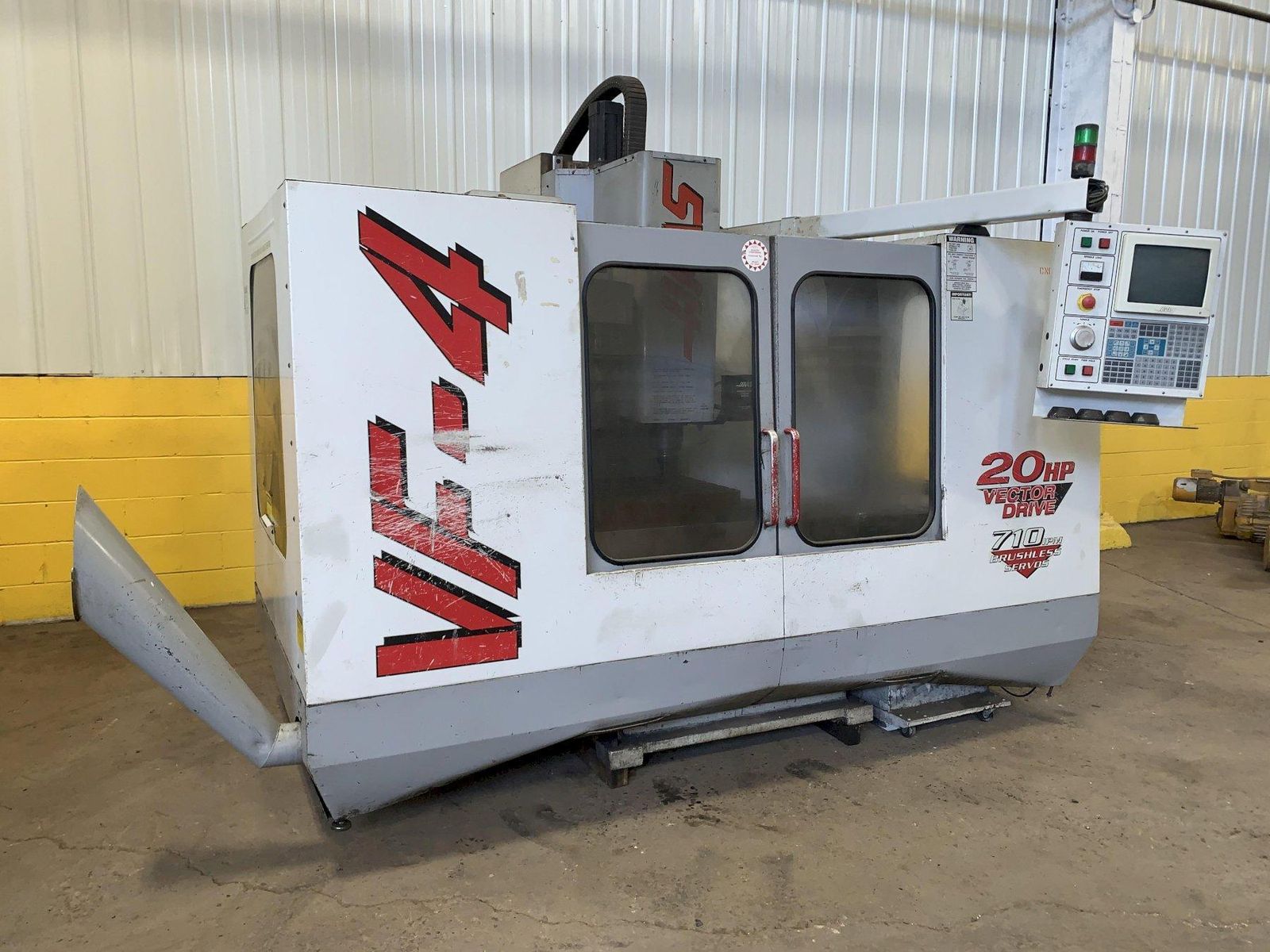

HAAS MODEL #VF4 VERTICAL MACHINING CENTER: STOCK 12216

Stock #: 12216

Equipped With

Serial .................... 12558
Model ..................... VF-4

Year ...................... 1997
HP ........................ 20-HP Vector Drive
Table Size ................ 52″ x 18″
Table Height from Floor ... 36″
Spindle Nose to Table ..... 4″
Max Table Load ............ 3,500 lbs.
X-Travel .................. 50″
Y-Travel .................. 20″
Z-Travel .................. 25″
Spindle Speed ............. 7,500 RPM
Spindle Taper ............. Cat 40
X,Y & Z Axis .............. Rapids: 710, Cutting Feed-Rate: 500
Brushless Servo ........... 710 IPM
Tool Changer .............. 20 Tool Auto
Voltage ................... 208/230
Video Available

Buy Machines

HAAS MODEL #VF4 VERTICAL MACHINING CENTER: STOCK 12216

Stock # 12216

Share Machine
Print Details

Machine Specifications

Serial .................... 12558
Model ..................... VF-4

Year ...................... 1997
HP ........................ 20-HP Vector Drive
Table Size ................ 52″ x 18″
Table Height from Floor ... 36″
Spindle Nose to Table ..... 4″
Max Table Load ............ 3,500 lbs.
X-Travel .................. 50″
Y-Travel .................. 20″
Z-Travel .................. 25″
Spindle Speed ............. 7,500 RPM
Spindle Taper ............. Cat 40
X,Y & Z Axis .............. Rapids: 710, Cutting Feed-Rate: 500
Brushless Servo ........... 710 IPM
Tool Changer .............. 20 Tool Auto
Voltage ................... 208/230
Video Available

Videos
Specifications
Weight 13500 pounds
