Machine Information

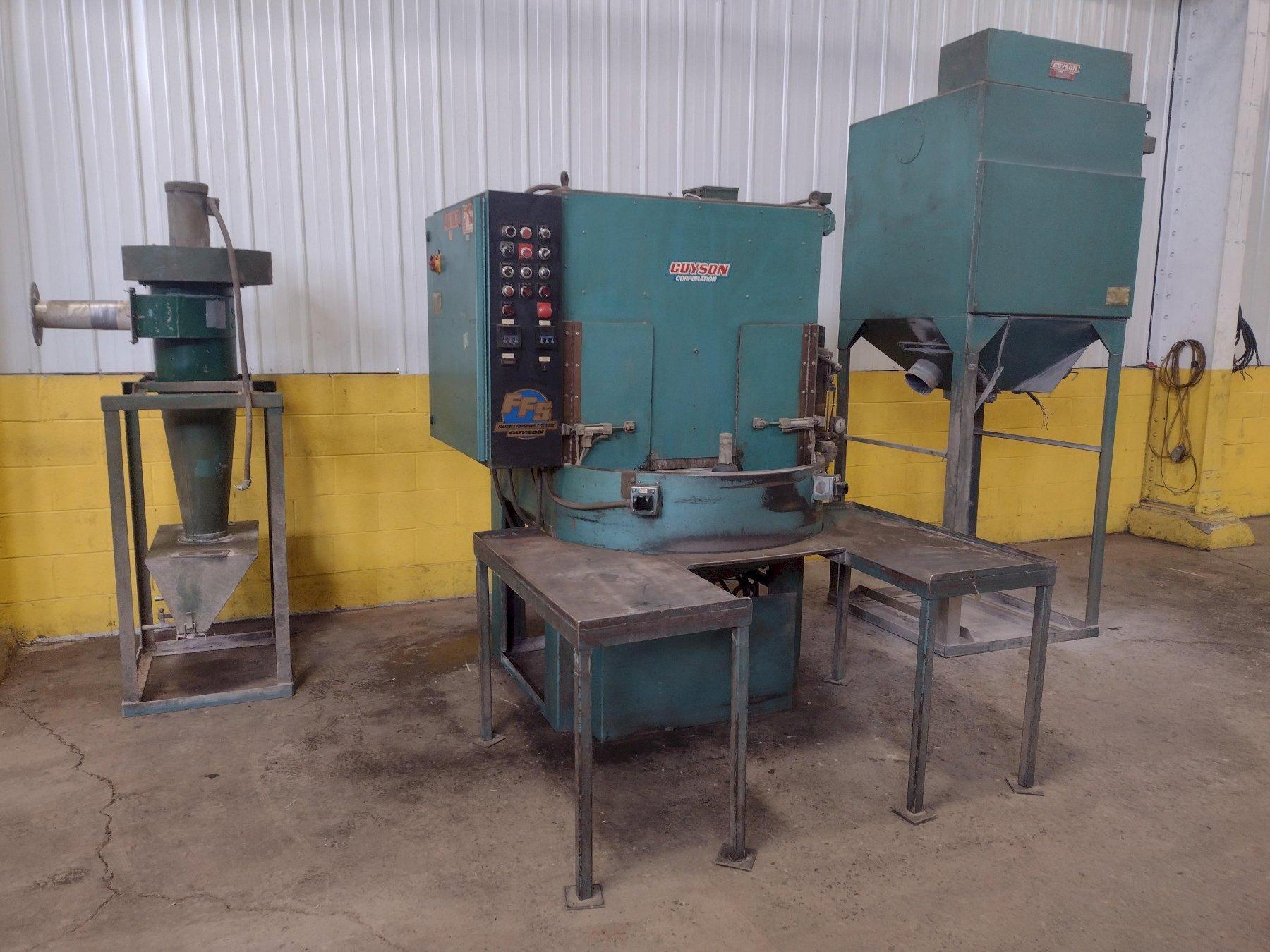

36" GUYSON MODEL #RXS-800 MULTI-STATION INDEXING SPINDLE-BLAST MACHINE & DUST COLLECTOR: STOCK #16189

Stock #: 16189

Equipped With

GUYSON BLAST CLEAING CABINET:
SERIAL ........................ 9658-1
MODEL ......................... RXS-800
DIAMETER OF TABLE ............. 36"
NUMBER OF BLAST STATIONS ...... 4 (90 DEGREES)
TABLE SPEED ................... VARIABLE
FIXTURE ROTATION .............. YES
SPINDLE ROTATION SPEED ........ VARIABLE
NUMBER OF BLAST GUNS .......... 4 (8 MAX)
AIR BLAST NOSSELS ............. YES
VERTICAL TRAVEL OF GUNS ....... YES, 24"
AIR WASH / BLOW OFF ........... YES
BLAST TIMER ................... YES
ENTRY & EXIT DOORS ............ PNEUMATIC
CABINET LIGHTS ................ YES

GUYSON CYCLONE RECLAIM:
SERIAL ........................ 9658-2
MODEL ......................... 75/12
STORAGE CHAMBER ............... YES
MOTOR ......................... 1.5 HP

GUYSON DUST COLLECTOR:
SERIAL ....................... 9658-3
MODEL ........................ C800W
CARTRIDGE TYPE FILTERS ....... YES
PRESSURE GUAGE ............... YES
MOTOR ........................ 1.5 HP

INFO FROM GUYSON:

RXS-800 INDEXING SPINDLE BLAST SYSTEM:
Four spindles are equally spaced around the perimeter of this model’s 36-inch diameter, 90-degree indexing table. At the single blast station, the fixtured component is rotated at controlled speed as it is blasted by up to 8 suction blast guns or multiple pressure-blast nozzles during the timed blast cycle. The RXS-800 has a separate air wash blow-off chamber. The blast guns may be pre-set in fixed position, or they can be mounted on an oscillator or a linear actuator for programmable coverage of various-sized parts.

RXS-SERIES INDEXING SPINDLE-BLAST SIERES:
For 360-degree impact treatment, our indexing table machines with rotary spindles are one of the most popular types. RXS-series machines are available in many cabinet sizes, with from 2 to 12 or more spindles for high speed and high volume processing. In these machines, the fixtured components are presented to the blast from multiple guns as the part is rotated at controlled and adjustable speed during the timed blast cycle.
