Machine Information

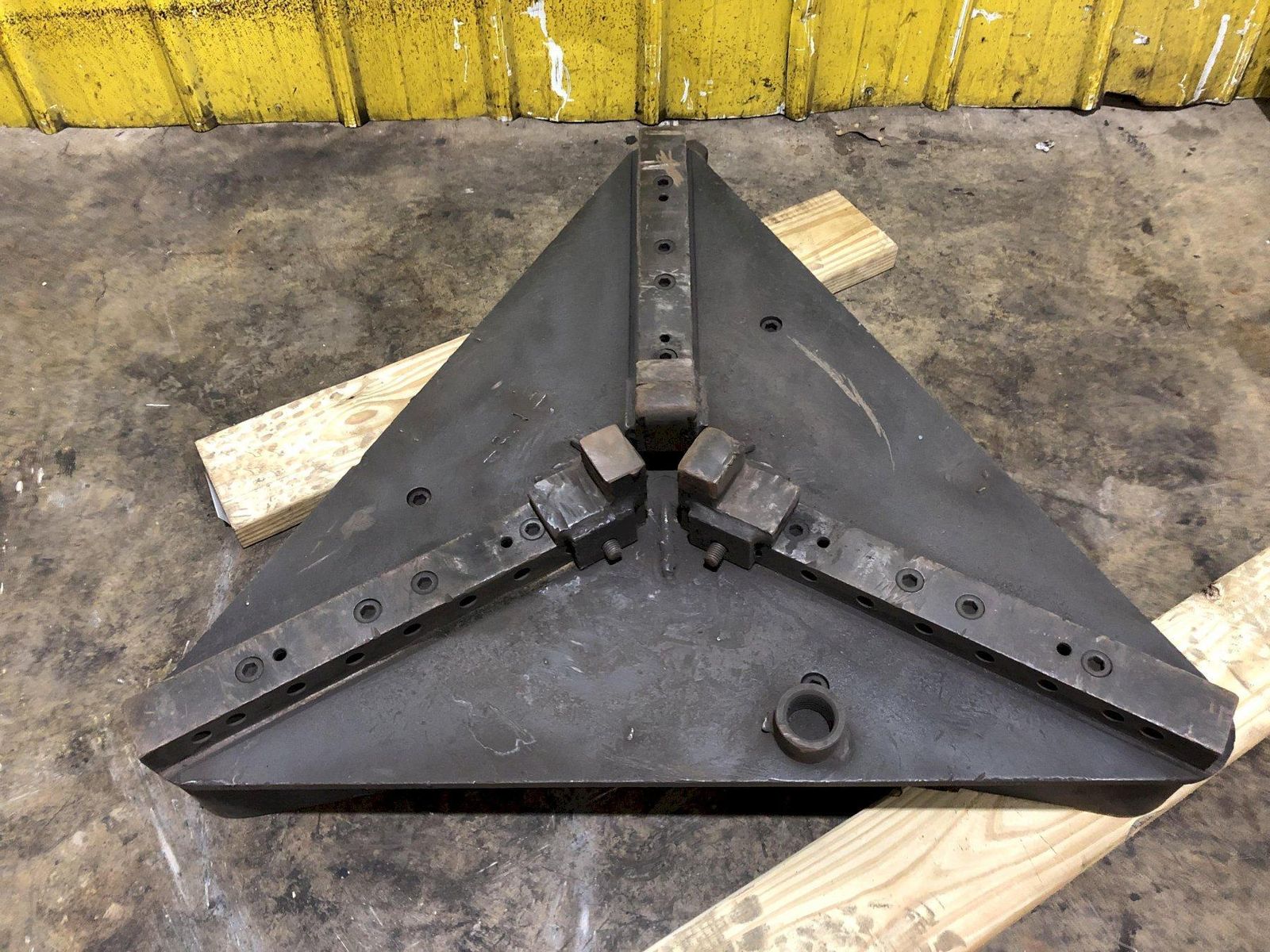

3-JAW ADJUSTABLE GRIPPER CHUCK / WELDING POSITIONER FIXTURE: STOCK #18438

Stock #: 18438

Equipped With

MODEL .................. B


GRIPPER JAWS ........... (3) SELF CENTERING


CLAMPING RANGE ID ...... 5-1/2" TO 44-3/8"


CLAMPING RANGE OD ...... 1-1/2" TO 40-3/4"


JAW BAR CLEARANCE ...... 22"


MAX SWING CLEARANCE .... 23-1/2"


BOLT CENTER SPACING .... 19-1/4"


FRAME SWING CLEARANCE .. 20-7/16"


JAW LAND ............... 7-3/16"


BOLT HOLE LENGTH ....... 3-7/8"


JAW STROKE ............. 2-3/8"




Buy Machines

3-JAW ADJUSTABLE GRIPPER CHUCK / WELDING POSITIONER FIXTURE: STOCK #18438

Stock # 18438

Request a Quote
Share Machine
Print Details
Make an Offer
Download Images
View All Images

Machine Specifications

MODEL .................. B
GRIPPER JAWS ........... (3) SELF CENTERING
CLAMPING RANGE ID ...... 5-1/2" TO 44-3/8"
CLAMPING RANGE OD ...... 1-1/2" TO 40-3/4"
JAW BAR CLEARANCE ...... 22"
MAX SWING CLEARANCE .... 23-1/2"
BOLT CENTER SPACING .... 19-1/4"
FRAME SWING CLEARANCE .. 20-7/16"
JAW LAND ............... 7-3/16"
BOLT HOLE LENGTH ....... 3-7/8"
JAW STROKE ............. 2-3/8"
