Overview

Serial #: 11-1589
Model: PG-9CRG
Year new: 2011
Parker Hanifan PLC Touchscreen HMI Controls
Work wheel power:  15hp
Grinding wheel:  9" diameter X 12-5/8" length, Diamond or vitrified
Capacity stock size:
diameter 2" (50.8mm),
0.375"" (9.5mm) min, shaft 1.5" (38.1mm),
0.187" (4.76mm) min, ground roll face
12-5/8" (321mm) max. (custom sizes available)

Condition: Machines appear to be in very good to excellent condition

From the OEM website:
Traditional OD grinding methods rely on CNC Programming to profile shapes. Although adequate for prototyping, an od machine is slow since the grinding  head has to traverse the length of the part.  Alternatively, the PG-9CRG is  able to form components in one pass.

Additionally, the PG-9CRG leverages Glebar's vast knowledge in grinding wheel  compositions to match the optimum grinding wheel for your material. as a  compact machine that can be highly automated, the machine can be simply  adapted to grind small components using the installed collets.

 ** Options available (price on request): in-line gauging, mist collector, off-  machine wheel balancing system, post process gauging, part counter, robot pick  & place, three-stage recirculating coolant system

Specifications
Work Capacity 2 inches
Grinding Wheel Dia. 9 inches
GW Power 15 horsepower
CNC Control yes

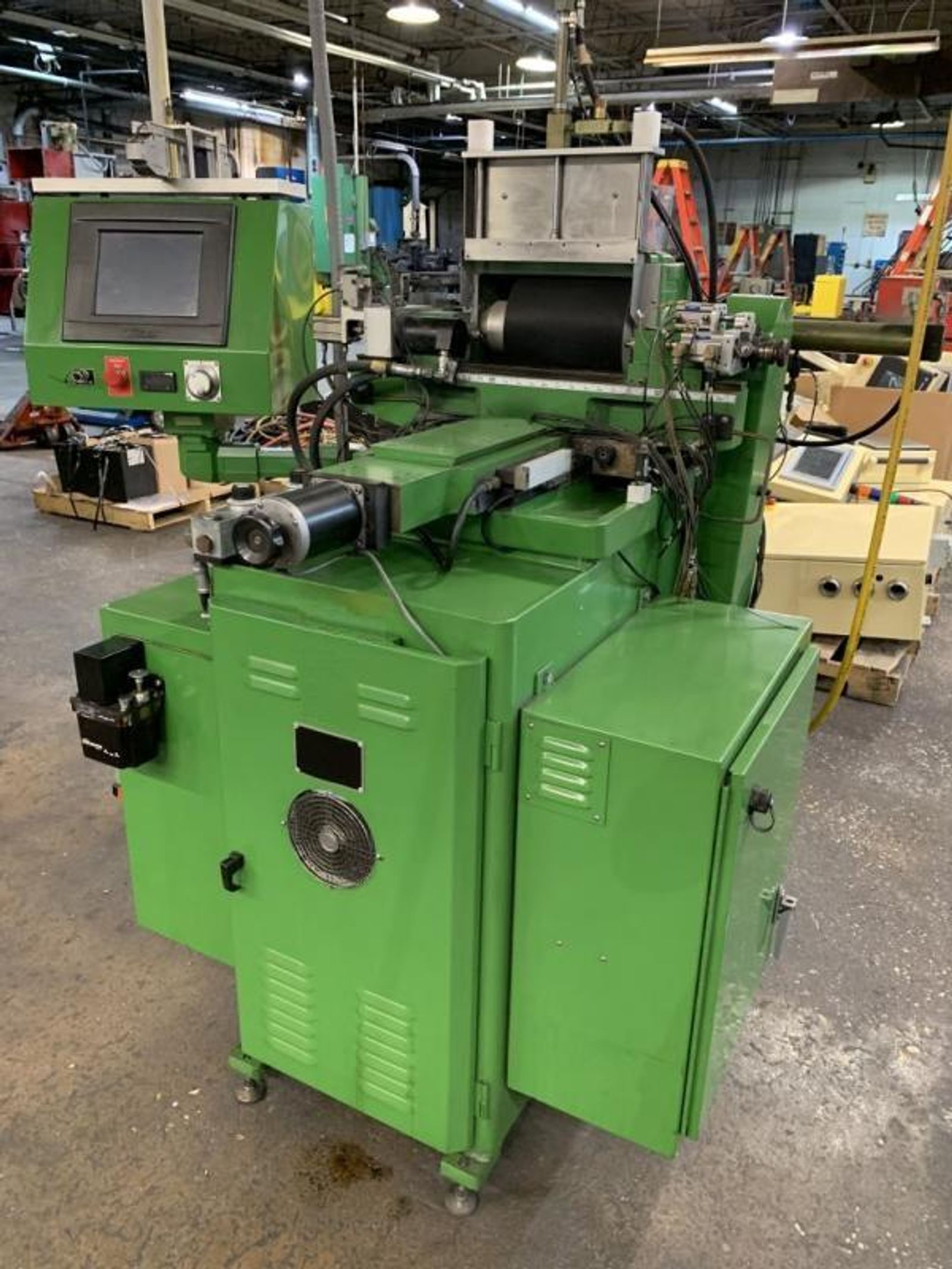

2" X 15 HP GLEBAR MODEL #PG-9CRG PLC PLUNGER GRINDER: STOCK #10388

Brand
GLEBAR

Type
Grinders, Centerless

Stock No.
10388
