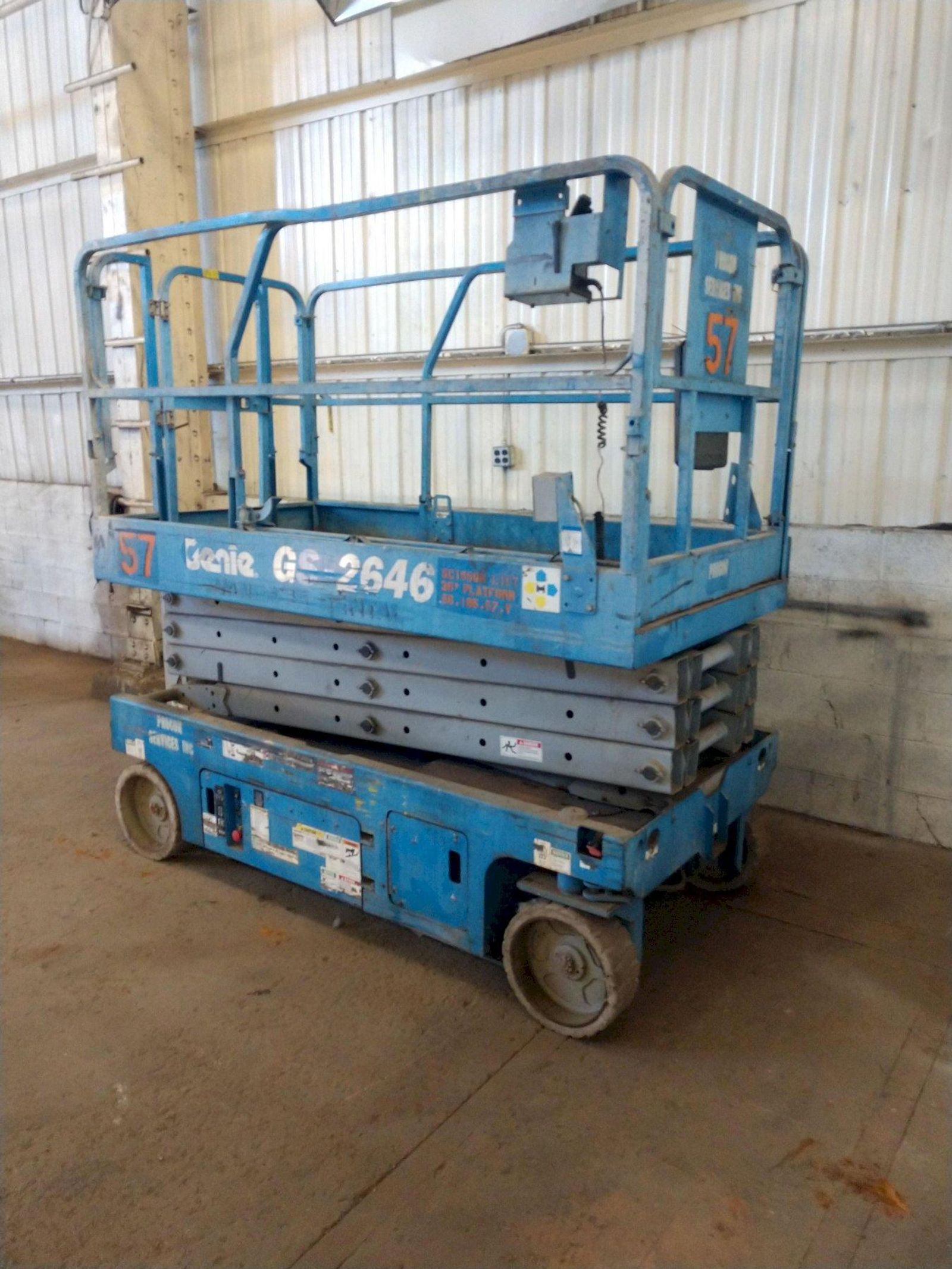

32' GENIE #GS-2646 PORTABLE ELECTRIC MAN LIFT SCISSOR LIFT: STOCK #12367

Stock #: 12367

Equipped With

MODEL ................ GS-2646
WORKING HEIGHT ....... 32'
PLATFORM HEIGHT ...... 26'
LOWERED HEIGHT ....... 3'10"
PLATFORM LENGTH ...... 7'5"
PLATFORM LENGTH ...... 10'5" EXTENDED
PLATFORM WIDTH ....... 3'10"
GUARDRAILS ........... 3'7" HIGH
WHEELBASE ............ 6'1"
GROUND CLEARANCE ..... 4"
LIFT CAPACITY ........ 1,000 LBS
DRIVE SPEED .......... 2.2 MPH STOWED; .5 MPH RAISED
RAISE/LOWER SPEED .... 30/38 SECONDS
DRIVE ................ DUAL FRONT WHEEL
BRAKES ............... DISC REAR WHEEL
TIRES ................ SOLID NON MARKING
POWER ................ 24 VOLT DC
BUILT IN CHARGER ..... YES
AC PLATFORM POWER .... YES
HYDRAULIC SYSTEM ..... 3.75 GALLONS
WEIGHT ............... 4,300 LBS

Buy Machines

32' GENIE #GS-2646 PORTABLE ELECTRIC MAN LIFT SCISSOR LIFT: STOCK #12367

Stock # 12367

Share Machine
Print Details

Machine Specifications

MODEL ................ GS-2646
WORKING HEIGHT ....... 32'
PLATFORM HEIGHT ...... 26'
LOWERED HEIGHT ....... 3'10"
PLATFORM LENGTH ...... 7'5"
PLATFORM LENGTH ...... 10'5" EXTENDED
PLATFORM WIDTH ....... 3'10"
GUARDRAILS ........... 3'7" HIGH
WHEELBASE ............ 6'1"
GROUND CLEARANCE ..... 4"
LIFT CAPACITY ........ 1,000 LBS
DRIVE SPEED .......... 2.2 MPH STOWED; .5 MPH RAISED
RAISE/LOWER SPEED .... 30/38 SECONDS
DRIVE ................ DUAL FRONT WHEEL
BRAKES ............... DISC REAR WHEEL
TIRES ................ SOLID NON MARKING
POWER ................ 24 VOLT DC
BUILT IN CHARGER ..... YES
AC PLATFORM POWER .... YES
HYDRAULIC SYSTEM ..... 3.75 GALLONS
WEIGHT ............... 4,300 LBS
