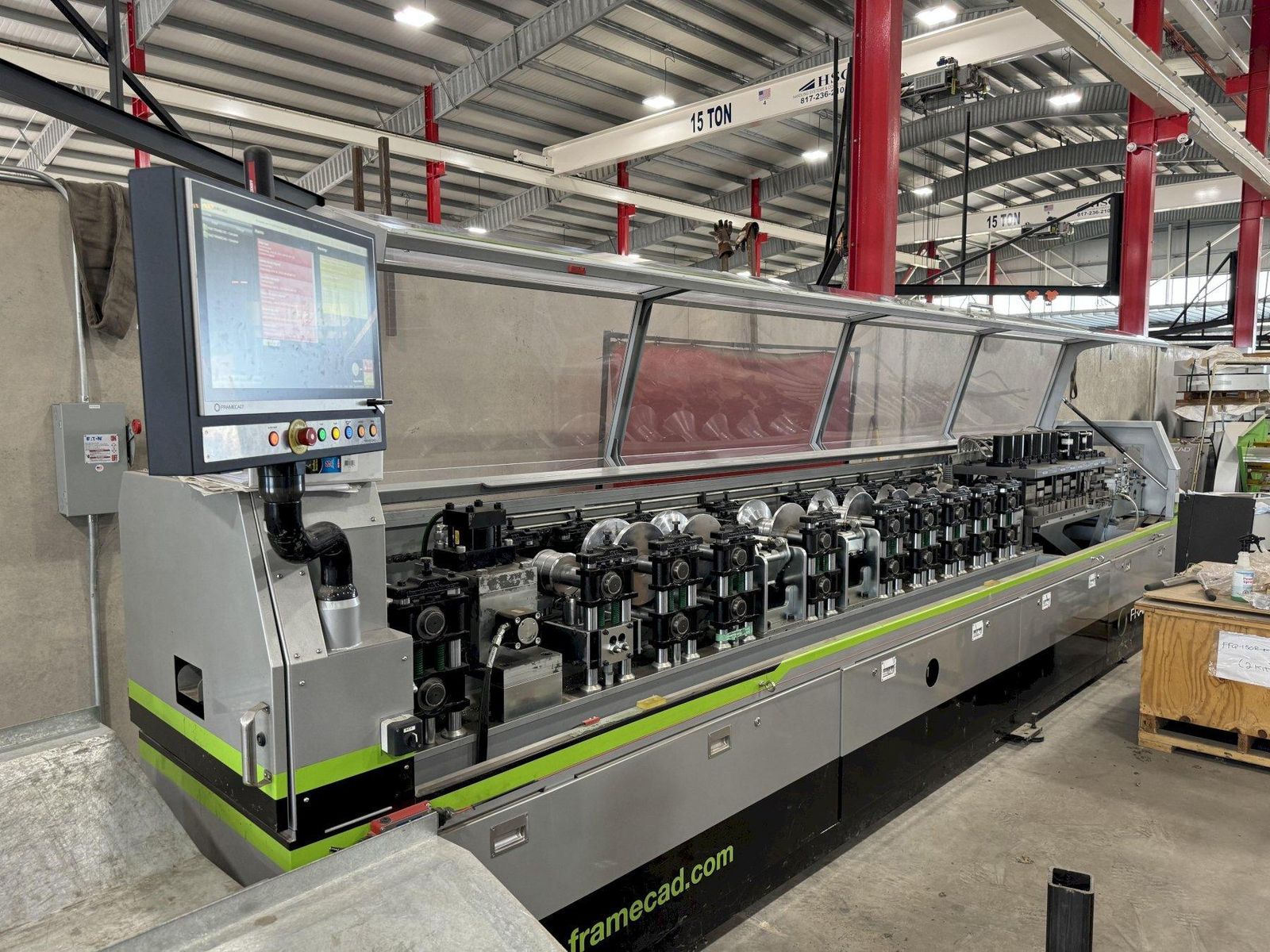

3.5" to 6" WIDTH FRAMECAD (NEW IN 2021) MODEL #TF550 FRAME, TRUSS & JOIST ROLLFORMER SYSTEM: STOCK 21174

Overview

SPECIFICATIONS

TF550H

Profile Width (Web) Range 89 - 150mm or 3⅟₂" - 6"

Profile Height (Flange) Range 34 - 50mm or 1⅟₃" - 2" (Boxable Section recommended)

Material Thickness 0.95 - 2.0mm or 20 - 14 gauge

Roll Forming Stations 13 Stations

Punching Stations 12 Frame and Truss Punching Stations

Standard Punch Tooling* Service Hole, Web Bolt Hole, Dimple, Web Notch, Chamfer, Lip Cut, Flange Cut (left & right), Swage, Shear. (Options to add 2 other tools)

Max Line Speed 1,350m/hr (4,430ft/hr)

Typical Production Speed (actual dependent on framing design) 300m/hr - 600m/hr (985ft/hr - 1,970ft/hr)

Main Drive Power 11kW (15hp)

Hydraulic Power 7.5kW (10hp)

Length 6,500mm (21.3')

Width 1,100mm (3.7')

Height - to top of covers 1,600mm (5.25')

Weight (approx.) 4,820kg (10,630lb)

Printer 2 Printer Heads

Decoiler Capacity 3,000kg (6,600lb) powered Decoiler with heavy duty upgrade

3.5" to 6" WIDTH FRAMECAD (NEW IN 2021) MODEL #TF550 FRAME, TRUSS & JOIST ROLLFORMER SYSTEM: STOCK 21174

Brand
Not Specified

Type
Roll Formers

Stock No.
21174

Make an Offer

Request a Quote

Print Details

Contact Us

844-4YoBros | 419-269-2000

Yoder@YoderBrothersMachinery.com

Files

21174 tf550h_english_lr_jul-2020.pdf

419-269-2000
10559 Geiser Road
Holland, OH 43528

Machine Information

3.5" to 6" WIDTH FRAMECAD (NEW IN 2021) MODEL #TF550 FRAME, TRUSS & JOIST ROLLFORMER SYSTEM: STOCK 21174

Stock #: 21174

Equipped With

SPECIFICATIONS
TF550H
Profile Width (Web) Range 89 - 150mm or 3⅟₂" - 6"
Profile Height (Flange) Range 34 - 50mm or 1⅟₃" - 2" (Boxable Section recommended)
Material Thickness 0.95 - 2.0mm or 20 - 14 gauge
Roll Forming Stations 13 Stations
Punching Stations 12 Frame and Truss Punching Stations
Standard Punch Tooling* Service Hole, Web Bolt Hole, Dimple, Web Notch, Chamfer, Lip Cut, Flange Cut (left & right), Swage, Shear. (Options to add 2 other tools)
Max Line Speed 1,350m/hr (4,430ft/hr)
Typical Production Speed (actual dependent on framing design) 300m/hr - 600m/hr (985ft/hr - 1,970ft/hr)
Main Drive Power 11kW (15hp)
Hydraulic Power 7.5kW (10hp)
Length 6,500mm (21.3')
Width 1,100mm (3.7')
Height - to top of covers 1,600mm (5.25')
Weight (approx.) 4,820kg (10,630lb)
Printer 2 Printer Heads
Decoiler Capacity 3,000kg (6,600lb) powered Decoiler with heavy duty upgrade
