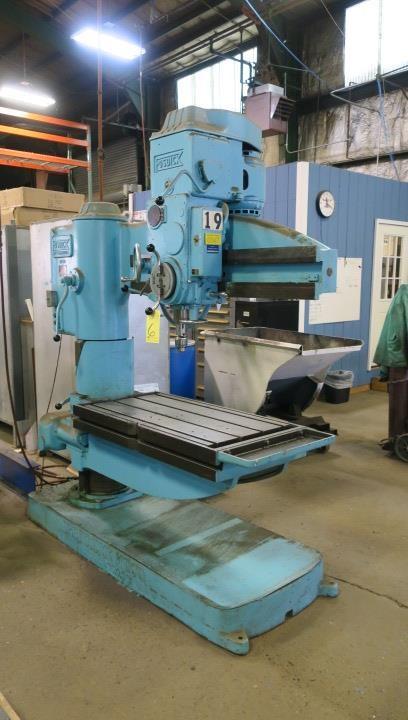

4' X 12" FOSDICK SENSITIVE TYPE RADIAL ARM DRILL: STOCK #10870

Stock #: 10870

Equipped With

SERIAL ............................ 19067
MODEL ............................. 4 SENSITIVE
WORKING SURFACE OF TABLE .......... 48 X 24"
WORKING SURFACE OF BASE ........... 62" X 30"
SPINDLE SPEEDS .................... (9) 50 TO 2000 RPM
FEEDS ............................. (4) .004 TO .020 IPR
SPINDLE TRAVEL .................... 10"
DIAMETER OF SPINDLE ............... 2-3/4"
TAPER IN SPINDLE .................. #4MT
VERTICAL TABLE TRAVEL (POWER) ..... 18"
DISTANCE SPINDLE TO TABLE ......... 0" TO 31-1/2"
DISTANCE SPINDLE TO BASE .......... 42" MINIMUM TO 53" MAXIMUM
DISTANCE SPINDLE TO COLUMN ........ 9" MINIMUM TO 50" MAXIMUM
TRAVEL OF HEAD ON COLUMN .......... 41"
POWER TABLE TRAVERSE .............. YES
COOLANT ........................... YES
HORSEPOWER MAIN MOTOR ............. 5

Buy Machines

4' X 12" FOSDICK SENSITIVE TYPE RADIAL ARM DRILL: STOCK #10870

Stock # 10870

Share Machine
Print Details
Download Images

Machine Specifications

SERIAL ............................ 19067
MODEL ............................. 4 SENSITIVE
WORKING SURFACE OF TABLE .......... 48 X 24"
WORKING SURFACE OF BASE ........... 62" X 30"
SPINDLE SPEEDS .................... (9) 50 TO 2000 RPM
FEEDS ............................. (4) .004 TO .020 IPR
SPINDLE TRAVEL .................... 10"
DIAMETER OF SPINDLE ............... 2-3/4"
TAPER IN SPINDLE .................. #4MT
VERTICAL TABLE TRAVEL (POWER) ..... 18"
DISTANCE SPINDLE TO TABLE ......... 0" TO 31-1/2"
DISTANCE SPINDLE TO BASE .......... 42" MINIMUM TO 53" MAXIMUM
DISTANCE SPINDLE TO COLUMN ........ 9" MINIMUM TO 50" MAXIMUM
TRAVEL OF HEAD ON COLUMN .......... 41"
POWER TABLE TRAVERSE .............. YES
COOLANT ........................... YES
HORSEPOWER MAIN MOTOR ............. 5

Specifications
Arm Length 48 inches
Column Dia. 12 inches
Power 5 horsepower
RPM 2500
Dimensions 90" X 50" X 102" HIGH
Weight 6900 pounds
