Machine Information

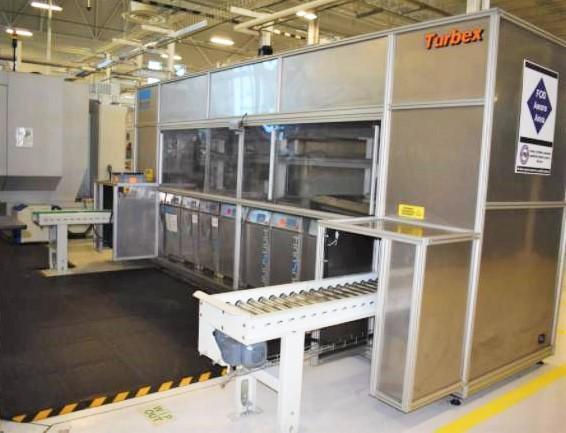

2014 FINNSONIC V031A VERSA+RANGE 7-STATION AUTOMATIC ULTRASONIC PARTS CLEANER: STOCK #15591

Stock #: 15591

Equipped With

SERIAL ......................... 5130091-8-14
MODEL .......................... V031A

YEAR ........................... 2014

6 STAGE SYSTEM:
STAGE 1 ........................ UTLRASONIC CLEANING
STAGE 2 ........................ STORAGE TANK W/ OIL SEPERATION
STAGE 3 ........................ JET TURBULATION RINSING
STAGE 4 ........................ TANK RINSING
STAGE 5 ........................ HOT AIR BLOW DRY
STAGE 6 ........................ VACUUM DRY WITH INFRA RED HEATING

ULTRASONIC WASH TANKS CODE ..... V031VG50
EXTERNAL DIMENSIONS ............ 19"x30"x36"H / 22"X35"X36"H
LOAD CAPACITY ..................
169 LBS
TANK DIMENSIONS ................
14" x 20" x 13"
FILLING VOLUME ................. 11 GALLONS
DISPLACEMENT RESERVE ........... 2 GALLONS
MATERIALS TANK  ................
AISI 304 / AISI 316L / SS2378
HEATING POWER (W) .............. 2000
TEMPERATURE RANGE .............. (C) AAMBIEN -80 DEGREES CELSIUS
ULTRASONIC TECHNOLOGY .......... FINNSONIC GENIUS
ULTRASONIC FREQUENCY (KHZ) ..... 30 (40 for V031VG50H)
ULTRASONIC POWER NOM/PEAK ...... (W) 600/1200
BOOSTER ........................ YES
SWEEP .......................... YES
DEGAS .......................... YES
FILLING VALVE .................. R 1/2"
DRAIN VALVE .................... R 1"
LEVELS SENSOR .................. FLOOR TYPE
VOLTAGE (VAC) .................. 380V/220V/240V /50-60HZ
CONNECTED LOAD ................. (W) 4000
FUSES .......................... 3X10A

NOTES:
NON AGGRESSIVE AQUEOUS LIQUID .. YES
DIGITAL CONTROL PANEL .......... FIN13 "V03"
ADJ TREATMENT TIME ............. (00:00-500:59 MMM:SS)
TEMPERATURE  ................... YES (THREE PROGRAMMABLE PRESETS)
TEMPERATURE LIMIT .............. (7-DAY TIMER)

FINNSONIC CNC CONTROL SYSTEM:
FERROPLAN ROLLER CONVEYOR:
SERIAL ......................................... 12754-21-153090
YEAR ........................................... 2018
EXTERNAL CONTROL ............................... YES
TEMPERATURE INTERLOCK .......................... YES
DRY RUN PROTECTION ............................. YES

Buy Machines

2014 FINNSONIC V031A VERSA+RANGE 7-STATION AUTOMATIC ULTRASONIC PARTS CLEANER: STOCK #15591

Stock # 15591

Share Machine
Print Details

Machine Specifications

SERIAL ......................... 5130091-8-14
MODEL .......................... V031A

YEAR ........................... 2014

6 STAGE SYSTEM:
STAGE 1 ........................ UTLRASONIC CLEANING
STAGE 2 ........................ STORAGE TANK W/ OIL SEPERATION
STAGE 3 ........................ JET TURBULATION RINSING
STAGE 4 ........................ TANK RINSING
STAGE 5 ........................ HOT AIR BLOW DRY
STAGE 6 ........................ VACUUM DRY WITH INFRA RED HEATING

ULTRASONIC WASH TANKS CODE ..... V031VG50
EXTERNAL DIMENSIONS ............ 19"x30"x36"H / 22"X35"X36"H
LOAD CAPACITY ..................
169 LBS
TANK DIMENSIONS ................
14" x 20" x 13"
FILLING VOLUME ................. 11 GALLONS
DISPLACEMENT RESERVE ........... 2 GALLONS
MATERIALS TANK  ................
AISI 304 / AISI 316L / SS2378
HEATING POWER (W) .............. 2000
TEMPERATURE RANGE .............. (C) AAMBIEN -80 DEGREES CELSIUS
ULTRASONIC TECHNOLOGY .......... FINNSONIC GENIUS
ULTRASONIC FREQUENCY (KHZ) ..... 30 (40 for V031VG50H)
ULTRASONIC POWER NOM/PEAK ...... (W) 600/1200
BOOSTER ........................ YES
SWEEP .......................... YES
DEGAS .......................... YES
FILLING VALVE .................. R 1/2"
DRAIN VALVE .................... R 1"
LEVELS SENSOR .................. FLOOR TYPE
VOLTAGE (VAC) .................. 380V/220V/240V /50-60HZ
CONNECTED LOAD ................. (W) 4000
FUSES .......................... 3X10A

NOTES:
NON AGGRESSIVE AQUEOUS LIQUID .. YES
DIGITAL CONTROL PANEL .......... FIN13 "V03"
ADJ TREATMENT TIME ............. (00:00-500:59 MMM:SS)
TEMPERATURE  ................... YES (THREE PROGRAMMABLE PRESETS)
TEMPERATURE LIMIT .............. (7-DAY TIMER)

FINNSONIC CNC CONTROL SYSTEM:
FERROPLAN ROLLER CONVEYOR:
SERIAL ......................................... 12754-21-153090
YEAR ........................................... 2018
EXTERNAL CONTROL ............................... YES
TEMPERATURE INTERLOCK .......................... YES
DRY RUN PROTECTION ............................. YES

Specifications
Dimensions 14" W X 20"LX13"H
