Machine Information

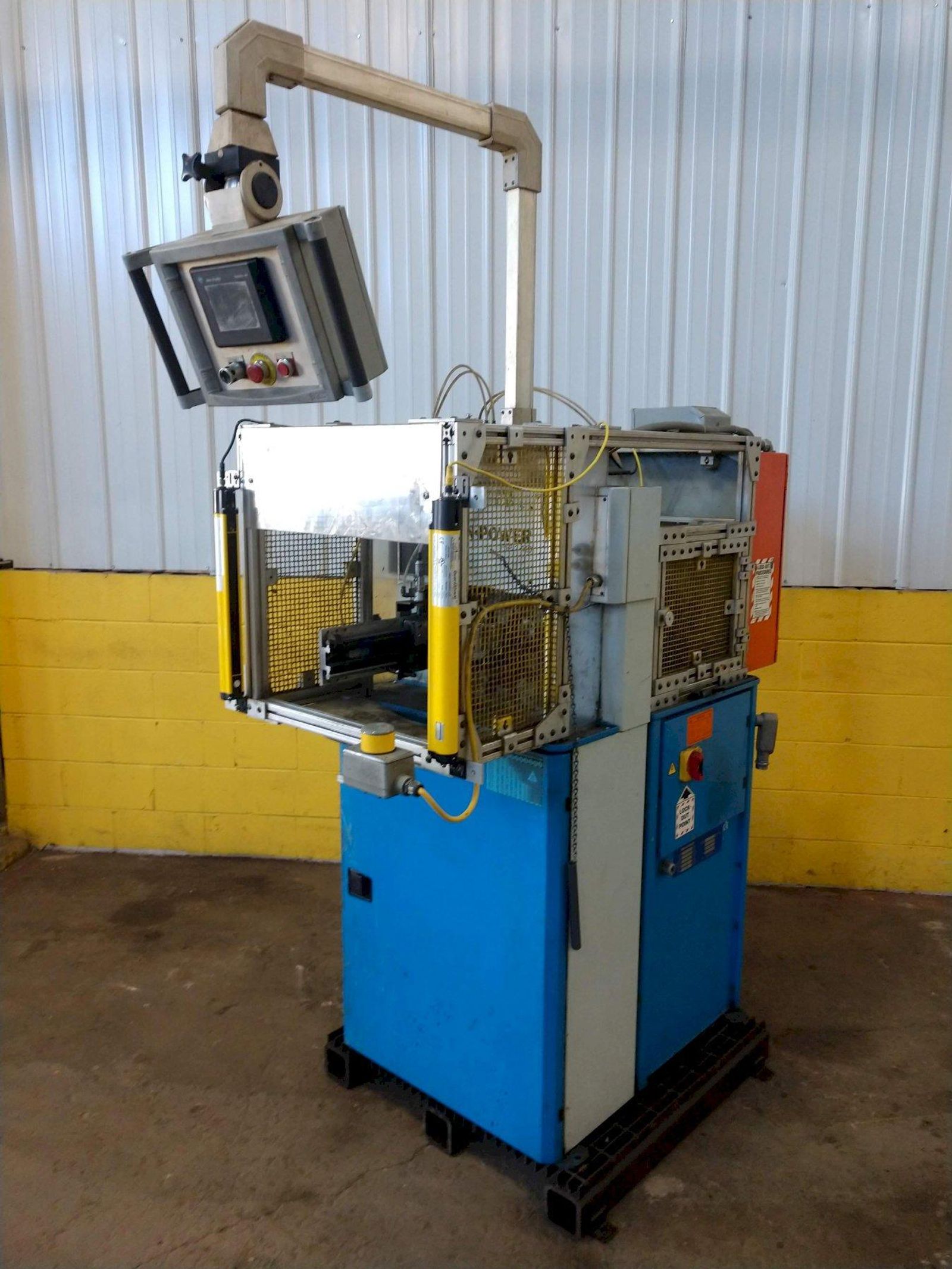

4" FINN POWER MODEL #FP140 XIS22 AUTOMATIC HOSE CRIMPING MACHINE, NEW 2005: STOCK #13813

Stock #: 13813

Equipped With

SERIAL .................. 1.5-FP140XIS-40605
MODEL ................... FP140XIS22
YEAR .................... 2005
CAPACITY ................ 4"
MAXIMUM OPENING ......... 82 MM
MASTER DIE SHOE LENGTH .. 97 MM
PUMP .................... 23 L/MIN
PRESSURE ................ 275 BAR MAXIMUM
CRIMPING FORCE .......... 2500 kN
CLOSING SPEED OF DIES ... 4.2 MM/S
MOTOR ................... 6.6 kW
POWER ................... 460V/3PH


Model FP140X hydraulic swaging machine is suitable for swaging up to 4 ft industrial/chemical hoses with cam and groove locking systems. VS control unit adjusts and swages to exact dimension in 0.01 mm increments. Control panel offers 200 memory settings for swaging diameters, die-sets, and offset. Model FP140X is suitable when variety of sizes and types of fittings, tube and pipe, wire and cable, and plastic and fiberglass need to be swaged.

Buy Machines

4" FINN POWER MODEL #FP140 XIS22 AUTOMATIC HOSE CRIMPING MACHINE, NEW 2005: STOCK #13813

Stock # 13813

Share Machine
Print Details

Machine Specifications

SERIAL .................. 1.5-FP140XIS-40605
MODEL ................... FP140XIS22
YEAR .................... 2005
CAPACITY ................ 4"
MAXIMUM OPENING ......... 82 MM
MASTER DIE SHOE LENGTH .. 97 MM
PUMP .................... 23 L/MIN
PRESSURE ................ 275 BAR MAXIMUM
CRIMPING FORCE .......... 2500 kN
CLOSING SPEED OF DIES ... 4.2 MM/S
MOTOR ................... 6.6 kW
POWER ................... 460V/3PH


Model FP140X hydraulic swaging machine is suitable for swaging up to 4 ft industrial/chemical hoses with cam and groove locking systems. VS control unit adjusts and swages to exact dimension in 0.01 mm increments. Control panel offers 200 memory settings for swaging diameters, die-sets, and offset. Model FP140X is suitable when variety of sizes and types of fittings, tube and pipe, wire and cable, and plastic and fiberglass need to be swaged.

Specifications
Weight 3025 pounds
