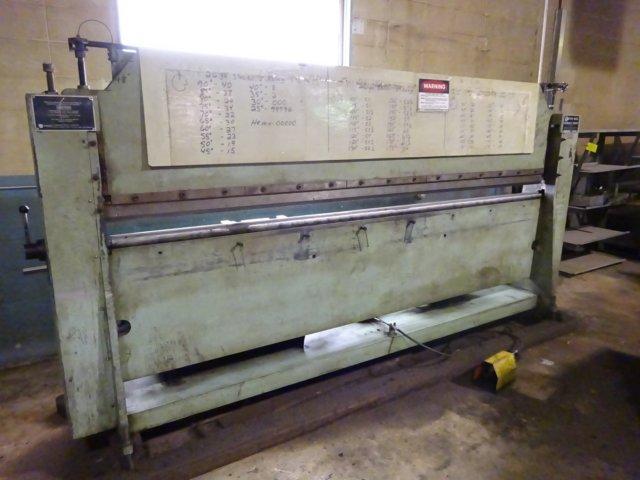

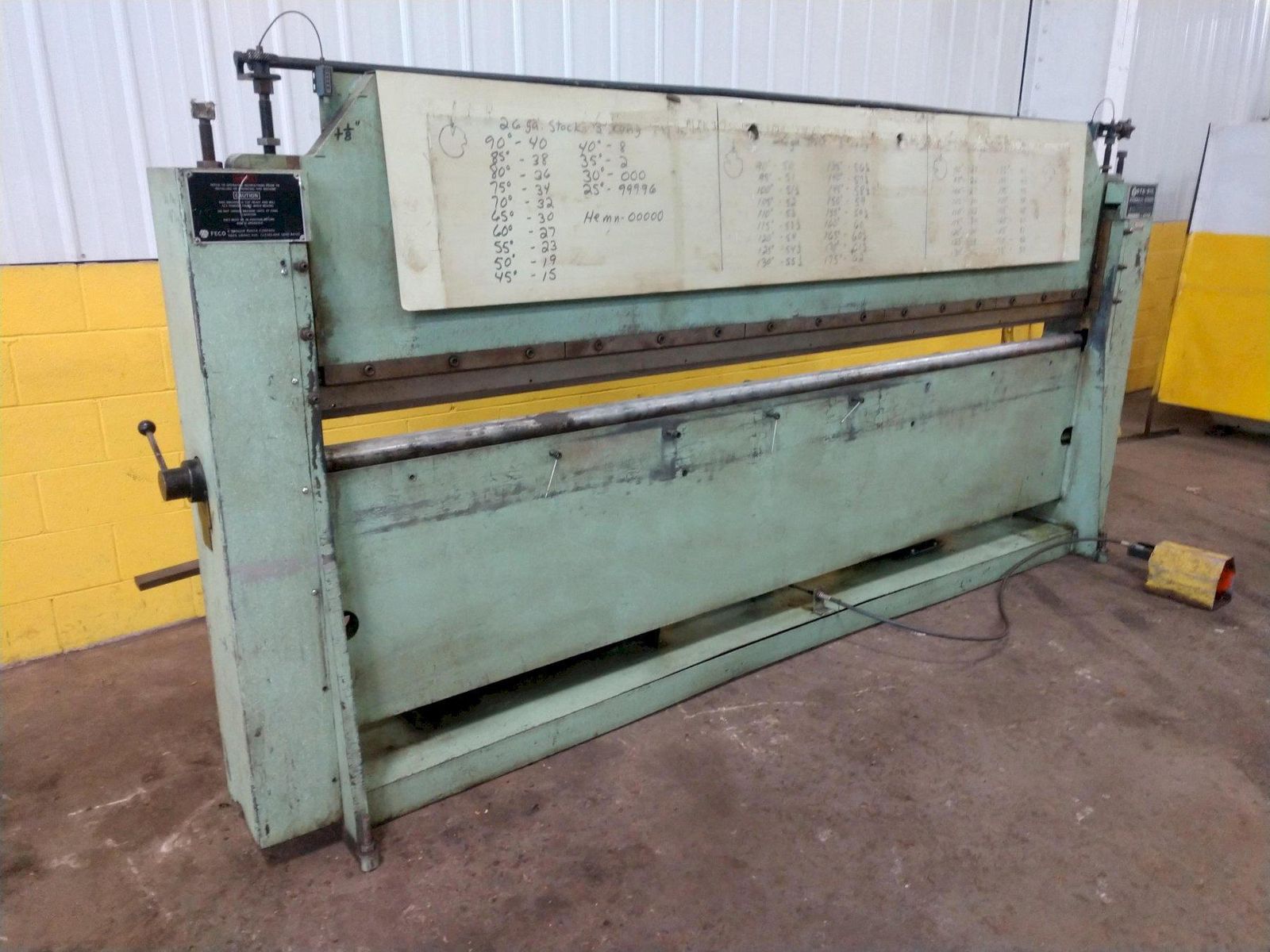

120" x 16 GAUGE ROTO DIE #10 HYDRAULIC SHEET BENDER BRAKE: STOCK #11357

Stock #: 11357

Equipped With

SERIAL ....................... 108A 7145
MODEL ........................ AR640
BENDING CAPACITY ............. 120" X 16 GAUGE
BENDING CAPACITY ............. 72" X 10 GAUGE
LENGTH OF STROKE ............. 3"
STROKES PER MINUTE ........... 20 TO 50
DIE CLEARANCE................. 2-1/8"
DEPTH OF STROKE ADJUSTMENT ... YES
LENGTH OF STROKE ADJUSTMENT .. YES
3 WAY ROTATION BOTTOM DIE .... YES
FOOT SWITCH OPERATION ........ YES
MOTOR ........................ 7-1/2 HORSEPOWER


Buy Machines

120" x 16 GAUGE ROTO DIE #10 HYDRAULIC SHEET BENDER BRAKE: STOCK #11357

Stock # 11357

Share Machine
Print Details

Machine Specifications

SERIAL ....................... 108A 7145
MODEL ........................ AR640

BENDING CAPACITY ............. 120" X 16 GAUGE
BENDING CAPACITY ............. 72" X 10 GAUGE
LENGTH OF STROKE ............. 3"
STROKES PER MINUTE ........... 20 TO 50
DIE CLEARANCE................. 2-1/8"
DEPTH OF STROKE ADJUSTMENT ... YES
LENGTH OF STROKE ADJUSTMENT .. YES
3 WAY ROTATION BOTTOM DIE .... YES
FOOT SWITCH OPERATION ........ YES
MOTOR ........................ 7-1/2 HORSEPOWER

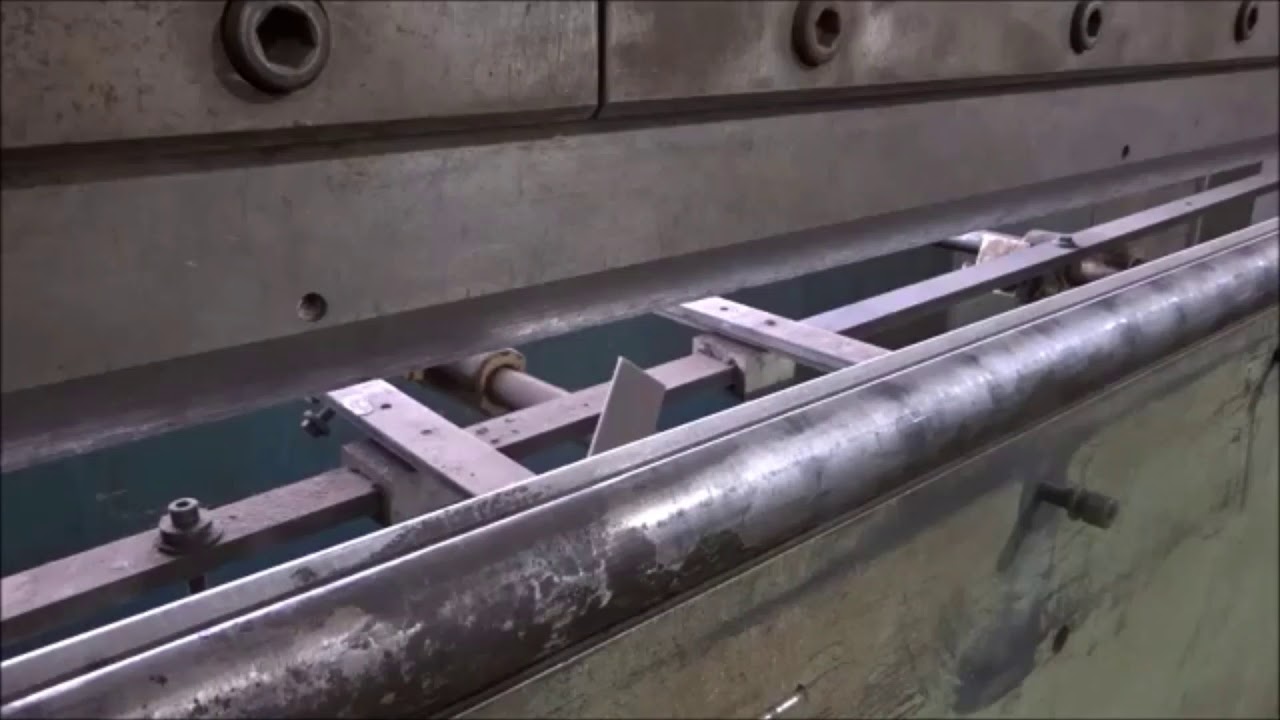

Videos
Specifications
Max Thickness 120 inches
Length of Blade 120 inches
Max Gauge 10
